Vibration Isolation Workstations
Print Copy Copied

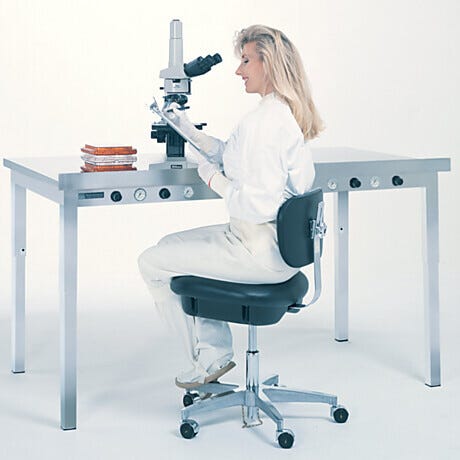

Vibration-Free Work Station
- Pneumatic vibration-free mounts isolate up to 90% of building vibration, eliminate operator fatigue and nausea during microscope operations
- Low-profile, ergonomic design combines stability with convenience
- Built-in pneumatic controller simplifies leveling, allows continuous in-line operation
- Meets Class 100 particle requirements
- Bumper isolates front edge of bench and provides an arm rest
- All-304 stainless steel construction meets the critical cleanliness requirements
Manufacturers who routinely engage in high-magnification operations know there's more than one cause of motion sickness. Shaky work surfaces not only compromise precision and accuracy—they also literally make you sick!
As geometries get smaller and assembly and test procedures become more dependent on high magnifications, it becomes more important than ever before to ensure the optimal work surface for every application. That can mean not only effective vibration isolation, but also Class 1 cleanliness, static-dissipation, automated conveyance systems, and a host of other critical operating conditions. Failure to meet any one of these requirements can lead to microscopic errors—and big problems.
A Modular Vibration-Free Surface For Every Requirement
Terra Universal's Vibration-Free Work Station provides the optimal solution to these problems. It incorporates an advanced vibration-control design to provide the ideal work station for high-precision microelectronic manufacturing and testing operations—such as substrate aligning and measuring, surface profiling, probing, and wire bonding. Because the work station isolates 90% of typical building vibration, it eliminates worker fatigue, headaches, and nausea that result from microscopic operations on a shaky surface.
Each work station consists of five basic components: the frame, benchtop, undertop, shock bumper, and the pneumatic vibration-absorbing mounts and regulation system.
Pneumatic Vibration-Absorbing Mounts
These built-in mounts are designed for applications that require exceptionally high vibration isolation, with a natural frequency down to 2-4 Hz. The vibration absorbing system offers high deflection and a horizontal-to-vertical stillness ratio of one-to-one. This ensures excellent stability without lateral restraints; the system isolates up to 90% of most building vibrations.
By varying the air input supplied to the pneumatic mounts while a load is applied, the floating work surface can be adjusted in height for leveling within ± .25" (6 mm). Since pneumatic mounts operate at zero deflection under load, this work station requires 30% to 60% less free height than conventional benchtops. For most applications, the air pressure in the center body provides a significant portion of the isolation capabilities of the mounts.
In-house air, bottled air, or nitrogen can be used for pressurization of the mounts. The station includes a safety master regulator and an individual pressure regulator and gauge for each vibration isolator to allow easy inflation and balancing of the benchtop. This inflation system also allows you to operate the table while it is continuously connected to the gas supply; this in-line operation is recommended to ensure a steady, balanced work surface.
Each isolator is rated for a 25-100 pound (11.3 kg - 45.4 kg) load, so you can safely operate a standard station with up to 350 pounds (159 mm) of net load (with weight plates removed). For very light loads, under 25 pounds (11.3 kg.), it is recommended that the table be operated with one or more plate weights. Varying weights produce varying vibration-isolation results, depending on the frequency of vibrations in your facility; for best results, experiment with varying plate weight configurations. Weights are included with each station.
Frame and Bench Top
A thick-gauge steel plate provides optimum reinforcement and prevents sagging under heavy loads. This undertop is encased in the recessed underside of the benchtop and fastened to it, forming a two-piece floating work station. It is securely set on four to six vibration-free mounts, isolating the work surface from any possible shocks or vibrations. The undertop also comes with fasteners that allow one or two 40-lb. (18 kg.) weight plates to be added to the bench.
The frame is fabricated of all-welded 2" (51 mm) square 304 stainless steel tubing with 12-gauge thickness. The sturdy welded construction eliminates the need for leg bracing below the top frame, and the heavy-wall tubing allows the bench top to support much heavier loads than conventional benches without sagging.
The legs are fabricated of heavy-gauge 2" (51 mm) and 1.75" (44 mm) square tubing. Telescopoing design allows height adjustment. Benches include plastic, nonmarking glides and are available with the ErgoHeight™ option for motorized height adjustment.
The stainless steel benchtop combines chemical resistance and complete static conductivity. Each of these stations can accommodate virtually any load without sagging, and their ergonomic, low-profile design affords all of the comfort and convenience of standard benches.
A thick-gauge steel plate provides optimum reinforcement and prevents sagging under heavy loads. This undertop is encased in the recessed underside of the benchtop and fastened to it, forming a two-piece floating work station. It is securely set on four to six vibration-free mounts, isolating the work surface from any possible shocks or vibrations. The undertop also comes with fasteners that allow one or two 40-lb. (18 kg.) weight plates to be added to the bench.
-
StockedVibration-Free Work Stations (1570-PP-01)Group of 5 productsFrom$3,253Some ship in 1 - 3 daysStocked
5 Load Capacity1 Top Material1 Top Design1 Frame Material5 Width1 Depth1 HeightAvailable Load Capacity: 360 lb, 350 lb, 550 lb, 540 lb, 530 lbAvailable Top Material: 304 Stainless SteelAvailable Top Design: SolidAvailable Frame Material: 304 Stainless SteelAvailable Width: 48", 60", 72", 84", 96"Available Depth: 30"Available Height: 25"-34" -
Stocked ClearancePlatform, Vibration-Free; 304 Stainless Steel, Solid Top, 21.75"W x 18.25"D x 3"H (1580-02)$1,441Usually ships in 1 - 3 daysStocked -
ClassOne™ Cleanroom Vibration Isolation Tables (3534-PP-01)Group of 8 productsFrom$6,004Some ship in 25 - 35 days1 Load Capacity2 Top Material1 Top Design3 Width2 Depth1 HeightAvailable Load Capacity: 500 lbAvailable Top Material: Electropolished Stainless Steel, 304 Stainless SteelAvailable Top Design: SolidAvailable Width: 47", 35", 60"Available Depth: 36", 30"Available Height: 30" -
CleanBench™ Vibration Isolation Tables (3435-PP-01)Group of 5 productsFrom$3,859Some ship in 25 - 35 days1 Load Capacity2 Top Material2 Top Design4 Width2 Depth1 Height1 Hole SpacingAvailable Load Capacity: 500 lbAvailable Top Material: Stainless Steel Laminate, Stainless Steel/Plastic LaminateAvailable Top Design: Solid, HoneycombAvailable Width: 30", 60", 36", 48"Available Depth: 30", 36"Available Height: 30"Available Hole Spacing: 1/4-20 on 1" spacing - StockedPlatform, Vibration-Free; 304 Stainless Steel, Solid Top, 24" W x 24" D x 3" H (1580-03)$2,215Usually ships in 1 - 3 daysStocked
Filter Products
Product(s)
Vibration Isolation Workstations
- Analytical Instruments
- Autoclaves
- Cleanroom Supplies
- Consumable Kits
- Consumable Tubes
- Dispensers & Supplies
- Disposable Garments
- Garment Racks & Cabinets
- General Purpose Tables
- Gloves
- Hampers
- Hand Washers & Dryers
- Hood Accessories
- Labware Washers
- Laminar Flow Hoods
- Motorized Height Adjustment Tables
- Reusable Garments
- Shakers
- Stairs & Work Platforms
- Vibration Isolation Workstations
- Vortexers
Work PlatformAll-welded, stable, cleanroom-compatible structures include a top platform up to 88”D (2235 mm) for multiple users and large equipment
- 304 Stainless Steel304 stainless steel is durable and chemical resistant, making it the preferred material wherever frequent cleaning and sterilization are required.
- Stainless Steel LaminateThe least expensive top. Offers strong magnetic attachment; somewhat resistant to corrosives and liquids.
- Stainless Steel/Plastic LaminateStainless steel with a plastic laminate on the top surface, offering the same cleanliness and strength with less ferromagnetic attachment strength and higher corrosive-resistance.

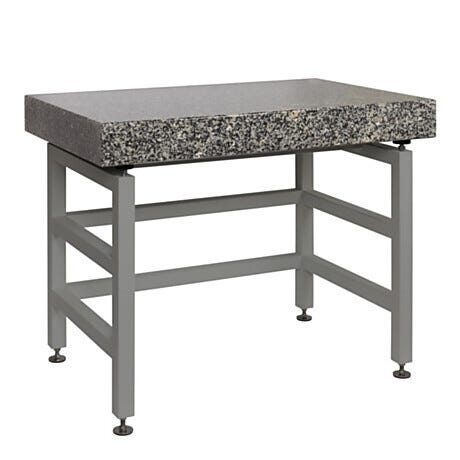

- GraniteGranite's hard, nonporous surface resistts scratching and most harsh cleaning and disinfecting agents.
- Electropolished Stainless SteelStainless steel electrochemically treated to reduce surface imperfections and give uniform polish.
Can't find what you're looking for?Tell us what you need and we'll build it!
Features and Benefits
Vibration-Free Platform with 304 SS Top, 23"W x 24"D x 3"H
Vibration-Free Platforms provide benchtop vibration isolation in both vertical and horizontal directions using pneumatic dampeners; stainless steel construction is cleanroom-compatible.
ClassOne Workstation for Cleanrooms
ClassOne™ Workstations dampen building vibrations that cause operator motion sickness and microscopy inaccuracies.
CleanBench Vibration Isolation Tables
TMC CleanBench™ Vibration Isolation Tables support balanced loads up to 500 lbs.; patented Gimbal Piston™ isolators achieve horizontal and vertical dampening (shown with two optional sliding shelves).
Vibration Isolation Workstations
Nitrogen Generators- Vibration-Free ErgoHeight Adjustable Table, 304 SS Top, 60"W x 30"D
- Vibration-Free Platform with 304 SS Top, 23"W x 24"D x 3"H
- Vibration Control Granite Isolator, 13" x 15"
- Vibration-Free Work Station,304 Stainless Steel, 60"W x 30"D
- CleanBench™ Vibration-Isolation Table; 63500 Series
- ClassOne™ Vibration-Free Table; 63600 Series, EP Stainless Steel
Nitrogen Generators provide a reliable source of clean, dry nitrogen, requiring only a compressed air source Nitrogen Generators Nitrogen Generators eliminates drawbacks of conventional nitrogen sources, and gives you control of rate and purity of nitrogen production. It gives you complete control of the production of nitrogen for use in a wide range of cleanroom applications.
Eliminates shaky surfaces that cause motion sickness (60"W model shown) | 3504-82B displayed Vibration-Free ErgoHeight Adjustable Table, 304 SS Top, 60"W x 30"D Vibration-Free ErgoHeight tables provide a 15" range of vertical motion to ensure personnel comfort while dampening vibration; eliminates worker nausea during high-magnification work.
Cleanroom-compatible vibration isolation platform eliminates operator fatigue and nausea during microscope operations | 1580-03 displayed Vibration-Free Platform with 304 SS Top, 23"W x 24"D x 3"H Vibration-Free Platforms provide benchtop vibration isolation in both vertical and horizontal directions using pneumatic dampeners; stainless steel construction is cleanroom-compatible.

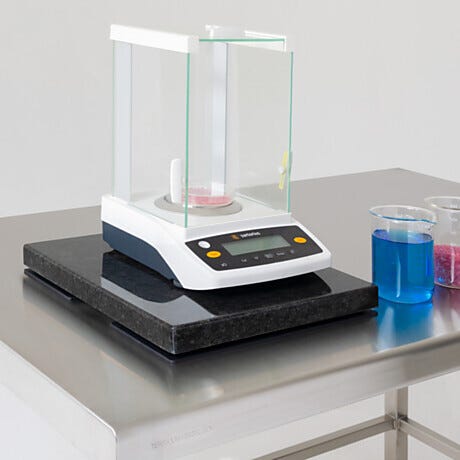

Versatile, portable, light-weight platforms isolate vibration in the X-Y plane | 1580-20 displayed Vibration Control Granite Isolator, 13" x 15" Granite Isolators provide a low-cost, low-profile alternative to vibraiton-dempening work stations; silicone dempeners isolate horizontal vibration with a natural frequency of 2.4 Hz. (shown: 13" x 15" platform).
