Terra Part # 6600-27D-Q-220
Usually ships in 5-9 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 6600-27D-Q-220

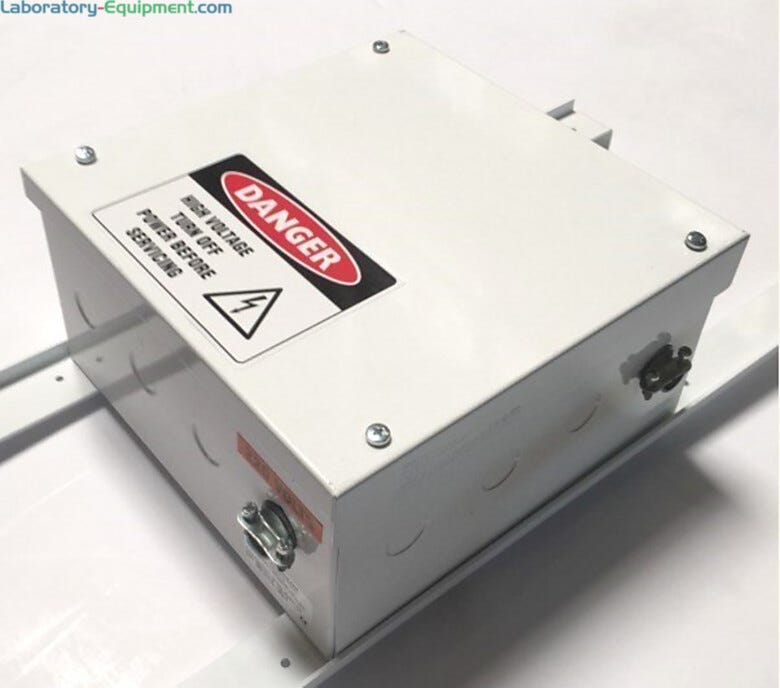

Power Distribution Module; Duplex, Quick Connect Power for Master PDM and (5) Quick Connect Receptacles, 220V, 20A, UL Listed
Product Details
  • Available ISO Ratings: ISO 7, ISO 8
  • Features quick-connect on both power inlet and 5 receptacles
  • Simplifies connection of duplex power outlets to facility power
  • Accommodates up to 5 duplex outlets
  • Configured with quick-connect receptacles and cables for Master PDM
  • Industrial control panel is UL listed for compliance with OSHA and local AHJ (Authorities Having Jurisdiction).
  • Quick-Connect with Master PDM:
  • Quick-connect cables link to Master PDM; main panel board that distributes power to up to 10 PDMs.
  • Industrial twist-lock plugs and receptacles allow for speedy installation, and prevent accidental disconnects. Provides instant, safe, and secure power connection to all PDMs.
  • Note: quick-connect cable length is assumed at 25ft. Customization required for length over 25ft.
  • Since regulations vary considerably in different locations, Terra assumes no responsibility for meeting local building regulations, including fire and seismic codes. Check with your local planning department to see what regulations apply to your installation.

PDM Type: Power Outlet

Unit of Measure: EA

Electrical Specifications: 220/240 V

Marks & Listings: UL, ULC

Package Type: Crate

Buy Accessories
  1. Industrial twist-lock plugs and receptacles provide instant, safe, and secure power connection to all PDMs  |  6600-29-M displayed
    Request Quote
    Increase Down Increase Up

Features and Benefits

Power Distribution Module for Modular Cleanroom

Terra’s Power Distribution Modules (PDMs) drastically simplify connection of fan/filter modules (FFUs) and ceiling lights, while providing low-voltage power for one or more Control Panels. The high-voltage power distribution system is UL-listed for the highest safety and quality.

Quick-Connect Fittings

FFUs and lights can be easily added as cleanrooms requirements change, or disconnected for maintenance, without the need to run additional power lines or involve an electrician.

Operation Status Indicator Light

Modular Cleanrooms include a status indicator light in each corner, which glows when fan/filter units are operating and blinks when they are inactive.

Products Compliant With Your ISO Rating

High-capacity, durable, ISO-compliant system rated for thousands of operating hours.
