- UL-approved, scalable control system for modular and stick-built cleanrooms
- Completely eliminates hard wiring of electrical components
- Tethers to secondary and booster PDMs to power all FFUs, lights, control panels, and outlets
- Plug-and-play design speeds up installation
- Talk to an Expert +1 (714) 578-6100
Control Panels & Power Distribution,Control Panels & Power Distribution,Control Panels & Power Distribution,Control Panels & Power Distribution,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan/Filter Units,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Ceiling Grid Systems
6600-PP-14
6600-PP-14
Power Distribution Modules (PDMs)
Read more
Want a quote quickly ?
Submit a QuickQuote requestProduct Details
Product Details
Features & Benefits
Features and Benefits
Learn More: Control Panels and Power Distribution Modules (PDMs)
Print Copy Copied

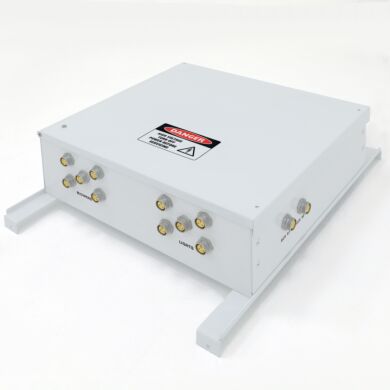

Power Distribution Module Diagram
- PDMs house electrical components in an easy-access housing that makes it easy to add fan/filter units or lights if requirements change
- Control Panel with Operation Status Indicators provides convenient access to all controls and a visual confirmation of cleanroom operation
- Plug-and-play, modular design speeds up installation, whether of Terra-furnished modular cleanroom or Terra cleanroom components used in your own cleanroom structure

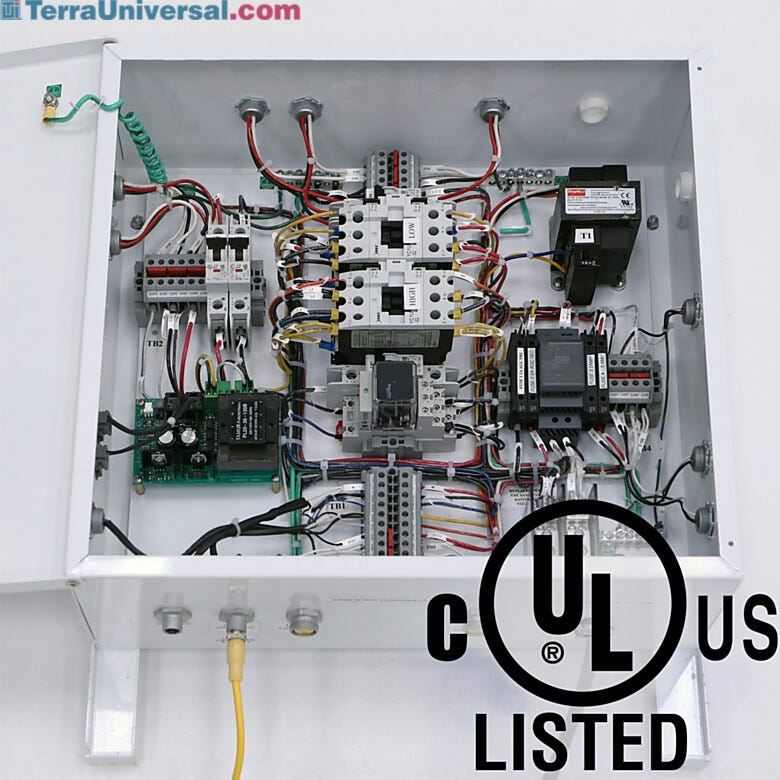

Terra’s Power Distribution Modules (PDMs) dramatically simplify connection of fan/filter modules (FFUs) and ceiling lights, while providing low-voltage power for one or more Control Panels
Each PDM accommodates up to 5 lights and 5 FFUs and must be wired to a dedicated 35A fused 120V circuit or a 30A fused 240V circuit. Select among four PDM types (see configuration chart below):
UL-Listed for Highest Safety and Quality
Ensuring the safety of your employees, customers, and products is essential. Terra's UL-listed PDM's and air filtering systems are manufactured to the highest standards to reduce the risk of damage, injuries, and electrical hazards such as electric shock and fires. UL (Underwriters Laboratories) is recognized around the world as the leader in product safety testing and certification. The UL listing helps meet municipal and other permitting requirements that may be required before a cleanroom can be approved for operation. It ensures safety and integrity of high voltage cleanroom electrical system, as evaluated by independent third-party UL.
Leave Room for Growth!
If there’s chance that you may require additional FFUs to accommodate cleaner conditions, leave each PDM below its maximum FFU capacity. FFUs and lights can be added at any time, with no need for an electrician or hard-wiring, as long as the maximum of five of either module per PDM is not exceeded.
Control Panel
- Provides centralized control and monitoring of cleanroom functions
- Typically mounted at the main entry of the cleanroom
- Optional Night Service Mode switches FFUs into low-energy mode during off-hours to lower operating costs without shutting down the cleanroom.
- Can be upgraded to Smart Control System for added environmental sensors and FFU control to meet critical performance/monitoring requirements.
Filter replacement alarm
- Helps avoid unexpected and costly cleanroom operational interruptions by automatically alerting for cleanroom filter replacements
- 1 Filter Replacement Alarm can cover for all Filter Fan Units (FFUs) in the cleanroom
- Provides both audible and visual alarm
- Audible: Buzzer with silencer
- Visual: TUI Logo flashes
- Includes adjustable alarm set-point to adjust frequency of filter replacement based on backpressure within a FFU
- Typically mounts next to the cleanroom control panel
- Connections:
- Power: power connects to either the cleanroom’s power distribution module, or to a standard 120V/220V outlet
- Pressure: ¼" plastic tubing connects from the alarm unit to one FFU
Night Service Switch
- Energy-saving mode saves 25% of fan operating costs by reducing power consumption during off-hours
- Maintains round-the-clock cleanroom integrity at lower cost
- Easy to activate via panel-mounted switch (Wireless Cleanroom Control System also available)
Why Pay More for Less?
Terra cleanrooms are designed to meet a specified ISO cleanliness rating when a cleanroom is in use: with operations in progress, process machinery humming, and personnel in motion. So why pay to maintain that level of FFU performance when a production shift ends and people, the greatest source of contamination, leave the room?
With a greatly reduced contaminant load, a cleanroom at rest maintains its target ISO cleanliness standard with much less airflow, fewer air changes—and decreased power consumption. Terra’s Night Service Switch provides this cleanliness at a nominal cost, giving you immediate cost savings.
Simply select the "Night Service" Switch when you turn off the lights and go home. A separate operation circuit drops all Fan/Filter Units (FFUs) into low-energy operation mode, shaving 25% of energy costs off your power bill while maintaining uninterrupted cleanroom performance at your specified cleanliness level. With Terra's Night Service Switch, operators can save up to 7,000 kilowatt-hours per year with a return on investment in slightly over a year.*
Ordering Information
A complete system includes fan/filter units and Terra's standard Power Distribution Modules (order separately), in addition to the units specified below. The Night Service Switch includes electronic configuration of each FFU controlled by this system. The Control Panel includes switch settings and indicator lights for Normal Mode and Night Service Mode, as well as a tamper-resistant master FFU Off switch.
Comparative Specifications
| Operating Setting: | High Speed** | Medium Speed** | Night Service |
|---|---|---|---|
| Airflow: cfm (m^3/hr) | 808 (1373) | 717 (1218) | 654 (1111) |
| Air Speed: ft/m (m/s) | 115 (0.58) | 102 (0.51) | 93 (0.47) |
| Run Amps (Watts): | 4.3 (512) | 3.5 (416) | 3.3 (393W)* |
*25% savings over operation on high speed
**Based off of an average-sized cleanroom with 10 FFUs, active cleanroom usage of 8 hours per day, and the U.S. Energy Information Administration's given average retail price of electricity at 10.72 cents per kilowatt-hour.
Power Distribution Module for Modular Cleanroom
Terra’s Power Distribution Modules (PDMs) drastically simplify connection of fan/filter modules (FFUs) and ceiling lights, while providing low-voltage power for one or more Control Panels. The high-voltage power distribution system is UL-listed for the highest safety and quality.
Quick-Connect Fittings
FFUs and lights can be easily added as cleanrooms requirements change, or disconnected for maintenance, without the need to run additional power lines or involve an electrician.
Operation Status Indicator Light
Modular Cleanrooms include a status indicator light in each corner, which glows when fan/filter units are operating and blinks when they are inactive.
Continuous Product Improvement
At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 50 years of engineering and application expertise, and our commitment to continuously improve.
Products Compliant With Your ISO Rating
High-capacity, durable, ISO-compliant system rated for thousands of operating hours.
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
Energy-Efficient Lighting
Energy-efficient LED lighting panels and strips help to lower electrical costs and minimize heat build-up in temperature-controlled environments.
Other products you may find relevant
- Portable Nitrogen Gas Generator; Self-Contained With Compressor and Tank, 7.18" W x 16.08" D x 23.98" H$4,917Usually Ships in 3 - 5 days
- Usually Ships in 1 - 3 days
- Usually Ships in 5 - 11 days
- Usually Ships in 5 - 7 days
- Usually Ships in 1 - 3 days
- Usually Ships in 0 - 2 days
- Usually Ships in 10 - 14 days
- Usually Ships in 20 - 26 days
- Usually Ships in 5 - 10 days
- Some ship in 1 - 3 days
- Some ship in 0 - 2 days
- Some ship in 21 - 23 days
- Some ship in 1 - 3 days
- Some ship in 5 - 7 days
- Some ship in 1 - 3 days
- Group of 10 productsSure-Grip® Flammable Liquid EX Safety Can Storage Cabinets from Justrite FromAs low as $1,188Some ship in 3 - 5 days
- Group of 8 productsSure-Grip® EX Undercounter Flammable Safety Cabinets by Justrite FromAs low as $1,204Some ship in 8 - 12 days
- Some ship in 8 - 12 days
- Some ship in 8 - 12 days
- Some ship in 8 - 12 days
- Some ship in 3 - 5 days
- Some ship in 1 - 3 days
- Some ship in 5 - 7 days
- Some ship in 1 - 3 days
- Some ship in 1 - 3 days
- Group of 21 productsErgoHeight® Electric Height Adjustable Cleanroom Workstations FromAs low as $1,825Some ship in 1 - 3 days
- Some ship in 8 - 14 days
- Some ship in 7 - 7 days
- Some ship in 0 - 2 days
Buy Accessories
Manuals & Resources
On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*
- FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
- FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
- FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.
Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.
* Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
Power Distribution Module Diagram
- PDMs house electrical components in an easy-access housing that makes it easy to add fan/filter units or lights if requirements change
- Control Panel with Operation Status Indicators provides convenient access to all controls and a visual confirmation of cleanroom operation
- Plug-and-play, modular design speeds up installation, whether of Terra-furnished modular cleanroom or Terra cleanroom components used in your own cleanroom structure

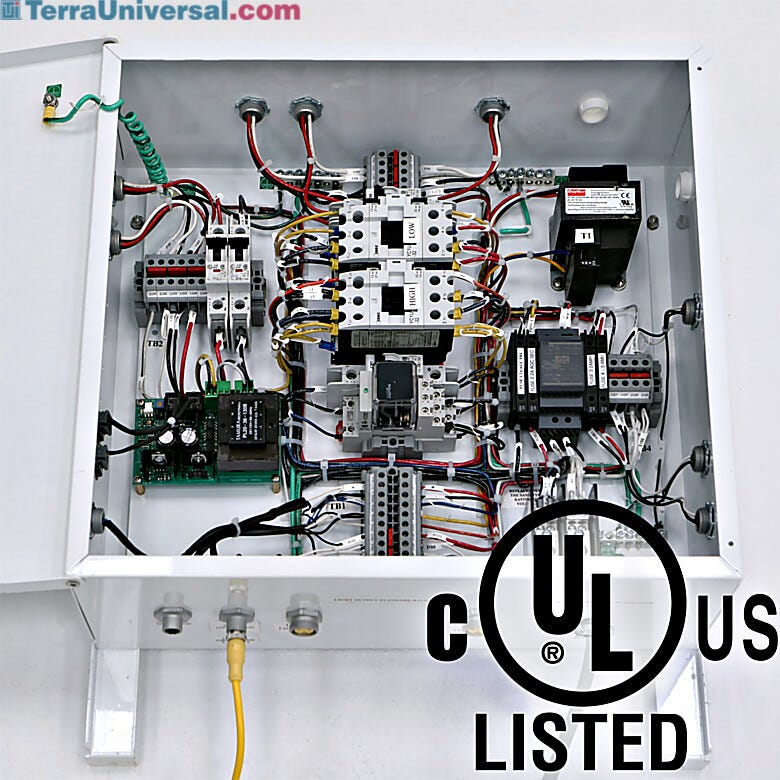

Terra’s Power Distribution Modules (PDMs) dramatically simplify connection of fan/filter modules (FFUs) and ceiling lights, while providing low-voltage power for one or more Control Panels
