1410-13
Terra Part # 1410-13
$27,004
Usually ships in 20-26 business days

Want it faster ? Read about FasTrak

Terra Part # 1410-13
70465
$27,004
Usually ships in 20-26 business days

Want it faster ? Read about FasTrak

Product Details
  • Automated water and waste water management system
  • Wide temperature and humidity testing range; accurately maintains set climate conditions
  • APT.lineâ„¢ preheating chamber technology
  • Humidity regulation with capacitive humidity sensor and vapor humidification
  • Includes illumination cassettes and stainless steel racks
  • Temperature range with light: 10 °C to 60 °C
  • Temperature range: 0 °C to 70 °C
  • Relative humidity range from 10 to 80%
  • Number of illumination cassettes (std./max.): 3/3
  • Temperature range without illumination cassettes [°C]: 32-158 °F (0-70 °C)
  • Temperature range with 100% illumination [°C]: 41-140 °F (5-60 °C)
  • Temperature variation without illumination cassettes [± K]: 0.5
  • Temperature variation with 100% illumination [± K]: 1
  • Temperature fluctuation without illumination cassettes [± K]: 0.1
  • Temperature fluctuation with 100% illumination [± K]: 0.1
  • Humidity range without illumination [% RH]: 0 - 80
  • Humidity range with illumination cassettes, with illumination [% RH]: 10 – 75%
  • Illumination per cassette Daylight tubes [lx]: 13000
  • Illumination per cassette Fluora® growth lamps [lx]: 10500
  • Illumination per cassette Arabidopsis lamps [lx]: 14000
  • Easy-to-use touchscreen controller features time-segment and real-time programming with internal data recording
  • Tight-sealing inner glass door with special TIMELESS coating
  • Access port with silicone plug, 30 mm, left
  • Class 3.1 independent temperature safety device with visual and audible temperature alarm

• Application: Plant Growth

• Temperature Range: Ambient to 70°C

• Humidity Control: Yes

• Refrigerated: Yes

• Design: Free Standing

• Manufactured by: Binder

• Model: KBWF

• Type: Growth

• Capacity: 24.7 cu. ft.

• Interior Material: Stainless Steel

• Exterior Material: Powder Coated Steel

• Manufacturer SKU: 9020-0337

• Family: KBWF Series

• Maximum Temperature: 70°C

• Convection Type: Forced Air

• Capacity Range: >24 cubic feet

• Unit of Measure: EA

• Electrical Specifications: 120 V, 1 Ph, 50/60 Hz

• Dimensions, Product: 49.2" W x 35" D x 75.8" H

• Weight, Shipping: 825 lb

• Dimensions, Shipping: 49.2" W x 35" D x 75.8" H

• Package Type: Palletized

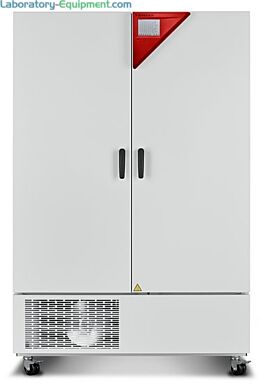

  • BINDER KBWF 240 Growth Chambers with Stainless Steel Inner Chamber BINDER KBWF 240 Growth Chambers with Stainless Steel Inner Chamber
  • KBWF Patented Lighting System KBWF Patented Lighting System

Features and Benefits

Learn More: KBWF Specifications

KBWF Series Plant Growth Chambers Technical Specifications

BINDER Growth Chambers Options and Accessories
  • Arabidopsis illumination cassette
  • Calibration certificates
  • Class 3.3 independent temperature safety device
  • Data Logger Kit
  • Data Logger Software
  • Door lock
  • FLUORA® illumination
  • Interface converter, USB / RS422
  • Interior electrical sockets
  • Pt 100 temperature sensor
  • Stainless steel racks
  • Stainless steel shelf, perforated or reinforced
Model KBWF 240 KBWF 720
Electrical 200-240v, 50Hz 200-240v, 50Hz
Net weight of the unit (kg) 430 lbs. (195kg) 825 lbs. (374kg)
External Dimensions W" x D" x H" (mm) 36.4 x 31.5 x 57.7 in.
(925 x 800 x 1465 mm)
49.2 x 35 x 75.8 in.
(1250 x 890 x 1925 mm)
Internal Dimensions W" x D" x H" (mm) 25.6 x 19.1 x 30.9 in.
(650 x 485 x 785mm)
38.3 x 22.7 x 49.2 in.
(973 x 576 x 1250mm)
Internal Volume (L) 8.72 cu. ft. (247 L) 24.7 cu. ft. (700 L)
Unit doors 1 2
Number of stainless steel racks (std./max.) 2/7 3/12
Number of illumination cassettes (std./max.) 2/2 3/3
Temperature range without illumination cassettes [°C] 32-158 °F (0-70 °C) 32-158 °F (0-70 °C)
Temperature range with 100% illumination [°C] 50-140 °F (10-60 °C) 50-140 °F (10-60 °C)
Temperature variation without illumination cassettes [± K] 0.5 0.5
Temperature variation with 100% illumination [± K] 0.5 1
Temperature fluctuation without illumination cassettes [± K] 0.1 0.1
Temperature fluctuation with 100% illumination [± K] 0.2 0.1
Humidity range without illumination [% RH] 10-80 10-80
Humidity range with illumination cassettes, with illumination [% RH] 10-75 10-75
Illumination per cassette Daylight tubes [lx] 9000 13000
Illumination per cassette Fluora® growth lamps [lx] 7500 10500
Illumination per cassette Arabidopsis lamps [lx] 11000 14000
Computer Interface Ethernet Ethernet

Homogeneous Temperature Distribution

APT.lineâ„¢ preheating chamber technology with dual-side air flow ensures long-term temperature uniformity even with a full load

KBWF Growth Chamber Humidity Control

Patented long-life humidification system and capacitive humidity sensor ensure on target humidity values.

KBWF Growth Chamber Intuitive Touchscreen Controller

KBWF Growth Chambers feature state-of-the-art controller technology with time-segment, real-time programming and internal data recording.
