1410-06
Terra Part # 1410-06
$16,081
Usually ships in 15-21 business days

Want it faster ? Read about FasTrak

Terra Part # 1410-06
70458
$16,081
Usually ships in 15-21 business days

Want it faster ? Read about FasTrak

Product Details
  • Automated water and waste water management system
  • Wide temperature and humidity testing range; accurately maintains set climate conditions
  • APT.lineâ„¢ preheating chamber technology
  • Humidity regulation with capacitive humidity sensor and vapor humidification
  • Includes 2 stainless steel racks and 4 stable castors, two with brakes, from 240 liters
  • Humidity range [% RH]: 10-80
  • Temperature variation at 40 °C [± K]: 0.3
  • Temperature fluctuation [± K]: 0.1
  • Max. heat compensation at 40 °C [W]: 300
  • Temperature variation at 25 °C and 60 % RH [± K]: 0.3
  • Temperature variation at 40 °C and 75 % RH [± K]: 0.3
  • Temperature fluctuation at 25 °C and 60 % RH [± K]: 0.1
  • Temperature fluctuation at 40 °C and 75 % RH [± K]: 0.1
  • Humidity fluctuation at 25 °C and 60 % RH: 1,5 ± % RH
  • Humidity fluctuation at 40 °C and 75 % RH: 1,5 ± % RH
  • Load per rack: 66 lbs.
  • Energy consumption at 40 °C and 75 % RH [Wh/h]: 650
  • Sound-pressure level [dB(A)]: 52
  • Number of shelves (std./max.): 2/9
  • Easy-to-use touchscreen controller features time-segment and real-time programming with internal data recording
  • Tight-sealing inner glass door with special TIMELESS coating
  • Access port with silicone plug, 30 mm, left
  • Class 3.1 independent temperature safety device with visual and audible temperature alarm

• Application: Environmental Testing

• Temperature Range: Ambient to 70°C

• Humidity Control: Yes

• Refrigerated: Yes

• Design: Free Standing

• Manufactured by: Binder

• Model: KBF

• Type: Humidity

• Capacity: 8.7 cu. ft.

• Interior Material: Stainless Steel

• Exterior Material: Powder Coated Steel

• Manufacturer SKU: 9020-0322

• Family: KBF Series

• Maximum Temperature: 70°C

• Convection Type: Forced Air

• Capacity Range: <12 cubic feet

• Unit of Measure: EA

• Electrical Specifications: 230 V, 1 Ph, 50/60 Hz

• Dimensions, Product: 36.4" W x 31.5" D x 57.5" H

• Weight, Shipping: 406 lb

• Dimensions, Shipping: 36.4" W x 31.5" D x 57.5" H

• Package Type: Palletized

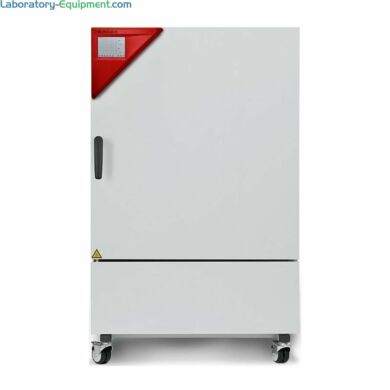

  • BINDER Worldwide KBF 240 Humidity Test Chamber BINDER Worldwide KBF 240 Humidity Test Chamber
  • BINDER Worldwide KBF and KMF Humidity Test Chamber BINDER Worldwide KBF and KMF Humidity Test Chamber

Features and Benefits

Learn More: KBF Humidity Test Chambers

KBF Series Humidity Test Chambers

Light Cassettes, LQC and data logger with optional ambient sensor

Binder offers a wide variety of options for the KBF Series Humidity chambers from additional stainless steel shelves and access ports to Data Logger Kits and calibration certificates

Water Source Options for KBF Series Humidity Test Chambers

Binder offers water source options for the KBF Series to satisfy various water supply preferences when using house water or BINDER Pure Aqua; external water tanks are also available

BINDER Growth Chambers Options and Accessories
  • Access port with silicone plug (right, left or top from 30 mm to 100 mm)
  • Alarm output, zero-voltage
  • Analog output 4-20 mA
  • Calibration certificate, expanded
  • Calibration certificate, temperature
  • Calibration certificate, temperature and humidity
  • Class 3.3 independent temperature safety device
  • Converter, voltage
  • Data Logger Kit
  • Data Logger Software
  • Door lock
  • Interface converter
  • Interface converter, USB / RS422
  • Interior socket
  • LED light bars
  • pH-neutral detergent
  • PT 100 temperature sensor
  • Rack accessories
  • Rack, reinforced
  • Stainless steel racks
  • Stainless steel perforated shelves
  • RS 422 interface
  • RS 422 interface, cable (15 m)
  • RS 422 interface, cable (50 m)
  • RS 485, 2- wire
  • Software (various versions of the APT-COM communications software)
  • Water supply set
Model KBF 115 KBF 240 KBF 720 KBF 1020
Internal Volume 3.6 cu. ft. (102L) 8.72 cu. ft. (247 L) 24.72 cu. ft. (700 L) 36 cu. ft. (1020L)
External Dimensions W" x D" x H" (mm) 34.7 x 25.6 x 41.3 in. (880 x 650 x 1050 mm 36.4 x 31.5 x 57.5 in. (925 x 800 x 1460 mm) 49.21 x 35.04 x 75.79 in. (1250 x 890 x 1925 mm) 49.21 x 45.1 x 75.79 in. (1250 x 1145 x 1925 mm)
Internal Dimensions W" x D" x H" (mm) 23.6 x 13.8 x 19.0 in. (600 x 351 x 483mm) 25.59 x 19.09 x 30.91 in. (650 x 485 x 785 mm) 38.31 x 22.68 x 49.21 in (973 x 576 x 1250 mm) 38.4 x 32.9 x 49.21 in. (976 x 836 x 1250 mm)
Temperature range [°C] 0-70 0-70 0-70 0-70
Temperature variation at 40 °C [± K] 0.2 0.3 0.2 0.2
Temperature fluctuation [± K] 0.1 0.1 0.1 0.5
Max. heat compensation at 40 °C [W] 200 300 600 600
Temperature range [°C] 10-70 10-70 10-70 10-70
Temperature variation at 25 °C and 60 % RH [± K] 0.2 0.3 0.2 0.2
Temperature variation at 40 °C and 75 % RH [± K] 0.2 0.3 0.2 0.2
Temperature fluctuation at 25 °C and 60 % RH [± K] 0.1 0.1 0.1 0.1
Temperature fluctuation at 40 °C and 75 % RH [± K] 0.1 0.1 0.1 0.1
Humidity range [% RH] 10-80 10-80 10-80 10-80
Humidity fluctuation at 25 °C and 60 % RH ≤2 ± % RH 1.5 Â± % RH 1.5 Â± % RH 1.5 Â± % RH
Humidity fluctuation at 40 °C and 75 % RH ≤2 ± % RH 1.5 ± % RH 1.5 Â± % RH 1.5 Â± % RH
Inner doors 1 1 2 2
Unit doors 1 1 2 2
permitted load [lbs.] 220 220 331 331
Load per rack [lbs.] 66 66 99 99
Energy consumption at 40 °C and 75 % RH [Wh/h] 470 650 620 650
Sound-pressure level [dB(A)] 52 52 53 56
Number of shelves (std./max.) 2/5 2/9 2/15 2/15
Electrical 200-230v, 50/60Hz 200-230v, 50/60Hz 200-230v, 50/60Hz 200-230v, 50/60Hz

Double Sided Air Flow

Doubled sided airflow ensures constant temperature and humidity across the entire testing area under full load conditions.

Climate Diagram

Wide temperature and humidity range maintain maximum parameter uniformity for optimum conditions within the test chamber environment

ICH Check Points for BINDER KBF Series

Shows temperature and humidity ICH checkpoints for long-term testing, accelerated testing and stress testing of KBF Test Chambers.
