  • KBF P Humidity Test Chamber by BINDER with ICH-compliant UV/Vis light source
  • Provides stable long-term test conditions
  • Capacity: 8.7 cu. ft.
  • Temperature range with light: 10 °C to 60 °C
  • Includes 2 illumination cassettes, 2 stainless steel racks and stable casters
  • Temperature range: 0 °C to 70 °C
  • Internal dimensions: 25.61W x 19.11D x 30.93H in. (650.50 x 485.40 x 785.62 mm)
  • Material: stainless steel inner chamber and racks; safety glass (ESG) tight-sealing inner door
  • Humidity range: 10 % to 80 % RH
  • Access port with silicone plug: 30 mm (left)
  • Load per rack: 66 lbs.
  • Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
  • Application: photostability tests
  • Complies with ICH Guideline Q1B, Option 2
  • Homogeneous lighting conditions
  • Variable-position illumination cassettes
  • Features humidity regulation with capacitive humidity sensor and vapor humidification
  • Avoids glass corrosion with TIMELESS coating
  • Features: APT.line™ preheating chamber technology, self-test for comprehensive status analysis, touchscreen controller with time-segment and real-time programming, data logger (internal) reads measured values in via USB, door heating, Ethernet and door heating

Application: Environmental Testing

Temperature Range: Ambient to 70°C

Humidity Control: Yes

Refrigerated: No

Design: Free Standing

Manufactured by: Binder

Model: KBF P

Type: Humidity

Capacity: 8.7 cu. ft.

Interior Material: Stainless Steel

Exterior Material: Powder Coated Steel

Manufacturer SKU: 9020-0328

Family: KBF Series

Maximum Temperature: 70°C

Convection Type: Directed Airflow

Capacity Range: <12 cubic feet

Unit of Measure: EA

Electrical Specifications: 230 V, 1 Ph, 50/60 Hz

Weight, Product: 470 lb

Dimensions, Product: 25.6" W x 19.1" D x 30.9" H

Weight, Shipping: 470 lb

Dimensions, Shipping: 28" W x 21" D x 33" H

Package Type: Palletized

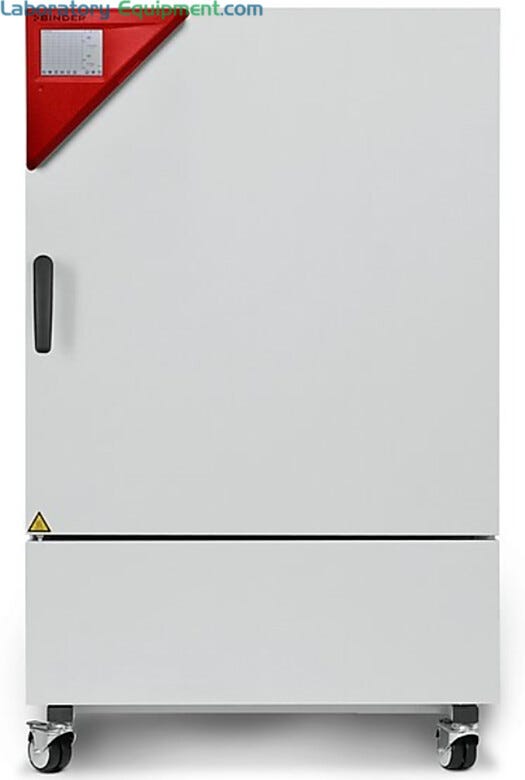

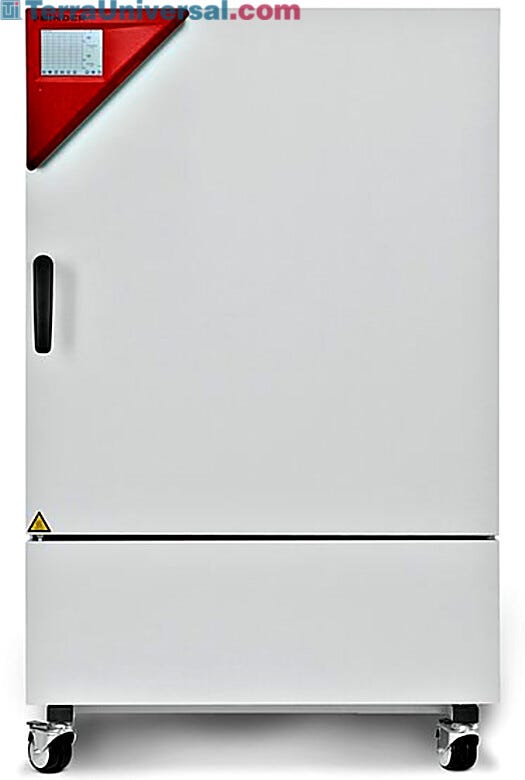

  • BINDER KBF P 240 Humidity Test Chamber with ICH-Compliant lighting for photostability testing; 8.7 cu. ft. capacity KBF P 240 Humidity Test Chamber with ICH-Compliant lighting by BINDER

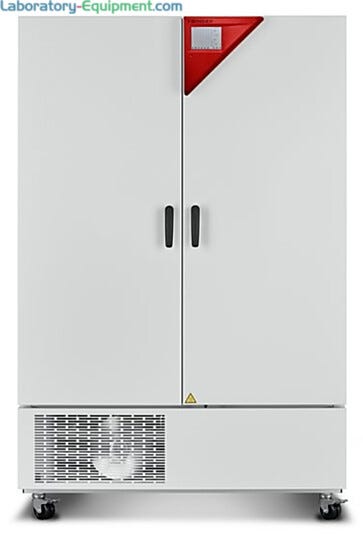

  • BINDER KBF P 720 Humidity Test Chamber for photostability testing KBF P 720 Humidity Test Chamber with ICH-Compliant lighting by BINDER

Features and Benefits

Chamber Options and Accessories

KBF Series Humidity Test Chambers

Light Cassettes, LQC and data logger with optional ambient sensor

Binder offers a wide variety of options for the KBF Series Humidity chambers from additional stainless steel shelves and access ports to Data Logger Kits and calibration certificates

Water Source Options for KBF Series Humidity Test Chambers

Binder offers water source options for the KBF Series to satisfy various water supply preferences when using house water or BINDER Pure Aqua; external water tanks are also available

BINDER Growth Chambers Options and Accessories
  • Access port with silicone plug (right, left or top from 30 mm to 100 mm)
  • Alarm output, zero-voltage
  • Analog output 4-20 mA
  • Calibration certificate, expanded
  • Calibration certificate, temperature
  • Calibration certificate, temperature and humidity
  • Class 3.3 independent temperature safety device
  • Converter, voltage
  • Data Logger Kit
  • Data Logger Software
  • Door lock
  • Interface converter
  • Interface converter, USB / RS422
  • Interior socket
  • LED light bars
  • pH-neutral detergent
  • PT 100 temperature sensor
  • Rack accessories
  • Rack, reinforced
  • Stainless steel racks
  • Stainless steel perforated shelves
  • RS 422 interface
  • RS 422 interface, cable (15 m)
  • RS 422 interface, cable (50 m)
  • RS 485, 2- wire
  • Software (various versions of the APT-COM communications software)
  • Water supply set
ModelKBF 115KBF 240KBF 720KBF 1020
Internal Volume3.6 cu. ft. (102L)8.72 cu. ft. (247 L)24.72 cu. ft. (700 L)36 cu. ft. (1020L)
External Dimensions W" x D" x H" (mm)34.7 x 25.6 x 41.3 in. (880 x 650 x 1050 mm36.4 x 31.5 x 57.5 in. (925 x 800 x 1460 mm)49.21 x 35.04 x 75.79 in. (1250 x 890 x 1925 mm)49.21 x 45.1 x 75.79 in. (1250 x 1145 x 1925 mm)
Internal Dimensions W" x D" x H" (mm)23.6 x 13.8 x 19.0 in. (600 x 351 x 483mm)25.59 x 19.09 x 30.91 in. (650 x 485 x 785 mm)38.31 x 22.68 x 49.21 in (973 x 576 x 1250 mm)38.4 x 32.9 x 49.21 in. (976 x 836 x 1250 mm)
Temperature range [°C]0-700-700-700-70
Temperature variation at 40 °C [± K]
Temperature fluctuation [± K]
Max. heat compensation at 40 °C [W]200300600600
Temperature range [°C]10-7010-7010-7010-70
Temperature variation at 25 °C and 60 % RH [± K]
Temperature variation at 40 °C and 75 % RH [± K]
Temperature fluctuation at 25 °C and 60 % RH [± K]
Temperature fluctuation at 40 °C and 75 % RH [± K]
Humidity range [% RH]10-8010-8010-8010-80
Humidity fluctuation at 25 °C and 60 % RH≤2 ± % RH1.5 ± % RH1.5 ± % RH1.5 ± % RH
Humidity fluctuation at 40 °C and 75 % RH≤2 ± % RH1.5 ± % RH1.5 ± % RH1.5 ± % RH
Inner doors1122
Unit doors1122
permitted load [lbs.]220220331331
Load per rack [lbs.]66669999
Energy consumption at 40 °C and 75 % RH [Wh/h]470650620650
Sound-pressure level [dB(A)]52525356
Number of shelves (std./max.)2/52/92/152/15
Electrical200-230v, 50/60Hz200-230v, 50/60Hz200-230v, 50/60Hz200-230v, 50/60Hz

Double Sided Air Flow

Doubled sided airflow ensures constant temperature and humidity across the entire testing area under full load conditions.

Climate Diagram

Wide temperature and humidity range maintain maximum parameter uniformity for optimum conditions within the test chamber environment

ICH Check Points for BINDER KBF Series

Shows temperature and humidity ICH checkpoints for long-term testing, accelerated testing and stress testing of KBF Test Chambers.
