Select Product


Temperature Range

Platform Size

Shaking Speed

Manufacturer SKU

Terra Part #PriceShips in
120 VAmbient +5 to 70°C14" x 12"40-1100 rpmYes1296-0050 5103-37 64320 Request Quote15-25 Days2
Temperature Range
Platform Size
Shaking Speed
Temperature Control
Manufacturer SKU
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

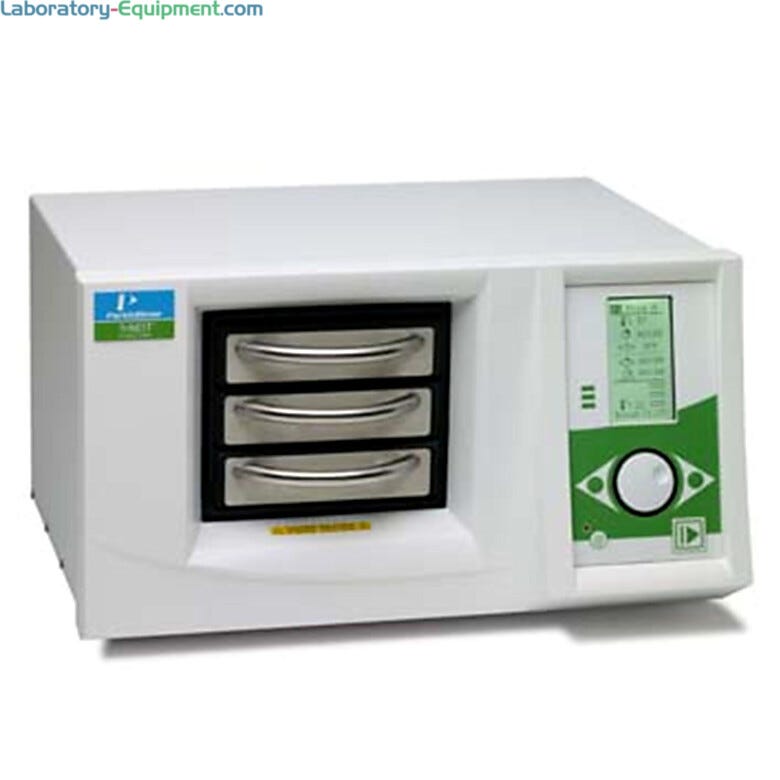

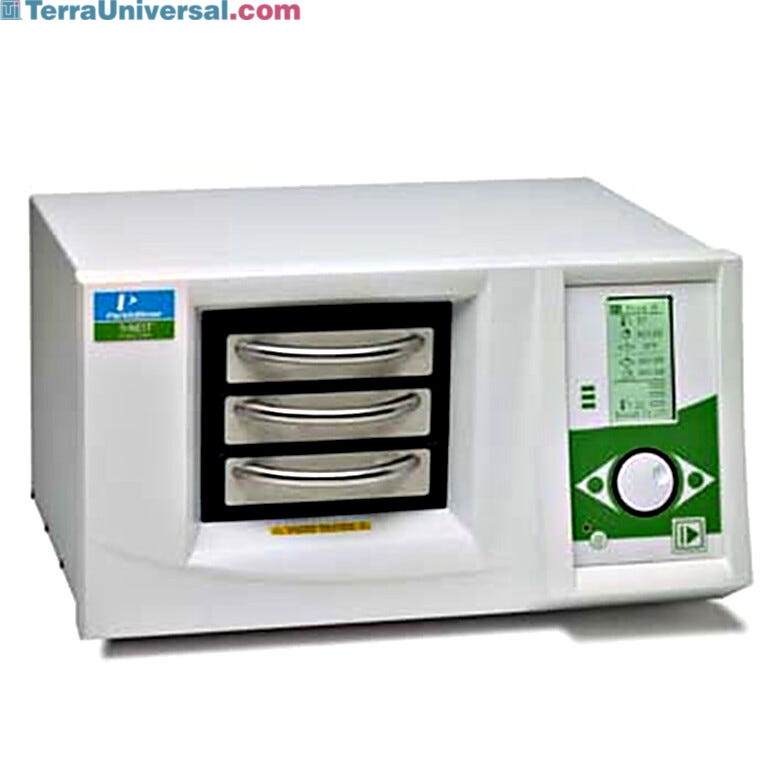

• Ideal for use in high-throughput labs performing well-plate applications, the TriNEST™ Microplate Incubator Shaker delivers the most precise temperature and shaking/orbital control required in demanding microplate applications

• Benchtop unit features an advanced electronic design that minimizes assay mismatches and error

• Temperature accuracy of 0.5°C, ensures highly repeatable results especially useful in clinical labs performing primer extension, DNA hybridization and other microplate applications

• Processes assays on standard height microplates

• Capacity: 3 plates per unit, SBS standard height 96-well and 384-well plates

• Stores up to 20 incubating and shaking programs

• Accommodates up to three microplates per run

• Intuitive interface and onboard keypad

• Temperature range from 3°C above ambient to 70°C for any microplate based assay

• Shaking frequency 400-1200 rpm (or 0 rpm)-interval shaking supported

• Teflon- and acid-proof steel material reduces risk of corrosion and ensures longer equipment life

• Optional cooling block for assays that require rapid cooling

  • PerkinElmer TriNEST Microplate Incubator Shaker PerkinElmer TriNEST Microplate Incubator Shaker

Features & Benefits

Features & Benefits

Applications and Features

Energy-Efficient B.O.D. Thermoelectric Cooled Incubators for Wastewater Testing

Designed with a Peltier cooling technology and an innovative microprocessor, B.O.D. Thermoelectric Cooled Incubators by Shel Lab use up to 71% less energy because eliminate the need for a refrigeration compressor. Units provide excellent temperature uniformity throughout the incubator chamber ensuring that samples are under stable temperature conditions regardless of where they are in the inner chamber. These B.O.D. incubators help water treatment plants meet American Public Health Association requirements during wastewater testing procedures.

Note: Model SRI20P received a testimonial from the Clean Water Services (a water resources management utility in Tualatin River Watershed) for the unit's "amazing temperature uniformity" and energy efficiency.
Temperature Range 3°C above ambient to 70°C in 1° increments
Temperature Precision±0.5°C
Variation of Temperature
Across Microplate
< 0.6°C
Warming Speedless than 15 min from +24°C to 70°C
Allowable Incubation Times0-48 hours in 1 minute increments
Preheat Function AvailableYes
Shaking Frequency400-1200 rpm (or 0 rpm) in 100 rpm increments
Shaking Precision± 2%
Orbital Range~ 2mm
Shaking Time0-48 hours in 1 minute increments
Allowable Interval ShakingIntervals of up to 60 minutes in increments of 1 second or 1 minute
Capacity3 plates per unit, 3 x 96 or 384-well SBS (standard height) Microplates
Program Storage Capacity20
Relative Humidity15 to 85%
MaterialTeflon and acid proof steel
Dimensions15.3"W x 12.2"D x 9.8"H (388 x 310 x 223 mm)
Electrical100-120V or 220-240V, 50/60Hz
Other Features
  • LCD graphics, external power supply
  • Supports plastic or aluminum plate sealers
  • Microplates (3) processed with the same program can be loaded at different times
  • Incubation completion notification via Buzzer and LED lights
  • CE marked in conformance with the IVD Directive 98/79/EC
