Select Product
Frequency Output

Freezer Temperature Range

Refrigerator Temperature Range

Model

Terra Part # Price Ships in
50Hz -12° to -24° 1°C to 12° C TSV18CPSA 6708-54 81488 $3,224 5-7 Days 2
Ships Free Free shipping in contiguous USA
50Hz -12° to- 20° 1°C to 12° C TSV05CPSA 6708-53 81487 $2,220 5-7 Days 3
Ships Free Free shipping in contiguous USA
50Hz -12° to- 20° 1°C to 12° C TSV07CPSA 1720-08A 78023 $2,054 5-7 Days 4
Ships Free Free shipping in contiguous USA In stock
Frequency Output
Freezer Temperature Range
Refrigerator Temperature Range
Model
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details

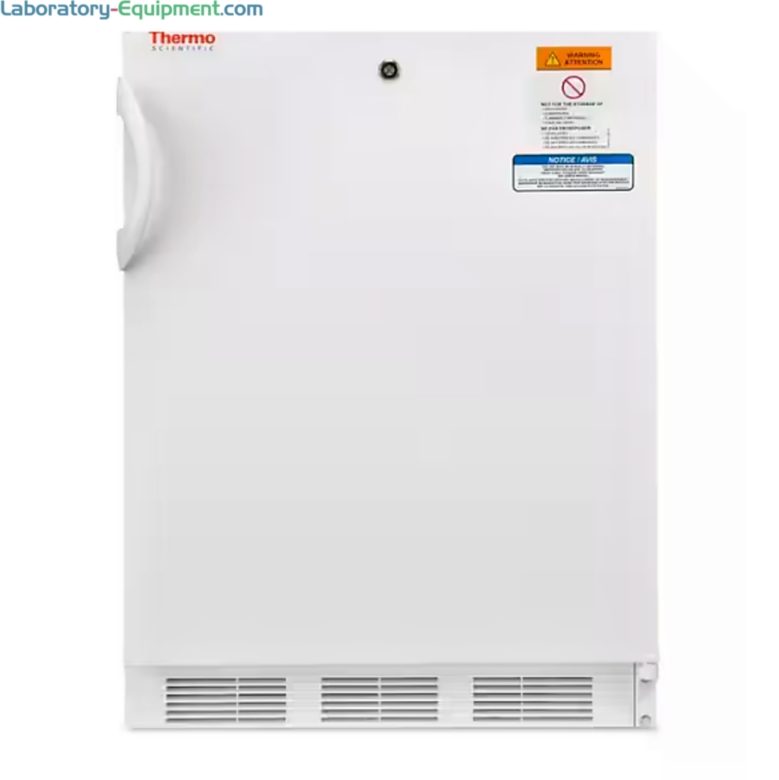

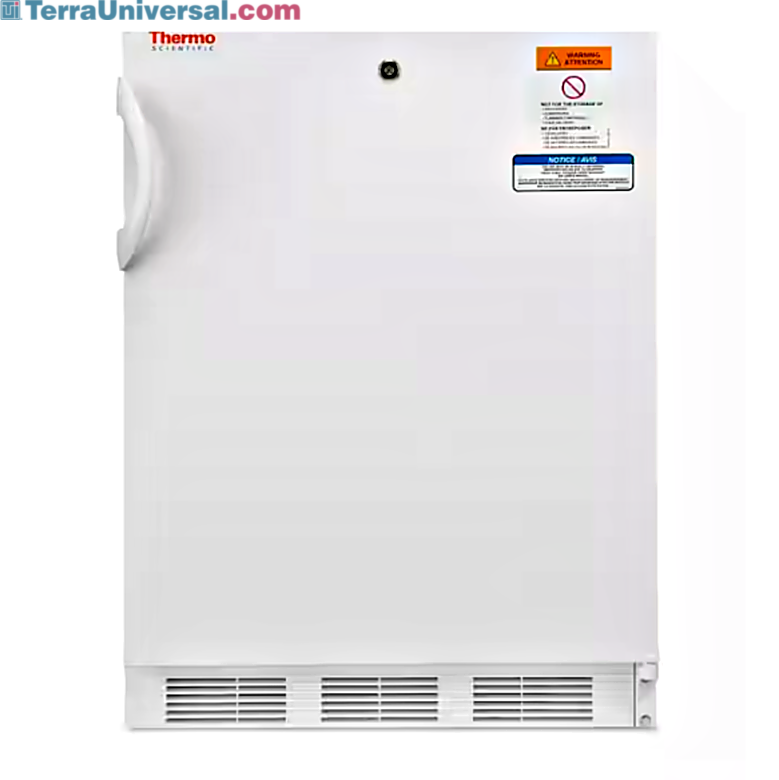

  • SNAP-Compliant TSV Value Combination Refrigerator/Freezers in 5.1, 7.1 and 18.0 cu. ft. capacities
  • Economical hydrocarbon refrigerant combo cold storage units ideal for routine lab applications
  • Refrigerator temperature range: 1°C to 12° C (all models)
  • Freezer temperature range: -12° to- 20° (TSV05CPSA and TSV07CPSA); 12° to -24° (TSV018CPSA)
  • All models include adjustable shelves and drawer(s)
  • Adjustable temperature setpoint
  • Factory tested prior to shipment
  • Listing: NRTL, cULus, SNAP
  • Material: enameled steel exterior, ABS plastic interior
  • Applications: Indoor general storage of non-critical samples and reagents
  • Application environment: non-corrosive, non-flammable, non-explosive, good air ventilation
  • Interior lighting
  • Automatic or manual defrost
  • Insulation: Cyclopentane
  • Ambient operating temperature: 15° C - 32° C (60° F - 90° F)
  • Refrigeration Configuration
  • Refrigeration System: Vapor Compression System
  • Compressor/Number: Hermetic Compressor/1
  • Evaporator type: foamed in evaporator
  • Expansion Device: Capillary Tube
  • Control Sensor: NTC Probe on TSV018CPSA
  • Refrigerant Charge/Flammability: R600a/Flammable
  • Controller: Mechanical Dial Thermostat (TSV05CPSA and TSV07CPSA); electronic (TSV018CPSA)
  • Compressor Safe Guard: High Temp Cutout Switch / Overload Protector
  • Models replace select Legacy models: 05LCEETSA, 10LCEETSA, and 18LCEETSA

Refrigerators (4°C)

  • Comparison Chart of TSV Value Combo Refrigerator/Freezers by Thermo Fisher Scientific Comparison Chart of TSV Value Combo Refrigerator/Freezer by Thermo Fisher Scientific
Features & Benefits

Features and Benefits

Electronic Control

18.0 cu. ft. TSV18CPSA combo unit features an electronic control display and an NTC probe sensor
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
