Custom-configured product: Terra will quote.

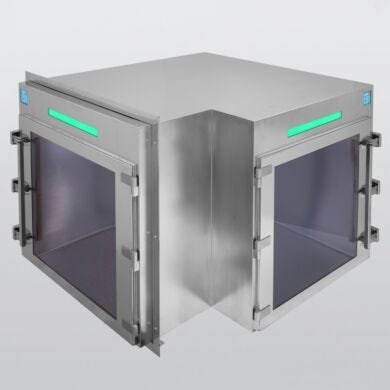

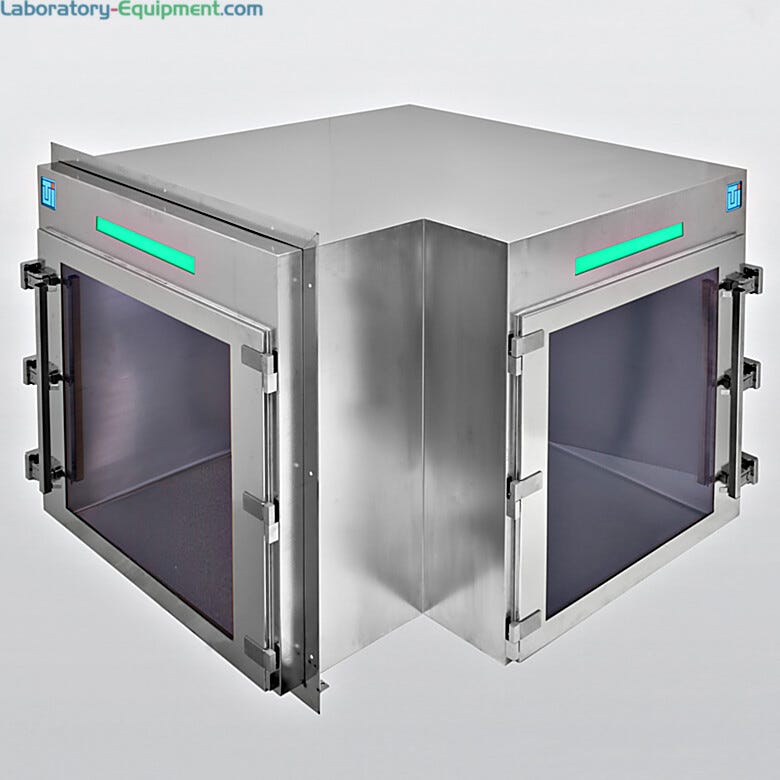

• 90 degree cleanroom passthrough design provides additional versatility for unique space constraints

• L-shape passthrough can be installed in tight corner walls, with door swings in either direction

• Smart® electronic door interlock is externally housed for smooth, easy-to-clean internal surfaces

• Obstruction free interior, lipless edges, radius corners, continuous welds for strict disinfection

• Countless add-on capabilities: automatic doors, access security systems, UV disinfection, and more

• Terra’s Smart® pass-through allows versatile door configurations, including adjacent doors positioned at 90° angles (L-shape chambers), plus other custom door swing configurations such as 3-door designs (T-shape chambers), and 4-door designs (X-shape chambers).

Compatibility with Other Smart Accessories:

• The 90°-Turn Smart® pass-through configuration can be combined with any other Smart® pass-through accessories as part of a custom order.

Installation Notes:

Please speak with a Terra representative to discuss how the Smart® pass-through can be customized to fit your specific requirements.

• Be sure to provide the sales engineer with as much information as possible regarding the installation location.

• 90 degree pass-through chambers can be designed with the isolated interlock on the inside or outside of the 90° bend, which changes the direction of the door-opening to suit the workspace.

• In some cases, the opposite side of a wall may be inaccessible and the pass-through must be divided into two sections in order to facilitate installation.

• The mounting brackets also may have to be adapted to allow insertion of the Smart Pass-through into the wall cut-outs.

• A 90°-turn Smart® pass-through cannot utilize the CleanMount® system found on the standard Smart® pass-through. External fasteners will be required to mount the pass-through to the wall (likely in addition to support brackets installed underneath the pass-through chamber).

Marks & Listings: UL, ULC

Pass Through Accessories

  • Smart Cleanroom Pass-Through with 90 Degree Corner and HEPA Filtration Smart Cleanroom Pass-Through with 90 Degree Corner and HEPA Filtration
  • Cleanroom passthrough chamber with 3 interlocking doors for USP 800 hazardous compounding Smart® Pass-Through with “T” Shape 3-Door Design for USP 800 Hazardous Compounding
  • this video shows how the hands-free operation of the automatic pass-through door minimizes the potential for touch contamination Hands-Free, Automatic Pass-Through Door
  • Smart Cleanroom Pass-Through Chamber with Models Smart Pass-Through Chamber, 24"W x 24"D x 24"H
Smart Cleanroom Pass-Through with 90 Degree Corner and HEPA Filtration
Cleanroom passthrough chamber with 3 interlocking doors for USP 800 hazardous compounding
this video shows how the hands-free operation of the automatic pass-through door minimizes the potential for touch contamination
Smart Cleanroom Pass-Through Chamber with Models

Features and Benefits

90° Corner Design

Custom door configurations are no problem. Install Smart pass-throughs in corner walls, with door swings in either direction.

Smart® Pass-Through with “T” Shape 3-Door Design for USP 800 Hazardous Compounding

Terra’s Smart® pass-through chambers can be configured as a “T” or “X” shape to connect multiple rooms. This 3-door configuration for an in-patient pharmacy interconnects the USP 800 room (negative pressure), chemo room (negative pressure), and ante room.

Door Configurations for 90 Degree Corner Passthrough Chamber

Cleanroom passthroughs with 90 degree corners can be designed with unique door swing directions to avoid obstructions such as adjacent doors. The Smart control panel can be on the inside or outside of the 90 degree bend to simplify install and maintenance.

Removable Cart Ramps on Floor-Mount Models

Floor-mount pass-through chambers include dual-side stainless steel cart ramps, sloped on three sides, that are removable for easy cleaning.

Interlock Status Lights

A green light bar indicates the door is available for use, with the electronic interlock disengaged. The bar turns red when the opposing door is open to indicate the electronic interlock is engaged.

Smart® Pass-Through Electronic Door Interlock

Smart® Pass-Throughs include visible/audible door status alerts: red light and chimes indicate opposing door open (interlock engaged); green light means door available for use. Smart add-ons expand capabilties: LED/UV light, access control, air shower, more!

Flush-Mount Design Prevents Dust Accumulation

CleanMount® pass-throughs hug the cleanroom wall, eliminating gaps that collect germs and particle and making them ideal for critical bio/pharmaceutical cleanroom use.

Stainless Steel-Reinforced Removable Pass-Through Door

Stainless steel-reinforced CleanMount® doors provide superior strength and durability. Heavy-duty barrel hinges allow the doors to lift off for easy replacement or more thorough cleaning/decontamination.

CleanMount® Lipless Chamber Eliminates Clearance Obstructions

Instead of welded seams, the corners of the CleanMount® pass-through interior are coved to eliminate dust and germ traps. The lipless opening presents no clearance obstructions and further simplifies cleaning.
