- Available ISO Ratings: ISO 5, ISO 6, ISO 7, ISO 8
- 100% stainless steel filter fan unit emits a continuous flow of HEPA/ULPA-filtered air from the ceiling
- Unit includes double-wall construction, which triples product lifespan and totally eliminates cleaning of accessories
- Exceeds USP <797> and <800> standards for sterile drug compounding
- Air return slots along the bottom of the chamber circulate air back through the HEPA/ULPA filter
- CleanMount design allows for installation without drilling and prevents cleanroom shutdown for rapid servicing or replacement
HEPA Filtered Cleanroom Pass-Throughs,HEPA Filtered Cleanroom Pass-Throughs,Passthroughs for Architects
6705-PP-03
6705-PP-03 71477
Smart® CleanMount® Pass-Throughs with Recirculating HEPA/ULPA Filtration
Read more
Manufactured By: Terra Universal
Print
Want a quote quickly ?
Submit a QuickQuote request Terra's Stocking Programs
Print Copy Copied
Here at Terra Universal, we’ve made it our mission to offer the best possible lead times in the industry. In addition to aggressive stocking programs and streamlined fulfillment, Terra Universal also offers several services that ensure you receive your products as quickly as possible.
Terra FasTrak Guaranteed Delivery Services
FasTrak 24/7 guarantees to meet the shipping date YOU specify, regardless of quoted lead times.
Terra Universal can provide FasTrak 24/7 service for both in-stock products and custom orders.
Examples of FasTrak 24/7 services include:
- Assigning a dedicated senior expediter
- Assigning a dedicated production team and up to three shifts per day
- Eliminating internal purchase approvals to speed the receipt of parts and materials
Terra FasTrak service fees are only meant to cover the cost of additional Terra services, they are not designed to generate profit. If Terra fails to ship on or before the specified date, Terra will refund up to 100% of the FasTrak charges at the client's request. This guarantee does NOT cover direct, special, consequential, or other damages. It is strictly limited to 100% of the amount paid for the FasTrak service.
The FasTrak 24/7 refund policy does not apply when a specified ship date is missed due to factors outside Terra's control, such as vendor performance or shipping company delays. The FasTrak 24/7 guarantee DOES apply in instances where the shipping date is missed due to Terra's own negligence.
Terra Quick Ship Plus Service
Terra's QuickShip Program includes thousands of in-stock, ready-to-ship, ready-for-delivery products.
Examples of Quick Ship Plus-eligible products include:
Terra's Quick Ship Plus service provides the necessary resources to guarantee the required delivery date.
The Quick Ship Plus service is available for orders of in-stock, turnkey products that do not require any additional assembly before shipment. This service guarantees that the order will be delivered on or before the date indicated, or the charges for the Quick Ship Plus service will be refunded in full upon the client's approved request.
This guarantee does not cover any direct, special, consequential, or other damages, and is strictly limited to 100% of the amount paid for the Quick Ship Plus service. In alignment with FasTrak programs, In the case that shipment delays arise due to factors that are within Terra's control, Terra will refund up to 100% of the Quick Ship Plus fees. This guarantee does NOT cover direct, special, consequential or other damages and is strictly limited to 100% of the amount paid for Quick Ship Plus service.
Terra Quick Build Program
Terra's QuickBuild Program includes dozens of products with stocked components ready for quick assembly and shipment in 5 days.
Examples of QuickBuild-eligible products include:
- ValuLine Softwall Enclosures
- BioSafe® "Universal" Flow Hoods
- HEPA-Filtered Garment Cabinets
- Softwall CleanBooth™ Horizontal Laminar Flow Stations
Quick Build services are available for Terra products assembled with in-stock, on-hand components. Therefore, Terra can provide these items assembled and ready for shipment within 4 - 6 business days.
Need Help With Product Configuration?
Shop Terra Universal Online for immediate pricing or configure your components and accessories for quoting. For help with configuration, large purchases, and application expertise, contact your Terra sales specialist.
Terra Sales and Customer Service
Mon - Fri, 09:00 AM - 08:00 PM PST
Tel: +1 (714) 578-6100
Email: [email protected]
Product Details
Product Details
- Available ISO Ratings: ISO 5, ISO 6, ISO 7, ISO 8
- 100% stainless steel filter fan unit emits a continuous flow of HEPA/ULPA-filtered air from the ceiling
- Unit includes double-wall construction, which triples product lifespan and totally eliminates cleaning of accessories
- Exceeds USP <797> and <800> standards for sterile drug compounding
- Air return slots along the bottom of the chamber circulate air back through the HEPA/ULPA filter
- CleanMount design allows for installation without drilling and prevents cleanroom shutdown for rapid servicing or replacement
- Continuously sweeps away particles that enter the transfer chamber
- Slightly pressurized chamber prevents outside air from leaking in
- Pressure gauge measures back pressure at the filter to monitor efficiency and remaining filter life
- Speed control knob lets users adjust the blower RPM, increasing the airflow and pressure within the chamber
- Flush mounting on the "clean" side reduces horizontal surfaces that collect particles
- High-Efficiency Particulate Air (HEPA) filter removes contaminating particles of 0.3 um or larger at 99.99% efficiency
- Ultra-Low Particulate Air (ULPA) Filter: 99.999% efficient at 0.12µm particle diameter
- Brushless DC fan motor is clean, quiet and energy-efficient
- Status indicator lights flash when blower is not operating
- LED light bar indicates when the interlock is engaged
- Audible chimes alert personnel when a pass-through door is opened
- Choose between wall-mount and floor-mount models to fit your workflow
• Marks & Listings: CE, UL, ULC
HEPA Filtered Cleanroom Pass-Throughs
Smart® Pass-Through Chambers by Terra Universal- Smart® Pass-Through with “T” Shape 3-Door Design for USP 800 Hazardous Compounding
- Hands-Free, Automatic Pass-Through Door
- Pass-Through, Smart; 304 SS, Recirculating HEPA Filtration, 31"W x 26"D x 45"H
- Smart Cleanroom Pass-Through with 90 Degree Corner and HEPA Filtration
- Extra-Large ISO 5 Smart Pass-Through with Recirculating ULPA Filtration
- ISO 5 Smart Pass-through Chamber with ULPA Air Shower for Chemo Compounding Cleanroom
- ISO 5 Smart Pass-Through-Box with Side-Mount UV Light and Recirculating HEPA Filtration
- Vertically Stacked Smart® Passthrough Chambers with HEPA Filtration on Top for Stem Cell Lab

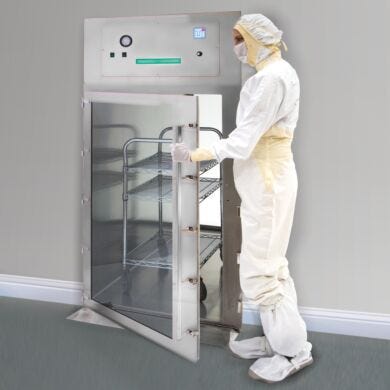

- Floor-Mounted ISO 5 Smart Pass-Through with Recirculating HEPA Filtration
- Recirculating HEPA Filtration Pass-Through
- HEPA Filtered Smart Cleanroom Pass Through with Intercom System
- Smart® Pass-Through with Recirculating HEPA Filter System for Transferring Equipment into Nuclear Medicine Lab
Terra Universal’s Smart Pass-Through Chamber redefines the capabilities of a pass through by solving a host of challenges that hospitals and labs face every day Smart® Pass-Through Chambers by Terra Universal Terra Universal’s Smart Pass-Through Chamber redefines the capabilities of a pass through by solving a host of challenges that hospitals and labs face every day. When first introduced to the market, the pass through chamber had one-specific purpose: to reduce personnel traffic by providing a convenient means for sample transfer into and out of the cleanroom. With the Smart Pass Through, Terra has reimagined the jobs a pass through can perform by offering a menu of standard, add-on features compatible with every unit. These features are mounted external to the work area, so the integrity of the internal chamber is not impacted. Beyond sample transfer, the Smart Pass Through can disinfect products, log environmental conditions, track personnel or sample lots, streamline employee communication and add layers of security to your cleanroom.
Smart® pass-through with “T” shape 3-door design, for USP 800 hazardous compounding; interconnects chemo room, USP 800 room, and ante room | 2635-10B-2-316 displayed Smart® Pass-Through with “T” Shape 3-Door Design for USP 800 Hazardous Compounding Terra’s Smart® pass-through chambers can be configured as a “T” or “X” shape to connect multiple rooms. This 3-door configuration for an in-patient pharmacy interconnects the USP 800 room (negative pressure), chemo room (negative pressure), and ante room.
This video shows how the hands-free operation of the Automatic Pass-Through Door minimizes the potential for touch contamination. Hands-Free, Automatic Pass-Through Door The Automated Pass-Through Door (exclusive to Terra's Smart Pass-Through Chambers) prevents personnel from inadvertantly contaminating their gloves or surfaces around the cleanroom.
Pass-Through, Smart; 304 SS, Recirculating HEPA Filtration, 31"W x 26"D x 45"H
Smart cleanroom pass-through for anti-tumor therapy incubation room; 90 degree corner design, electronic interlocking doors, recirculating HEPA filtration | 6705-72 displayed Smart Cleanroom Pass-Through with 90 Degree Corner and HEPA Filtration Smart cleanroom pass-through chambers feature electronic interlocking doors that allow for countless add-on capabilities, plus special door configurations. This unit is designed for an anti-tumor therapy incubation room. It features a 90 degree corner design with re-circulating HEPA filtration.
55" W x 36" D x 72" H custom floor mounted ISO 5 Smart™ CleanMount CleanSeam pass-through with recirculating ULPA filtration | 6705-68-316 displayed Extra-Large ISO 5 Smart Pass-Through with Recirculating ULPA Filtration Custom sizes are no problem. Smart ULPA Recirculating Pass-throughs can be customized to your application.
ISO 5 Smart Pass-through Chamber with single-pass ULPA air shower for chemo compounding cleanroom; electronic interlocking doors | 2635-10B-2-316 displayed ISO 5 Smart Pass-through Chamber with ULPA Air Shower for Chemo Compounding Cleanroom Smart Pass-through Chamber with single-pass ULPA air shower for chemo compounding cleanroom. The ULPA air shower provides a single-pass high-velocity air to dislodge particles from surfaces in the pas-through. The Smart pass-through also features electronic interlocking doors, and a control module to provide service alerts when either door is open or left ajar.
ISO 5 Smart pass-through-box for USP 800 compounding of hazardous drugs; side-mount UV light, recirculating HEPA filtration, electronic interlocking doors | 6705-72-316 displayed ISO 5 Smart Pass-Through-Box with Side-Mount UV Light and Recirculating HEPA Filtration Smart pass-through-box for USP 800 compounding of hazardous drugs, configured with a side-mount UV light to help disinfect interior. The HEPA filtration system mounted on top recirculates air through return vents on the wall opposite to the UV-light. Electronic interlocking doors allow only one door to open at a time to prevent cross-contamination.
Vertical stacked Smart® passthroughs for stem cell lab with limited wall space; recirculating HEPA filtration on top chamber; sloped top on clean side | 6705-72-316 displayed Vertically Stacked Smart® Passthrough Chambers with HEPA Filtration on Top for Stem Cell Lab This vertically stacked passthrough chamber system is designed for a stem cell lab with high ceilings and limited wall space. The integrated recirculating filtration system exceeds USP <797> and <800> standards for sterile drug compounding. a sloped-top on the "clean side" minimizes particle build-up.
Vertical flow of ISO 5 HEPA-filtered air inside this floor-mounted pass-through washes away surface particles to protect parts and prevent cross-contamination | 6705-68 displayed Floor-Mounted ISO 5 Smart Pass-Through with Recirculating HEPA Filtration Floor-mounted Smart Pass-Throughs with recirculating HEPA filtration unit scrubs air clean to prevent cross-contamination as carts pass to the cleanroom; includes removable cart ramps.
Vertical flow of HEPA-filtered air inside this Smart Pass-Through washes away surface particles to protect parts, minimize cross-contamination | 6705-72 displayed Recirculating HEPA Filtration Pass-Through Vertical flow of recirculating HEPA-filtered air inside this Smart Pass-Through washes away surface particles to protect parts and minimize cross-contamination; mini-helic gauge monitors filter pressure.
ISO 5 HEPA Filtered Smart Cleanroom Pass Through with optional pushbutton intercom system; TUI status indicator light and green/red door indicator light | 6705-72-316 displayed HEPA Filtered Smart Cleanroom Pass Through with Intercom System HEPA filtered Smart cleanroom passthrough uses recirculating HEPA filtration to prevent cleanroom cross-contamination when the chamber opens. Optional pushbutton intercom facilitates through-wall communication.
Smart® pass-through chamber with recirculating HEPA FFU nuclear medicine lab; hands-free automatic doors | 6705-79-316 displayed Smart® Pass-Through with Recirculating HEPA Filter System for Transferring Equipment into Nuclear Medicine Lab Smart® pass-through provides recirculating HEPA-filtered air to rapidly remove particles and reduce leak risk. A fully-automatic door is ideal for transferring shielded syringe carriers and other equipment into nuclear medicine labs.
Features & Benefits
Features and Benefits
CleanMount Basics
The simplicity of this CleanMount clamping system makes removal of the pass-through chamber just as easy as installation. If the wall cut-out framing is properly sealed prior to installation, the pass-through can be quickly removed and replaced without ever having to shut down the cleanroom. Maintain the positive-pressure differential and protect the cleanroom environment by sealing off the "dirty side" with plastic sheeting prior to removal. Loosen the lag bolt so that the pass-through lifts out of the wall without contaminating the room. Once out, the pass-through can be serviced, modified, or even replaced with an upgraded version to accommodate new applications.
A - Inside of flush-mount bracket on opposing side
B - Bolt guide extending from nut welded to opposing bracket
C - Mounting bolt (one, two or three per side, depending on chamber height) - standard sizes accommodate any wall thicknesses
D - Mounting bracket
E - Bracket cover
F - Standard wall (masonry or drywall) Finish cut-out framing to minimize contamination exposure during servicing Terra's quick-mount system installs in under five minutes, regardless of wall thickness and without contamination Access Clearances
Width = W (nominal) – 1.88”
Depth = D (nominal) – 0.12”
Height = H (nominal) – 1.25”
Print Copy Copied
CleanMount CleanSeam Pass-Through Chamber
CleanMount™ Design Allows Servicing or Replacement without Cleanroom Shutdown!
The simplicity of this CleanMount clamping system makes removal of the pass-through chamber just as easy as installation. If the wall cut-out framing is properly sealed prior to installation, the pass-through can be quickly removed and replaced without ever having to shut down the cleanroom. Maintain the positive-pressure differential and protect the cleanroom environment by sealing off the "dirty side" with plastic sheeting prior to removal. Loosen the lag bolt so that the pass-through lifts out of the wall without contaminating the room. Once out, the pass-through can be serviced, modified, or even replaced with an upgraded version to accommodate new applications. A - Inside of flush-mount bracket on opposing side
B - Bolt guide extending from nut welded to opposing bracket
C - Mounting bolt (one, two or three per side, depending on chamber height) - standard sizes accommodate any wall thicknesses
D - Mounting bracket
E - Bracket cover
F - Standard wall (masonry or drywall)
Finish cut-out framing to minimize contamination exposure during servicing Terra's quick-mount system installs in under five minutes, regardless of wall thickness and without contamination
Access Clearances Width = W (nominal) – 1.88”
Depth = D (nominal) – 0.12”
Height = H (nominal) – 1.25”
Durable Double Wall Construction
BioSafe double-wall construction triples unit lifespan and totally eliminates cleaning of accessories
Lift-Off, Non-Shedding Door Hinges
Non-shedding, barrel-type door hinges allow the doors to lift off for thorough cleaning and decontamination (no tools required). Unlike industry standard continuous designs, these hinges comply with strict ISO levels.
All Stainless Steel FFU with Removable Filter Replacement Screen
The pass through includes an all-stainless steel filter fan unit with a screen for easy HEPA filter replacement. The screen is held in place by double roller catches, which allow the screen to be easily popped out of the ceiling to access the HEPA filter.
Recirculating HEPA Filtration Diagram
By recirculating the interior air, airborne particles are rapidly removed by successive passes through the HEPA filter. Recirculation also minimizes pressure buildup that can cause leakage into an adjacent positive-pressure cleanroom.
Smart® Cleanroom Pass-Through with Full-Glass Doors
Hygienic and damage resistant full tempered glass doors are specifically designed for healthcare, pharmaceutical, and GMP manufacturing applications to help achieve FDA compliance. The outside surface of the tempered glass door is frameless to minimize cracks and crevices where particulates or microbes can colonize.

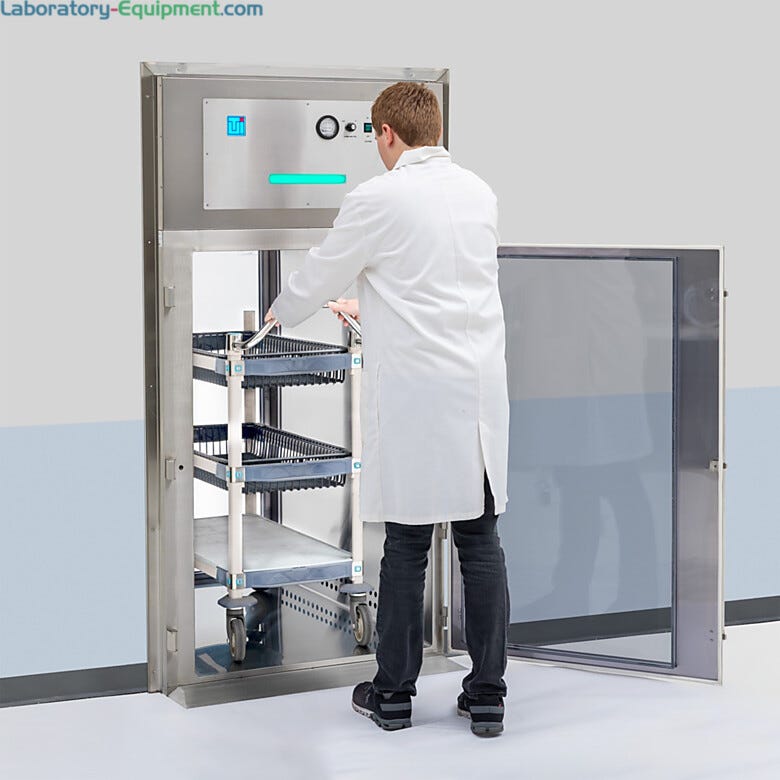

Air Return Slots for Recirculating HEPA Filtration
Air return slots along bottom interior of the cleanroom passthrough cabinet circulate air back through the built-in fan and HEPA filter to remove airborne particles inside the chamber.
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
Pass Through Racks
Designed to be installed into any pass through. Install these racks within minutes with no special tools. Simply tighten a compression screw. Forgot to order racks before? No problem!-
Iris Scanner
Fully automated iris scanner for secure, hands-free access (includes datalogging and optional secondary keycard reader). -
Intercom System
Built-in intercom system lets users easily call and communicate between rooms. No more knocking on windows, shouting, or awkward sign language. -
Automatic Door
Hands-free operation of the pass-through door, governed by the electronic interlock; automatically closes based on delay timer. -
Video Camera
Interior HD video camera records continuously or upon door-opening; can also be used for remote monitoring the transfer chamber. -
Infrared Load Sensor
Infrared beams detect objects placed inside the transfer chamber and can be used to trigger an audible alert. The crossed red lines depict the non-visible trigger lines between the IR transmitters and receivers. -
Support Brackets for Pass-Through Chambers
Stainless steel support brackets are recommended for pass-throughs deeper than 24". Brackets fasten to the wall and the body of the chamber rests upon the horizontal bar; no fasteners are used on the pass-through itself. -
Available UV & LED lights
Lights are recessed with a transparent lens for easy cleaning; UV-C module neutrailizes microbes using a timed disinfection cycle.
