Product Details

  • Electronic interlock system prevents both doors from being open at the same time
  • LED light bar glows red when opposite door opens (green when ready for use)
  • Includes plug-in, wireless alarms connected to each door to notify personnel of pass-through use
  • Counter-weighted doors slide up and down to eliminate door clearance requirements
  • Double-wall construction provides rigid, durable body and houses interlock components
  • Smooth interior and lip-less chamber opening for easy transfer and cleaning
  • Smart™ Pass-throughs can be customized with a wide array of electronic accessories

Smart® CleanMount® Slide-Up Door Pass-Through Chambers

  • Smart® Pass-Through Chambers by Terra Universal
  • Cleanroom passthrough chamber with 3 interlocking doors for USP 800 hazardous compounding Smart® Pass-Through with “T” Shape 3-Door Design for USP 800 Hazardous Compounding
  • this video shows how the hands-free operation of the automatic pass-through door minimizes the potential for touch contamination Hands-Free, Automatic Pass-Through Door

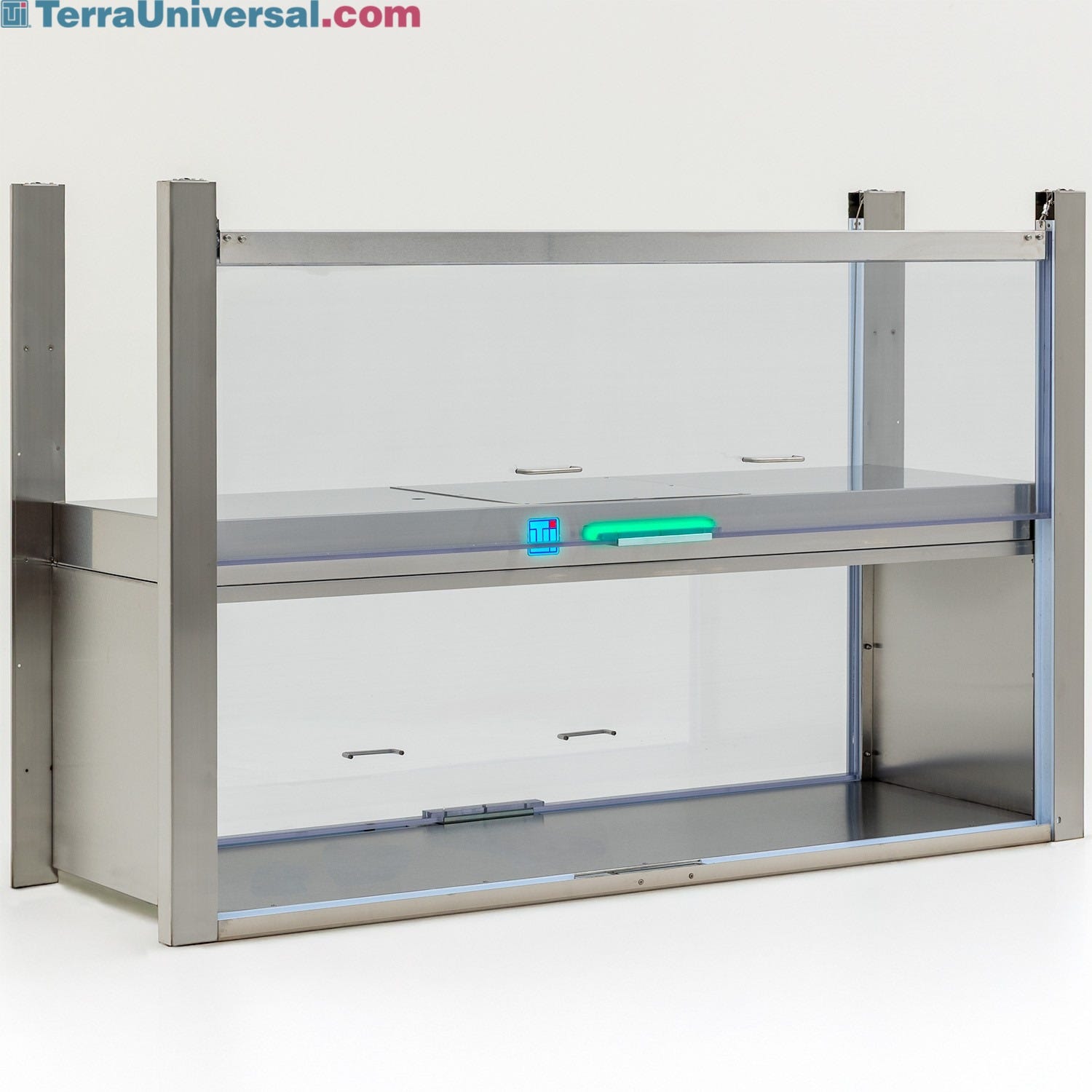

  • Slide-Up Door Smart Pass-Through Chamber Slide-Up Door Smart Pass-Through
this video shows how the hands-free operation of the automatic pass-through door minimizes the potential for touch contamination

Features & Benefits

Features and Benefits

CleanMount Basics

CleanMount CleanSeam Pass-Through Chamber

CleanMount™ Design Allows Servicing or Replacement without Cleanroom Shutdown!
The simplicity of this CleanMount clamping system makes removal of the pass-through chamber just as easy as installation. If the wall cut-out framing is properly sealed prior to installation, the pass-through can be quickly removed and replaced without ever having to shut down the cleanroom. Maintain the positive-pressure differential and protect the cleanroom environment by sealing off the "dirty side" with plastic sheeting prior to removal. Loosen the lag bolt so that the pass-through lifts out of the wall without contaminating the room. Once out, the pass-through can be serviced, modified, or even replaced with an upgraded version to accommodate new applications.
A - Inside of flush-mount bracket on opposing side
B - Bolt guide extending from nut welded to opposing bracket
C - Mounting bolt (one, two or three per side, depending on chamber height) - standard sizes accommodate any wall thicknesses
D - Mounting bracket
E - Bracket cover
F - Standard wall (masonry or drywall)
dry wall cut-out for installing cleanroom passthrough chamber Finish cut-out framing to minimize contamination exposure during servicing Terra's quick-mount system installs in under five minutes, regardless of wall thickness and without contamination
Access Clearances
Width = W (nominal) – 1.88”
Depth = D (nominal) – 0.12”
Height = H (nominal) – 1.25”

Interlock Status Lights

A green light bar indicates the door is available for use, with the electronic interlock disengaged. The bar turns red when the opposing door is open to indicate the electronic interlock is engaged.

Wireless Door Alert

Alarm bell rings when its assigned door is open (two bells per chamber); plugs into a standard wall outlet.

Slide Up Door Pass Through SDPVC Window Interior

Interior stainless steel surfaces of the slide-up door Smart Pass-Through are smooth and easy to clean - ideal for aseptic processing in ISO 5 - 8 cleanrooms. Static-dissipative door panels resist cleaning agents and protect against elecro-static discharge.

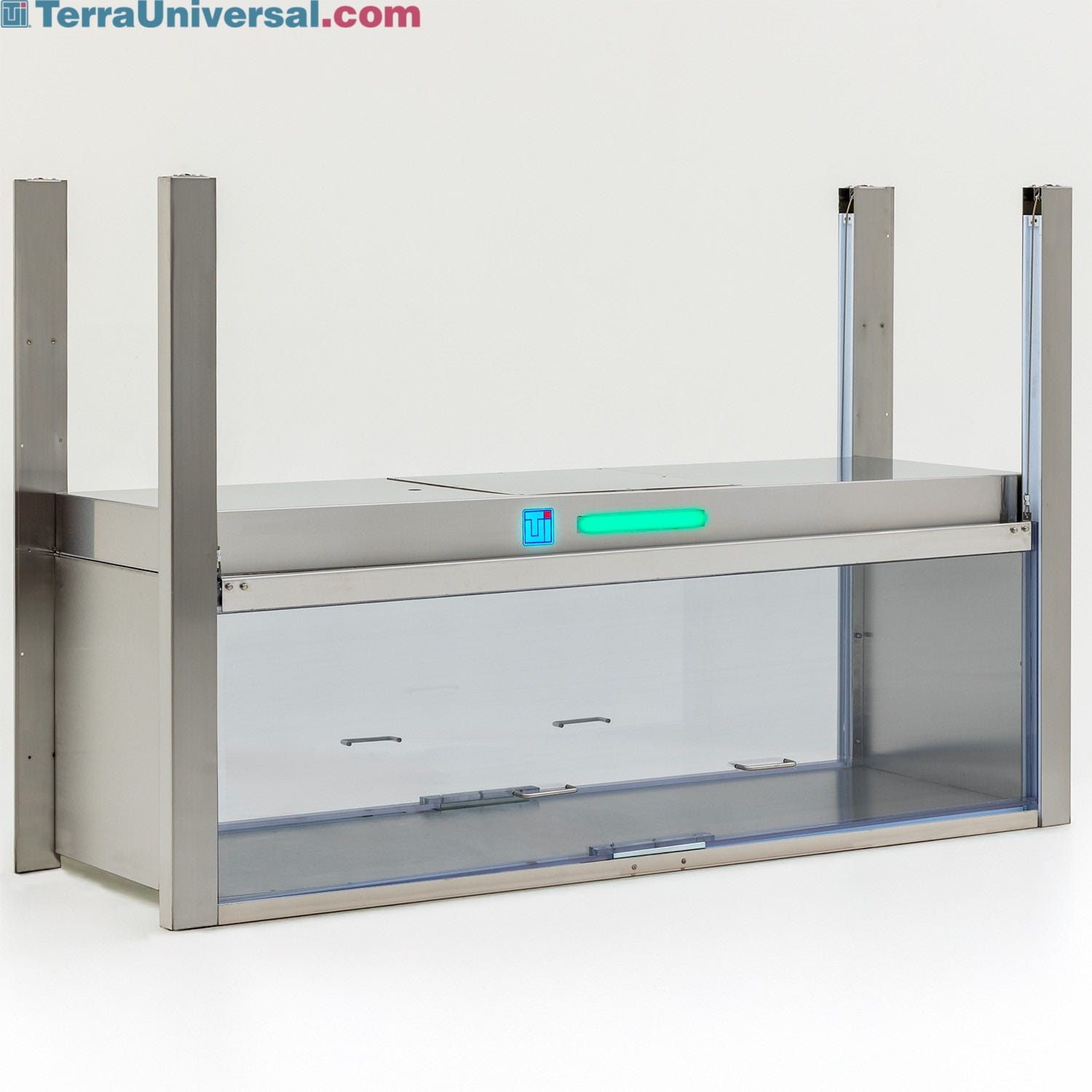

Easy-Glide Slide-Up Door Mechanism of Smart Pass Through

Easy-glide slide-up door mechanism of Smart Pass Through hugs the wall to conserves valuable cleanroom space; includes status light and chimes that indicate when static-dissipative PVC door interlock is engaged

CleanMount™ Quick Install System

Clean-Mount™ clamping design allows pass-through installation flush against a cleanroom wall in a few minutes, without drilling into the finished wall; mounting brackets clamp flush against walls of any thickness.

Easy Installation Simplifies Cleanroom Commissioning

Installing conventional passthroughs can be very messy, making it impossible to perform while a cleanroom is operational. Terra’s innovative CleanMount® fastening system changes that, allowing for clean installation without drilling or penetrating the cleanroom wall. Framing a CleanMount® passthrough chamber on a finished cut-out eliminates the need for cleanroom shut-down during installation or service.

Flush-Mount Design Prevents Dust Accumulation

CleanMount® pass-throughs hug the cleanroom wall, eliminating gaps that collect germs and particle and making them ideal for critical bio/pharmaceutical cleanroom use.

Lift-Off, Non-Shedding Door Hinges

Non-shedding, barrel-type door hinges allow the doors to lift off for thorough cleaning and decontamination (no tools required). Unlike industry standard continuous designs, these hinges comply with strict ISO levels.

90° Corner Design

Custom door configurations are no problem. Install Smart pass-throughs in corner walls, with door swings in either direction.

CleanMount® Lipless Chamber Eliminates Clearance Obstructions

Instead of welded seams, the corners of the CleanMount® pass-through interior are coved to eliminate dust and germ traps. The lipless opening presents no clearance obstructions and further simplifies cleaning.

Highest Standards For Electronic Components

Terra’s electronic components are designed and built to the highest standards required by defense and semiconductor industries for long-term reliability and protection against damage, injuries, and electrical hazards.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Long-Term Customers

Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • LED Recessed Light
    Activates when either pass-through door opens; flush with the wall surface, covered by a static-dissipative PVC lens.
  • UV Sanitizing Module
    Provides a timed cycle of 254 nm Ultra-Violet (UV) radiation to neutralize bacteria, viruses and mold spores within line-of-sight of the light fixture.
  • Intercom System
    Built-in intercom system lets users easily call and communicate between rooms. No more knocking on windows, shouting, or awkward sign language.
  • Iris Scanner
    Fully automated iris scanner for secure, hands-free access (includes datalogging and optional secondary keycard reader).
  • Video Camera
    Interior HD video camera records continuously or upon door-opening; can also be used for remote monitoring the transfer chamber.
  • ULPA-Filtered Air Shower
    High-velocity, ULPA-filtered air dislodges surface-deposited contaminants and exits the chamber through a filtered exhaust.
  • Infrared Load Sensor
    Infrared beams detect objects placed inside the transfer chamber and can be used to trigger an audible alert. The crossed red lines depict the non-visible trigger lines between the IR transmitters and receivers.
  • LCD Message Panel
    Displays critical environmental information related to the interior chamber such as temperature and relative humidity (customizable).
  • Support Brackets for Pass-Through Chambers
    Stainless steel support brackets are recommended for pass-throughs deeper than 24". Brackets fasten to the wall and the body of the chamber rests upon the horizontal bar; no fasteners are used on the pass-through itself.
  • Available UV & LED lights
    Lights are recessed with a transparent lens for easy cleaning; UV-C module neutrailizes microbes using a timed disinfection cycle.
