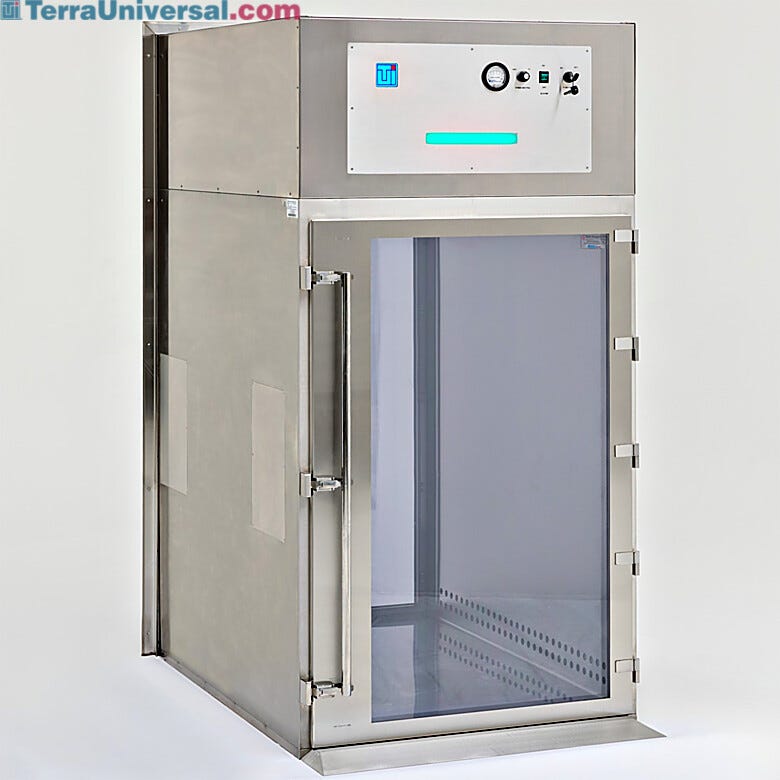

Vertical flow of ULPA-filtered air inside this Smart Pass-Through washes away surface particles to protect parts and minimize cross-contamination | 6705-68-316 displayed

HEPA Filtered Cleanroom Pass-Throughs,HEPA Filtered Cleanroom Pass-Throughs

Pass-Through; Smart®, Recirculating ULPA Filtration, CleanMount CleanSeam, 30" W x 48" D x 50" H ID, Flush Floor Mount, 304 or 316L SS, 120 V

Terra Part #: 6705-68-316

Manufactured By: Terra Universal

Warranty: 1 year parts, 90 days labor

LTL freight shipment. Dock or liftgate may be required.

Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
Vertical laminar flow of ULPA-filtered air removes and contains particles introduced with the product, keeping surfaces clean and eliminating cross-contamination
Vents along the bottom of the chamber recirculate air back to the filtration module
Electronic interlock with Smart® Control System provides visual and audible door status alerts: red light and dual-side remote chimes indicate a door is open (interlock engaged); green light indicates both doors available for use
CleanMount design allows for installation without drilling and prevents cleanroom shutdown for rapid servicing or replacement
Unit includes double-wall construction, which triples product lifespan and totally eliminates cleaning of accessories

• Special Door Configuration: Leak-Rated

• Material: 304 or 316L SS

• Mounting Position: Flush Floor

• Inside Width: 30"

• Inside Depth: 48"

• Inside Height: 50"

• Expand System Capabilities: 90° Corner Placement, Access Control System, Access Panel, Air Speed Sensor, Electronic Pass-Through Upgrade, HEPA-Filtration, Intercom, LED Lighting, Message Panel, Load Presence Sensor, Power Outlet, UV Sanitizer, Slide-Up Doors, Video Recording

• Electropolished: Optional

• Wall Cutout: 40" W x 73" H

• HEPA/ULPA Filtration: Yes

• ISO Rated Air Cleanliness: ISO 4

• Unit of Measure: EA

Terra Part #: 6705-68-316

Manufactured By: Terra Universal

Warranty: 1 year parts, 90 days labor

LTL freight shipment. Dock or liftgate may be required.

Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Terra Part # 6705-68-316

$38,304

Accessories related to Terra Part #

Pass-Through; Smart®, Recirculating ULPA Filtration, CleanMount CleanSeam, 30" W x 48" D x 50" H ID, Flush Floor Mount, 304 or 316L SS, 120 V

View Shopping Cart View Quote Cart

Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Details & Specs

Manuals & Resources

HEPA Filtered Cleanroom Pass-Throughs

Watch Terra's Smart Pass-Through Video
Smart® Pass-Through Chambers by Terra Universal
Smart® Pass-Through with "T" Shape 3-Door Design for USP 800 Hazardous Compounding
Hands-Free, Automatic Pass-Through Door
Pass-Through, Smart; 304 SS, Recirculating HEPA Filtration, 31"W x 26"D x 45"H
Smart Cleanroom Pass-Through with 90 Degree Corner and HEPA Filtration
Extra-Large ISO 5 Smart Pass-Through with Recirculating ULPA Filtration
ISO 5 Smart Pass-through Chamber with ULPA Air Shower for Chemo Compounding Cleanroom
ISO 5 Smart Pass-Through-Box with Side-Mount UV Light and Recirculating HEPA Filtration
Vertically Stacked Smart® Passthrough Chambers with HEPA Filtration on Top for Stem Cell Lab
Floor-Mounted ISO 5 Smart Pass-Through with Recirculating HEPA Filtration
Recirculating HEPA Filtration Pass-Through
HEPA Filtered Smart Cleanroom Pass Through with Intercom System

Smart Passthroughs have an electronic interlock and are double-walled, tripling product lifespan and eliminating cleaning value-added accessories. Watch Terra's Smart Pass-Through Video Cleanroom passthrough with smart control system reduces foot traffic, improve cleanliness, safety, productivity and much more. Hidden electronic interlock allows only one door to open at a time to prevent cross-contamination.

Terra Universal’s Smart Pass-Through Chamber redefines the capabilities of a pass through by solving a host of challenges that hospitals and labs face every day Smart® Pass-Through Chambers by Terra Universal Terra Universal’s Smart Pass-Through Chamber redefines the capabilities of a pass through by solving a host of challenges that hospitals and labs face every day. When first introduced to the market, the pass through chamber had one-specific purpose: to reduce personnel traffic by providing a convenient means for sample transfer into and out of the cleanroom. With the Smart Pass Through, Terra has reimagined the jobs a pass through can perform by offering a menu of standard, add-on features compatible with every unit. These features are mounted external to the work area, so the integrity of the internal chamber is not impacted. Beyond sample transfer, the Smart Pass Through can disinfect products, log environmental conditions, track personnel or sample lots, streamline employee communication and add layers of security to your cleanroom.

2635-PP-02

Smart® Pass-Through with "T" Shape 3-Door Design for USP 800 Hazardous Compounding

Terra’s Smart® pass-through chambers can be configured as a "T" or "X" shape to connect multiple rooms. This 3-door configuration for an in-patient pharmacy interconnects the USP 800 room (negative pressure), chemo room (negative pressure), and ante room.

Smart® pass-through with "T" shape 3-door design, for USP 800 hazardous compounding; interconnects chemo room, USP 800 room, and ante room | 2635-10B-2-316 displayed Smart® Pass-Through with "T" Shape 3-Door Design for USP 800 Hazardous Compounding Terra’s Smart® pass-through chambers can be configured as a "T" or "X" shape to connect multiple rooms. This 3-door configuration for an in-patient pharmacy interconnects the USP 800 room (negative pressure), chemo room (negative pressure), and ante room.

This video shows how the hands-free operation of the Automatic Pass-Through Door minimizes the potential for touch contamination. Hands-Free, Automatic Pass-Through Door The Automated Pass-Through Door (exclusive to Terra's Smart Pass-Through Chambers) prevents personnel from inadvertantly contaminating their gloves or surfaces around the cleanroom.

10197

Pass-Through, Smart; 304 SS, Recirculating HEPA Filtration, 31"W x 26"D x 45"H

6705-PP-03

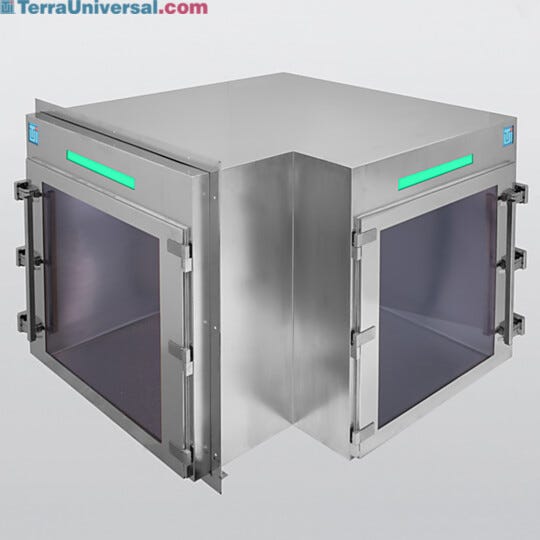

Smart Cleanroom Pass-Through with 90 Degree Corner and HEPA Filtration

Smart cleanroom pass-through chambers feature electronic interlocking doors that allow for countless add-on capabilities, plus special door configurations. This unit is designed for an anti-tumor therapy incubation room. It features a 90 degree corner design with re-circulating HEPA filtration.

Smart cleanroom pass-through for anti-tumor therapy incubation room; 90 degree corner design, electronic interlocking doors, recirculating HEPA filtration | 6705-72 displayed Smart Cleanroom Pass-Through with 90 Degree Corner and HEPA Filtration Smart cleanroom pass-through chambers feature electronic interlocking doors that allow for countless add-on capabilities, plus special door configurations. This unit is designed for an anti-tumor therapy incubation room. It features a 90 degree corner design with re-circulating HEPA filtration.

6705-PP-03

Extra-Large ISO 5 Smart Pass-Through with Recirculating ULPA Filtration

Custom sizes are no problem. Smart ULPA Recirculating Pass-throughs can be customized to your application.

55" W x 36" D x 72" H custom floor mounted ISO 5 Smart™ CleanMount CleanSeam pass-through with recirculating ULPA filtration | 6705-68-316 displayed Extra-Large ISO 5 Smart Pass-Through with Recirculating ULPA Filtration Custom sizes are no problem. Smart ULPA Recirculating Pass-throughs can be customized to your application.

2635-PP-02

ISO 5 Smart Pass-through Chamber with ULPA Air Shower for Chemo Compounding Cleanroom

Smart Pass-through Chamber with single-pass ULPA air shower for chemo compounding cleanroom. The ULPA air shower provides a single-pass high-velocity air to dislodge particles from surfaces in the pas-through. The Smart pass-through also features electronic interlocking doors, and a control module to provide service alerts when either door is open or left ajar.

ISO 5 Smart Pass-through Chamber with single-pass ULPA air shower for chemo compounding cleanroom; electronic interlocking doors | 2635-10B-2-316 displayed ISO 5 Smart Pass-through Chamber with ULPA Air Shower for Chemo Compounding Cleanroom Smart Pass-through Chamber with single-pass ULPA air shower for chemo compounding cleanroom. The ULPA air shower provides a single-pass high-velocity air to dislodge particles from surfaces in the pas-through. The Smart pass-through also features electronic interlocking doors, and a control module to provide service alerts when either door is open or left ajar.

6705-PP-03

ISO 5 Smart Pass-Through-Box with Side-Mount UV Light and Recirculating HEPA Filtration

Smart pass-through-box for USP 800 compounding of hazardous drugs, configured with a side-mount UV light to help disinfect interior. The HEPA filtration system mounted on top recirculates air through return vents on the wall opposite to the UV-light. Electronic interlocking doors allow only one door to open at a time to prevent cross-contamination.

ISO 5 Smart pass-through-box for USP 800 compounding of hazardous drugs; side-mount UV light, recirculating HEPA filtration, electronic interlocking doors | 6705-72-316 displayed ISO 5 Smart Pass-Through-Box with Side-Mount UV Light and Recirculating HEPA Filtration Smart pass-through-box for USP 800 compounding of hazardous drugs, configured with a side-mount UV light to help disinfect interior. The HEPA filtration system mounted on top recirculates air through return vents on the wall opposite to the UV-light. Electronic interlocking doors allow only one door to open at a time to prevent cross-contamination.

6705-PP-03

Vertically Stacked Smart® Passthrough Chambers with HEPA Filtration on Top for Stem Cell Lab

This vertically stacked passthrough chamber system is designed for a stem cell lab with high ceilings and limited wall space. The integrated recirculating filtration system exceeds USP <797> and <800> standards for sterile drug compounding. a sloped-top on the "clean side" minimizes particle build-up.

Vertical stacked Smart® passthroughs for stem cell lab with limited wall space; recirculating HEPA filtration on top chamber; sloped top on clean side | 6705-72-316 displayed Vertically Stacked Smart® Passthrough Chambers with HEPA Filtration on Top for Stem Cell Lab This vertically stacked passthrough chamber system is designed for a stem cell lab with high ceilings and limited wall space. The integrated recirculating filtration system exceeds USP <797> and <800> standards for sterile drug compounding. a sloped-top on the "clean side" minimizes particle build-up.

6705-PP-03

Floor-Mounted ISO 5 Smart Pass-Through with Recirculating HEPA Filtration

Floor-mounted Smart Pass-Throughs with recirculating HEPA filtration unit scrubs air clean to prevent cross-contamination as carts pass to the cleanroom; includes removable cart ramps.

Vertical flow of ISO 5 HEPA-filtered air inside this floor-mounted pass-through washes away surface particles to protect parts and prevent cross-contamination | 6705-68 displayed Floor-Mounted ISO 5 Smart Pass-Through with Recirculating HEPA Filtration Floor-mounted Smart Pass-Throughs with recirculating HEPA filtration unit scrubs air clean to prevent cross-contamination as carts pass to the cleanroom; includes removable cart ramps.

6705-PP-03

Recirculating HEPA Filtration Pass-Through

Vertical flow of recirculating HEPA-filtered air inside this Smart Pass-Through washes away surface particles to protect parts and minimize cross-contamination; mini-helic gauge monitors filter pressure.

Vertical flow of HEPA-filtered air inside this Smart Pass-Through washes away surface particles to protect parts, minimize cross-contamination | 6705-72 displayed Recirculating HEPA Filtration Pass-Through Vertical flow of recirculating HEPA-filtered air inside this Smart Pass-Through washes away surface particles to protect parts and minimize cross-contamination; mini-helic gauge monitors filter pressure.

6705-PP-03

HEPA Filtered Smart Cleanroom Pass Through with Intercom System

HEPA filtered Smart cleanroom passthrough uses recirculating HEPA filtration to prevent cleanroom cross-contamination when the chamber opens. Optional pushbutton intercom facilitates through-wall communication.

ISO 5 HEPA Filtered Smart Cleanroom Pass Through with optional pushbutton intercom system; TUI status indicator light and green/red door indicator light | 6705-72-316 displayed HEPA Filtered Smart Cleanroom Pass Through with Intercom System HEPA filtered Smart cleanroom passthrough uses recirculating HEPA filtration to prevent cleanroom cross-contamination when the chamber opens. Optional pushbutton intercom facilitates through-wall communication.

Features and Benefits

Durable Double Wall Construction

BioSafe double-wall construction triples unit lifespan and totally eliminates cleaning of accessories

Lift-Off, Non-Shedding Door Hinges

Non-shedding, barrel-type door hinges allow the doors to lift off for thorough cleaning and decontamination (no tools required). Unlike industry standard continuous designs, these hinges comply with strict ISO levels.

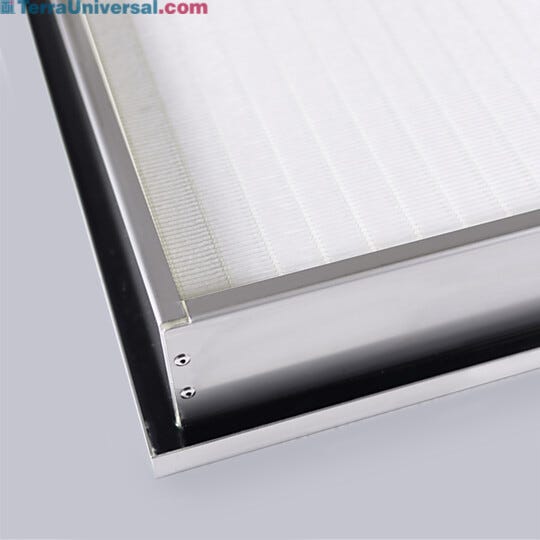

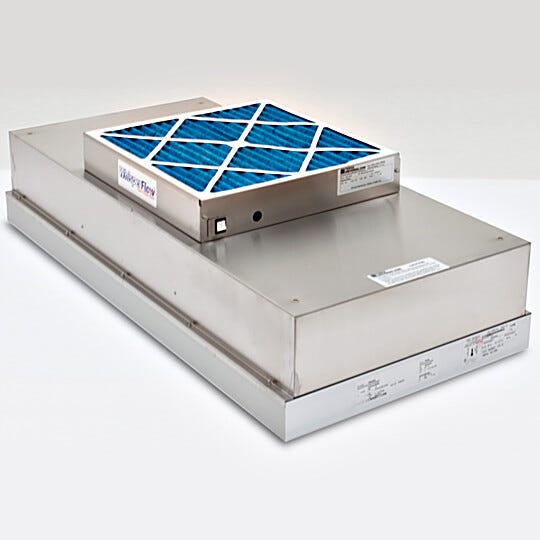

All Stainless Steel FFU with Removable Filter Replacement Screen

The pass through includes an all-stainless steel filter fan unit with a screen for easy HEPA filter replacement. The screen is held in place by double roller catches, which allow the screen to be easily popped out of the ceiling to access the HEPA filter.

Recirculating HEPA Filtration Diagram

By recirculating the interior air, airborne particles are rapidly removed by successive passes through the HEPA filter. Recirculation also minimizes pressure buildup that can cause leakage into an adjacent positive-pressure cleanroom.

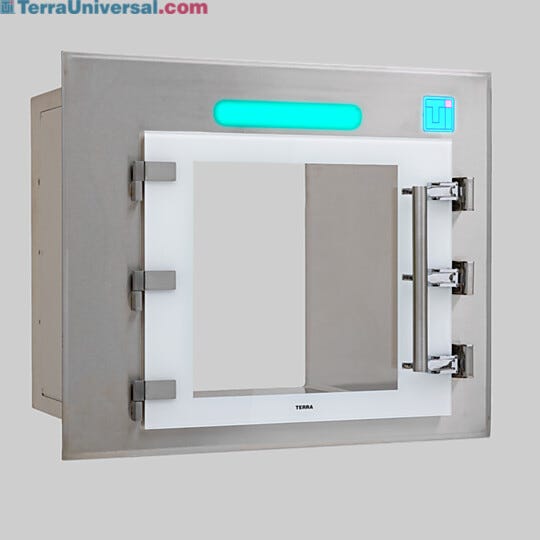

Smart® Cleanroom Pass-Through with Full-Glass Doors

Hygienic and damage resistant full tempered glass doors are specifically designed for healthcare, pharmaceutical, and GMP manufacturing applications to help achieve FDA compliance. The outside surface of the tempered glass door is frameless to minimize cracks and crevices where particulates or microbes can colonize.

Air Return Slots for Recirculating HEPA Filtration

Air return slots along bottom interior of the cleanroom passthrough cabinet circulate air back through the built-in fan and HEPA filter to remove airborne particles inside the chamber.

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.

Learn More
Pass Through Racks

Designed to be installed into any pass through. Install these racks within minutes with no special tools. Simply tighten a compression screw. Forgot to order racks before? No problem!

Pricing starting at $219
Iris Scanner

Fully automated iris scanner for secure, hands-free access (includes datalogging and optional secondary keycard reader).

Pricing starting at $4,462
Intercom System

Built-in intercom system lets users easily call and communicate between rooms. No more knocking on windows, shouting, or awkward sign language.

Pricing starting at $1,277
Automatic Door

Hands-free operation of the pass-through door, governed by the electronic interlock; automatically closes based on delay timer.

Pricing starting at $4,037
Video Camera

Interior HD video camera records continuously or upon door-opening; can also be used for remote monitoring the transfer chamber.

Pricing starting at $292
Infrared Load Sensor

Infrared beams detect objects placed inside the transfer chamber and connect to a remote alarm located up to 200 feet away from the pass through chamber. The crossed red lines depict the non-visible trigger lines between the IR transmitters and receivers.

Pricing starting at $1,794
Support Brackets for Pass-Through Chambers

Stainless steel support brackets are recommended for pass-throughs deeper than 24". Brackets fasten to the wall and the body of the chamber rests upon the horizontal bar; no fasteners are used on the pass-through itself.

Pricing starting at $597
Available UV & LED lights

Lights are recessed with a transparent lens for easy cleaning; UV-C module neutrailizes microbes using a timed disinfection cycle.

Pricing starting at $2,210
