Custom-configured product: Terra will quote.

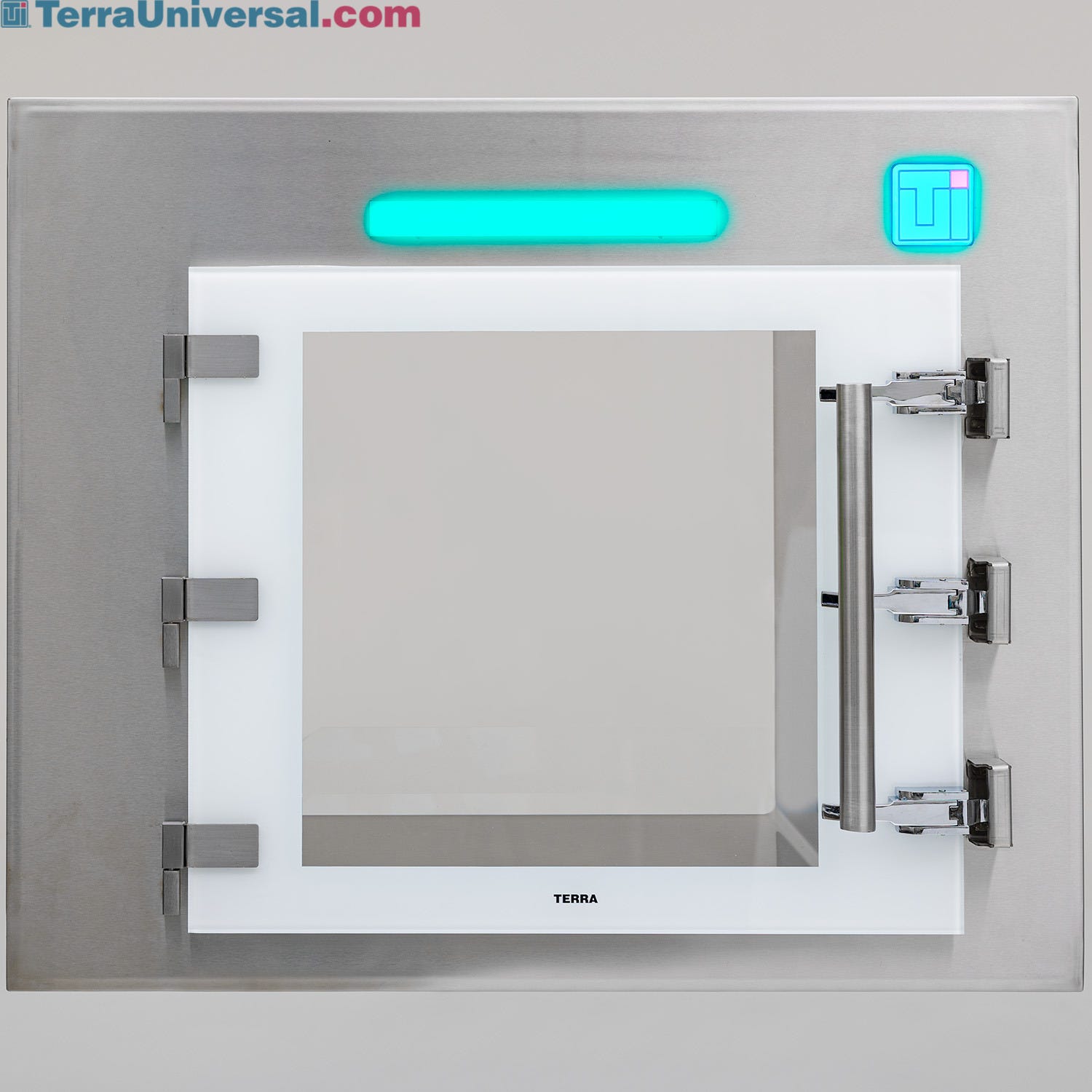

  • Full Tempered Glass Doors:
  • Easy-to-clean hygienic full-glass doors are specifically designed for healthcare, pharmaceutical, and GMP manufacturing applications to help achieve FDA compliance.
  • Attractive black faux border is positioned on the back side of the glass door, so it won't scratch or degrade over time.
  • Outside surface of tempered glass door is frameless to minimize cracks and crevices where particulates or microbes can colonize.
  • Damage resistant tempered glass improves safety and ensures long service life. Stands up to scratches, impacts, and blows.
  • Inside of the doors feature a 316L stainless steel backing to extend the chamber's service life and firmly hold the Santoprene gasket lining for a tight seal.
  • Durable one-piece Santoprene gasket fits tightly around the glass door frame. Detachable for more thorough cleaning or replacement. “e”-shape non-outgassing rubber gasket maintains its shape after compression and won't flatten, warp, crack, or degrade like ordinary foam gasket.

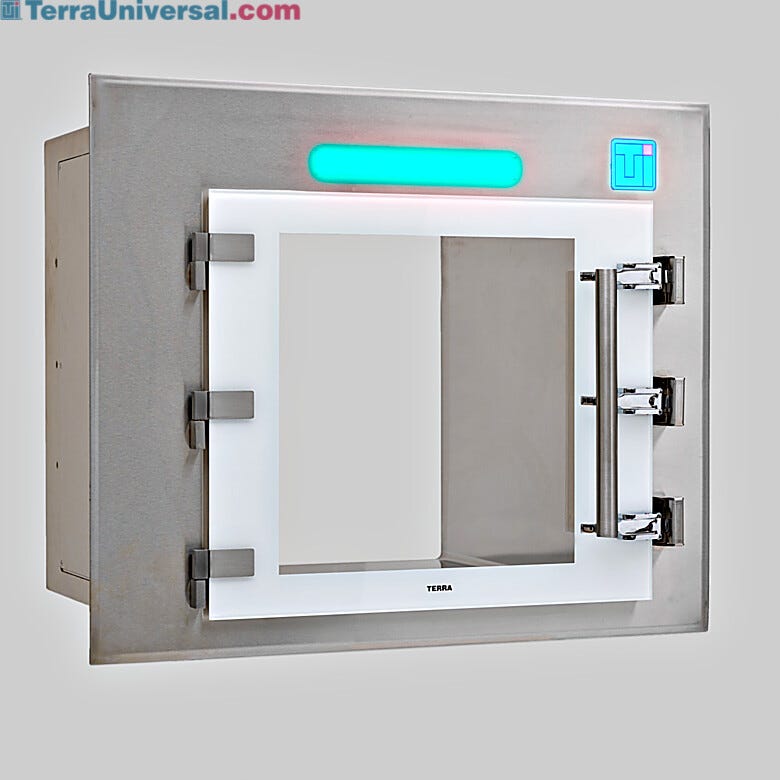

  • Heavy-duty stainless steel lift latches included to minimize scratching, corrosion and contamination resulting over time that can occur with chrome-plated latches.
  • Sturdy "lift-off" stainless steel hinges are detachable to allow doors to easily lift off for more thorough cleaning/decontamination or trouble-free replacement.
  • Order replacement door(s) to avoid critical operation delays should a door be damaged and require immediate replacement.
  • NOTE: Tempered glass door design is not yet leak-rated by UL.

Specialty Pass-Through Chambers

  • Smart® Pass-Through Chambers by Terra Universal
  • Cleanroom passthrough chamber with 3 interlocking doors for USP 800 hazardous compounding Smart® Pass-Through with “T” Shape 3-Door Design for USP 800 Hazardous Compounding
  • Refrigerated Smart passthrough chamber with 90 degree corner for pharmacy cleanroom Refrigerated Smart® Passthrough with 90 Degree Corner to Transfer Active Pharmaceutical Ingredients
  • Smart Cleanroom Pass-Through with 90 Degree Corner and HEPA Filtration Smart Cleanroom Pass-Through with 90 Degree Corner and HEPA Filtration
  • this video shows how the hands-free operation of the automatic pass-through door minimizes the potential for touch contamination Hands-Free, Automatic Pass-Through Door
  • Smart Cleanroom Pass-Through Chamber with Models Smart Pass-Through Chamber, 24"W x 24"D x 24"H
  • Fire-Rated Passthrough Door Window with Model Fire-Rated Passthrough Chamber with Window
  • Automatic Door with Touchless Sensor Automatic Door with Touchless Sensor
  • Vertically stacked Smart passthrough chambers for stem cell lab Vertically Stacked Smart® Passthrough Chambers with HEPA Filtration on Top for Stem Cell Lab
this video shows how the hands-free operation of the automatic pass-through door minimizes the potential for touch contamination

Features and Benefits

CleanMount Basics

CleanMount Smart Pass-Through Chamber

Don't risk operational delays or cleanroom shutdown because of a damaged door!
Terra's pass-through chambers last indefinitely, much longer than our standard product revision cycle. Pass-Through doors, however, are subject to damage, and ordering a legacy replacement can be costly and disrupt cleanroom operation. To avoid these problems, order replacements at the time you purchase the pass-through chamber; simply add “-RH” (for right-side hinge) or “-LH” (for left-side hinge) to the part number of the chamber.
CleanMount™ Design Allows Servicing or Replacement without Cleanroom Shutdown!
The simplicity of this CleanMount clamping system makes removal of the pass-through chamber just as easy as installation. If the wall cut-out framing is properly sealed prior to installation, the pass-through can be quickly removed and replaced without ever having to shut down the cleanroom. Maintain the positive-pressure differential and protect the cleanroom environment by sealing off the "dirty side" with plastic sheeting prior to removal. Loosen the lag bolt so that the pass-through lifts out of the wall without contaminating the room. Once out, the pass-through can be serviced, modified, or even replaced with an upgraded version to accommodate new applications.
A - Inside of flush-mount bracket on opposing side
B - Bolt guide extending from nut welded to opposing bracket
C - Mounting bolt (one, two or three per side, depending on chamber height) - standard sizes accommodate any wall thicknesses
D - Mounting bracket
E - Bracket cover
F - Standard wall (masonry or drywall)
dry wall cut-out for installing cleanroom passthrough chamber Finish cut-out framing to minimize contamination exposure during servicing Terra's quick-mount system installs in under five minutes, regardless of wall thickness and without contamination
Access Clearances
Width = W (nominal) – 1.88”
Depth = D (nominal) – 0.12”
Height = H (nominal) – 1.25”

Smart® Cleanroom Pass-Through with Full-Glass Doors

Hygienic and damage resistant full tempered glass doors are specifically designed for healthcare, pharmaceutical, and GMP manufacturing applications to help achieve FDA compliance. The outside surface of the tempered glass door is frameless to minimize cracks and crevices where particulates or microbes can colonize.

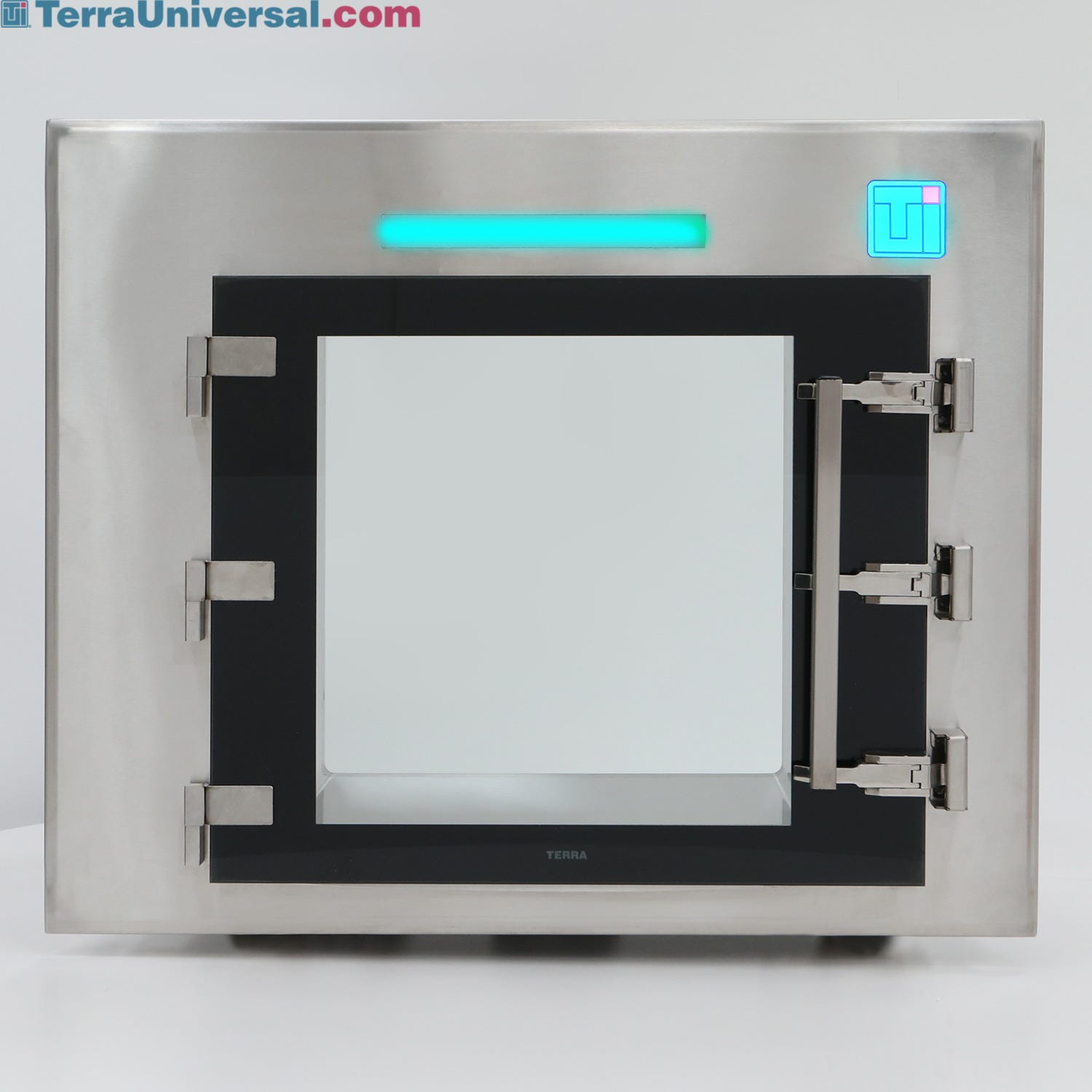

Clean and Attractive Black Frameless Tempered Glass

The outside surface of the tempered glass door is frameless to minimize cracks and crevices where particulates or microbes can colonize. The attractive black faux border is positioned on the back side of the glass door, so it won't scratch or degrade over time.

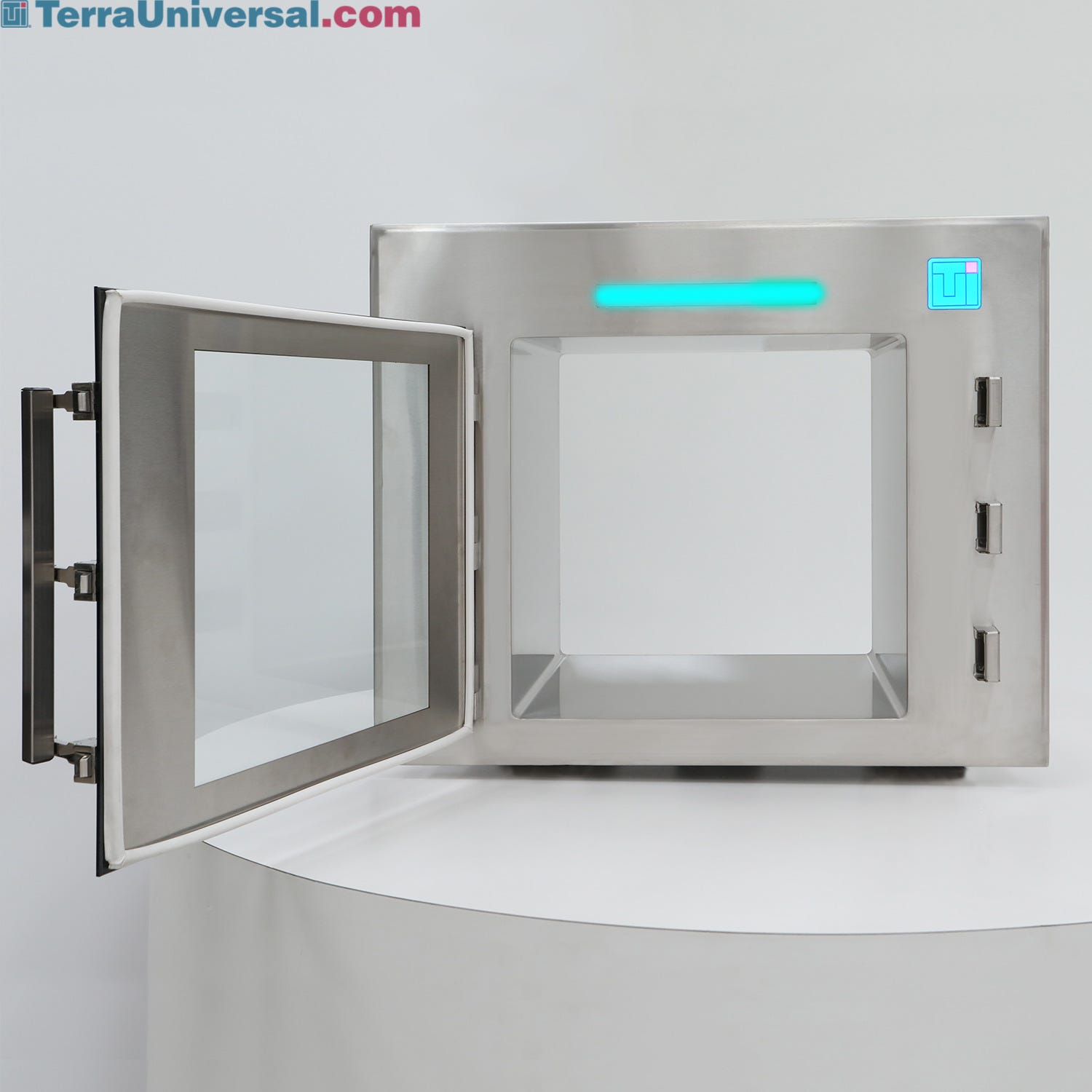

Back Side of Tempered Glass Door on Smart® Pass-Through

The back side of the glass doors feature a 316L stainless steel backing to extend the chamber's service life. The durable one-piece Santoprene gasket fits tightly around the glass door frame. It is detachable for more thorough cleaning or replacement. The electronic door interlock system is concealed between the double walls of the pass-through chamber with service panel on the exterior.

90° Corner Design

Custom door configurations are no problem. Install Smart pass-throughs in corner walls, with door swings in either direction.

Removable Cart Ramps on Floor-Mount Models

Floor-mount pass-through chambers include dual-side stainless steel cart ramps, sloped on three sides, that are removable for easy cleaning.

Interlock Status Lights

Prevent operator damage! A green light bar indicates the door is available for use, with the electronic interlock disengaged. The bar turns red when the opposing door is open to indicate the electronic interlock is engaged.

Wireless Door Alert

Alarm bell rings when its assigned door is open (two bells per chamber); plugs into a standard wall outlet.

CleanMount™ Quick Install System

Clean-Mount™ clamping design allows pass-through installation flush against a cleanroom wall in a few minutes, without drilling into the finished wall; mounting brackets clamp flush against walls of any thickness.

Easy Installation Simplifies Cleanroom Commissioning

Installing conventional passthroughs can be very messy, making it impossible to perform while a cleanroom is operational. Terra’s innovative CleanMount® fastening system changes that, allowing for clean installation without drilling or penetrating the cleanroom wall. Framing a CleanMount® passthrough chamber on a finished cut-out eliminates the need for cleanroom shut-down during installation or service.

Flush-Mount Design Prevents Dust Accumulation

CleanMount® pass-throughs hug the cleanroom wall, eliminating gaps that collect germs and particle and making them ideal for critical bio/pharmaceutical cleanroom use.

CleanMount® Lipless Chamber Eliminates Clearance Obstructions

Instead of welded seams, the corners of the CleanMount® pass-through interior are coved to eliminate dust and germ traps. The lipless opening presents no clearance obstructions and further simplifies cleaning.

Highest Standards For Electronic Components

Terra’s electronic components are designed and built to the highest standards required by defense and semiconductor industries for long-term reliability and protection against damage, injuries, and electrical hazards.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Long-Term Customers

Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers

Comprehensive Product Portfolio

Terra’s comprehensive product portfolio includes solutions for every application and budget. Our technical sales staff will guide you toward the product most suitable for your requirements.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • LED Recessed Light

    Activates when either pass-through door opens; flush with the wall surface, covered by a static-dissipative PVC lens.
  • ULPA-Filtered Air Shower

    High-velocity, ULPA-filtered air dislodges surface-deposited contaminants and exits the chamber through a filtered exhaust.
  • Video Camera

    Interior HD video camera records continuously or upon door-opening; can also be used for remote monitoring the transfer chamber.
  • Infrared Load Sensor

    Infrared beams detect objects placed inside the transfer chamber and can be used to trigger an audible alert. The crossed red lines depict the non-visible trigger lines between the IR transmitters and receivers.
  • Iris Scanner

    Fully automated iris scanner for secure, hands-free access (includes datalogging and optional secondary keycard reader).
  • Automatic Door

    Hands-free operation of the pass-through door, governed by the electronic interlock; automatically closes based on delay timer.
  • Intercom System

    Built-in intercom system lets users easily call and communicate between rooms. No more knocking on windows, shouting, or awkward sign language.
  • LCD Message Panel

    Displays critical environmental information related to the interior chamber such as temperature and relative humidity (customizable).
  • UV Sanitizing Module

    Provides a timed cycle of 254 nm Ultra-Violet (UV) radiation to neutralize bacteria, viruses and mold spores within line-of-sight of the light fixture.
  • Support Brackets for Pass-Through Chambers

    Stainless steel support brackets are recommended for pass-throughs deeper than 24". Brackets fasten to the wall and the body of the chamber rests upon the horizontal bar; no fasteners are used on the pass-through itself.
  • Available UV & LED lights

    Lights are recessed with a transparent lens for easy cleaning; UV-C module neutrailizes microbes using a timed disinfection cycle.
  • 304 Stainless Steel Sliding Tray for Cleanroom Pass Through

    Securely hold small parts during transfer with this dual-motion sliding tray in corrosion-resistant 304 stainless steel. Tray attaches to sliding runners inside a pass-through to allow full tray extension in both directions for convenient material handling.
