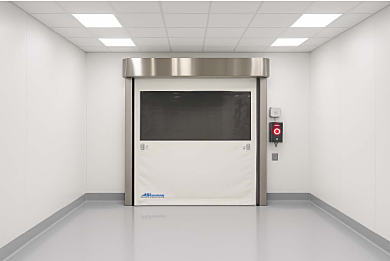

Customizable high-speed roll-up door with vinyl fabric curtain & corrosion-resistant frame | 6710-53B displayed
Roll-Up Doors

Roll-Up Door, High-Speed, PVC, ISO-ROLL® by ASI

  • Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
  • Efficient 1 HP motor provides smooth, dependable performance while reducing energy costs
  • Designed with the industry's most space-efficient 12.5" header
  • Available in custom dimensions up to 12' x 12'
  • Obstruction detection system safeguards personnel and prevents operational interruptions
  • Robust stainless steel frame and covers ensure lasting performance through countless wash cycles

• Electropolished: Optional

• Mounting Position: Wall

• Window Material: N/A

• Frame Material: 304 Stainless Steel

• Material: PVC

• Door Frame: 304 Stainless Steel

• Door Panel: Vinyl Fabric

• Opening Action: Vertical

• Type: Roll-Up Door

• Unit of Measure: EA

Read more
ISO 6 Icon
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
6710-53B
Terra Part # 6710-53B
Request Quote
Terra Part # 6710-53B
88631
Request Quote
Save For Later
Usually ships in 25-30 business days

Want it faster ? Read about FasTrak

Usually ships in 25-30 business days

Want it faster ? Read about FasTrak

Details & Specs
Manuals & Resources
Related Products
Product Details
  • Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
  • Efficient 1 HP motor provides smooth, dependable performance while reducing energy costs
  • Designed with the industry's most space-efficient 12.5" header
  • Available in custom dimensions up to 12' x 12'
  • Obstruction detection system safeguards personnel and prevents operational interruptions
  • Robust stainless steel frame and covers ensure lasting performance through countless wash cycles
  • Material: Antimicrobial UV-resistant PVC curtain material, FDA compliant, 28" ( 711 mm) high, full width, clear plastic panel, 304SS side frames
  • Motor: 1hp electric motor
  • Available in white or blue standard, other colors available upon request
  • Side frames are designed for maximum durability and easy wipe down/ wash down
  • Low profile - only requires 3.4" (86.4 mm) of side room clearance and 12.5" (318 mm) of head clearance
  • Curtain will reset on every upward cycle, even if displaced from its track
  • Soft bottom edge
  • 120/208/230V single-phase or 208/230/460/575V three-phase

• Electropolished: Optional

• Mounting Position: Wall

• Window Material: N/A

• Frame Material: 304 Stainless Steel

• Material: PVC

• Door Frame: 304 Stainless Steel

• Door Panel: Vinyl Fabric

• Opening Action: Vertical

• Type: Roll-Up Door

• Unit of Measure: EA

• Package Type: Vendor

Show more
Other products you may find relevant
  1. Cleanroom Windows
    Group of 21 products
    Cleanroom Windows
  2. Polypropylene shelves resist acid and other chemicals, easily adapt to bulky service or process equipment
    Group of 5 products
    Cleanroom Service Carts From
    As low as $1,412
    Some ship in 1 - 3 days
  3. PureFlow Laminar Transport Cart system provides an uninterrupted vertical laminar flow of HEPA-filtered air in the storage area | 1529-68 displayed
    Group of 3 products
    PureFlow™ Laminar Flow Transport Carts From
    As low as $17,409
    Some ship in 1 - 3 days
  4. InterMetro two or three tier shelf utility cart with Microban protection | 1532-13A displayed
    Group of 12 products
    myCart Series Polymer Utility Carts by InterMetro From
    As low as $191
    Some ship in 1 - 3 days
  5. Metro MW100 series utility cart features two solid stainless steel shelves practical for transporting materials requiring an expanse of flat surface | 1302-PP-01 displayed
    Group of 35 products
    Metro MW Series Stainless Steel Utility Carts From
    As low as $253
    Some ship in 1 - 3 days
  6. DesiCart, Low Humidity Transport Carts features high-density polyethylene frame, steel rails, and a four chamber acrylic desiccator | 4002-50B displayed
    Group of 6 products
    DesiCart™ Low-Humidity Desiccator Transport Carts From
    As low as $3,546
    Some ship in 1 - 3 days

Roll-Up Doors

  • video showcasing cleanroom doors in controlled enviornments Cleanroom Doors for Controlled Environments
  • Video Demonstration of a High-Speed Roll-Up Door Pass-Through Used to Transfer a Cart into a Cleanroom High-Speed Roll-Up Door Pass-Through
  • Custom Personnel Air Shower for EV Battery Production Facility
video showcasing cleanroom doors in controlled enviornments
Terra specializes in manufacturing high-performance cleanroom doors designed for controlled environments Cleanroom Doors for Controlled Environments Terra Universal specializes in manufacturing high-performance cleanroom doors designed for controlled environments like healthcare, pharmaceutical, and cGMP-compliant facilities. Crafted with medical-grade materials, these doors feature seamless construction, configurable frame designs, and various viewing panel and swing configurations. Perfect for maintaining cleanliness and room pressure integrity, Terra’s doors are engineered for easy sterilization and durability.
Video Demonstration of a High-Speed Roll-Up Door Pass-Through Used to Transfer a Cart into a Cleanroom
This short video demonstrates how a High-Speed Roll-Up Door Pass-Through can be used to transfer carts full of materials. | 6771-00 displayed High-Speed Roll-Up Door Pass-Through Terra's High-Speed Roll-Up Door Pass-Through uses a cleanroom-compatible vinyl door to allow quick transfer equipment, minimizing the potential for contamination.
6010-PP-03

Custom Personnel Air Shower for EV Battery Production Facility

6010-PP-03

Custom Personnel Air Shower for EV Battery Production Facility

6010-PP-03

Custom Personnel Air Shower for EV Battery Production Facility

6010-PP-03

Custom Personnel Air Shower for EV Battery Production Facility

6010-PP-03

Custom Personnel Air Shower for EV Battery Production Facility

Set of 5 Images

Features and Benefits

Optional Manual Release

Adding the manual release allows for a simple push through curtain. No special release mechanisms, counterweights, or springs required.

Breakaway with Auto Reset

Upon impact the door will automatically reset on the next upward cycle.

Wireless, Soft Bottom Edge

The wireless edge makes it easy to clean and provides optimal sealing. The bottom is soft which provides ultimate safety for personnel.

Optional Vertical Vision Panels

Increase visibilty and maximum safety for personnel with vertical vision panels.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 50 years of engineering and application expertise, and our commitment to continuously improve.

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
