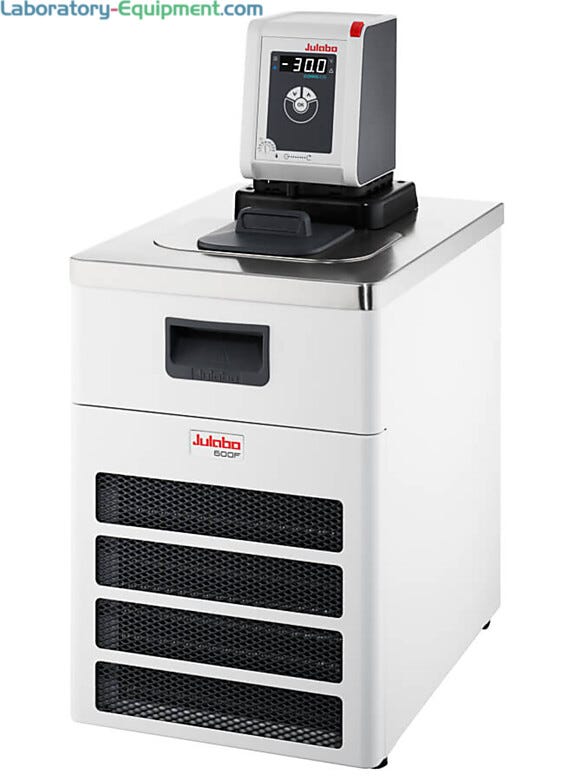

CORIO™ CD Refrigerated/Heating Circulators by Julabo
| Model | CORIO CD-200F | CORIO CD-201F | CORIO CD-300F | CORIO CD-600F |
|---|---|---|---|---|
| Working Temp. | -20°C to +150°C | -20°C to +150°C | -25°C to +150°C | -35°C to +150°C |
| Dimensions (W x D x H) | 9.1” x 15.4” x 25.6” (230 x 390 x 650 mm) | 17.4” x 16.2” x 17.4” (440 x 410 x 440 mm) | 9.5” x 16.6” x 26” (240 x 420 x 660 mm) | 13” x 18.5” x 27.2” (330 x 470 x 690 mm) |
| Bath Tank Opening | 5.1” x 5.9” | 5.1” x 5.9” | 8.6” x 5.9” | 8.6” x 5.9” |
| Filling Volume | 3 to 4 liters | 3 to 4 liters | 5 to 7.5 liters | 5 to 7.5 liters |
| Product Weight | 57.4 lbs. (26 kg) | 55.2 lbs. (25 kg) | 61.8 lbs. (28kg) | 79.4 lbs. (36 kg) |
| Cooling Capacity | 0.22kW @ +20°C 0.17kW @ 0°C 0.06kW @ -20°C | 0.2kW @ +20°C 0.16kW @ 0°C 0.06kW @ -20°C | 0.31kW @ +20°C 0.28kW @ 0°C 0.11kW @ -20°C | 0.6kw @ +20°C 0.53kw @ 0°C 0.22kw @ -20°C |
| Barbed fittings | Diameter 8/12 |
|---|---|
| Pump Capacity | 15 L/Min |
| Pump Capacity Flow | 5.08 psi |
| Refrigerant | R134a |
| Operating Temperature (Ambient) | 5°C to 40°C |
| Temperature Stability | ±0.03 |
| Setting/Display Resolution | 0.1°C |
| Heating Capacity kW | 1 |
| Pump Connections | M16x1 |
Product Details
Product Details
- Designed for use with internal and external applications with working temperatures between -20°C to 150°C
- Larger models reach down to -25°C (CD-300F) and -35°C (CD-600F)
- PID1 control and Active Cooling Control provide temperature stability and rapid response to changes
- Air-cooled compressor provides optimal balance between cooling performance and energy efficiency
- Built-in rear pump connections (M16x1) facilitate connection to an external system
- Easy pump change-over (between internal and external circulation) by simply flipping a lever
- 5.9-deep, stainless steel bath tank with a handled lid
- USB allows direct connection to a PC or accepts a USB flash drive for data-logging
- Absolute Temperature Calibration, 1-point calibration
- Very quiet operation, bright LED display and easy-to-clean keypad
- Recessed, ergonomic handles on the bath tank
- Automatically switches off when the high-temperature alarm or low-liquid level alarm is triggered
- Class III (FL) according to DIN 12876-1
Features & Benefits
Features & Benefits
Learn More: Corio Refrigerating Circulators
Print Copy Copied
CORIO™ CD Refrigerated/Heating Circulators by Julabo
| Model | CORIO CD-200F | CORIO CD-201F | CORIO CD-300F | CORIO CD-600F |
|---|---|---|---|---|
| Working Temp. | -20°C to +150°C | -20°C to +150°C | -25°C to +150°C | -35°C to +150°C |
| Dimensions (W x D x H) | 9.1” x 15.4” x 25.6” (230 x 390 x 650 mm) | 17.4” x 16.2” x 17.4” (440 x 410 x 440 mm) | 9.5” x 16.6” x 26” (240 x 420 x 660 mm) | 13” x 18.5” x 27.2” (330 x 470 x 690 mm) |
| Bath Tank Opening | 5.1” x 5.9” | 5.1” x 5.9” | 8.6” x 5.9” | 8.6” x 5.9” |
| Filling Volume | 3 to 4 liters | 3 to 4 liters | 5 to 7.5 liters | 5 to 7.5 liters |
| Product Weight | 57.4 lbs. (26 kg) | 55.2 lbs. (25 kg) | 61.8 lbs. (28kg) | 79.4 lbs. (36 kg) |
| Cooling Capacity | 0.22kW @ +20°C 0.17kW @ 0°C 0.06kW @ -20°C | 0.2kW @ +20°C 0.16kW @ 0°C 0.06kW @ -20°C | 0.31kW @ +20°C 0.28kW @ 0°C 0.11kW @ -20°C | 0.6kw @ +20°C 0.53kw @ 0°C 0.22kw @ -20°C |
| Barbed fittings | Diameter 8/12 |
|---|---|
| Pump Capacity | 15 L/Min |
| Pump Capacity Flow | 5.08 psi |
| Refrigerant | R134a |
| Operating Temperature (Ambient) | 5°C to 40°C |
| Temperature Stability | ±0.03 |
| Setting/Display Resolution | 0.1°C |
| Heating Capacity kW | 1 |
| Pump Connections | M16x1 |
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
Julabo Thermal Bath Fluids
Thermal Bath Fluids in EG and C10 units are optimized for maximum performance with Julabo temperature control units. Delivered in containers with drain tap included, the fluids are low viscosity, high stability, low odor, and low corrosion/toxicity.
