Select Product

Tank Capacity

Temperature Range

Heated

Power

Voltage

Manufacturer SKU

Terra Part #PriceShips in
3.5 L -30 to 200°C Yes 320W 120 V 9400331 2540-06$6,85112-18 Days
3.5 L -30 to 150°C Yes 320W 120 V 9400330 2540-04$5,76412-18 Days
20.8 L -40 to 150°C Yes 470W 120 V 9400340 2540-05$6,54412-18 Days
20.8 L -40 to 200°C Yes 470W 120 V 9400341 2540-07$7,58212-18 Days
Tank Capacity
Temperature Range
Heated
Power
Voltage
Manufacturer SKU
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Select product to see details

Product Details

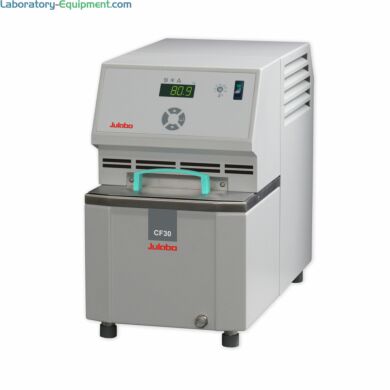

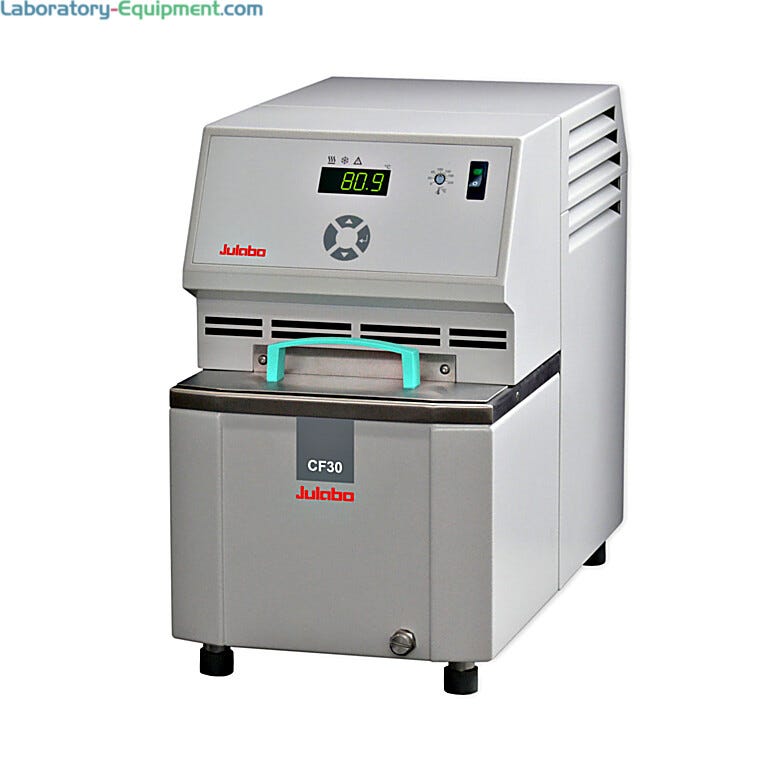

• Compact size offers a small footprint and fits into crowded, complex systems, such as distillation apparatus or mini-plant setups

• Precise temperature control in the range of -30°C to 150°C (200°C in HighTech models) for either internal or external circulation

• Integrated wet bath provides temperature control for small objects

• Air-cooled system operates in environments with ambient temperatures up to 40°C

• PID control provides high temperature stability and responds quickly to thermal changes when connected to external systems, such as a distillation apparatus or a mini-plant

• All components exposed to the liquid contents are either stainless steel or high-grade plastic

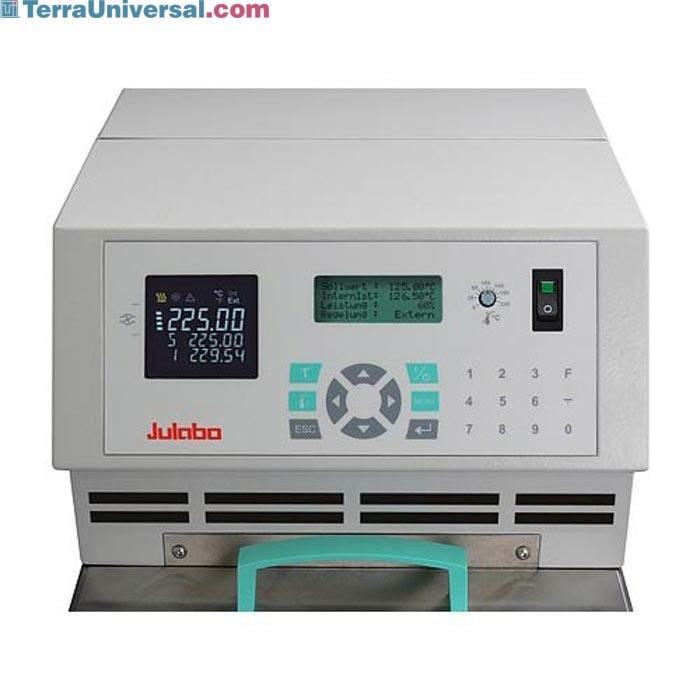

• Splash-proof keypad and bright LED temperature display (VFD display and secondary LCD display on HighTech models, CF31 and CF41)

• Front-mounted drain port for easy access

• High-temperature limit, set by user, activates an alarm function and shuts down the unit for safety

• Low liquid level detection activates a similar alarm and shutdown to protect the pump motor and alert operators

• Includes RS232 connector for PC control and pump connections for external applications

• HighTech models (CF31 and CF41) further include 3-point calibration, programming capabilities, cascading temperature control, tighter tolerances and resolution, and increased pump capacity for demanding applications

• Compatible with flammable liquids (Class III (FL) according to DIN 12876-1)
