Select Product


Frame Material




Manufacturer SKU

Terra Part #PriceShips in
115DuctedPowder-Coated Steel53NoneBasic 702246500 3646-06 44990 $8,78018-22 Days2
115DuctedPowder-Coated Steel53Vapor-ProofBasic 472247300 3646-00 44981 $6,0395-7 Days3
In stock
115DuctedPowder-Coated Steel53Vapor-ProofBasic 702246300 3646-05 44988 $7,98118-22 Days4
115DuctedPowder-Coated Steel53NoneBasic 472247500 3646-01 44983 $7,17618-22 Days5
240DuctedPowder-Coated Steel53NoneBasic 472247501 3646-01-220 44984 $7,17518-22 Days6
230DuctedPowder-Coated Steel53NoneBasic 702246501 3646-06-220 44991 $8,91518-22 Days7
230DuctedPowder-Coated Steel53Vapor-ProofBasic 472247301 3646-00-220 44982 $6,03918-22 Days8
230DuctedPowder-Coated Steel53Vapor-ProofBasic 702246301 3646-05-220 44989 $8,14618-22 Days9
Frame Material
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
  • Bypass airflow design provides stable air velocity for delicate operations
  • Sash height can be adjusted without disrupting airflow; vented design minimizes air speed fluctuations
  • Curved air foil smooths out incoming airflow and can be lifted off for cleaning
  • Epoxy-coated steel surfaces (interior and exterior) resist a broad range of chemicals and cleaning agents
  • Integral blower module provides safe ventilation of the hood (requires separate ductwork)
  • Sash features 3/16"" (5 mm)-thick tempered safety glass with epoxy-coated aluminum handle
  • Includes epoxy-coated steel 10.31"" (262 mm) OD exhaust connection and vapor-proof incandescent lamp
  • Service fixture panel (right side) features pre-fabricated mounting locations for gas/water utilities and electrical outlets using Labconco’s installation kits
  • Removable front panel provides easy access to internal components for retrofitting airflow monitors
  • Requires connection to in-house exhaust ductwork

Fume Hoods by Labconco

  • Basic Laboratory Fume Hood with cupboard from Labconco Basic Laboratory Fume Hoods from Labconco
Features & Benefits

Features and Benefits

Basic Laboratory Fume Hoods Compliances

Basic Laboratory Fume Hoods

  • EFA 1-2005
  • ANSI Z9.5-2003
  • NFPA 45-2004
  • UL 3101-1/61010-1
  • SEFA 1-2005
  • ANSI Z9.5-2003
  • NFPA 45-2004
  • UL 3101-1/61010-1

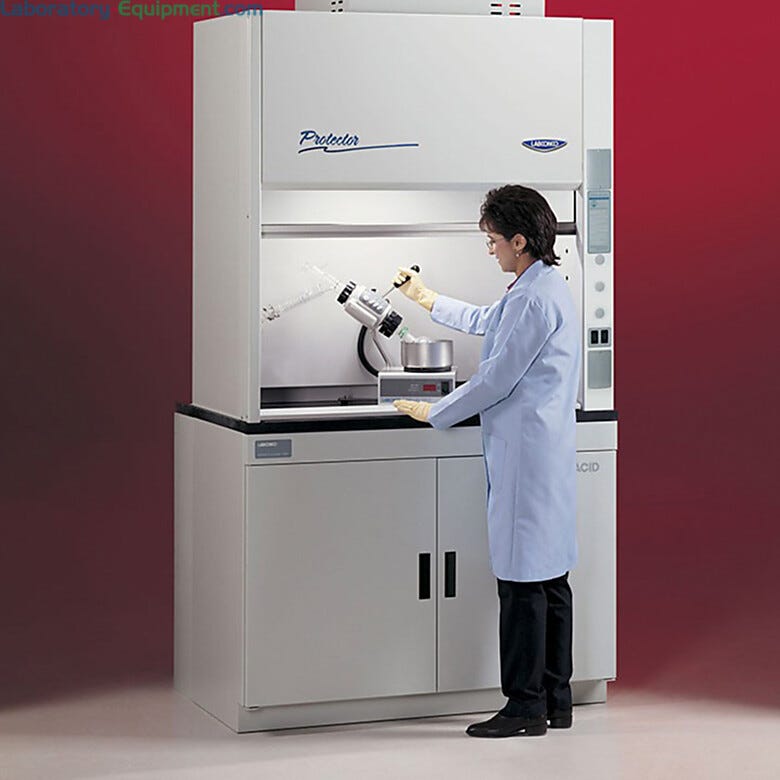

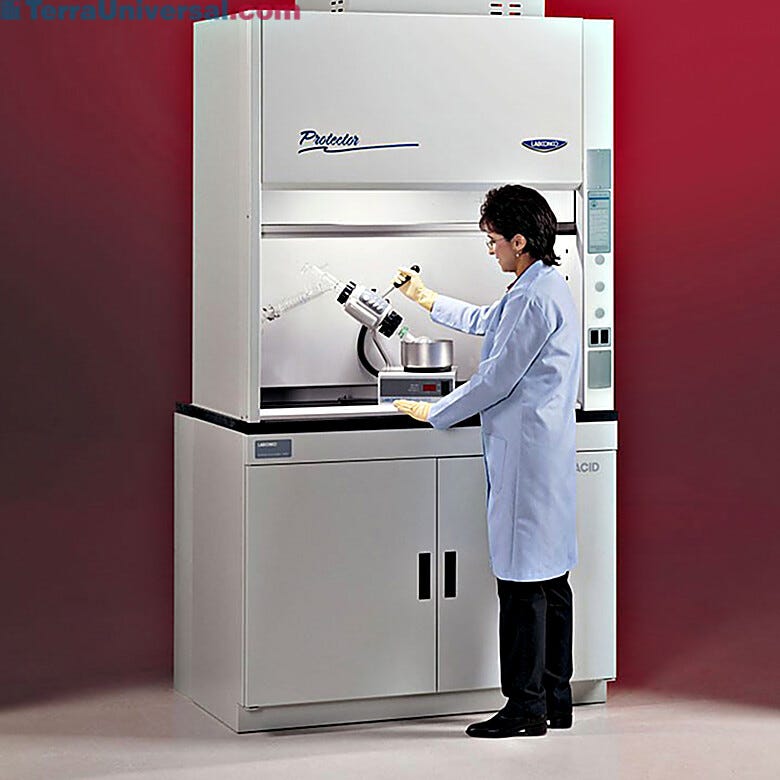

Basic 70 Inch Fume Hood

Designed for ducting of exhaust to in-house exhaust system, these Basic Laboratory Hoods feature a by-pass design that makes them ideal for use with delicate instruments that require a stable air velocity.

Ducted Fume Hoods

These fume hoods are designed to be connected to an in-house exhaust system, typically with an external blower to support the outward flow of air.

Labconco Basic Fume Hood

Labconco Fume Hoods are compliant with SEFA 1-2005, ANSI Z9.5-2003, NFPA 45-2004, UL 3101-1/61010-1, ASTM E84-01, CAN/CSA C22.2 No. 1010.1, and ASHRAE 110-95.

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Labconco Digital Airflow Monitor

    The Guardian 1000 Airflow Monitor measures the air speed within the fume hood and alerts users to unsafe conditions.
  • Labconco Solvent Storage Cabinet

    Solvent storage cabinets are insulated and include two vent connections to ensure safe storage of flammable liquids. Double-wall construction uses epoxy-coated steel for durability. Models with self-closing doors are available.
  • Labconco Logic Cart and Turntable

    Ergonomically designed and energy efficient, these biosafety cabinets provide safety and comfort to users working with hazardous particulates that require Biosafety Level 1, 2 or 3 containment.
  • Labconco Solid Work Surface

    Solid black epoxy work surfaces are chemical resistant and feature a "dished" surface to contain spills. 304-grade stainless steel work surfaces with 1"-deep front spill trough are also available.
