Select Product

Frame Material

Width

Depth

Height

Shield Type

Duplex Outlet

Service Fixtures

Voltage

Manufacturer SKU

Terra Part #PriceShips in
Powder-Coated Steel72"37.7"59"VerticalOptionalNoOptional115 V110610000 1538-38 $8,52425-29 Days2
Powder-Coated Steel72"37.7"59"VerticalOptionalNoOptional230 V110610020 1538-39 $8,52425-29 Days3
Powder-Coated Steel72"37.7"59"VerticalOptionalNoInstalled230 V110610021 1538-40 $9,15125-29 Days4
Powder-Coated Steel72"37.7"59"VerticalInstalledNoInstalled115 V110610002 1538-41 $9,31225-29 Days5
Powder-Coated Steel60"37.7"59"VerticalOptionalNoOptional115 V110510000 1538-34 $7,69925-29 Days6
Powder-Coated Steel60"37.7"59"VerticalOptionalNoOptional230 V110510020 1538-35 $7,69925-29 Days7
Powder-Coated Steel60"37.7"59"VerticalOptionalNoInstalled230 V110510021 1538-36 $8,33325-29 Days8
Powder-Coated Steel60"37.7"59"VerticalInstalledNoInstalled115 V110510002 1538-37 $8,48625-29 Days9
Powder-Coated Steel48"37.7"59"VerticalOptionalNoOptional230 V110410020 1538-31 $6,88125-29 Days10
Powder-Coated Steel48"37.7"59"VerticalOptionalNoInstalled230 V110410021 1538-32 $7,50825-29 Days11
Powder-Coated Steel48"37.7"59"VerticalOptionalNoOptional115 V 1538-30 $6,88125-29 Days12
Powder-Coated Steel48"37.7"59"VerticalInstalledNoInstalled115 V110410002 1538-33 $7,66925-29 Days13
Powder-Coated Steel96"37.7"59"VerticalOptionalNoOptional115 V110810000 1538-42 $12,14025-29 Days14
Powder-Coated Steel96"37.7"59"VerticalOptionalNoOptional230 V110810020 1538-43 $12,14025-29 Days15
Powder-Coated Steel96"37.7"59"VerticalOptionalNoInstalled230 V110810021 1538-44 $12,76525-29 Days16
Powder-Coated Steel96"37.7"59"VerticalInstalledNoInstalled115 V110810002 1538-45 $12,93125-29 Days17
Frame Material
Width
Depth
Height
Shield Type
Duplex Outlet
Built-In Blower
Service Fixtures
Voltage
Manufacturer SKU
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Select product to see details

Product Details

• Aerodynamic design minimizes the exhaust rate necessary for containment for greater energy efficiency

• Meets and exceeds SEFA 1 standard for high-performance fume hoods

• Upper Dilution Air Supply provides passive airflow behind the sash to remove fumes that accumulate in the upper portion of the hood

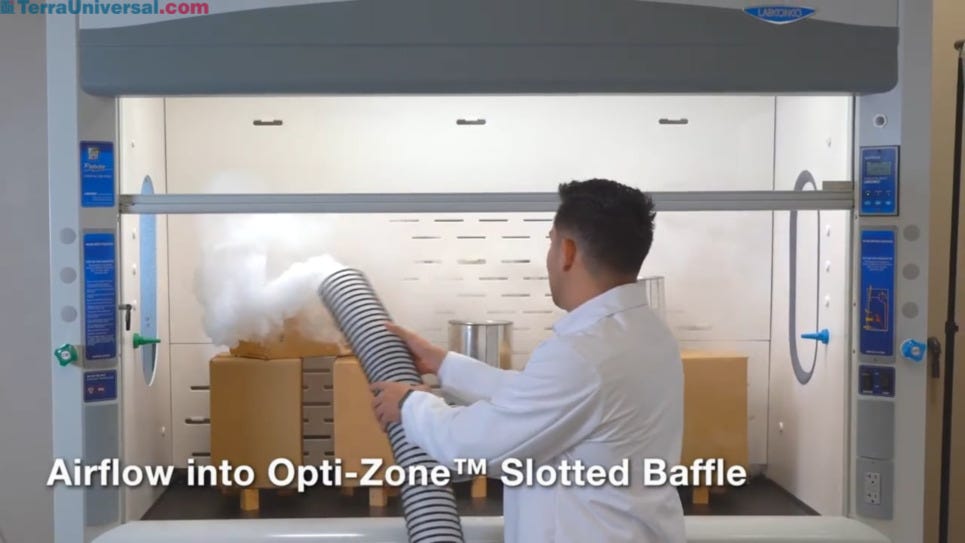

• Tapered slot pattern on the Opti-Zone™ Baffle provides increased airflow at work surface level and center of the hood, where most fumes are generated

• Secondary Baffle Plate, hidden behind the Opti-Zone slotted baffle, guides airflow downward for smooth transition into the rear exhaust plenum

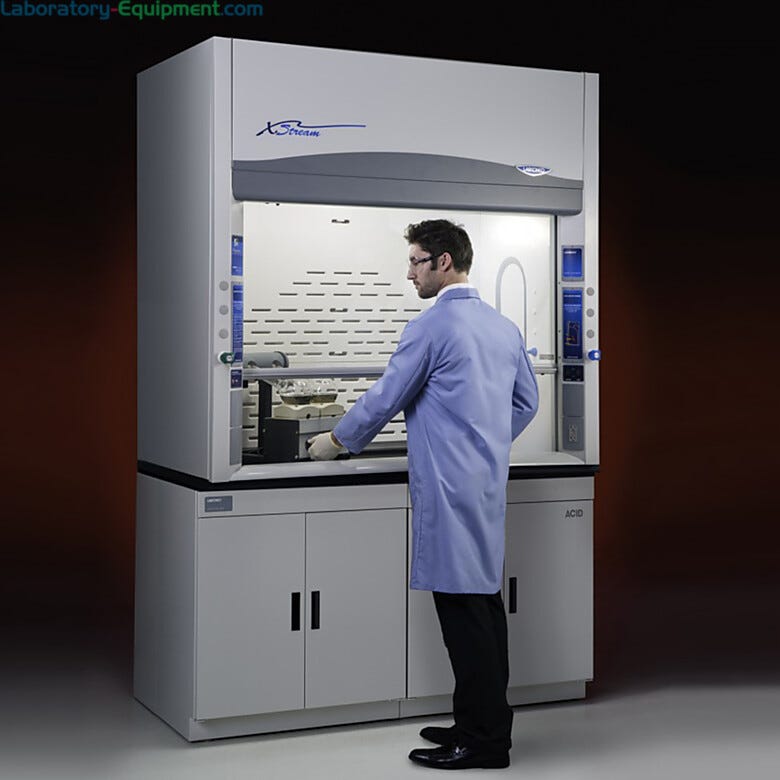

• Clean-Sweep™ Sash Handle has small cut-outs that channel additional inward airflow along the edge of the sash, pushing fumes away from the operator’s breathing zone

• Eco-Foil™ Air Foils are curved for operator comfort and improved aerodynamics, lowering energy usage

• Vapor-proof LED light fixture is sealed behind ¼”-thick safety glass to eliminate spark potential

• Open-bottom design allows for placement on any work surface or on a Labconco base stand

• Fiberglass-composite interior for chemical-resistance and low flame spread (less than 25 per ASTM E84)

• Sash stop allows 18”-high max clearance

• Controls for lights and blower are ADA-compliant

• Front and side panels are removable; utilities plumbing accessible from the front

• Protector XStream accessories can be retrofitted using Labconco kits for service fixtures, duplex outlets, Guardian Airflow Monitors, and Sash Stops

• Requires connection to an existing exhaust system with external blower (separately available)

Fume Hoods

  • Protector Xtreme Laboratory Hood With Model Protector Xtream Laboratory Hood
  • xstream laboratory fume hood XStream Laboratory Fume Hood
Protector Xtreme Laboratory Hood With Model
xstream laboratory fume hood

Features & Benefits

Features and Benefits

XStream Laboratory Fume Hoods

Labconco Protector XStream Laboratory Fume Hoods



Protector XStream Horizontal Airflow Diagram

The external blower pulls outside air into the fume hood through the sash opening. The aerodynamic foils around the sash maintain horizontal airflow until the air enters the rear baffle, where the air flows downward and then back up to the exhaust vent.

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Labconco Acid Storage Cabinet
    Acid storage cabinets are constructed of epoxy-coated steel with a corrosion-resistant, polyethylene interior coating. Each cabinet can support up to 800 lbs. and includes a vacuum-formed PVC tray to contain spillage inside the cabinet.
  • Labconco Standard Base Storage Cabinet
    Constructed with a 304 stainless steel one-piece liner with coved corners, Protector Stainless Steel Radioisotope Hoods have no joints, crevices or cracks. Units effectively contain radiochemicals.
  • Labconco Coated Steel Blower
    Constructed with a 304 stainless steel one-piece liner with coved corners, Protector Stainless Steel Radioisotope Hoods have no joints, crevices or cracks. Units effectively contain radiochemicals.
  • Labconco Fiberglass Blower
    Constructed with a 304 stainless steel one-piece liner with coved corners, Protector Stainless Steel Radioisotope Hoods have no joints, crevices or cracks. Units effectively contain radiochemicals.
  • Labconco Spillstopper Work Surfaces
    These dished work surfaces are made of corrosion-resistant epoxy resins for durability and a smooth finish. Pass-through holes for venting and plumbing are predrilled into the rear portion of the surface (cut-outs for cup-sinks are optional).
