Terra Part # 6500-22
Usually ships in 30-36 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 6500-22

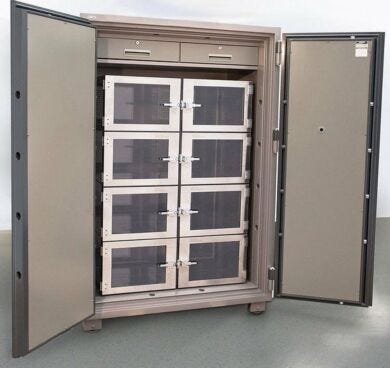

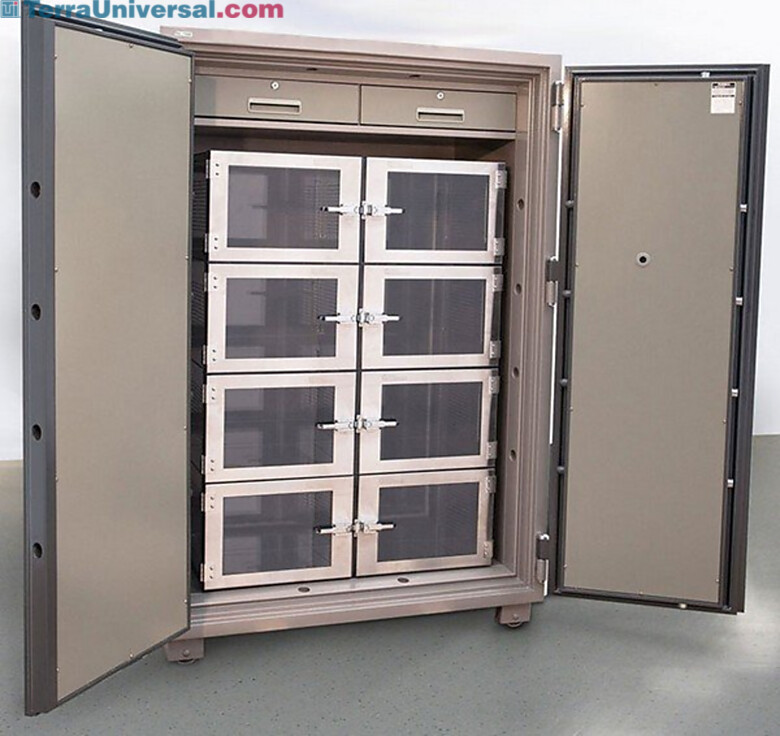

Desiccator; Double-Agent, 8 Chambers, 45.25" W x 25" D x 63.5" H

• Inside dimensions: 38.5"W x 18"D x 56.75"H (978 x 457 x 1441 mm)

• Stores sensitive components in a dry, contamination-free environment

• Protects against theft and fire-damage

• Self-locking doors

• Two locking drawers inside of safe provides additional secure storage
CE marked

• Electronic keypad controls access and logs entry

• Eight-chamber desiccator made of static-dissipative PVC

• Desiccator chamber dimensions: 34"W x 16.5"D x 48"H (864 x 419 x 1219 mm)

• Optional Dual Purge/NitroWatch systems automatically control gas purges and maintain RH set-point

• Anchor bolt included

Chamber Dimensions: 16.625" W x 16.125" D x 11.625" H

Opening Dimensions: 16.125" W x 10.75" H

Number of Chambers: 8

Chamber Width: 16.625"

Chamber Depth: 16.125"

Chamber Height: 11.625"

Number of Drawers: 2

Unit of Measure: EA

Marks & Listings: CE

Weight, Product: 1,776 lb

Dimensions, Product: 45.25" W x 25" D x 63.5" H

Weight, Shipping: 1,996 lb

Dimensions, Shipping: 71.5" W x 53" D x 35.5" H

Package Type: Crate

Buy Accessories
  1. Provides variable gas purge levels to maintain humidity set points | 9500-05 displayed
    IsoDry® Dual Purge™, for Desiccator, 120/240VAC, 50/60Hz Stocked Item is in stock and ready for immediate shipping
    Increase Down Increase Up
  2. Small (4") locking latch, catcher included. Grid shows one-inch squares. | 1603-80 displayed
    Increase Down Increase Up
  3. Increases security of desiccators equipped with Terra LiftLatch and accommodates most standard padlocks. | 1603-34 displayed
    Locking Bracket; SS, LatchLock, for Side-by-Side Chamber Desiccators Stocked Item is in stock and ready for immediate shipping
    Increase Down Increase Up
  4. Stores 16,382 temperature readings and 16,382 relative humidity measurements. | 9500-10 displayed
    Data Logger; Relative Humidity/Temperature Stocked Item is in stock and ready for immediate shipping
    Increase Down Increase Up

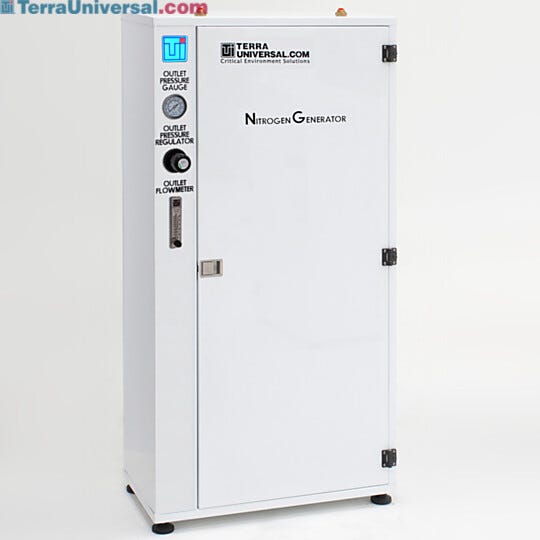

  5. Portable Nitrogen generator, 24"W x 12"D x 49.25"H, with compact footprint produces up to 99% pure N2 gas | 2700-11B displayed
    Nitrogen Generator; 24"W x 12"D x 49.25"H, 88 ft³/hr @ 99% purity, 100 psig Stocked Item is in stock and ready for immediate shipping
    Increase Down Increase Up
  6. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  7. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  8. Equipment Testing and Certification
    Request Quote
    Increase Down Increase Up

Specialty Desiccator Cabinets

  • Desiccators: Features and Design overview
  • Leveling your Desiccator
  • Fire-rated Desiccator Safe Security Desiccator Safe

Features and Benefits

Internal Keyed Steel Drawers

Drawers inside the High-Security Storage Desiccator safe provide secure, fire-safe storage of documents and small valuables. Locking drawers are 4.5” tall.

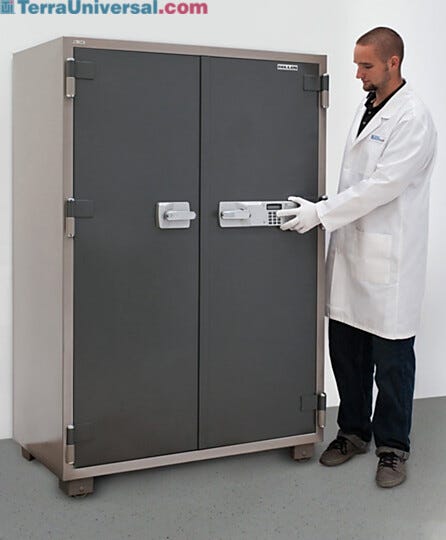

Locking Chrome Bolts on High-Security Desiccator

One-inch-diameter chrome bolts interlock with recesses built into the safe’s perimeter.

Stainless Steel Racks for Adjustable Shelf Storage Desiccators

Unlike common chrome-plated hardware, durable stainless steel racks for adjustable shelf storage desiccators help maintain a contamination-free storage environment. They resist corrosion and chipping/scratching from the sliding removable shelves.

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Dual Purge and NitroWatch
    Terra’s Dual Purge and NitroWatch relative humidity controllers maintain a low-RH set-point inside a desiccator or glove box; they provide variable purge control that ensures continuous positive pressure and eliminates nitrogen waste.

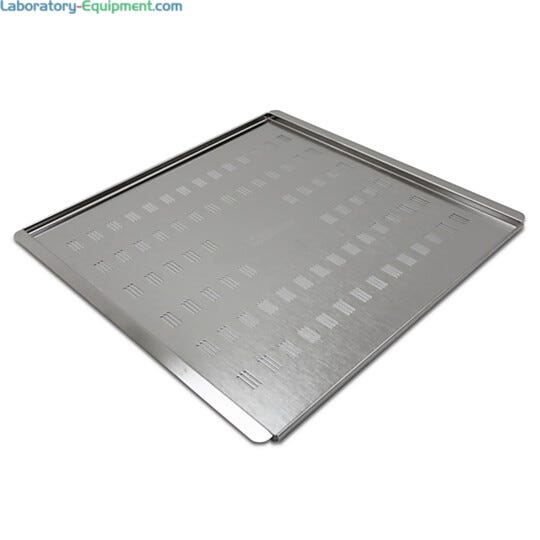

  • Perforated Stainless Steel Shelf
    Adjustable electropolished 304 stainless steel shelves support weight loads of up to 45 pounds. Perforated shelf helps with consistent nitrogen distribution. Individually bagged to prevent surface contamination.
