Terra Part # 6925-15
$2,785
Usually ships in 7-11 business days

Want it faster ? Read about FasTrak

Maximum Speed: 10000 rpm

• Motor rating input / output: 1,100 W

• Speed range: 600 rpm – 10,000 rpm

• Speed Deviation: 1%

• Noise without element: 72 dB(A)

• Extension arm diameter: 16 mm

• Extension arm length: 220 mm

• Permissible ambient temperature: 5° to 40° C

• Permissible relative moisture: 80%

• Digital speed display ensures accurate protocol adherence

• Electronic overload protection helps protect motor from damage

• Digital error code display for easy troubleshooting

• Enables high circumferential speeds

• Emulsifies, homogenizes, or suspends immiscible substances

• Requires dispersing element and base stand (sold separately)

• Protection class per DIN EN 60529: IP20

Maximum Processing Volume: 30000 mL

Maximum Viscosity: 5000 mPas

Maximum Speed: 10000 rpm

Electrical Specifications: 120 V, 9.2 A, 1,100 W, 50/60 Hz

Weight, Product: 12.7 Lbs

Weight, Shipping: 25 lb

Dimensions, Product: 4.5"W x 5.5"D x 14"H

Dimensions, Shipping: 8" W x 8" D x 18" H

Type: Batch

Package Type: Box

Unit of Measure: EA

Features and Benefits

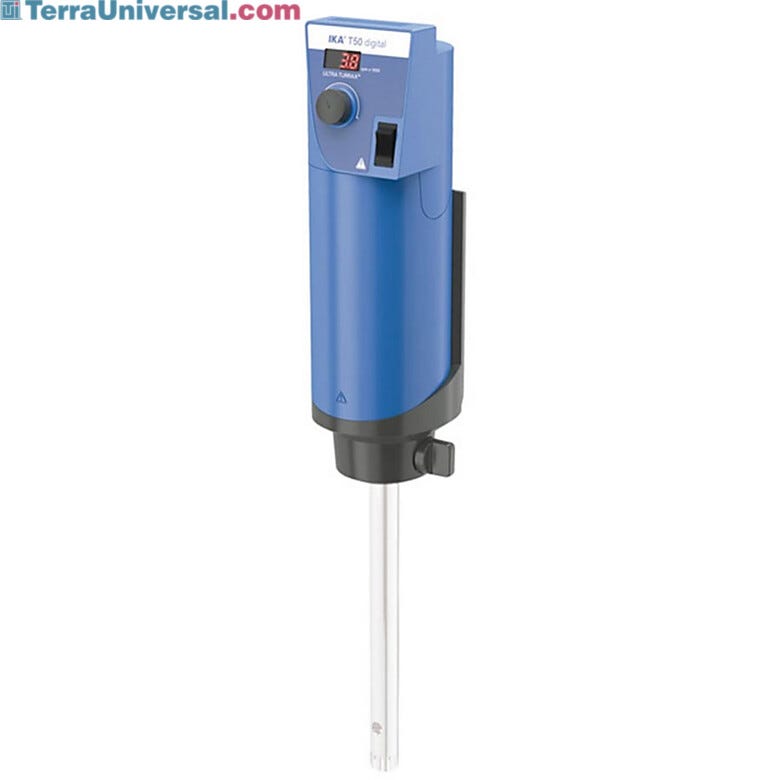

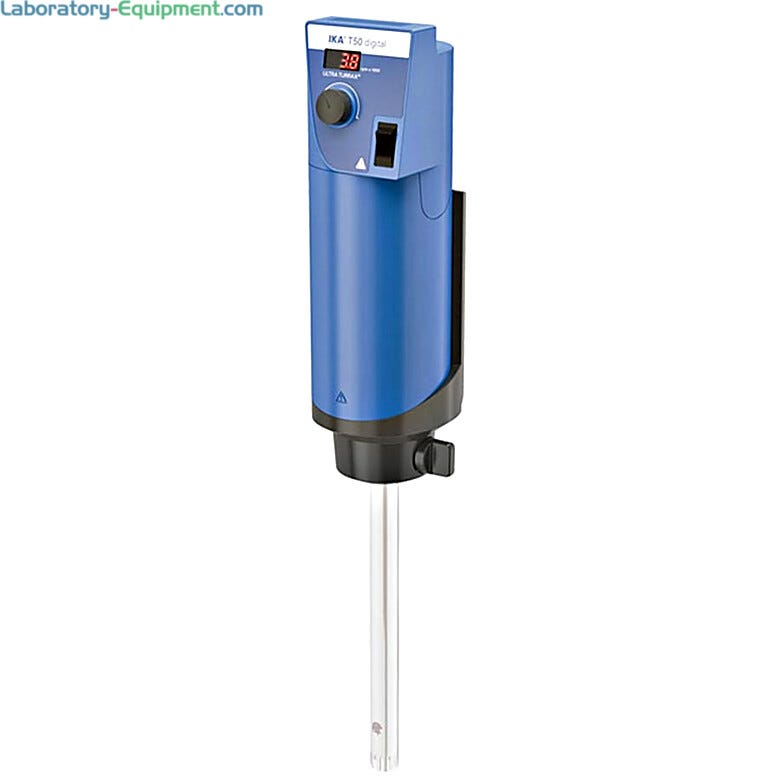

T 50 ULTRA-TURRAX Specifications

Specifications for T 50 digital ULTRA-TURRAX®

  • Motor rating input/output: 1100 / 700 W
  • Volume range min/max: 0.25 - 30 L
  • Viscosity maximum: 5000 mPAS
  • Speed range: 600 - 10,000 rpm
  • Speed control: Stepless
  • Speed display: LED
  • Speed deviation: 1%
  • Noise without element: 72 dB(A)
  • Extension arm diameter: 0.63 in. (16 mm)
  • Extension arm length: 8.66 in. (220 mm)
  • Process type: batch
  • Timer: No
  • Permissible On time: 100%
  • Dimensions: (W x D x H ) 4.5 x 5.5 x 14 in (115 x 139 x 355 mm)
  • Weight: 12.7 lbs. (5.76 kg)
  • Permissible ambient temperature: 5° to 40°C
  • Permissible relative humidity [%]: 80%
  • Protection class per DIN EN 60529: IP20
  • RX 232 interface; USB; analog output: No
  • Analog Output: No
  • Voltage: [V] 100-120-V; 220-240V also available; Contact us for details
  • Frequency [Hz]: 50/60 Hz
  • Power input: 1100W

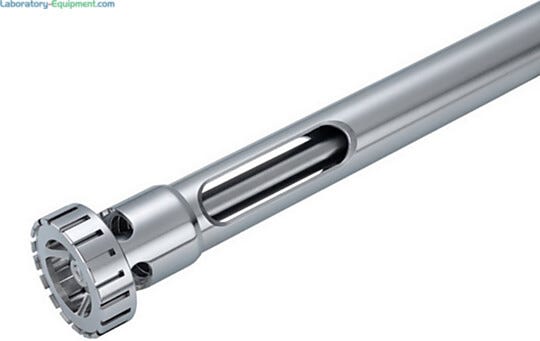

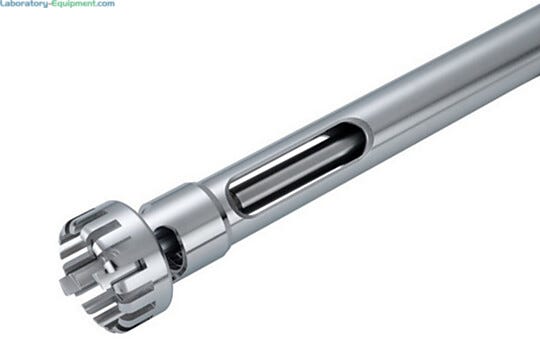

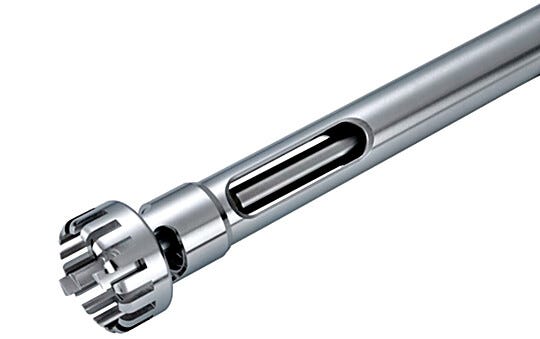

Standard and Saw Tooth Dispersing Elements Specifications
Parameter S 50 N - G 45 G S 50 N - G 45 M S 50 N - G 45 F S 50 N - G 45 G - ST
Volume range (H20) 0.5-20 L 0.5-15 L 0.25-10 L 0.5-20 L
Stator diameter [mm] 45 mm 45 mm 45 mm 45 mm
Rotor diameter [mm] 36 mm 40.5 mm 40 mm 36 mm
Gap between rotor and stator [mm] 0.5 mm 0.25 mm 0.5 mm 0.5 mm
Max. circumferential speed 18.8 m/s 21.2 m/s 20.9 m/s 0.5-20 L
Min. / max. immersion depth [mm] 70 / 250mm 70 / 250mm 70 / 250mm 70 / 250mm
Shaft length [mm]
Materials in contact with medium PTFE, SS 316L PTFE, SS 316L PTFE, SS 316L PTFE, SS 316L
pH range 2 - 13 2 - 13 2 - 13 --
Suitable for solvents and abrasive substances Yes Yes Yes --
Max. temperature 180 180 180 --
Sterilization methods All methods All methods All methods --
Min./Max. ultimate fineness, suspensions -- -- -- --
Min./Max. ultimate fineness, emulsions -- -- -- --
Min. vacuum [mbar] -- -- -- --
Max. pressure [bar] -- -- -- --
