2602-18
Terra Part # 2602-18
$3,656
Usually ships in 8-12 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 2602-18
65951

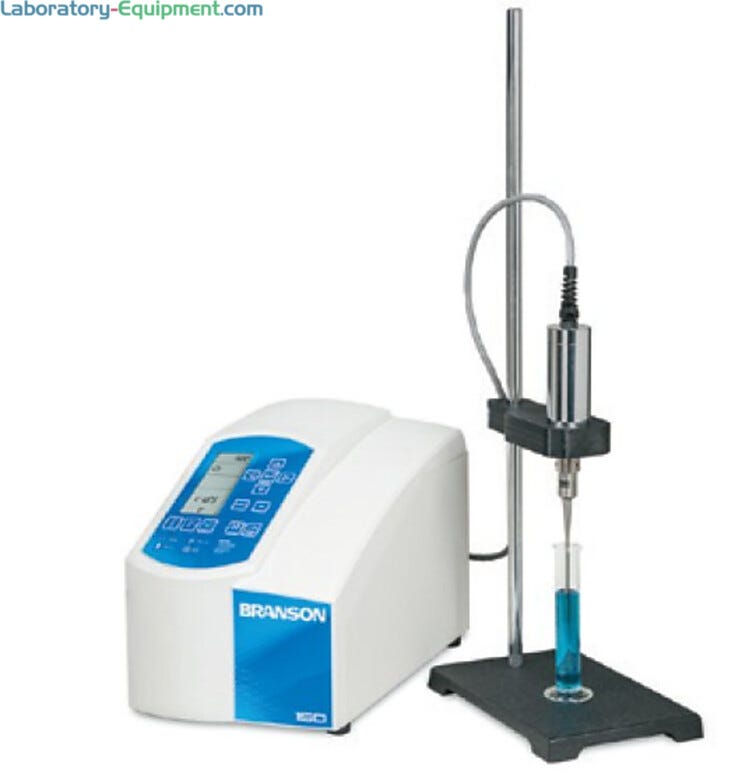

Sonicator; Cell Disruptor, 1/2" Horn, SFX250, Branson, 120 V
Product Details
  • For disruption of cellular materials at volumes from 0.2 to 150 ml
  • True Temperature control with user-specified temperature range; stores 20 programs
  • Stand mountable for longer duration of sample processing
  • Includes 250 watt power supply, converter, and 1/2 inch disruptor horn
  • Two-Year Manufacturer Warranty
  • 250 watts at 20 kHz
  • Advanced energy control mode for precise energy input in continuous or pulse modes
  • True temperature control manages sample temperature within user-specified limits
  • (requires separate temperature probe)
  • Control modes:  time, temperature, and energy
  • Continuous or pulsed ultrasonics
  • High efficiency, stand-mountable converter requires no internal cooling
  • Scrollable, multi-function screen with push buttons,
  • Microtip mode  extends tool life by limiting amplitude to 70%
  • Amplitude control range from 10 to 100%.
  • Powerful 20 kHz ultrasonics
  • Stores up to 20 programs
  • In-process feedback provides users with experimental progress, temperature, energy usage, power level and elapsed time
  • Features industry exclusive adaptive temperature control to protect samples
  • Programmable parameters include:
  • continuous or pulsed ultrasonics; time, energy, or temperature control modes; pulse on-time/energy, off-time and total on-time/energy; or amplitude as a percentage.

Type: Sonicator

Wattage Output: 250 W

Frequency Output: 20 kHz

Controls: Digital

Design: Benchtop

Pulse Mode Operation: Yes

Model: SFX250

Manufactured by: Branson

Probe Type: Horn

Probe Diameter: 0.5"

Cooling Method: Glass-Cooling Cell

Manufacturer SKU: 101-063-965R

Unit of Measure: EA

Electrical Specifications: 120 V, 60 W, 50/60 Hz

Weight, Product: 14 Lbs

Dimensions, Product: 7.5"W x 12.5"D x 9.25"H

Weight, Shipping: 20 Lbs

Dimensions, Shipping: 10" W x 15" D x 12" H

Package Type: Box

Buy Accessories

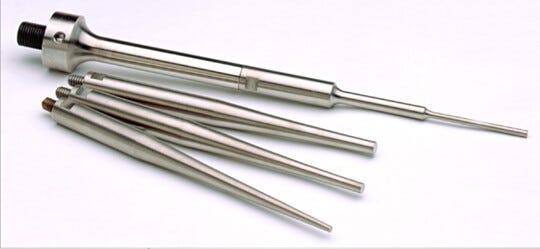

  1. Double stepped microtip shown with tapered microtips: 1/8''D, 3/16''D, and 1/4''D  |  2601-33 displayed
    Microtip; Double Step, 1/8" Dia, for 250 & 450 Sonifier Cell Disruptor Ships Free Free shipping in contiguous USA In stock
    $493
    Increase Down Increase Up
  2. Double stepped microtip shown with tapered microtips: 1/8''D, 3/16''D, and 1/4''D  |  2601-33 displayed
    Microtip; Tapered, 1/8" Dia, for 250 & 450 Sonifier Cell Disruptor Ships Free Free shipping in contiguous USA In stock
    $328
    Increase Down Increase Up
  3. Double stepped microtip shown with tapered microtips: 1/8''D, 3/16''D, and 1/4''D  |  2601-33 displayed
    Microtip; Tapered, 3/16" Dia, for 250 & 450 Sonifier Cell Disruptor Ships Free Free shipping in contiguous USA In stock
    $323
    Increase Down Increase Up
  4. Double stepped microtip shown with tapered microtips: 1/8''D, 3/16''D, and 1/4''D  |  2601-33 displayed
    Microtip; Tapered, 1/4" Dia, for 250 & 450 Sonifier Cell Disruptor Ships Free Free shipping in contiguous USA In stock
    $318
    Increase Down Increase Up

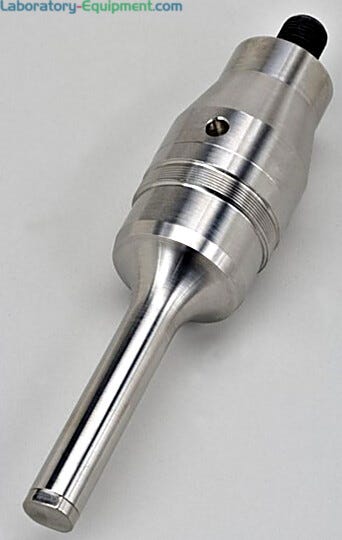

  5. Horns transmit ultrasonic energy into a solution  |  2601-49 displayed
    Horn; Disruptor, 3/8" Diameter, for Sonifier Cell Disruptor 250 and 450 Ships Free Free shipping in contiguous USA In stock
    $493
    Increase Down Increase Up
  6. Horns transmit ultrasonic energy into a solution  |  2601-19 displayed
    Horn; Disruptor, 1/2" Diameter, for Sonifier Cell Disruptor 250 and 450 Ships Free Free shipping in contiguous USA In stock
    $514
    Increase Down Increase Up
  7. Horns transmit ultrasonic energy into a solution  |  2601-49 displayed
    Horn; Disruptor, 1/2" Diameter, for Sonifier Cell Disruptor 250 and 450 Ships Free Free shipping in contiguous USA In stock
    $714
    Increase Down Increase Up
  8. Horns transmit ultrasonic energy into a solution  |  2601-49 displayed
    Horn; Disruptor, 3/4" Diameter, for Sonifier Cell Disruptor 250 and 450 Ships Free Free shipping in contiguous USA In stock
    $493
    Increase Down Increase Up
  9. Horns transmit ultrasonic energy into a solution  |  2601-19 displayed
    Horn; High Gain, 3/4" Diameter, for 250 & 450 Sonifier Cell Disruptor Ships Free Free shipping in contiguous USA In stock
    $378
    Increase Down Increase Up
  10. #101-147-044 with solid tip configuration and low intensity  |  2601-54 displayed
    $1,045
    Increase Down Increase Up

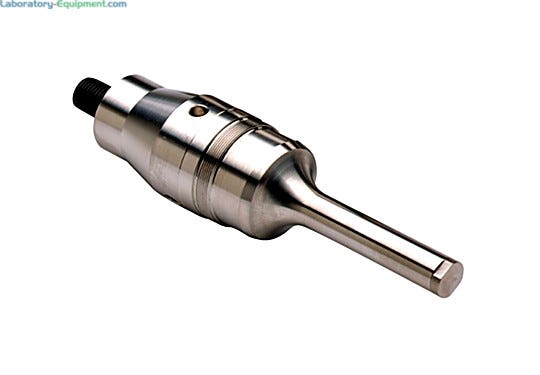

  11. Horns transmit ultrasonic energy into a solution  |  2601-52 displayed
    Horn; Exponential 1/2" Diameter, for Sonifier Cell Disruptor 250 and 450 Ships Free Free shipping in contiguous USA In stock
    $425
    Increase Down Increase Up
  12. Horns transmit ultrasonic energy into a solution  |  2601-52 displayed
    Horn; Exponential 1/2" Diameter, for Sonifier Cell Disruptor 250 and 450 Ships Free Free shipping in contiguous USA In stock
    $544
    Increase Down Increase Up

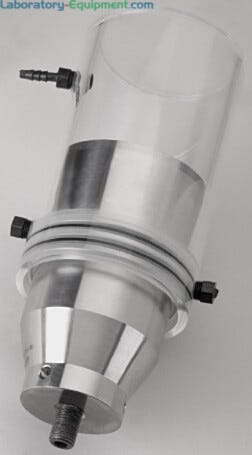

  13. Enables sonification of a sample without the horn coming in contact with the solution  |  2601-23 displayed
    Horn; Cup, 2" Diameter, for 450 Sonifier Cell Disruptor Ships Free Free shipping in contiguous USA In stock
    $1,865
    Increase Down Increase Up
  14. Enables sonification of a sample without the horn coming in contact with the solution  |  2601-23 displayed
    Horn; Cup, 3" Diameter, for 450 Sonifier Cell Disruptor Ships Free Free shipping in contiguous USA In stock
    $1,988
    Increase Down Increase Up

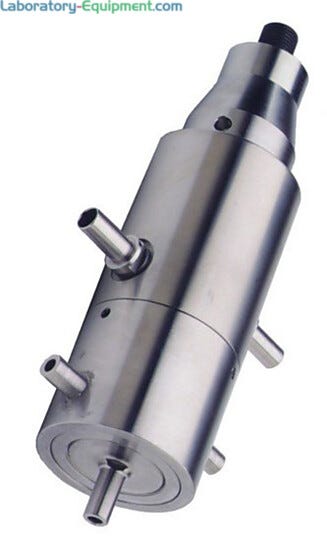

  15. Permits continuous processing of low viscosity materials  |  2601-26 displayed
    Attachment; Continuous Flow, SS, for 250 & 450 Sonifier Cell Disruptor Ships Free Free shipping in contiguous USA In stock
    $1,602
    Increase Down Increase Up

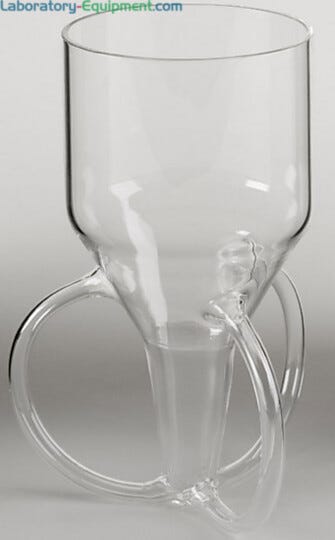

  16. Provides a unique flow pattern of substances for exposure to ultrasonic energy  |  2601-40 displayed
    Cooling Cell; Rosette for 250 Sonifier Cell Disruptor Ships Free Free shipping in contiguous USA In stock
    $73
    Increase Down Increase Up

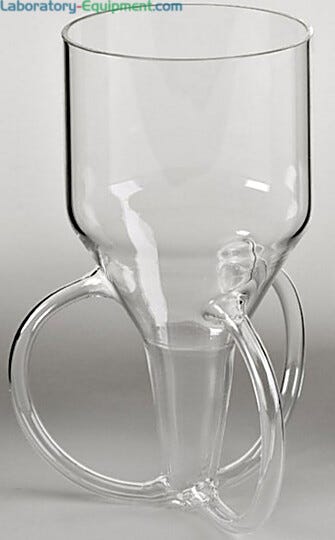

  17. Provides a unique flow pattern of substances for exposure to ultrasonic energy  |  2601-40 displayed
    Cooling Cell; Rosette for 250 Sonifier Cell Disruptor Ships Free Free shipping in contiguous USA In stock
    $166
    Increase Down Increase Up
  18. Provides a unique flow pattern of substances for exposure to ultrasonic energy  |  2601-40 displayed
    Cooling Cell; Rosette for 250 Sonifier Cell Disruptor Ships Free Free shipping in contiguous USA In stock
    $272
    Increase Down Increase Up
