Terra Part # 6924-89
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

In stock
Accessories related to Terra Part # 6924-89

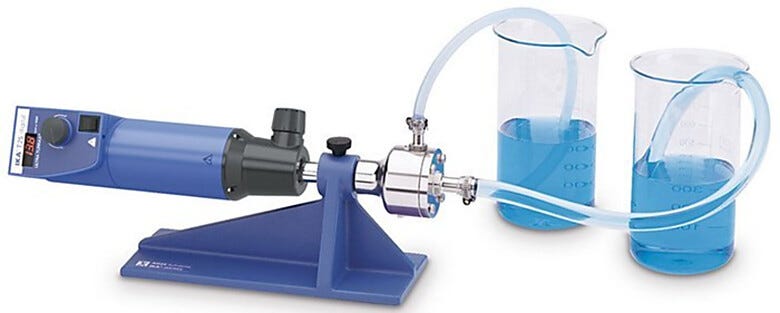

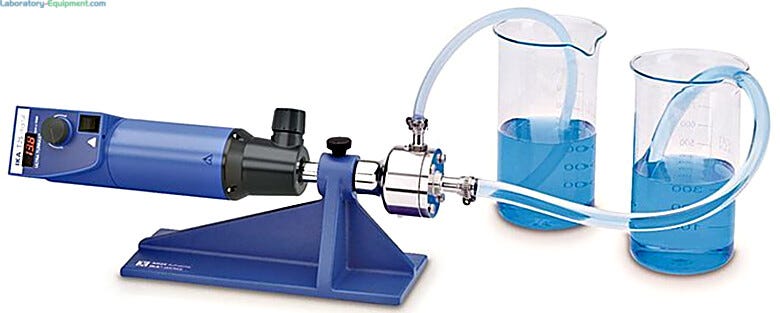

Disperser; UTL 25, Digital, ULTRA-TURRAX, IKA, 115 V
  • Maximum Speed: 24000 rpm
  • Speed display: scale
  • Speed range: 6500 rpm - 24000 rpm
  • Motor rating input/output: 500/300W
  • Frequency: 50/60 Hz
  • Pump rate: 11.6 l/min
  • Noise without element: 73 dB(A)
  • Extension arm diameter: 13 mm
  • Extension arm length: 175 mm
  • Chamber volume: 26 ml
  • Attainable vacuum: 1 mbar
  • Pressure max.: 6 bar
  • Weight: 8.4 lbs.  (3.8 kg)
  • Unit does not contain dispersing element or grinding tubes
  • For-air free, sterile, and inline suspension, emulsifying and deagglomeration
  • Vacuum or pressurized operation (up to 6 bar)
  • Compact and modular design for easy assembly and transport
  • Sterilizable, autoclave-compatible
  • Table-top or stand-supported
  • Allows integration of pump between intake nozzle and vessel for processing viscous fluids
  • Not suited for continuous or cyclical continuous operation

Type: Inline

Maximum Processing Volume: 26 mL

Maximum Speed: 24000 rpm

Speed Range: Stepless

Controls: Digital

Model: UTL 25


Manufacturer SKU: 8014401

Unit of Measure: EA

Electrical Specifications: 115 V, 4.3 A, 500 W, 50/60 Hz

Weight, Product: 8.4 Lbs

Dimensions, Product: 17.7"W x 3.9"D x 4.7"H

Weight, Shipping: 15 Lbs

Dimensions, Shipping: 20" W x 5" D x 8" H

Package Type: Box

Buy Accessories

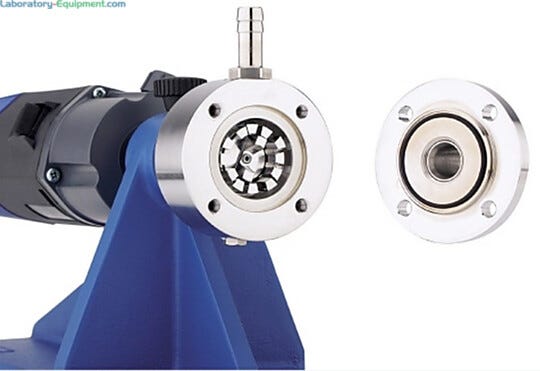

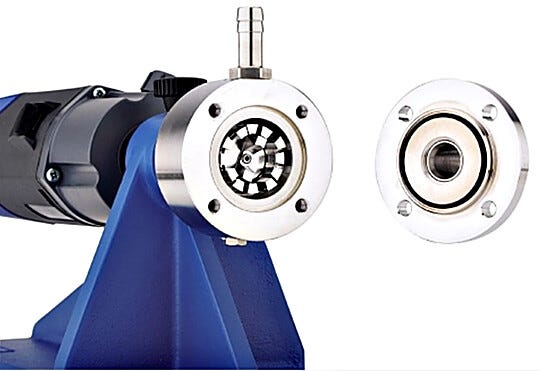

  1. Prevents air intake into the processing chamber | 6924-90 displayed
    Increase Down Increase Up
  2. AD 25 Mounting support for DK 25.11
    Increase Down Increase Up
  3. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Features and Benefits

UTL 25 Specifications

UTL 25 digital Inline ULTRA-TURRAX® Specifications

  • Motor rating input/output: 500/300 W
  • Pump rate: 11.6 L/min
  • Speed range: 6500 to 25000 rpm
  • Speed control: Stepless
  • Speed display: Scale
  • Speed deviation: 1%
  • Noise without element: 73 dB(A)
  • Extension arm diameter: 13 mm
  • Extension arm length: 175 mm
  • Chamber volume: 26 ml
  • Attainable vacuum : 1 mbar
  • Pressure max: 6 bar
  • Process type: inline
  • Permissible ambient temperature: 5° to 40°C
  • Permissible relative humidity [%]: 80%
  • Protection class per DIN EN 60529: IP 20
  • Dimensions (W x H x D): 17.7 x 4.7 x 3.9 in (450 x 120 x 100 mm)
  • Voltage: 115 V / 230 V
  • Frequency: 50/60 Hz
  • Power input: 500 W
