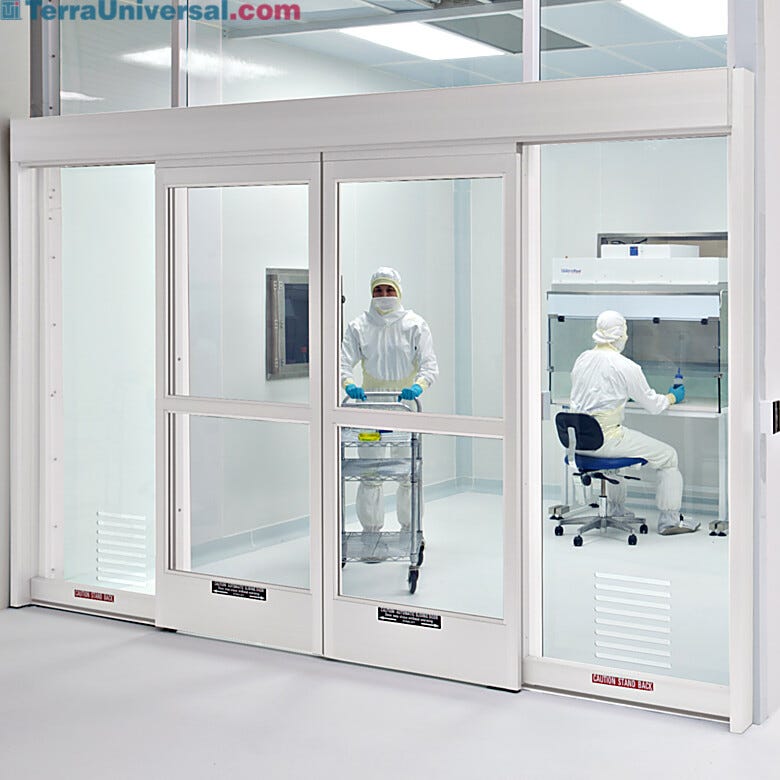

Automatic sliding doors provide cleanroom-compliant operation for use in research, healthcare and educational labs
Automatic Sliding Doors,Doors & Windows for Cleanrooms,Doors for Architects
Product Group:
5555-PP-01
5555-PP-01

Recessed Automatic Sliding Doors, Aluminum

Manufactured By: Terra Universal
  • Available ISO Ratings: ISO 6, ISO 7, ISO 8
  • Door Frame and track are installed inside existing wall cutout/partition
  • Touchless motion door pad for hands-free operation
  • Comes as a complete unit that is ready to be installed, saving time and effort during the building process
  • Simple door programming that can be done by anyone without the need for costly field technicians
  • Installation is quick and does not require special expertise
Read more
Stocked ISO 6 Icon
Manufactured By: Terra Universal
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Type

Sort Order:
Opening Width

Sort Order:
Opening Height

Sort Order:
Door Frame

Sort Order:
Door Panel

Sort Order:
Opening Action

Sort Order:
Certified ISO Grade Design

Sort Order:
Operation

Sort Order:

 Terra Part #Price Ships in
Door 34" 80" Powder-Coated Aluminum Static-Dissipative PVC Right Sliding ISO 6 Automatic 5555-06B-RS-PC $7,344 10-15 Days2
Door 34" 80" Powder-Coated Aluminum Static-Dissipative PVC Left Sliding ISO 6 Automatic 5555-06B-LS-PC $7,344 10-15 Days3
Door 34" 80" Powder-Coated Aluminum Tempered Glass Right Sliding ISO 6 Automatic 5555-02B-RS-PC $7,052 10-15 Days4
Door 34" 80" Powder-Coated Aluminum Tempered Glass Left Sliding ISO 6 Automatic 5555-02B-LS-PC $7,052 10-15 Days5
Door 40" 80" Powder-Coated Aluminum Static-Dissipative PVC Right Sliding ISO 6 Automatic 5555-07B-RS-PC $7,412 10-15 Days6
Door 40" 80" Powder-Coated Aluminum Static-Dissipative PVC Left Sliding ISO 6 Automatic 5555-07B-LS-PC $7,412 10-15 Days7
Door 40" 80" Powder-Coated Aluminum Tempered Glass Right Sliding ISO 6 Automatic 5555-00B-RS-PC $7,121 10-15 Days8
Door 40" 80" Powder-Coated Aluminum Tempered Glass Left Sliding ISO 6 Automatic 5555-00B-LS-PC $7,121 10-15 Days9
Door 40" 80" Aluminum Tempered Glass Right Sliding ISO 6 Automatic 5555-00B-RS $8,319 10-15 Days10
Door 46" 80" Powder-Coated Aluminum Static-Dissipative PVC Right Sliding ISO 6 Automatic 5555-08B-RS-PC $7,483 10-15 Days11
Door 46" 80" Powder-Coated Aluminum Static-Dissipative PVC Left Sliding ISO 6 Automatic 5555-08B-LS-PC $7,483 10-15 Days12
Door 46" 80" Powder-Coated Aluminum Tempered Glass Right Sliding ISO 6 Automatic 5555-03B-RS-PC $7,190 10-15 Days13
Door 46" 80" Powder-Coated Aluminum Tempered Glass Left Sliding ISO 6 Automatic 5555-03B-LS-PC $7,190 10-15 Days14
Door 60" 80" Powder-Coated Aluminum Tempered Glass Double Bi-Parting ISO 6 Automatic 5555-01B-PC $8,305 10-15 Days15
Door 60" 84" Powder-Coated Aluminum Static-Dissipative PVC Double Bi-Parting ISO 6 Automatic 5555-09B-PC $8,595 10-15 Days16
Door 80" 80" Powder-Coated Aluminum Static-Dissipative PVC Double Bi-Parting ISO 6 Automatic 5555-10B-PC $8,666 10-15 Days17
Door 80" 80" Powder-Coated Aluminum Tempered Glass Double Bi-Parting ISO 6 Automatic 5555-04B-PC $8,376 10-15 Days18
Type
Opening Width
Opening Height
Door Frame
Door Panel
Opening Action
Certified ISO Grade Design
Operation
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

* *
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
*includes web discount for online orders Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
CONFIGURE & ADD TO CART
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
See Product Details
Free shipping in contiguous USA
Some ship in:
Usually Ships in:
Back to product group
Show more
Product Details
Product Details
Features & Benefits
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Available ISO Ratings: ISO 6, ISO 7, ISO 8
  • Door Frame and track are installed inside existing wall cutout/partition
  • Touchless motion door pad for hands-free operation
  • Comes as a complete unit that is ready to be installed, saving time and effort during the building process
  • Simple door programming that can be done by anyone without the need for costly field technicians
  • Installation is quick and does not require special expertise
  • Well suited for room partitions or openings larger than desired door size; can be configured to include side lights for additional visibility
  • Elastomeric door seals and fiberglass reinforced timing belt ensures cleanliness, durability and uniform closing
  • Microprocessor controller continually monitors door position with adjustable opening and closing speed, distance and speed of braking reduces opening and time delay
  • Auto reverse on obstruction; slow speed search for obstruction
  • Load-bearing wheels made of cast urethane for long-lasting, smooth and trouble-free operation
  • Adjustable anti-riser wheels lock each door in its overhead track
  • Doors undergo life testing to a minimum of one million cycles
  • Static-dissipative PVC door panels enhance static and particle control, stand up to cleaning agents, minimize obstructive sight lines and reduce claustrophobic sensation in small rooms
  • Quick installation with pre-assembled header and panel sub-assemblies
  • ANSI compliant
  • See overall dimensions below; adequate clearance required for door opening
  • Custom sizes and configurations, including swing and folding doors, available; call Terra to discuss your requirements!

Show more

Automatic Sliding Doors

  • Terra Universal BioSafe Doors Video Terra Universal BioSafe® Doors
  • Short video showing the cleanroom automatic door Cleanroom Automatic Doors
Terra Universal BioSafe Doors Video
Terra Universal's BioSafe® Doors are easy to sterilize maintain room pressure and resist common biocides and hospital grade disinfectants. Terra Universal BioSafe® Doors Terra Universal's BioSafe® Doors are easy to sterilize maintain room pressure and resist common biocides and hospital grade disinfectants.
Short video showing the cleanroom automatic door
Short video showing the cleanroom automatic door Cleanroom Automatic Doors Video demonstrating the convenience of the cleanroom automatic door
Features & Benefits

Features and Benefits

Automatic Sliding Doors
Print Copy Copied

More Information

  • Construction: Clear anodized aluminum frames are easy to clean and sterilize (other frame colors optional)
  • Position Switch: Single or Dual (optional)
  • Alarm Contacts: Optional
  • Transom: Optional
  • Threshold Configuration: Standard no-threshold design allows easy transfer of carts and other items; thresholds available on optional basis
  • Emergency Power Options: Uninterruptible Power Supply (UPS); extended operation Fly Open Box; One time operation
  • Locking options (2-Point locking standard): 3-Point Locks, Lock position indicators, Armored strikes, Electric Solenoid Lock (Fail Safe/Fail Secure), Access Control Locking with surface or recessed panic hardware
Specifications
  • Design: Bi-Part or Single Slide
  • Breakout: Sliding Panels Only
  • Jamb Dimension: 1 3/4" x 4 1/2" 1 3/4" x 6"
  • Finish: Clear Special Finish Available
  • Panels: Static-dissipative PVC
  • Locking: Single Point Bottom Rail Deadlock(s) Electric Locking
  • Controls: Touchless or biometric keypad Biometric or card key reader
  • Sensors: 2 SU-100s / Stanguard 2 Wizards
  • Drive System: ¼ HP DC gear driven motor, twin ¼ HP DC gear driven motors (optional)
  • Material: Door Panel options (special quote): tempered glass, polycarbonate
  • Compliance: UL, cUL, ANSI A156.10, UBC, BOCA, ICBO, NFPA 101
  • STANLEY SU-100 MOTION SENSORS: Uni-directional function reduces length of time door stays open by detecting approaching traffic; saves energy by preserving loss of heat and air conditioning
  • Stan-Guard® Threshold Sensor: Configurable Options: threshold sensor and doorway holding beam detects and holds the door open for people and objects until area is clear
  • Security Options: Security access options include card readers, biometric readers, passcode readers and overhead cameras; call Terra for more information
  • Battery Backup: Extends operation of automatic doors up to 1.5 hours in event of power outage or failure (optional)

Simple Door Programming

Adjustment and troubleshooting can be done by anyone. Programming is simple and doesn't require special equipment or costly field technicians.

Fast, Easy Installation

Install Terra's door in under an hour. Don't waste an entire day with an overly complex door that requires special expertise.

Door Sliding Direction

Door sliding direction is easily determined while standing on the SECURE SIDE (key side) or OUTSIDE of the door.

Always Shipped Complete

Terra’s doors come with tempered glass or static-dissipative PVC panels already included. Avoid unnecessary extra steps sourcing door panels!

No Hardwiring Required

Simply insert Terra’s plug into your outlet and the door is ready. Avoid costly and lengthy hardwiring. An electrician is not needed for the install.
Learn More

Automatic Doors Prevent Germ Transmission

Keep your cleanroom contamination-free with the right accessories and protocols. Touchless systems and automatic doors can boost your cleanliness, safety standards, and ISO ratings.

Custom Paint Options

These 20 different paint options can be applied to Terra doors and windows that use powder-coated steel, aluminum or polypropylene frames.
