1689-00G-RH
Terra Part # 1689-00G-RH
$1,904
*includes web discount for online orders Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Accessories related to Terra Part # 1689-00G-RH
62188
Glovebox; Series 100, Acrylic, 2 Glove Ports, 35" W x 24" D x 25" H
Quick Ship+ Available Only 5 left in stock
Usually ships in 1-1 business days

Want it faster ? Read about FasTrak

Product Details
  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • To maintain RH levels as low as 7%, purchase nitrogen generator catalog number 2700-99
  • To maintain RH levels below 1%, purchase nitrogen generator catalog number 2700-12B
  • Features an 1/8" NPT inlet
  • Single model features two 10" (254 mm) diameter ports that provide a wide range of motion
  • Dual access doors include stainless steel door frame, which increases structural rigidity and Santoprene® "e"-shape  nonoutgassing rubber gasket to eliminate leaks
  • Designed for use with Terra’s NitroWatch/Dual Purge systems, which provide automated RH set-point control; includes provisions for mounting a NitroWatch sensor
  • Dual gasketed side doors and a fully gasketed back permit introduction of small and large equipment
  • Designed for positive-pressure operation, in conjunction with RB valves to relieve overpressure
  • Stainless steel ergonomic LiftLatches operate without strain to hinges and eliminate corrosion and contamination common with plated hardware
  • Order illuminator separately
  • CAUTION: Acrylic is damaged by alcohol and many other cleaning agents.  Use only water and mild detergent
  • NOTE: Not an air-tight containment chamber; not suitable for use with biohazards

Material Type: Plastic

Model: Series 100

Number of Glove Ports: 2

Window Material: N/A

Chamber Material: Acrylic

Chamber Width: 34.5"

Chamber Depth: 23.5"

Chamber Height: 24.5"

Chamber Dimensions: 34.5" W x 23.5" D x 24.5" H

Maximum Working Height: 24.5"

Airlock Opening: 10" W x 10" H

UL File Number: E484299

Unit of Measure: EA

Marks & Listings: CE, UL, ULC

Electrical Specifications: None, 0.5 A, 60 Hz

Weight, Product: 50 lb

Dimensions, Product: 35" W x 24" D x 25" H

Weight, Shipping: 110 lb

Dimensions, Shipping: 56" W x 34" D x 32" H

Package Type: Palletized

Buy Accessories
  1. Designed to accommodate a variety of sleeve brands and sizes  |  1694-52 displayed
    Glovebox Port; ABS Plastic, 10" dia. Round In stock
    $365
    Increase Down Increase Up

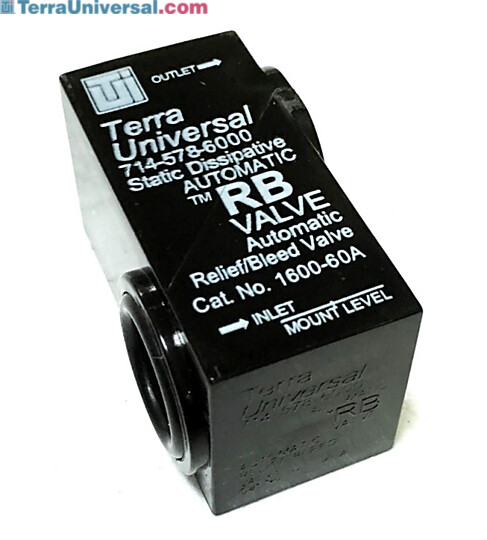

  2. One way-valve continuously bleeds gas to relieve pressure and release moisture-laden air  |  1600-60A displayed
    Automatic RB Valve; for Polymer Gloveboxes, Black Quick Ship+ Available In stock
    $161
    Increase Down Increase Up

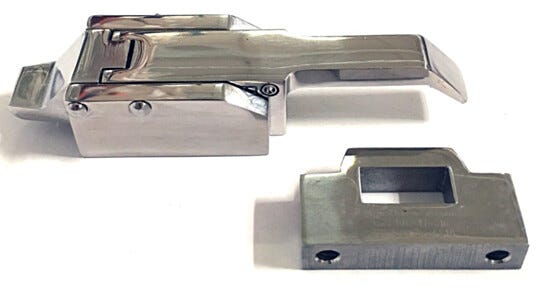

  3. Shown on reference grid of 1-inch (25mm) squares  |  1603-40-2-316 displayed
    LiftLatch; 316L SS, Small, Non-Locking In stock
    $298
    Increase Down Increase Up
  4. Terra’s products are made of cleanroom compatible, top tier hardware; designed and tested to guarantee the highest quality, durability, and craftsmanship  |  1694-53 displayed
    Glovebox Port Cover; for 10" Ports, Internal Mount In stock
    $290
    Increase Down Increase Up
  5. The self-closing Iris Port Adapter attaches to Terra's 10"-diameter glove port (order port separately)  |  1694-54 displayed
    Glovebox Iris Port; Silicone, Self-Closing for 10"dia. Ports Quick Ship+ Available In stock
    $526
    Increase Down Increase Up

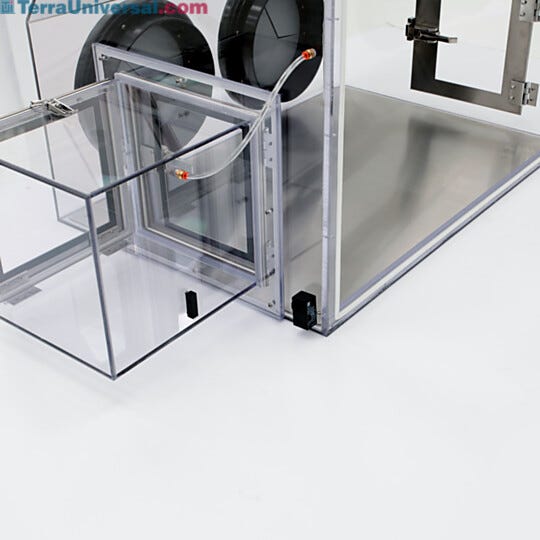

  6. Stainless steel surface mounts inside a plastic glovebox; simplifies cleaning, extends service life; protects from scratches and heavy impacts of dropped items
    Work Surface, Stainless Steel, for Single Glove Box
    $697
    Increase Down Increase Up
  7. One way-valve continuously bleeds gas to relieve pressure and release moisture-laden air  |  1600-60A displayed
    Automatic RB Valve; for Polymer Gloveboxes, Black Quick Ship+ Available In stock
    $161
    Increase Down Increase Up

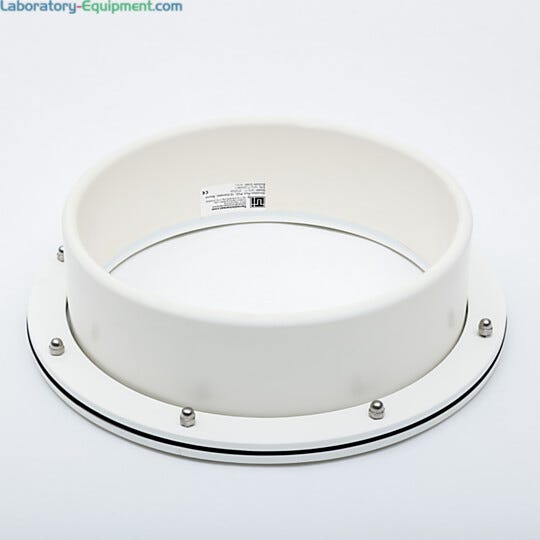

  8. PVC Round Glovebox Port  |  1672-17 displayed
    Glovebox Port; PVC, 10" Diameter, Round
    $333
    Increase Down Increase Up

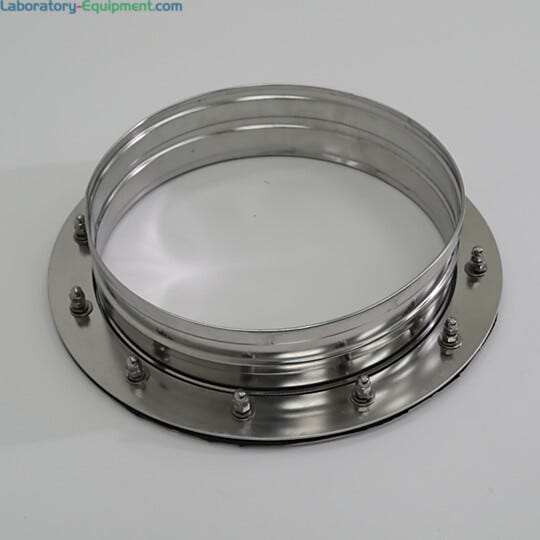

  9. Exterior of 304 stainless steel glove port; 12" diameter round, with neoprene gaskets  |  1672-08-2 displayed
    Glovebox Port; 304 SS, 10" Diameter, Round Quick Ship+ Available In stock
    $1,081
    Increase Down Increase Up

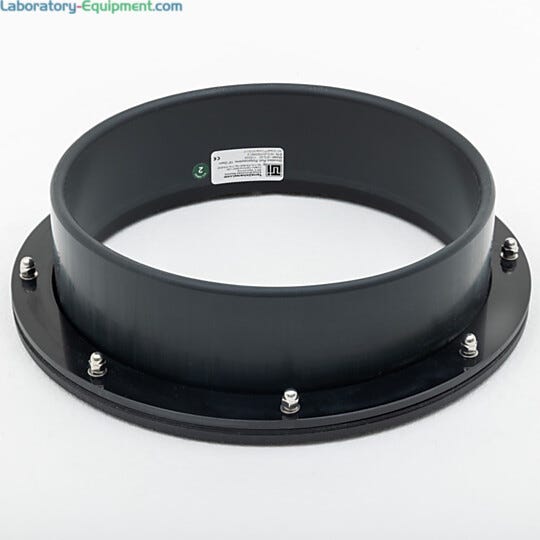

  10. Exterior of polypropylene glovebox port with round cutout and neoprene gaskets  |  1672-23 displayed
    Glovebox Port; Polypropylene, 10" Diameter, Round Quick Ship+ Available In stock
    $629
    Increase Down Increase Up
  11. Ensures proper illumination without contaminating the internal environment  |  1681-78 displayed
    LED Illuminator, 35"L, 120/240 V, 50/60 Hz for Single Glovebox
    $758
    Increase Down Increase Up

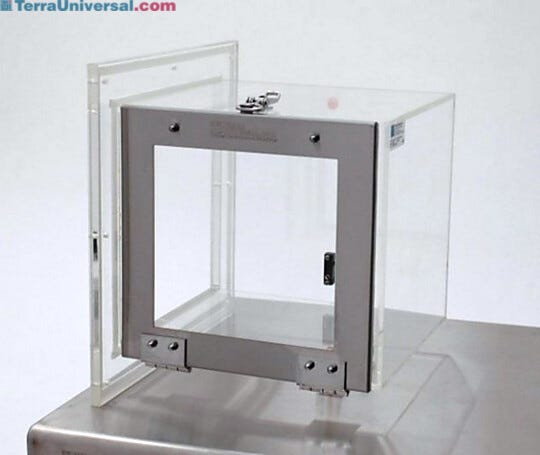

  12. Provide a buffer space for samples or material transfer.  |  1680-78B displayed
    Standard Air Lock; Acrylic, Left/Right-mount Quick Ship+ Available In stock
    $573
    Increase Down Increase Up
  13. Pass-through air lock is available with optional wire racks and shelves  |  1680-79C displayed
    Pass-Through Air Lock; Series 100, Acrylic
    $613
    Increase Down Increase Up
  14. Universal air locks allow connection of multiple glove boxes in series (polypropylene model shown)  |  1680-80B displayed
    Universal Air Lock; Series 100, Acrylic Quick Ship+ Available Only 4 left in stock
    $593
    Increase Down Increase Up
  15. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1670-83 displayed
    ISO 6 Glovebox Gloves; One-Piece, Bonded, Neoprene, for 10" dia. Port, Size 8 In stock
    $390
    Increase Down Increase Up
  16. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1670-83 displayed
    ISO 6 Glovebox Gloves; One-Piece, Bonded, Neoprene, for 10" dia. Port, Size 9 In stock
    $390
    Increase Down Increase Up
  17. Sleeves and glove combination, fabricated of heavy duty chemical-resistant neoprene  |  1689-02 displayed
    ISO 6 Glovebox Gloves; Ambidextrous, One-Piece Bonded, Neoprene, Size 10, 18 mil, 10" dia. Port In stock
    $300
    Increase Down Increase Up
  18. Neoprene accordion sleeves with nitrile gloves  |  1689-47 displayed
    ISO 8 Glovebox Sleeves; Accordion, Neoprene/Nitrile, for 10" dia. Port, 18" Sleeve, Size 8 Quick Ship+ Available In stock
    $804
    Increase Down Increase Up
  19. Neoprene accordion sleeves with nitrile gloves  |  1689-47 displayed
    ISO 8 Glovebox Sleeves; Accordion, Neoprene/Nitrile, for 10" dia. Port, 18" Sleeve, Size 9 Quick Ship+ Available In stock
    $778
    Increase Down Increase Up
  20. Neoprene accordion sleeves with nitrile gloves  |  1689-47 displayed
    ISO 8 Glovebox Sleeves; Accordion, Neoprene/Nitrile, for 10" dia. Port, 18" Sleeve, Size 10 Quick Ship+ Available In stock
    $779
    Increase Down Increase Up
  21. Feature raised diamond pattern for superior grips  |  1671-50 displayed
    ISO 5 Glovebox Gloves; Nitrile, Size 8, 15 mil Quick Ship+ Available In stock
    $3
    Increase Down Increase Up
  22. Feature raised diamond pattern for superior grips  |  1671-50 displayed
    ISO 5 Glovebox Gloves; Nitrile, Size 9, 15 mil Quick Ship+ Available In stock
    $3
    Increase Down Increase Up
  23. Feature raised diamond pattern for superior grips  |  1671-50 displayed
    ISO 5 Glovebox Gloves; Nitrile, Size 10, 15 mil Quick Ship+ Available In stock
    $3
    Increase Down Increase Up
  24. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1671-56 displayed
    ISO 6 Glovebox Gloves; Neoprene, Size 8, 18 mil In stock
    $33
    Increase Down Increase Up
  25. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1671-56 displayed
    ISO 6 Glovebox Gloves; Neoprene, Size 9, 18 mil In stock
    $35
    Increase Down Increase Up
  26. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1671-56 displayed
    ISO 6 Glovebox Gloves; Neoprene, Size 10, 18 mil In stock
    $35
    Increase Down Increase Up

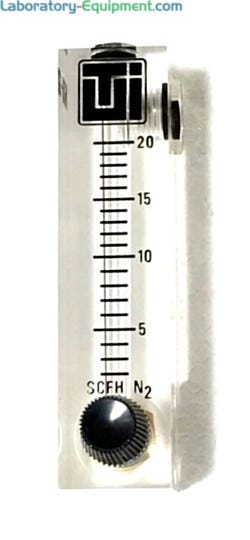

  27. Acrylic flow meter, valve-2-20SCFH  |  1600-32 displayed
    Flowmeter; Dry Gas, 2-20 SCFH, 2'' Scale, Brass Valve, w/TUI logo, for 4- to 10-Chamber Desiccators Quick Ship+ Available In stock
    $199
    Increase Down Increase Up
  28. Provides variable gas purge levels to maintain humidity set points  |  9500-05 displayed
    IsoDry® Dual Purge™; for Glove Box, 120/240V Only 10 left in stock
    $4,193
    Increase Down Increase Up

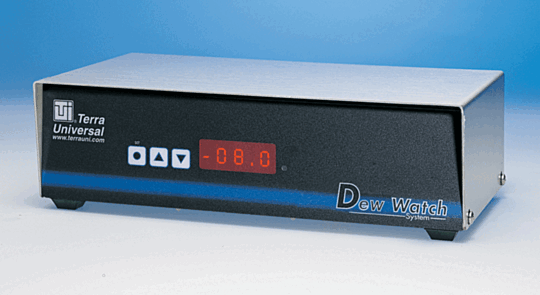

  29. Features extreme sensitivity--measures moisture volumes  |  1401-07 displayed
    Replacement DewWatch Hygrometer Controller Unit; 120V In stock
    $6,034
    Increase Down Increase Up
  30. Glovebox filtration module with open/close loop system and 2 ULPA filters  |  3306-71 displayed
    Filtration Module; Open/Close Loop, PCS Housing, PVC Plumbing, 120 V Quick Ship+ Available Only 4 left in stock
    $3,033
    Increase Down Increase Up
  31. Glovebox filtration module with open/close loop system and 2 ULPA filters  |  3306-71 displayed
    Filtration Module; Open/Close Loop, PCS Housing, PVC Plumbing, 240 V Quick Ship+ Available Only 4 left in stock
    $2,890
    Increase Down Increase Up
  32. Provides a stream of static-neutralizing ions to protect ESD-sensitive components.  |  2005-16A displayed
    Ion Bar, 33", 6 Emitters, Uninstalled, 120 V Quick Ship+ Available In stock
    $847
    Increase Down Increase Up

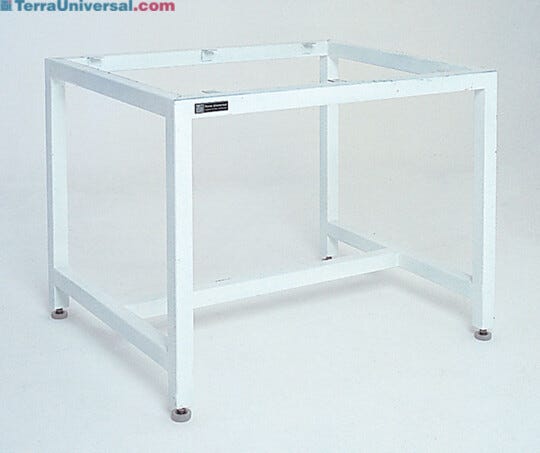

  33. Provides glove box support.  |  1681-48 displayed
    Stand; Powder Coated Steel, for Series 100 Glovebox, Single Model, 35" W Quick Ship+ Available In stock
    $1,300
    Increase Down Increase Up
  34.  |  1681-49 displayed
    Stand; Stainless Steel, for Series 100 Glovebox, Single Model, 35" W
    $1,742
    Increase Down Increase Up
  35. Stainless Steel or Powder-Coated Universal Adjustable Glove Box stands promote easy cleaning and optimal stability for users
    Adjustable Glove Box Stand; 32" - 42.75"W x 16" - 26.5"D x 33" - 43"H, Powder-Coated Steel In stock
    $1,521
    Increase Down Increase Up
  36. Stainless Steel or Powder-Coated Universal Adjustable Glove Box stands promote easy cleaning and optimal stability for users
    Adjustable Glove Box Stand; 32" - 42.75"W x 16" - 26.5"D x 33" - 43"H, 304 Stainless Steel In stock
    $1,902
    Increase Down Increase Up
  37. Design Saves Floor Space and Meets Demands of Keg Based Nitro Cold Brew Dispensing Systems  |  2700-99 displayed
    Portable Nitrogen Gas Generator; Self-Contained With Compressor and Tank, 7.18" W x 16.08" D x 23.98" H Ships Free Free shipping in contiguous USA In stock
    $4,595
    Increase Down Increase Up
  38. Ideal for glovebox isolators and other confined, difficult-to-clean chambers.  |  3307-70 displayed
    V-MAX; Ultra-Violet Sterilization Module, 21" Lamp In stock
    $399
    Increase Down Increase Up
  39. Ideal for glovebox isolators and other confined, difficult-to-clean chambers.  |  3307-70 displayed
    V-MAX; Ultra-Violet Sterilization Module, 33" Lamp
    $430
    Increase Down Increase Up

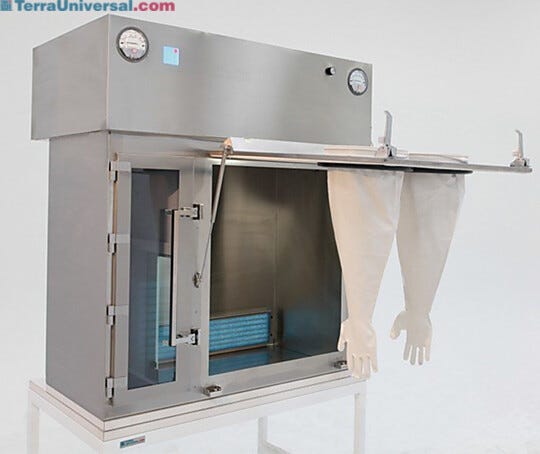

  40. Stainless Steel Compounding Aseptic Isolator shown with open tilt-up viewing window  |  2900-56B displayed
    Tilt-Up Viewing Window; SS Frame, 35" W x 12.5" H, SDPVC Window, for Series 100 Single GB
    $4,112
    Increase Down Increase Up

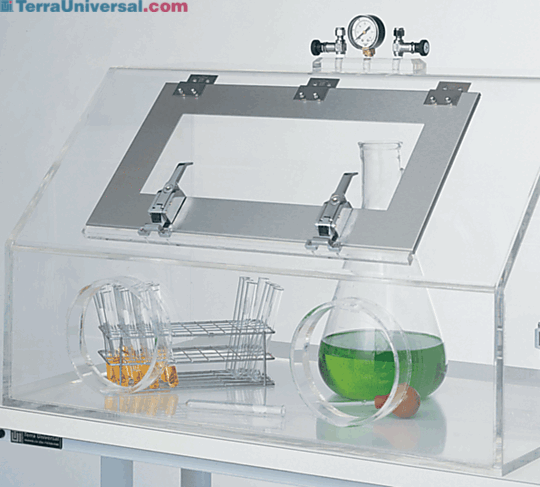

  41. Shown installed on glove box.  |  1685-85 displayed
    Front Access Panel; Swing Up, Acrylic, for Series 100 Gloveboxes
    $627
    Increase Down Increase Up
  42. Bellows eyepiece for microscopes  |  1681-53 displayed
    Bellows-Type Microscope Eyepiece Interface In stock
    $285
    Increase Down Increase Up
  43. Detachable base for plastic series 100 glovebox includes latches dual gasket sealed perimeter   |  1681-55 displayed
    Detachable Bottom; for Plastic Series 100 Glove Box
    $554
    Increase Down Increase Up
  44. Bring power safely and conveniently to wherever you need it with a full line Plug-In Outlet  |  1681-80 displayed
    Power Strip; 4 Outlets, 120VAC/60Hz, UL Listed Installed In stock
    $270
    Increase Down Increase Up
  45.  |  2004-32 displayed
    Power Strip; 6 Outlets, 120VAC/60Hz, UL Listed, Installed Quick Ship+ Available In stock
    $285
    Increase Down Increase Up
  46. Stores 16,382 temperature readings and 16,382 relative humidity measurements.  |  9500-10 displayed
    Data Logger; Relative Humidity/Temperature Quick Ship+ Available In stock
    $277
    Increase Down Increase Up
  47. Power cable port protects the isolator environment while allowing for electronic equipment  |  2900-70 displayed
    Power-Cord Pass-Through, for All Glove Boxes Quick Ship+ Available In stock
    $310
    Increase Down Increase Up
  48. Cordgrip connector plastic .599 inches hole size straight through black  |  3305-70 displayed
    Feed-through, for power/data cables, installed in glovebox
    $61
    Increase Down Increase Up
  49. Shown: Vacupass installed in the interior wall of a biosafety cabinet  |  4642-49 displayed
    Vacu-Pass; Cord and Cable Port Kit, 3.5"Dia x 2.875"L Quick Ship+ Available In stock
    $204
    Increase Down Increase Up
  50. Service, ISO Grade Certificate, ISO 7
    Service, ISO Grade Certificate, ISO 7
    Request Quote
    Increase Down Increase Up
  51. Warranty; 5 Year, Glovebox, Parts
    Warranty; 5 Year, Glovebox, Parts
    Request Quote
    Increase Down Increase Up
  52. FasTrak 24-7 Expediting Service
    FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  53. UL Listing Declaration for Desiccator, Storage Cabinets, Gloveboxes
    UL Listing Declaration for Desiccator, Storage Cabinets, Gloveboxes
    Request Quote
    Increase Down Increase Up
  54. Qualification Documentation (IQ/OQ) for Terra Universal System
    Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  55. Equipment Testing
    Equipment Testing
    Request Quote
    Increase Down Increase Up
  56. White Glove Freight Service
    White Glove Freight Service
    Request Quote
    Increase Down Increase Up

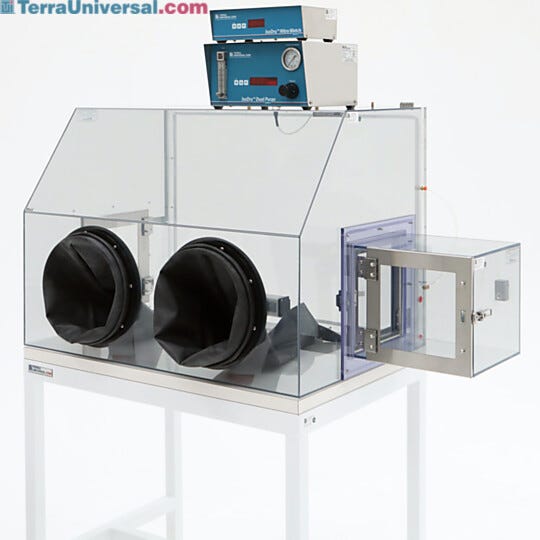

Gas-Purged Plastic Glove Box Isolators

  • Plastic Glove Box Isolator With Model Plastic ISO 7 Series 100 Glovebox
  • Acrylic Laboratory Glove Box with Two Ports Acrylic Laboratory Glove Box for Basic Research
  • Portable Acrylic Glove Box ISO 8 Portable Acrylic Glovebox
  • portable nitrogen generator<br/> Different N2 Generator Options to Meet Your Needs
Plastic Glove Box Isolator With Model
Acrylic Laboratory Glove Box with Two Ports
Portable Acrylic Glove Box
portable nitrogen generator<br/>

Features and Benefits

View Glovebox Dimensions

More Information

Type A in. (mm) D in. (mm) F in. (mm) H in. (mm) I in. (mm) L in. (mm) M in. (mm) N in. (mm)
Single 16.75 (425) 24 (610) 35 (889) 25 (635) 10.5 (267) 10 (254) 10 (254) 14 (356)
Twin 16.75 (425) 24 (610) 59 (1499) 25 (635) 10.5 (267) 10 (254) 10 (254) 14 (356)
portable nitrogen generator<br/>

Nitrogen Generators give you a reliable point-of-use supply of up to 99%-pure nitrogen. Eliminate the drawbacks of canisters and 3rd-party suppliers! You control volume, purity and rate; all you need is a clean compressed-air feed. Terra's three sizes of maintenance-free membrane generators meet several capacity requirements are ideal for back-filling or continuous flow into desiccators, glove boxes, vacuum chambers and incubators.

Positive Pressure Isolation vs. Biohazard Containment

Terra glove boxes are designed as positive-pressure isolation chambers that operate with a continuous inflow of process gas and include bleed valves to relieve overpressures. Unless specified, they are not designed as low-leak or air-tight containment chambers, nor should they be used with hazardous substances that require air-tight seals. In containment applications, a glove box should typically be operated under continuous negative pressure, via a ventilated duct, so that any small leaks do not contaminate the operator or the environment.

High Caliber Hardware

Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.

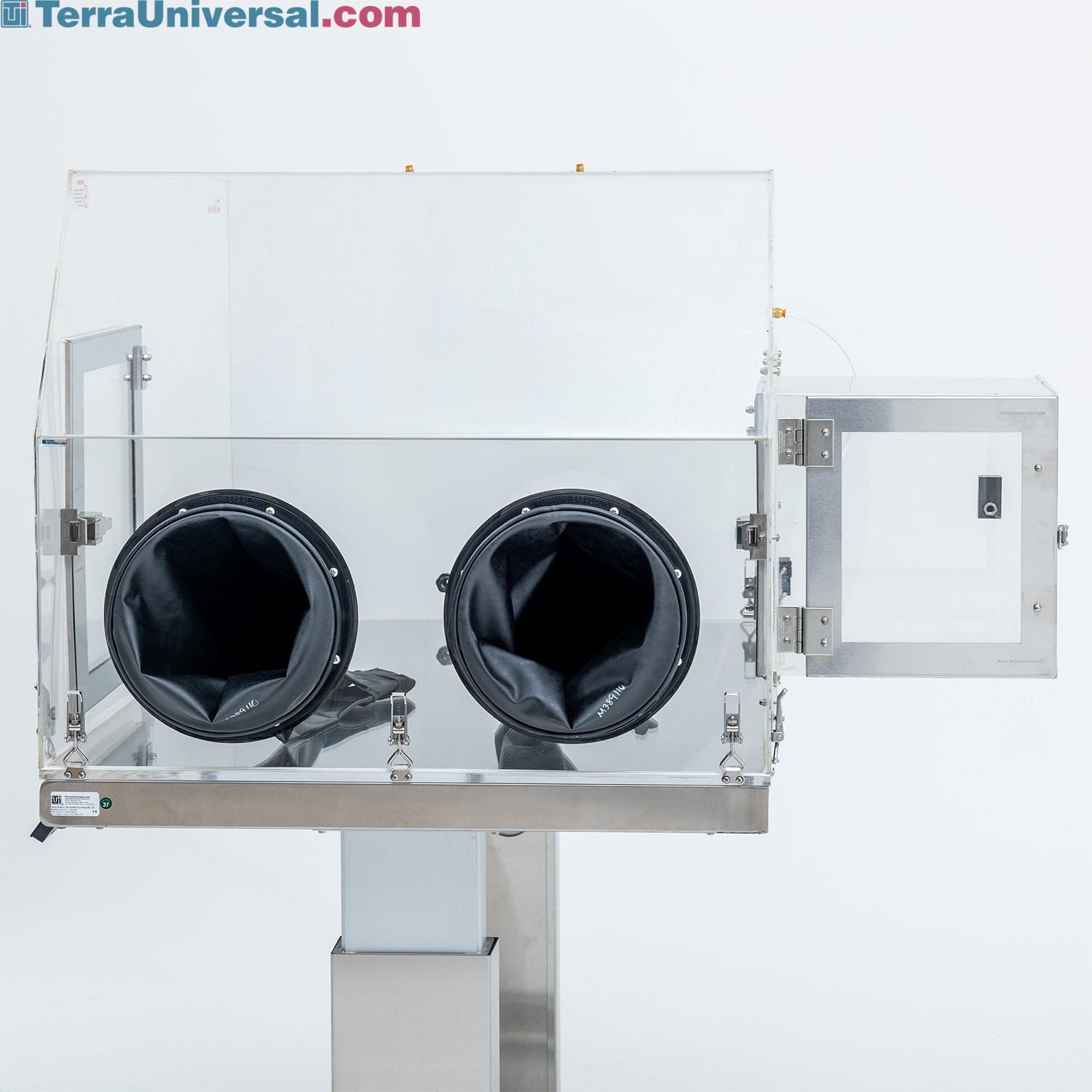

Side Access Doors for Plastic Glove Boxes

Dual-side access doors features stainless steel reinforcement frames that increase structural rigidity and built-in LiftLatch™; acccommodate standard air locks to allow contamination-free parts transfer.

Glove Ports with Detachable Iris Port and Covers

Unique glove ports accept wide range of gloves and feature screw-on Iris Port Adapters (shown) and Port Covers for additional system capabilities

Removable Rear Wall

Gasketed rear wall allows transfer of large equipment into the main glove box chamber

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 50 years of engineering and application expertise, and our commitment to continuously improve.

Comprehensive Service Provider

Terra’s portfolio of services includes white glove delivery, product installation, equipment certification, validation documentation, cleaning and disinfection services, engineering consultation, and structural seismic analysis

Custom Product Designs

Product customization is no problem, Terra’s engineering team will work with you to design a product that meets your unique requirements

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Universal Adjustable Glove Box Stand

    Terra's Universal Adjustable Glove Box stands adjust width, depth, and height to accommodate user preference, promote easy cleaning, and provide optimal stability.

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
