1689-16G-RH
Terra Part # 1689-16G-RH
$2,280
Usually ships in 5-9 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 1689-16G-RH
62189

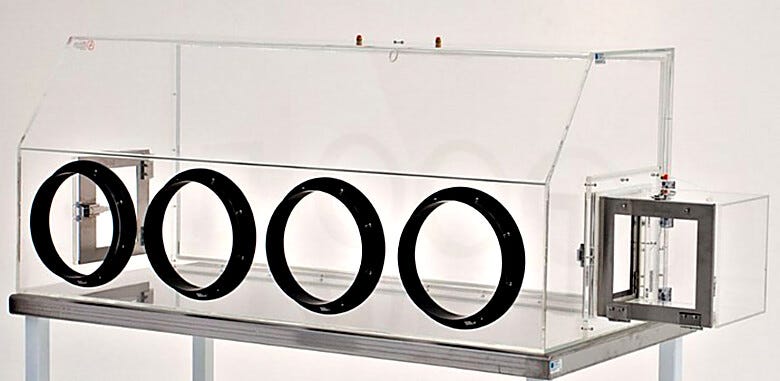

Glovebox; Series 100, Acrylic, 4 Glove Ports, 59" W x 24" D x 25" H
Product Details
  • Available ISO Ratings: ISO 6, ISO 7, ISO 8
  • To maintain RH levels as low as 7%, purchase nitrogen generator catalog number 2700-99
  • To maintain RH levels below 1%, purchase nitrogen generator catalog number 2700-12B
  • Features an 1/8" NPT inlet
  • Twin model features four 10" (254 mm) diameter ports that provide a wide range of motion
  • Includes 304 Stainless Steel lift latch
  • Designed for use with Terra’s NitroWatch/Dual Purge systems, which provide automated RH set-point control; includes provisions for mounting a NitroWatch sensor
  • Dual access doors include stainlesss steel door frame
  • Doors include Santoprene® “e”-shape  nonoutgassing rubber gasket to eliminate leaks
  • Dual gasketed side doors and a fully gasketed back permit introduction of small and large equipment
  • Designed for positive-pressure operation, in conjunction with RB valves to relieve overpressure
  • All-stainless steel ergonomic LiftLatches operate without strain to hinges and eliminate corrosion and contamination common with plated hardware
  • Order illuminator separately
  • CAUTION: Acrylic is damaged by alcohol and many other cleaning agents.  Use only water and mild detergent
  • NOTE: Not an air-tight containment chamber; not suitable for use with biohazards

Material Type: Plastic

Model: Series 100

Number of Glove Ports: 4

Window Material: N/A

Chamber Material: Acrylic

Chamber Width: 58.5"

Chamber Depth: 23.5"

Chamber Height: 24.5"

Chamber Dimensions: 58.5" W x 23.5" D x 24.5" H

Maximum Working Height: 24.5"

Airlock Opening: 10" W x 10" H

Unit of Measure: EA

Marks & Listings: CE

Electrical Specifications: None, 0.5 A, 60 Hz

Weight, Product: 85 lb

Dimensions, Product: 59" W x 24" D x 25" H

Weight, Shipping: 220 lb

Dimensions, Shipping: 65" W x 30" D x 33" H

Package Type: Crate

Buy Accessories
  1. Terra’s products are made of cleanroom compatible, top tier hardware; designed and tested to guarantee the highest quality, durability, and craftsmanship  |  1694-53 displayed
    $290
    Increase Down Increase Up
  2. The self-closing Iris Port Adapter attaches to Terra's 10"-diameter glove port (order port separately)  |  1694-54 displayed
    $526
    Increase Down Increase Up
  3. Work surface shown installed in twin glove box.  |  1681-33 displayed
    $1,185
    Increase Down Increase Up
  4. One way-valve continuously bleeds gas to relieve pressure and release moisture-laden air  |  1600-60A displayed
    $168
    Increase Down Increase Up
  5. Glovebox Port; PVC, 10" Diameter, Round
    $333
    Increase Down Increase Up
  6. Exterior of 304 stainless steel glove port; 12” diameter round, with neoprene gaskets  |  1672-08-2 displayed
    $1,081
    Increase Down Increase Up
  7. Exterior of polypropylene glove port with 9”-diameter round cut out and neoprene gaskets  |  1694-55 displayed
    $629
    Increase Down Increase Up

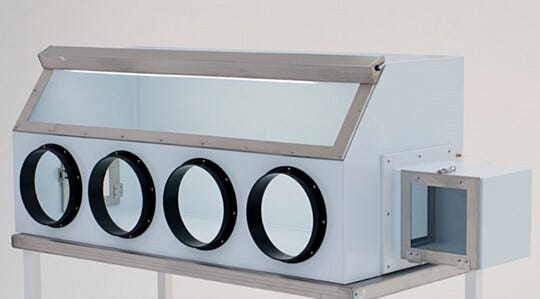

  8. Fluorescent light encased in steel, shown installed on glovebox.  |  1681-79 displayed
    $758
    Increase Down Increase Up
  9. Provide a buffer space for samples or material transfer.  |  1680-78B displayed
    $573
    Increase Down Increase Up
  10. Pass-through air lock is available with optional wire racks and shelves  |  1680-79C displayed
    $613
    Increase Down Increase Up
  11. Universal air locks allow connection of multiple glove boxes in series (polypropylene model shown)  |  1680-80B displayed
    Universal Air Lock; Series 100, Acrylic Quick Ship+ Only 4 left in stock
    $593
    Increase Down Increase Up
  12. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1670-83 displayed
    $167
    Increase Down Increase Up
  13. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1670-83 displayed
    $181
    Increase Down Increase Up
  14. Neoprene accordion sleeves with nitrile gloves  |  1689-47 displayed
    $675
    Increase Down Increase Up
  15. Neoprene accordion sleeves with nitrile gloves  |  1689-47 displayed
    $649
    Increase Down Increase Up
  16. Neoprene accordion sleeves with nitrile gloves  |  1689-47 displayed
    $650
    Increase Down Increase Up
  17. Feature raised diamond pattern for superior grips  |  1671-50 displayed
    $2
    Increase Down Increase Up
  18. Feature raised diamond pattern for superior grips  |  1671-50 displayed
    $2
    Increase Down Increase Up
  19. Feature raised diamond pattern for superior grips  |  1671-50 displayed
    $2
    Increase Down Increase Up
  20. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1671-56 displayed
    $22
    Increase Down Increase Up
  21. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1671-56 displayed
    $23
    Increase Down Increase Up
  22. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1671-56 displayed
    $23
    Increase Down Increase Up
  23. Provides variable gas purge levels to maintain humidity set points  |  9500-05 displayed
    $4,193
    Increase Down Increase Up
  24. Features extreme sensitivity--measures moisture volumes  |  1401-07 displayed
    $6,034
    Increase Down Increase Up
  25. Glovebox filtration module with open/close loop system and 2 ULPA filters  |  3306-71 displayed
    $3,033
    Increase Down Increase Up
  26. Glovebox filtration module with open/close loop system and 2 ULPA filters  |  3306-71 displayed
    $2,890
    Increase Down Increase Up
  27. Open/close loop containment system with PVC plumbing, 304 stainless steel filter housing, ULPA filter and brushless DC motor  |  3306-72 displayed
    $4,129
    Increase Down Increase Up
  28. Provides a stream of static-neutralizing ions to protect ESD-sensitive components.
    $997
    Increase Down Increase Up

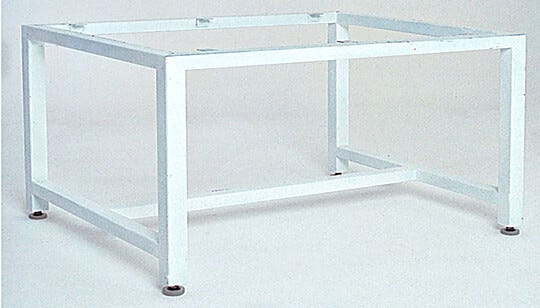

  29. Glove box support stand in powder-coated steel with levelling feet, 59"W  |  1681-51 displayed
    $1,602
    Increase Down Increase Up
  30. Provides glove box support.  |  1681-48 displayed
    $2,328
    Increase Down Increase Up
  31. Design Saves Floor Space and Meets Demands of Keg Based Nitro Cold Brew Dispensing Systems  |  2700-99 displayed
    $4,335
    Increase Down Increase Up
  32. Small nitrogen generator, 20"W x 12"D x 35.5"H, with compact footprint produces up to 99% pure N2 gas  |  2700-12B displayed
    $6,685
    Increase Down Increase Up
  33. Ideal for glovebox isolators and other confined, difficult-to-clean chambers.  |  3307-70 displayed
    $399
    Increase Down Increase Up
  34. Ideal for glovebox isolators and other confined, difficult-to-clean chambers.  |  3307-70 displayed
    $430
    Increase Down Increase Up
  35. Shown installed on glove box.  |  1685-85 displayed
    $627
    Increase Down Increase Up
  36. Bellows eyepiece for microscopes  |  1681-53 displayed
    $285
    Increase Down Increase Up
  37. Detachable base for plastic series 100 glovebox includes latches dual gasket sealed perimeter   |  1681-55 displayed
    $554
    Increase Down Increase Up
  38. Bring power safely and conveniently to wherever you need it with a full line Plug-In Outlet  |  1681-80 displayed
    $282
    Increase Down Increase Up
  39.  |  2004-32 displayed
    $298
    Increase Down Increase Up
  40. Stores 16,382 temperature readings and 16,382 relative humidity measurements.  |  9500-10 displayed
    $290
    Increase Down Increase Up
  41. Power cable port protects the isolator environment while allowing for electronic equipment  |  2900-70 displayed
    $310
    Increase Down Increase Up
  42. Cordgrip connector plastic .599 inches hole size straight through black  |  3305-70 displayed
    $61
    Increase Down Increase Up
  43. Shown: Vacupass installed in the interior wall of a biosafety cabinet  |  4642-49 displayed
    $213
    Increase Down Increase Up
  44. Warranty; 2 Year, Glovebox, Parts
    Request Quote
    Increase Down Increase Up
  45. Warranty; 3 Year, Glovebox, Parts
    Request Quote
    Increase Down Increase Up
  46. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  47. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  48. Equipment Testing
    Request Quote
    Increase Down Increase Up
  49. White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  50. Service, ISO 6 Rating Declaration
    Request Quote
    Increase Down Increase Up
  51. Designed to accommodate a variety of sleeve brands and sizes  |  1694-52 displayed
    $365
    Increase Down Increase Up
  52. Shown on reference grid of 1-inch (25mm) squares  |  1603-40-2-316 displayed
    $370
    Increase Down Increase Up
  53. One way-valve continuously bleeds gas to relieve pressure and release moisture-laden air  |  1600-60A displayed
    $168
    Increase Down Increase Up

Gas-Purged Plastic Glove Box Isolators

  • Plastic Glove Box Isolator With Model Plastic ISO 7 Series 100 Glovebox
  • Acrylic Laboratory Glove Box with Two Ports Acrylic Laboratory Glove Box for Basic Research
  • Portable Acrylic Glove Box ISO 8 Portable Acrylic Glovebox
  • portable nitrogen generator<br/> Different N2 Generator Options to Meet Your Needs

Features and Benefits

View Glovebox Dimensions

More Information

Type A in. (mm) D in. (mm) F in. (mm) H in. (mm) I in. (mm) L in. (mm) M in. (mm) N in. (mm)
Single 16.75 (425) 24 (610) 35 (889) 25 (635) 10.5 (267) 10 (254) 10 (254) 14 (356)
Twin 16.75 (425) 24 (610) 59 (1499) 25 (635) 10.5 (267) 10 (254) 10 (254) 14 (356)
portable nitrogen generator<br/>

Nitrogen Generators give you a reliable point-of-use supply of up to 99%-pure nitrogen. Eliminate the drawbacks of canisters and 3rd-party suppliers! You control volume, purity and rate; all you need is a clean compressed-air feed. Terra's three sizes of maintenance-free membrane generators meet several capacity requirements are ideal for back-filling or continuous flow into desiccators, glove boxes, vacuum chambers and incubators.

Positive Pressure Isolation vs. Biohazard Containment

Terra glove boxes are designed as positive-pressure isolation chambers that operate with a continuous inflow of process gas and include bleed valves to relieve overpressures. Unless specified, they are not designed as low-leak or air-tight containment chambers, nor should they be used with hazardous substances that require air-tight seals. In containment applications, a glove box should typically be operated under continuous negative pressure, via a ventilated duct, so that any small leaks do not contaminate the operator or the environment.

High Caliber Hardware

Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.

Side Access Doors for Plastic Glove Boxes

Dual-side access doors features stainless steel reinforcement frames that increase structural rigidity and built-in LiftLatch™; acccommodate standard air locks to allow contamination-free parts transfer.

Glove Ports with Detachable Iris Port and Covers

Unique glove ports accept wide range of gloves and feature screw-on Iris Port Adapters (shown) and Port Covers for additional system capabilities

Removable Rear Wall

Gasketed rear wall allows transfer of large equipment into the main glove box chamber

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Comprehensive Service Provider

Terra’s portfolio of services includes white glove delivery, product installation, equipment certification, validation documentation, cleaning and disinfection services, engineering consultation, and structural seismic analysis

Custom Product Designs

Product customization is no problem, Terra’s engineering team will work with you to design a product that meets your unique requirements

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Universal Adjustable Glove Box Stand

    Terra's Universal Adjustable Glove Box stands adjust width, depth, and height to accommodate user preference, promote easy cleaning, and provide optimal stability.
