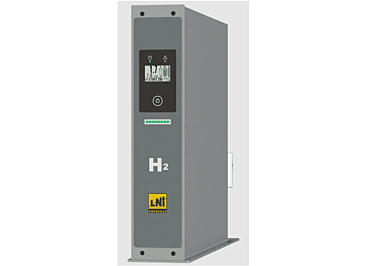

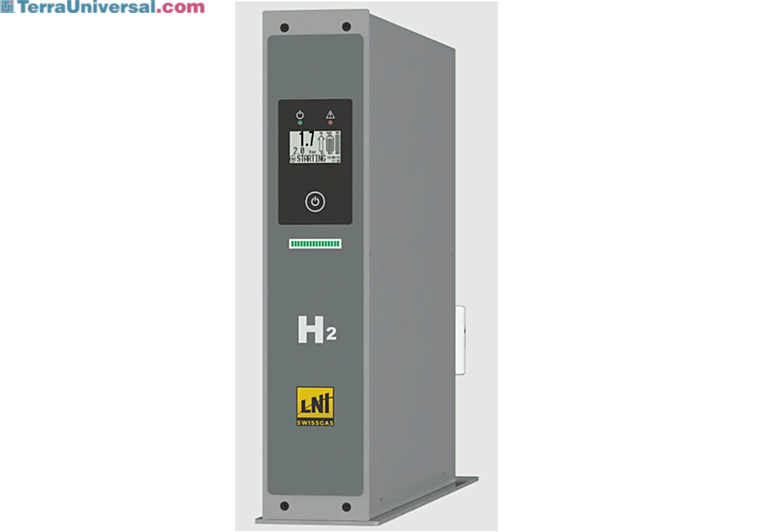

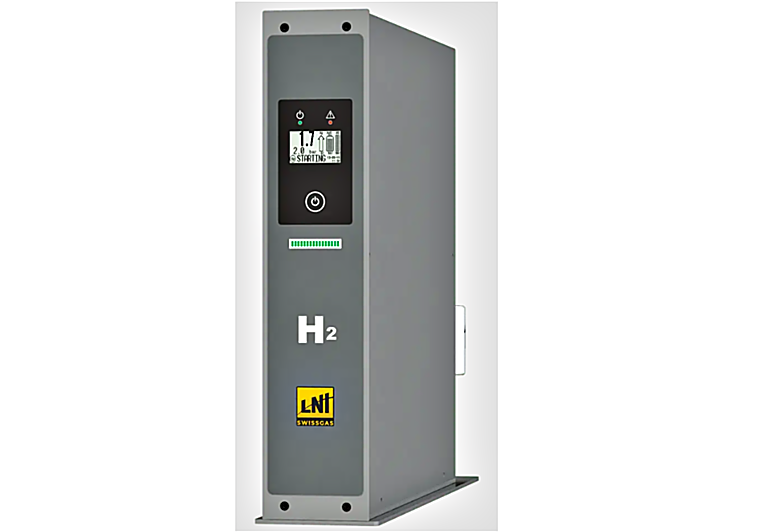

HG ST BASIC PEM Hydrogen Generators by LNI Swissgas in 6 flowrate capacities up to 600 cc/min, 10 bar pressure, static dryer, PEM technology and a 0.3L internal
Gas Generators,Gas Generators,Gas Generators
Product Group:
7200-PP-05
7200-PP-05 81736

HG ST Basic PEM Hydrogen Generators by LNI Swissgas

  • Available ISO Ratings: ISO 8
  • Compact and quick-to-install HG ST BASIC PEM Hydrogen Gas Generators with PEM technology eliminate the need for acids and alkaline solutions
  • Flowrates from 120 to 600 cc/min, 10 bar pressure, and a purity up to 99.9999%
  • Maintenance-free static drying system ensures maximum grade of hydrogen purity
  • Applications: GC-FID, GC-NPD, GC-FPD, THA
  • Included: static dryer and a 0.3L internal tank

• ISO Class: ISO 8

• Available ISO Ratings: ISO 8

• Unit of Measure: of 0

Read more
ISO 8 Icon<br/>
Warranty: 1 year parts and labor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Voltage

Sort Order:
Flow Rate

Sort Order:
Model

Sort Order:
Manufacturer SKU

Sort Order:
ISO Class

Sort Order:
Pressure

Sort Order:

 Terra Part # Price Ships in
100-240V 120 cc/min HG ST BASIC 120 6920.05.012 ISO 8 10 bars (145 psi) 7200-04 81737 Request Quote 15-20 Days 2
100-240V 160 cc/min HG ST BASIC 160 6920.05.016 ISO 8 10 bars (145 psi) 7200-05 81738 Request Quote 15-20 Days 3
100-240V 250 cc/min HG ST BASIC 250 6920.05.025 ISO 8 10 bars (145 psi) 7200-06 81739 Request Quote 15-20 Days 4
100-240V 350 cc/min HG ST BASIC 350 6920.05.035 ISO 8 10 bars (145 psi) 7200-07 81743 Request Quote 15-20 Days 5
100-240V 600 cc/min HG ST BASIC 600 6920.05.060 ISO 8 10 bars (145 psi) 7200-08 81745 Request Quote 15-20 Days 6
Voltage
Flow Rate
Model
Manufacturer SKU
ISO Class
Pressure
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Available ISO Ratings: ISO 8
  • Compact and quick-to-install HG ST BASIC PEM Hydrogen Gas Generators with PEM technology eliminate the need for acids and alkaline solutions
  • Flowrates from 120 to 600 cc/min, 10 bar pressure, and a purity up to 99.9999%
  • Maintenance-free static drying system ensures maximum grade of hydrogen purity
  • •  Applications: GC-FID, GC-NPD, GC-FPD, THA
  • Included: static dryer and a 0.3L internal tank
  • Features:
  • Long-life multilayer electrolytic cell with a polymeric membrane
  • Connects up to 20 units in parallel mode with the use of an external control box (sold separately)
  • H2 Flowrates cc/min: 120,160, 250, 350, 600
  • Outlet Pressure: 10 bars (145 psi)
  • Communication: RS485/USB (standard); optional LAN
  • H2 Purity: >99.9999% (< -25°C (< -13°F), Atmospheric Dew Point (ADP))
  • Electronically controlled high-pressure GLS (patented)
  • Humidity safeguard protects GC
  • Continuous operation (24-hours per day)
  • On-board CPU provides full safety with constant control of operating parameters  and automatically checks for internal leaks
  • Intuitive touch screen LCD display enables easy management of all functions
  • Software functions: parallel mode (ready on board), and automatic tank refill
  • Required water quality: Deionized, ASTM II, <0.1uS
  • Supply pressure (min, Max): 0 bars (0 psi), 0.5 bar (7.25 psi)
  • Supply flow rate: 0.1 l/min (minimum), 1.5 l/min (maximum)
  • Internal tank: 0.3 liter
  • Type of connection IEC 320-C14
  • Fuse rating (5x 20 mm) 4A (250VAC – T)
  • Hydrogen outlet: 1/8” compression fitting
  • Water Quick release push-in fitting
  • Options and Consumables:
  • Deionizer water filter #6930.00.091
  • LAN
  • Speak with a Terra Product Specialist for pricing and details
Show more

• ISO Class: ISO 8

• Available ISO Ratings: ISO 8

• Unit of Measure: of 0

Show more

Gas Generators

  • Compare PEM Hydrogen Generators by LNI Swissgas Compare PEM Hydrogen Generators by LNI Swissgas
Compare PEM Hydrogen Generators by LNI Swissgas
PEM hydrogen Gas Generators with a multilayer PEM cell include an internal tank and choice of static dryer, desiccant column of PSA and PSA/TSA drying systems Compare PEM Hydrogen Generators by LNI Swissgas
