Terra Part # 6707-31
Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 6707-31

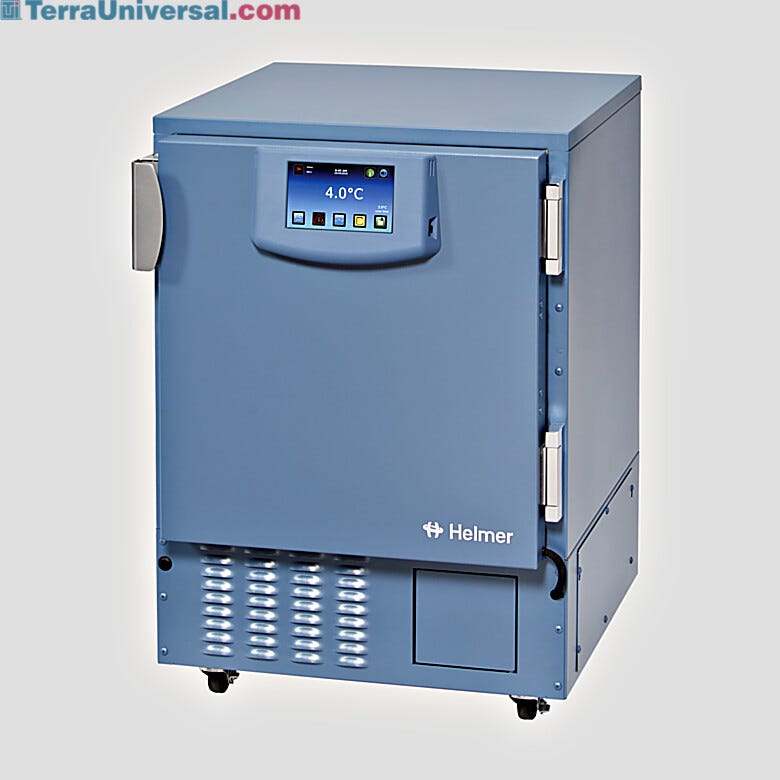

iPR105-GX i.Series ADA Undercounter Pharmacy Refrigerator by Helmer Scientific, 5.3 cu. ft., 5°C Setpoint, Solid Door, 115 V, 5115105-1
Product Details
  • iPR105-GX i.Series Medical-Grade ADA Undercounter Pharmacy Refrigerator with solid doors and advanced monitoring
  • ADA model fits under standard 34” high ADA compliant countertop
  • 5.3 cu. ft. (150L) model stores up to 4,000 doses and factory pre-set to 5°C for Pharmacy applications
  • NSF/ANSI 456 vaccine storage standard certified and supports CDC guidelines for vaccine storage
  • ENERGY STAR certified model features OptiCool system, i.C3 controller, 7" color touchscreen display, and sustainable refrigerants
  • Includes: two adjustable ventilated drawers and adjustable leveling feet
  • Recommended options: PIN access via optional access control, integrated access control, solid ballast
  • Provides safe storage of medical and scientific products in science, medical and cleanroom environments, casters
  • Certificate of Calibration: Yes, generated with ISO 17025 certified, NIST traceable thermometer
  • i.C3 User Interface Features:
  • Provides constant temperature monitoring and multiple information logs
  • System Status Console at home screen for status monitoring
  • Information and Event Center for recording performance history (event acknowledgment, status, min/max temperature and 7 and 1-day interactive graph views)
  • Data Transfer Center exports temperature, event, and access data via USB
  • Door-mounted 7” color touchscreen display
  • OptiCool features: variable capacity compressor (VCC) and natural hydrocarbon (HC) refrigerants optimize temperature performance, quiet operation and energy-efficiency
  • Professional medical-grade undercounter fridge features: temperature management protects patient samples and ensures efficacy of medication, low noise level and energy-efficiency helps reduce cost and sustains energy initiatives
  • High-Performance GX i.Series Features: ºC or ºF temperature display, monitor/logging, compliance data management (PDF and CSV files via USB port), password protection, key lock, interactive temperature graphing, alarm probes, alarms (standard, condenser temperature, probe failure, low battery), display/reset of min/max temperature, rechargeable battery backup (20 hrs.), connectivity (Ethernet/API, two USB ports)
  • Refrigeration:
  • VCC compressor-based, forced-air hydrocarbon
  • Compressor: Hermetic, variable speed (VCC). Rated speed range: 2000-3500 rpm
  • Condenser Type: Air-cooled fin and tube, sealed
  • Evaporator Type: Direct expansion forced-air fin and tube
  • Supports sustainability with U.S. EPA, SNAP, and EU F-Gas compliant natural refrigerants and foaming agents
  • Refrigerant: R600a, Propane, EU F-Gas and EPA SNAP compliant
  • Automatic defrost method
  • Cap tube expansion device
  • Additional Features:
  • Forced air circulation maintains chamber temperature uniformity and quick recovery after door openings
  • 50-65% more energy efficient than traditional medical-grade models
  • Optimized temperature control; no defrost cycle required to maintain constant temperature
  • Material: solid door, bacteria-resistant powder coated (interior, exterior, shelves), RTD stainless steel control sensor
  • Drawer design: mid-stop catch for proper closure maximizes airflow, maintains temperature uniformity
  • Adjustable shelf
  • Easy-to-clean recessed floors contains spills and helps maintain product integrity
  • Power-plug: NEMA 5-15 hospital-grade | 115 V 60Hz, 8 to 10 ft. (2.4-3.0m)
  • Access port
  • Specifications:
  • Temperature Range: ±2°C to ±10°C
  • Interior dimensions (w x d x h ):  19.5" W x 19.9" D x 22.8" H
  • Setpoint: 5°C
  • Uniformity: +/-1.0°C
  • Recovery to 8°C after 3 min door opening | min: 11
  • Stability | °C: 0.72
  • Energy Consumption | kWh/day: 1.37
  • Noise emission: 42 dB
  • Heat Rejection / Emission | BTU/hr.: 460
  • Pull-down time to 4°C | min:  37
  • Ambient Operating Temperature:+15°C to +32°C |+59°F to +90°F
  • Options and accessories: Contact a Terra Product Specialist for Details

Manufacturer SKU: 5115105-1

Capacity: 5.3 cu. ft.

Configuration: Undercounter

Brand: i.Series-GX

Plug Type: US Plug

Specialty: Pharmacy

Type: Refrigerator

Internal Dimensions: 19.5" W x 19.9" D x 22.8" H

Door Style: Single Solid

Refrigerator Temperature Range: ±2°C to ±10°C

Set Point Temperature: 5°C

Unit of Measure: EA

Marks & Listings: UL, CSA, ADA

Electrical Specifications: 115 V, 50/60 Hz

Weight, Product: 182 lb

Dimensions, Product: 24.3" W x 31.9" D x 28.1" H

Weight, Shipping: 243 lb

Dimensions, Shipping: 30" W x 36" D x 34" H

Buy Accessories
  1. Stainless Steel and powder-coated steel stands adjust to fit cabinets, desiccators and cleanroom equipment of any size.  |  1609-20 displayed
    Increase Down Increase Up
  2. Small 4"H stainless steel desiccator stand; optional casters simplify positioning and cleaning
    Increase Down Increase Up

Refrigerators (4°C)

  • GX Horizon and GX i.Series Comparison Chart by Helmer Scientific GX Horizon and GX i.Series Comparison Chart by Helmer Scientific
  • Video of GX Solutions by Helmer Scientific Video of GX Solutions by Helmer Scientific
  • GX i.Series storage solution i.C3® Video Series: Access Control by Helmer Scientific i.C3® Video Series: Access Control
  • i.C3® Video Series: Interactive Temperature Graph on GX i.Series cold storage models by Helmer Scientific i.C3® Video Series: Interactive Temperature Graph
  • i.C3 Automatic Alarm Testing by Helmer Scientific i.C3 Automatic Alarm Testing
Video of GX Solutions by Helmer Scientific
GX i.Series storage solution i.C3® Video Series: Access Control by Helmer Scientific
i.C3® Video Series: Interactive Temperature Graph on GX i.Series cold storage models by Helmer Scientific
i.C3 Automatic Alarm Testing by Helmer Scientific

Features and Benefits

OptiCool Technology

GX i.Series and Horizon Refrigerators with OptiCool deliver a quiet and energy-efficient unit with optimal temperature control

Advanced i.C3 User Interface

Medical-grade GX i.Series models with the i.C3 user interface provides constant temperature monitoring, multiple information logs, security settings and data management

Meets Vaccine Regulations

GX Pharmacy Refrigerators help meet CDC vaccine storage regulations and USP 797 cleanroom requirements (pass-thru models) in the storage of medications and pharmaceuticals

ADA Compliant

GX i.Series and GX Horizon ADA Undercounter Pharma and Lab Refrigerators fit under standard 34” high ADA compliant countertop
