Select Product

Configuration

PriceShips in
Automatic $1,58420-26 Days
Manual $1,09420-26 Days
Vacuum Pick-up $1,68920-26 Days
Configuration
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Select product to see details

Product Details

• These dispensers administer fluids with a wide range of viscosities – from watery liquids to thick pastes or adhesives – and ensure precise, consistent and repeatable deposits of epoxies and other materials, without dripping between cycles

• Provide complete operator control, making them ideal for dot or strip dispensing

• Reduces rejects and waste during die bonding, photoresist coating, and a variety of other related processes

• Incorporates a foot pedal for easy dispensing, an adjustable venturi vacuum and analog gauge, a solid state digital timer, and an enhanced solenoid for instant on/off response

• Comes complete with air output fittings, quick connect, one 3cc barrel and barrel adapter assembly (or other size specified), one 18, 20, 21, 22, 23, 25, and 30 gauge stainless steel dispensing tip, a foot pedal with 8-foot cord, and an input voltage cord set.

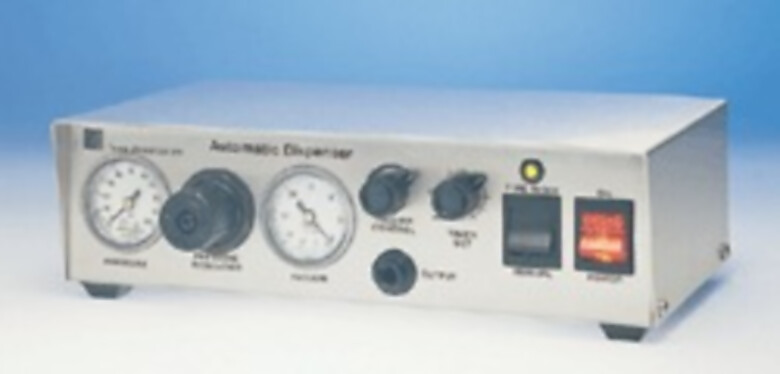

• Automatic Dispenser features adjustable dispensing time feature and barrel vacuum control provide consistent results batch after batch, with materials of varying viscosities. The air-pressure dispensing system is turned on and off by a foot pedal. The automatic timer can be used for precisely controlled depositions over intermittent or extended periods, or the timer can be overridden to allow manual “eyeball” deposition.

• Dispenser-Pic adds a built-in vacuum pick-up system that allows you to pick and place small components at precise locations.

• Air Inlet Pressure: 80 - 100 psi

• Air Outlet Pressure: 1 - 100 psi

• Operating Modes: Manual or automatic cycling (control by foot pedal)

• Timing Range: 0.01 - 1.0 seconds

• Foot Pedal Cord Length: 8’
