Terra Part # 8000-66
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Stocked Item is in stock and ready for immediate shipping

• Fixed temperature heat sealer for a wide range of microplates and PCR plates

• Lightweight and compact with ergonomic lever helps avoid repetitive strain injury

• Rapid warm up for minimal downtime

• Perfect for sample storage, sample archiving or microplate PCR reactions

• One time seal and uniform heat distribution eliminates need to rotate or reapply

• LED light indicates when unit is at sealing temperature


• Adapter Plates (required and sold separately)

• Film and Foil Seals

Dimensions, Product: 8.7"W x 9.8"D x 9.1"H

Plate Configuration: 96 Well

Sealing Temperature: 170°C

Warm Up Time: <10 Minutes

Electrical Specifications: 120/240 V, 50/60 Hz

Weight, Product: 8.8 Lbs

Weight, Shipping: 13.2 Lbs

Dimensions, Shipping: 14"W x 14"D x 14"H

Package Type: Box

Unit of Measure: EA

  • MicroTS Compact Microplate Heat Sealer by Vitl Life Science Solutions MicroTS Compact Microplate Heat Sealer by Vitl Life Science Solutions
MicroTS Compact Microplate Heat Sealer by Vitl Life Science Solutions

Features and Benefits

Heat Sealing Films and Foils

Comparison Chart of Heat Sealing Films and Foils Microplate Seals with Adapter Plates (required)

Green:2 0µm Heat Sealing FoilNoYesYesYesNo
Blue: 38 µm Heat Sealing FoilYesYesYesYesNo
Red: 7 0 µm Heat Sealing FoilYesNoYesYesNo
Clear: 75 µm Clear Sealing FilmNoYesYesYesYes
Black: 85 µm Heat Sealing FoilYesNoYesNoNo
Clear: 105 µm Clear Sealing FilmYesNoYesYesYes

Compact and Lightweight with Airtight Microplate Sealing

Compact and portable models provide an airtight seal around various microplate and PCR types and the ergonomic lever helps prevent repetitive strain injury

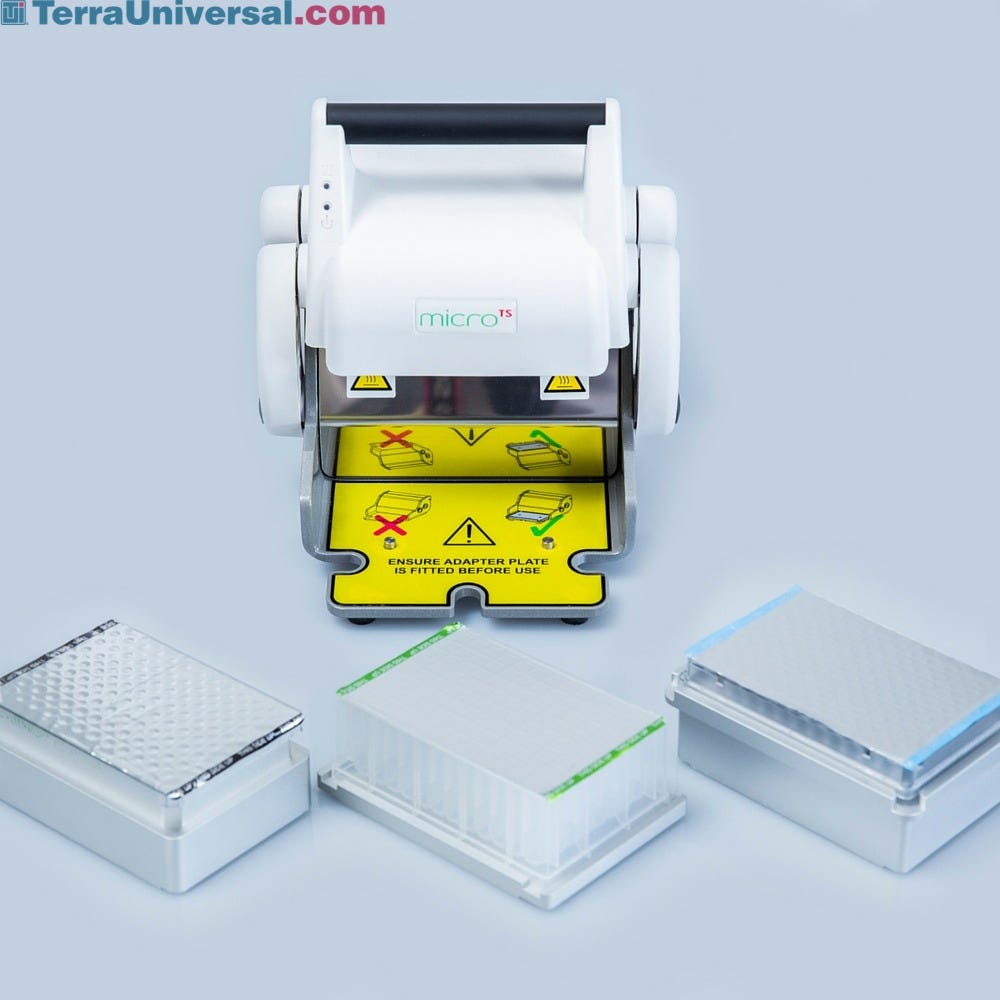

Comprehensive Range of Required Plate Adapters

MicroTS Compact Microplate Heat Sealer requires at least one adapter plate for operation; Vitl offers three adapter plate types: 1) deep-well, 2) 96- and 384-well MPT and a 3) 96 well semi-skirted

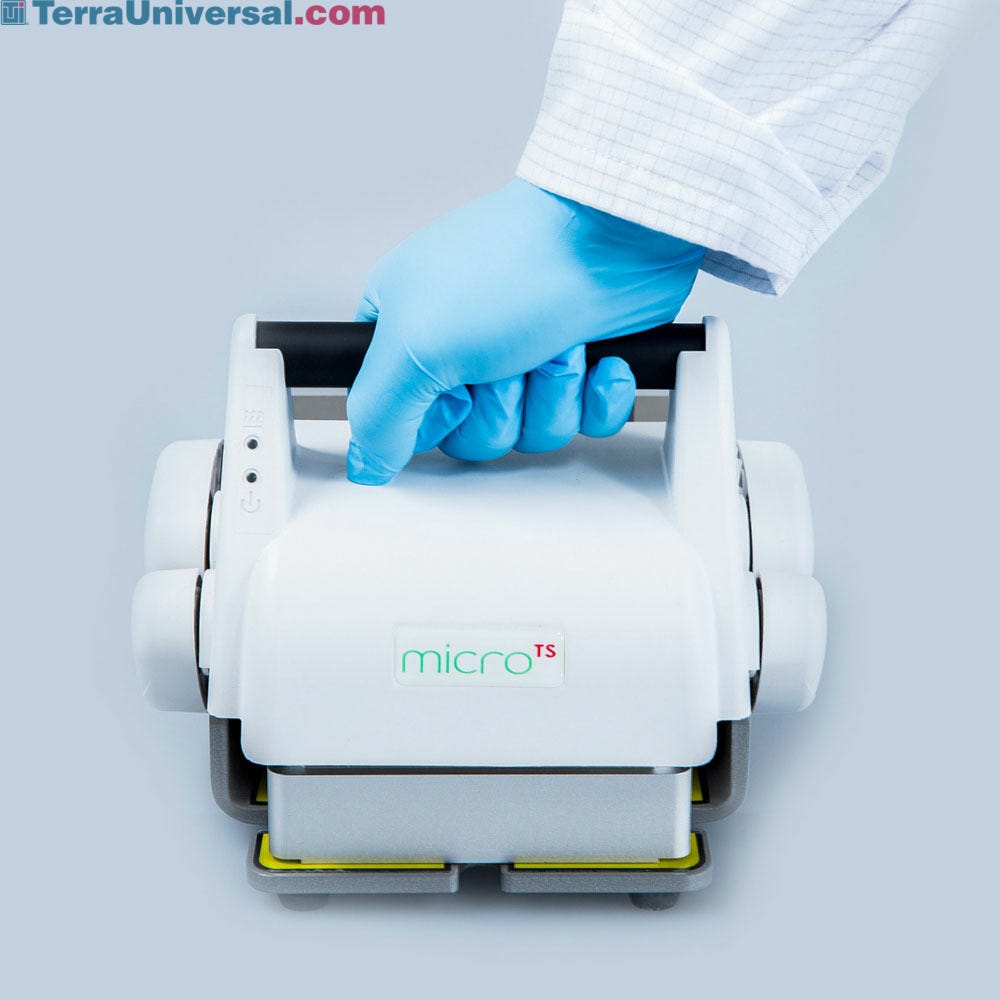

Compact and Lightweight

Lightweight at just 8.9 lbs. MicroTS Compact Microplate Heat Sealer is easy to transport and ideal for use in small, low to medium throughput labs; dimensions: 8.7"W x 9.8"D x 9.1"H (220 x 250 x 230 mm)

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.

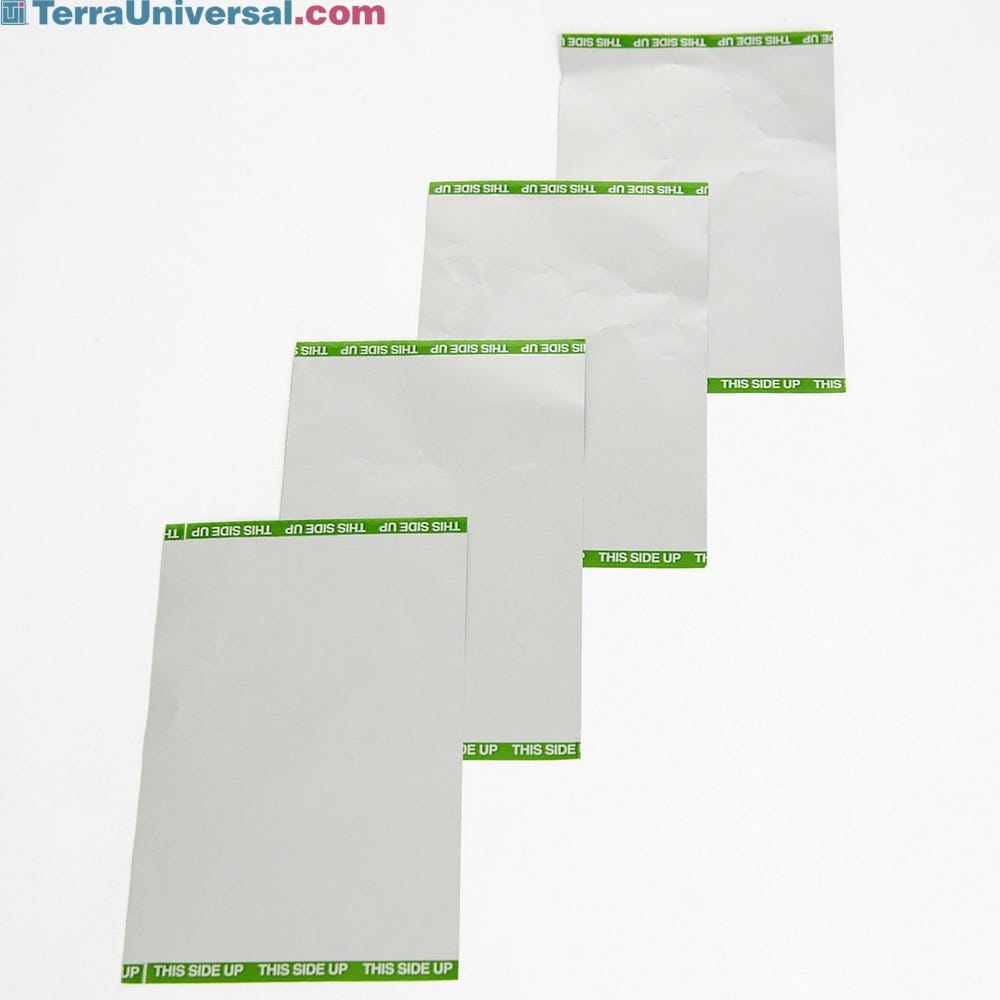

  • Heat Sealing Foil and Sealing Film for Vitl Microplate Heat Sealers
    Color-coded solvent resistant peelable or pierceable Heat Sealing Foils and Films for Vitl Microplate Heat Sealers from 20 µm to 105 µm in thickness seal microplates for long term or temporary storage; pack of 100 125mm x 80mm sheets
  • Required Adapter Plates for for Vitl Microplate Heat Sealers
    MicroTSand VTS Microplate Heat Sealers by Vitl require at least one adapter plate for operation; adapter plates available in: deep well, 96-well MPT, 384-well MTP and 96-well semi-skirted and unskirted PCR plate adapter
