6926-20
Terra Part # 6926-20
$1,661
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA In stock
Accessories related to Terra Part # 6926-20
63835

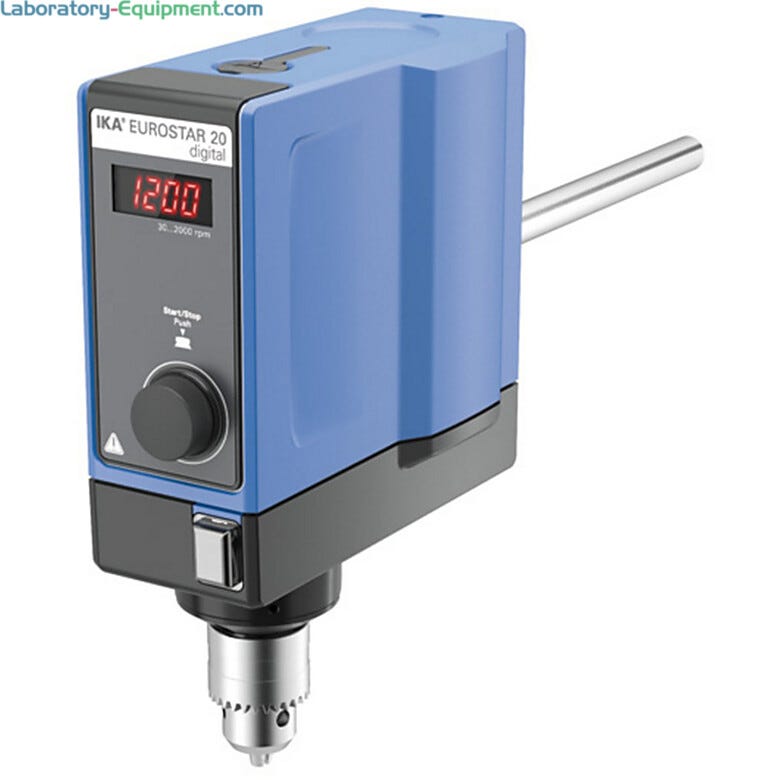

Overhead Stirrer; Eurostar 20, Digital, 120 V
Product Details
  • Overload protection
  • Quiet opertation
  • Stirring quantity max.  (H2O): 15 liters
  • Max.  Viscosity: 10,000 mPas
  • Motor rating input/output: 70 / 42 W
  • Permissible ON time: 100%
  • Speed range: 0/30 – 2000 rpm
  • Max. Torque at stirring shaft: 20 Ncm
  • Display: LED
  • Chuck range: 0.5 – 10 mm
  • Hollow shaft: yes
  • Permissible ambient temp.: 5 – 40 °C
  • Permissible relative moisture: 80%
  • Protection class DIN EN 60529: IP 40
  • USB / RS 232 interface: no
  • Reverse operation: no
  • Intermittent operation: no
  • Temp.  Sensor connection: no
  • Torque trend measurement: no
  • Timer: no
  • Temperature measurement: no
  • Temperature measuring range: N/A
  • Infinitely adjustable speed from 30-2,000 RPMs
  • Digital speed display for easy operation
  • Push-through agitator shafts
  • Short-term overload operation
  • Error code display for easy troubleshooting

Maximum Speed: 2000 rpm

Maximum Viscosity: 10000 mPas

Application: General Purpose

Controls: Digital

Model: Eurostar 20

Capacity: 15 L

Reversible Stirring: No

Wireless Controller: No

Manufacturer SKU: 4442001

Shaft Length: [xxx] mm

Immersion Depth: [xxx] mm

Unit of Measure: EA

Electrical Specifications: 120 V, 70 W, 1 Ph, 50/60 Hz

Weight, Product: 9.7 lb

Dimensions, Product: 3.4" W x 8.2" D x 9.8" H

Weight, Shipping: 15 lb

Dimensions, Shipping: 8" W x 8" D x 12" H

Package Type: Box

Buy Accessories
  1. IKA FK 1 Flexible coupling required for stirring applications using glass stirring rods; compatible with EUROSTAR and RW Series Overhead Stirrers   |  6926-21 displayed
    FK 1 Flexible coupling Ships Free Free shipping in contiguous USA In stock
    $560
    Increase Down Increase Up
  2. Removes stirring elements quickly and easily without tool  |  6926-22 displayed
    R 60 Keyless chuck Ships Free Free shipping in contiguous USA In stock
    $213
    Increase Down Increase Up
  3. Prevents potential injuries when using rotating shafts and stirring elements  |  6926-23 displayed
    R 301 Stirring shaft protection Ships Free Free shipping in contiguous USA In stock
    $353
    Increase Down Increase Up
  4. Use when securing R 301 to EUROSTAR 20 digital Overhead Stirrer  |  6926-24 displayed
    R 301.1 Support holder Ships Free Free shipping in contiguous USA In stock
    $431
    Increase Down Increase Up
  5. Plate Stand, R 1825, 560 mm height
    Plate Stand, R 1825, 560 mm height Ships Free Free shipping in contiguous USA In stock
    $308
    Increase Down Increase Up
  6. Plate Stand, R 1826, 800 mm height
    Plate Stand, R 1826, 800 mm height Ships Free Free shipping in contiguous USA In stock
    $347
    Increase Down Increase Up
  7.  |  6924-86 displayed
    Plate Stand, R 1827, 1000 mm height Ships Free Free shipping in contiguous USA In stock
    $360
    Increase Down Increase Up
  8. For affixing dispersion unit to plate stand  |  6924-87 displayed
    R 182 Boss head clamp Ships Free Free shipping in contiguous USA In stock
    $65
    Increase Down Increase Up
  9. Secures vessel against wall during dispersion  |  6924-88 displayed
    RH 3 Strap Clamp Ships Free Free shipping in contiguous USA In stock
    $108
    Increase Down Increase Up
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • H-Stand, R 2722

  • Telescopic stand, R 2723

  • R 60 Keyless chuck

    Allows quick and easy removal of stirring elements Clamping range: 0.5 to 10 mm
  • Labworldsoft® Lab Automation Software
