• Maximum Speed: 6000 rpm
• Maximum Viscosity: 10000 mPas
• Application: General Purpose
• Controls: Digital
• Model: Eurostar 20
• Capacity: 20 L
• Reversible Stirring: No
• Wireless Controller: Yes
• Manufacturer SKU: 25001463
• Shaft Length: [xxx] mm
• Immersion Depth: [xxx] mm
• Unit of Measure: EA
Want it faster ? Read about FasTrak
• Digital speed display
• Infinitely adjustable speed
• Includes 280 mm long precision shaft with 220 mm maximum immersion depth
• Material: alu-cast coating / thermoplastic polymer
• Stirring quantity max. (H2O): 20 l
• Max. Viscosity: 10,000 mPas
• Motor rating input/output: 176 / 125 W
• Permissible ON time: 100%
• Speed range: 0/150 – 6000 rpm
• Max. Torque at stirring shaft: 20 Ncm
• Material: Alu-cast coating/thermoplastic polymer
• Motor principle: Brushless DC
• Speed Display: TFT
• Temperature display: TFT
• Torque display: Yes
• Deviation of torque measurement: 6 ±Ncm
• Nominal torque: 0.2 Nm
• Stirring element fastening: special output shaft
• Reverse operation: no
• Intermittent operation: Yes
• Temp. Sensor connection: PT 1000
• Hollow shaft: no
• Torque trend measurement: Yes
• Timer: TFT
• Time setting range: 1 - 6000 min
• Temperature measuring range min./max: -10 °C/+350 °C
• Temperature measurement resolution: 0.1 K
• Accuracy of temperature measurement: ±0.5 + tolerance PT1000 (DIN IEC 751 Class A) K
• Limit deviation temperature sensor: ≤ ± (0.15 + 0.002xITI) K
• Permissible ambient temp.: 5 – 40 °C
• Permissible relative moisture: 80%
• Protection class DIN EN 60529: IP 40
• USB / RS 232 interface: Yes
• Analog output: no

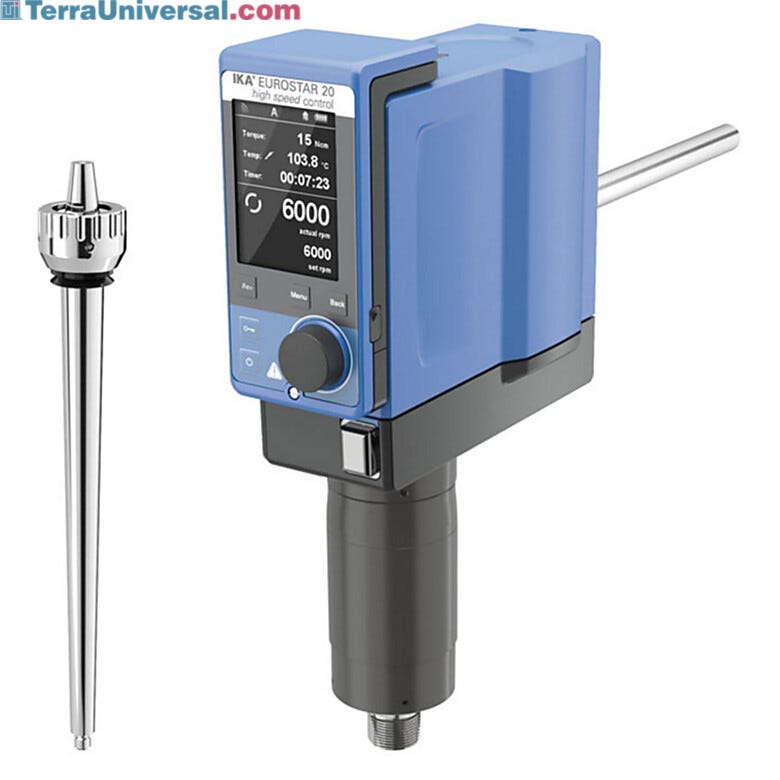

• For high speed stirring operations with volumes up to 20 L
• Designed with removable wireless controller and digital TFT display
• Automatic speed adjustment through microprocessor control
• Multilingual TFT display and Programmable functions
• Integrated temperature measurement
• Interval operation and Timer function
• Adjustable safety circuit, Locked function and Infinitely adjustable speed
• Push-through agitator shafts and Overload protection
• Short-term overload operation
• Slim casing, Quiet operation and Error code displayn
• DEMO AVAILABLE – Schedule a demonstration unit at your facility for no or low cost excluding freight. Please contact Evan Messenger at 714-578-6124 ([email protected])
• Maximum Speed: 6000 rpm
• Maximum Viscosity: 10000 mPas
• Application: General Purpose
• Controls: Digital
• Model: Eurostar 20
• Capacity: 20 L
• Reversible Stirring: No
• Wireless Controller: Yes
• Manufacturer SKU: 25001463
• Shaft Length: [xxx] mm
• Immersion Depth: [xxx] mm
• Unit of Measure: EA
• Electrical Specifications: 120/240 V, 1 A, 200 W, 1 Ph, 50/60 Hz
• Weight, Product: 10.36 lb
• Dimensions, Product: 3.4" W x 9.05" D x 12.8" H
• Weight, Shipping: 15 lb
• Dimensions, Shipping: 6" W x 12" D x 15" H
