Gallery

Adjust-A-Shelf™ Nitrogen Desiccator Cabinet Storage

Access doors with 304 stainless steel reinforced frames extend desiccator cabinet's service life and provide a tight seal. Heavy-duty lift latches prevent metal-on-metal scraping common with rotary latches.

IsoDry Desiccator Cabinet 4 Chamber

Four-chamber IsoDry desiccator cabinet provides uniformly low relative humidity; acrylic lends strength and visibility of stored contents. Includes stainless steel racks, shelf, bleed valve.

Desiccators

Custom 3-Chamber Desiccator for Small Electronics Components Storage

The IsoDry® desiccator cabinet's gas dilution module recirculates air throughout all of the chambers to equalize the RH set-point with an even mixture of inert nitrogen gas to protect sensitive items like electrical components.

Custom 3-Chamber Desiccator, Installed

IsoDry® desiccator cabinets come with a gas mixing module installed in the rear plenum to more efficiently mix inert nitrogen gas into the chambers, greatly reducing the time required to achieve specified RH set-points and equalizing humidity levels throughout the cabinet.

Mobile 10 Chamber Acrylic Desiccator Cabinet

10 Chamber desiccator cabinet in economical acrylic with rigid stainless steel door frames and adjustable shelves for simple material storage. Features RH control valve and flowmeter for the continuous passage of nitrogen to support a dry environment.

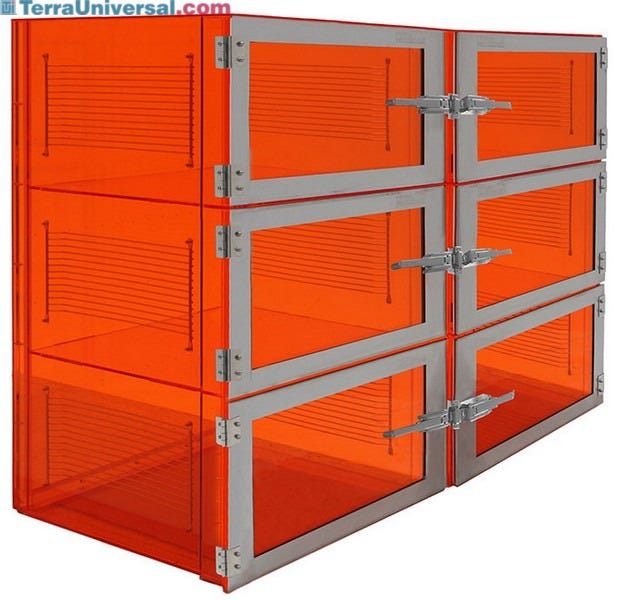

Amber Acrylic Adjust-a-Shelf Desiccator Cabinet

Versatile Adjust-A-Shelf desiccator cabinets’s one-piece door gaskets inhibit outgassing while the LiftLatches prevent metal-on-metal scraping common with rotary latches. Plenum chamber minimizes backfill, ensures uniform gas distribution.

4 Chamber ESD-Safe Desiccator Cabinet with Nitrogen Generator

Static-dissipative PVC ESD-safe desiccator cabinet with nitrogen generator ensures complete protection from static build-up. Unit provides a sealed, nitrogen-purged environment ideal for low-moisture and particulate component storage.

10 Chamber Desiccator Cabinet for Intracavity Harmonics Material Storage

Desiccator cabinet in economical acrylic with adjustable shelves. Unit features an automatic relative humidity control system for the safe storage of moisture-sensitive material. An optimal solution for intracavity harmonics material storage.

Desiccator

10 Chamber Desiccator Cabinet with Automatic Nitrogen Gas Purge

Adjust-a-Shelf desiccator cabinet features Dual Purge™ and Nitrowatch™ systems that automatically maintain a low relative humidity set-point within the cabinet. Systems ensure continuous positive pressure while optimizing use of nitrogen gas.

10 Chamber shelved desiccator cabinet in SD-PVC for storing small electronics components

Store electronic components in an ESD-safe static-dissipative PVC Adjust-a-shelf Desiccator cabinet. It is mobilized by being mounted on a wheeled stand and reinforced with stainless steel door frames to prolong the lifetime of the cabinet.

Nitrogen-purged desiccator storage cabinet in amber for storing UV-sensitive PCBs

A 5-door desiccator cabinet built of amber acrylic to protect stored contents from UV light radiation, required to safely store UV-sensitive PCBs. An accompanying RH controller distributes inert nitrogen gas evenly to each cabinet via a rear plenum.

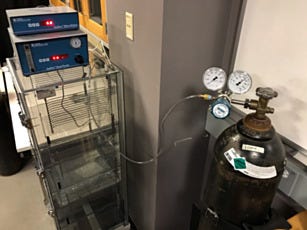

SDPVC Desiccator Chamber with Automatic RH Controllers and Nitrogen Gas

This desiccator cabinet is used to store semiconductor chips. The static-dissipative PVC construction eliminates the hazards of ESDs, while the automatic NitroWatch™ and DualPurge™ controllers purge the chambers with nitrogen to maintain low humidity levels while conserving N2 gas.

SDPVC Adjust-a-Shelf Desiccator Dry Cabinet for Storing Semiconductor Chips and Wafers

Store your semiconductor chips and wafers in a static-dissipative desiccator dry cabinet. Extremely sensitive parts are protected from ESD and moisture with a source of clean inert gas to purge the chambers of ambient moisture and particulates.

ESD-Safe Desiccator Cabinet for Semiconductor Electronics Kitting

ESD-safe desiccator cabinet for electronics kitting in SD-PVC to protect against particle and static buildup with built-in plenum to evenly distribute gas among the chambers. Doors, usually the first part to fail, are here built of high-quality components and steel frame to lengthen the life of the entire cabinet.

Mobile ESD-Safe Desiccator Cabinet for Storing RFIC Components

An Adjust-a-Shelf desiccator cabinet in ESD-proof SD-PVC makes a perfect storage cabinet for sensitive electronics like RFICs. Devices in closely-watched development are kept safe with locking liftlatches.

Adjust-a-Shelf Desiccator Cabinet Storing Electronics in Antistatic Bags

For an extra layer of ESD protection, select a desiccator cabinet in static-dissipative PVC. This ESD-safe cabinet is designed for storage of sensitive, important data storage devices. Humidity modules ensure the contents are protected from moisture degradation.

Adjust-a-Shelf Desiccator Cabinets Storing Photonics Components

Electronics and components use din photonics are precision-made, highly sensitive devices. A desiccator cabinet in static-dissipative PVC will protect electronics from ESD damage, while a steady flow of dry, non-reactive nitrogen gas prevents degradation due to moisture.

Nitrogen-Purged Desiccator Cabinet for Storing of Image Sensor Components

This nitrogen-purged desiccator cabinet is used to store image sensor components in an ESD-safe, inert environment. The cabinet is fully grounded using conductive grounding tape and stainless steel trays.

Amber Acrylic Desiccator for Medical Device Storage

Terra’s nitrogen purge desiccators provide low humidity storage and are perfect for storing moisture-sensitive materials such as medical devices. Amber-colored acrylic ensures stored contents are not disrupted by light or are contaminated by hygroscopic substances.

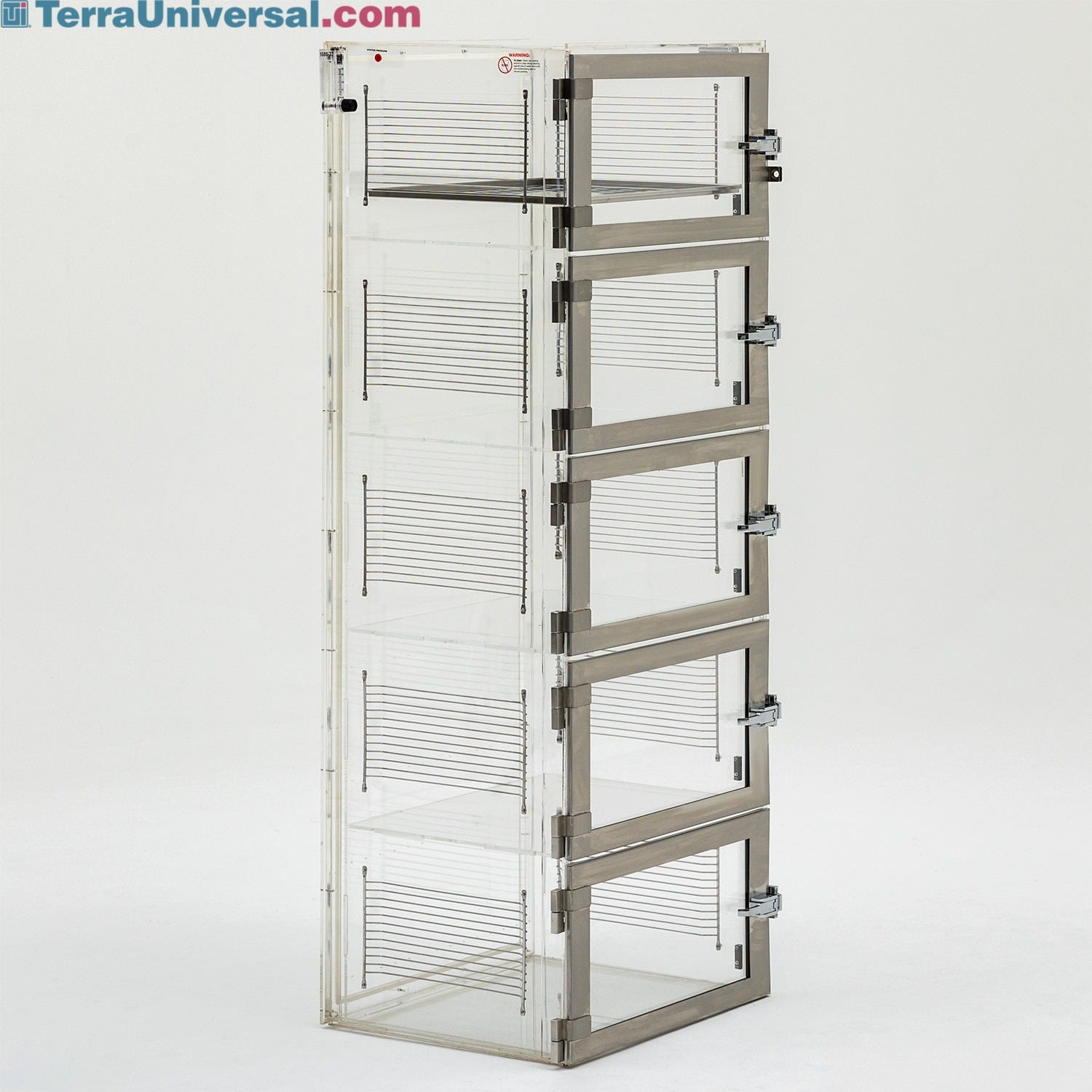

Adjust-A-Shelf™ Nitrogen Desiccator Cabinet

Adjust-A-Shelf™ nitrogen-purge desiccator cabinet provides versatile low-humidity storage down to 0% RH. Designed for moderate to critical RH control applications that require automatic low-humidity control.

Nitrogen Desiccator Cabinet with Add-Ons

NitroWatch™ monitors and displays RH readings from a single sensor mounted inside the cabinet. The Dual Purge™ uses two gas flow settings (high/low) to rapidly reach and then maintain the user-specified RH set-point.

Faraccator™ ESD-Safe Desiccator with Faraday Cage for Storage of Image Sensor Components

Terra’s faraccator™ desiccator cabinet features optimal ESD protection, ideal for storing image sensor components. Faraday-design provides complete static safety. Sealed, nitrogen-purged cabinet ensures low-moisture, low-particle environment. Static-dissipative PVC dissipates static charge to prevent cling of dust particles and are chemical resistant.

Nitrogen Desiccator Cabinet Storage Capabilities

Adjust-A-Shelf desiccator cabinets are designed for storage of moisture-, ESD-, and contamination-sensitive materials that require automatic low-humidity set-point control. This includes microelectronics, medical devices, pharmaceutical powders, and more.

Adjust-a-Shelf SD-PVC Desiccator Cabinet for Dry Inert Storage

For applications needing dry inert storage, the adjust-a-shelf desiccator cabinet is an ideal, cost-effective choice. with gas line hookups and a distributing plenum, each chamber receives a constant feed of dry, inert gas to purge them and their contents of moisture-laden air.

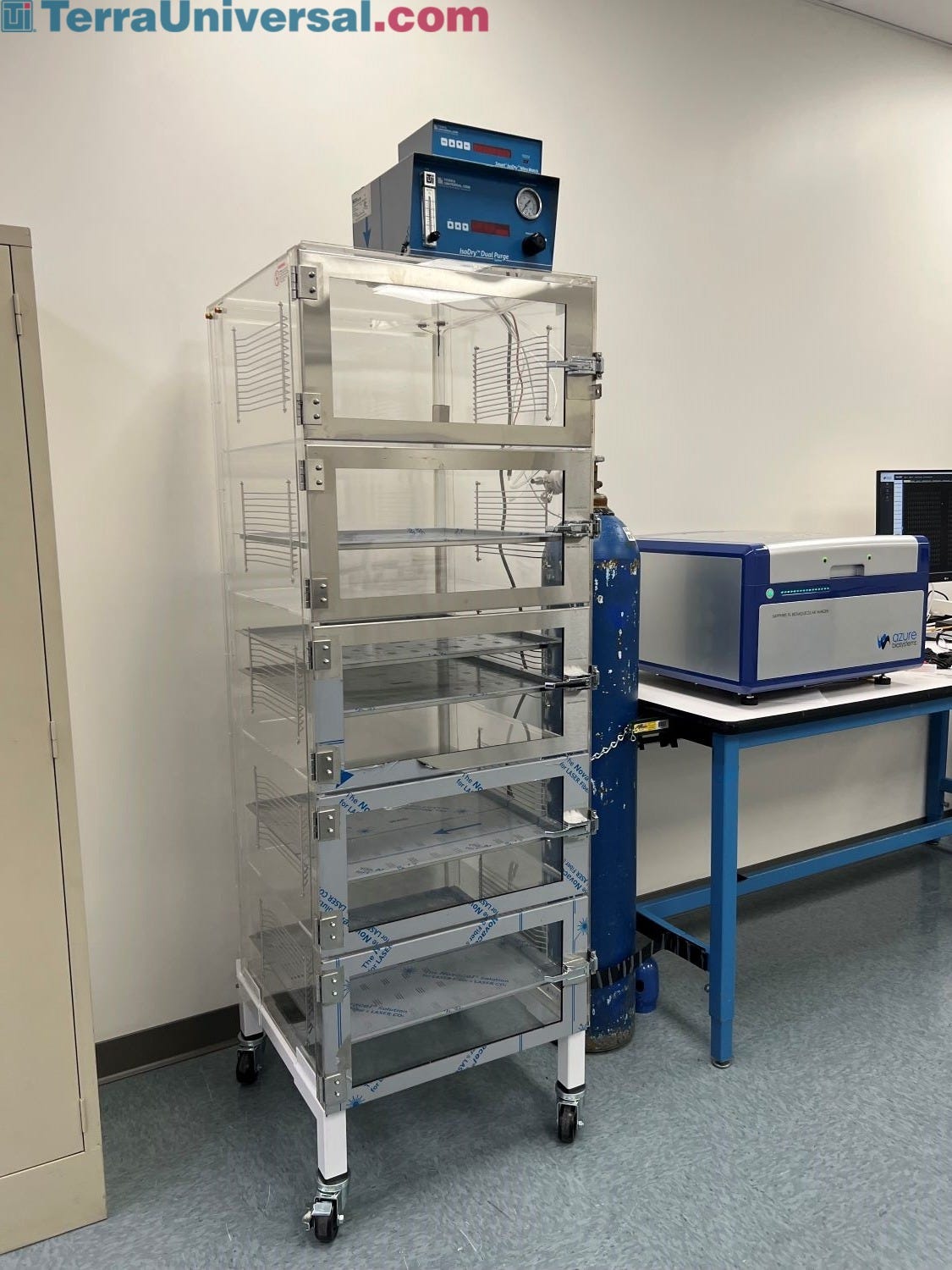

Adjust-A-Shelf Desiccator used for Synthetic Bio and Informatics Research

Adjust-A-Shelf desiccator used for synthetic biology and informatics research. Desiccator created for applications demanding automated low-humidity control in scenarios with moderate to critical relative humidity requirements. Ideal for storing moisture sensitive materials such as microelectronics, medical devices, and pharmaceutical powders.
