Real-Time Particle Monitoring at a Glance

The integrated CleanWatch+® DualZone™ display shows live particle count data with user-configurable Min/Max set-points, giving operators immediate visibility into cleanroom air quality conditions

Main Panel Board Simplifies Install of High Voltage Power Supplies to Cleanroom

The Master PDM is a UL-listed main panel board with quick-connect outlets to drastically simplify install of high voltage power supplies to your modular cleanroom

UL-Listed Industrial Panel Board for Modular Cleanrooms

Industrial control panel is UL listed for compliance with OSHA and local AHJ (Authorities Having Jurisdiction)

Industrial Twist-Lock Plugs for Instant, Safe, and Secure Power Connection

Industrial twist-lock plugs and receptacles allow for speedy installation, and prevent accidental disconnects. Provides instant, safe, and secure power connection to all PDMs.

Control Panel for Hardwall Cleanroom

This cleanroom control panel provides convenient centralized access to monitor and adjust cleanroom controls. Differential pressure gauge, power switches, and filter replacement alarm maintain a desirable cleanroom environment.

Light Power Distribution Connectors

Terra's power distribution modules (PDMs) for lights can power up to ten cleanroom lights at once, and can be daisy-chained together if there are more than ten lights.

EnviroWatch ™ Cleanroom Monitoring System and Control Panel

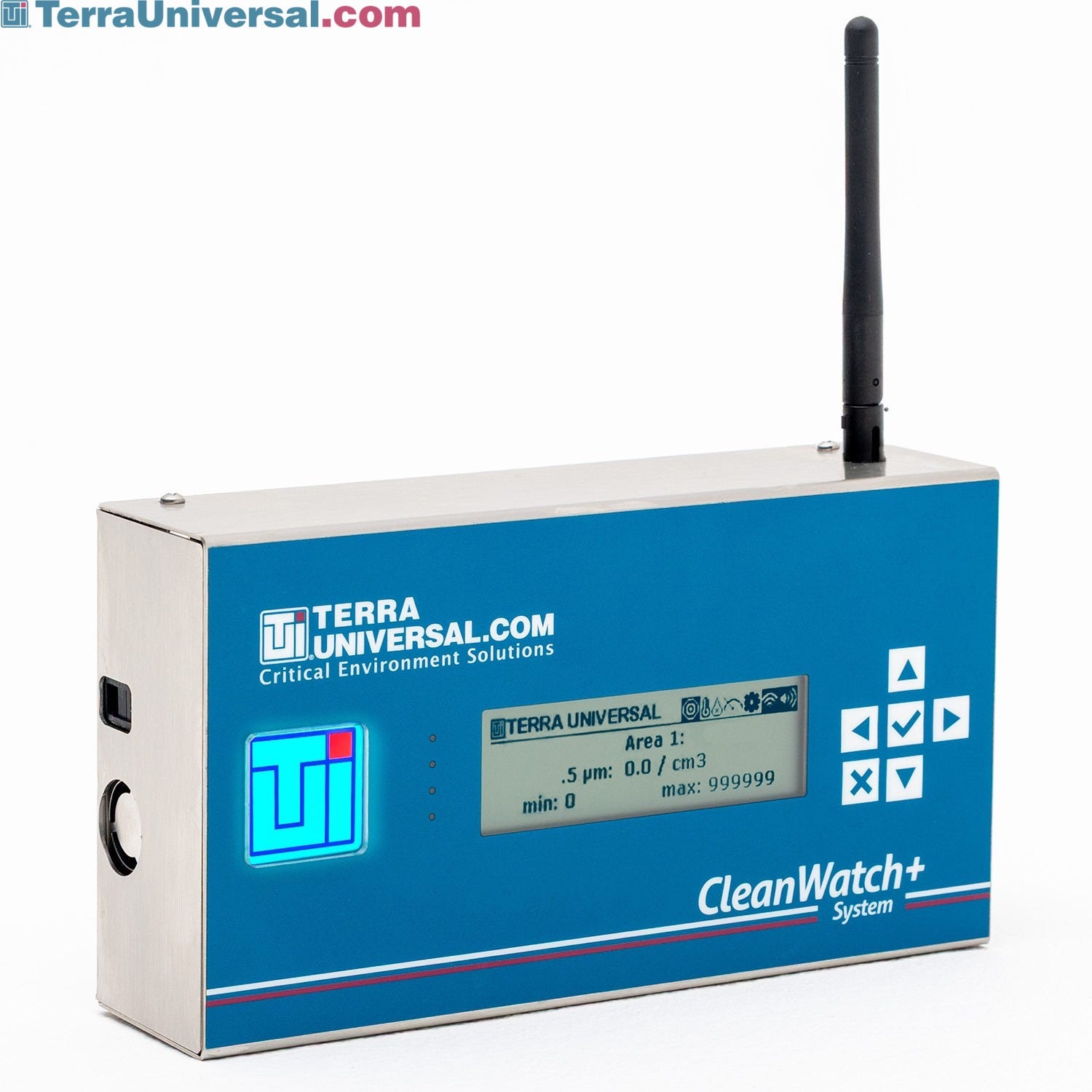

CleanWatch+ Environmental Monitoring System

This system captures cleanroom environmental trends through high-resolution sensors that monitor particle counts and pressure. Data is stored securely in the cloud for audit-ready reporting.

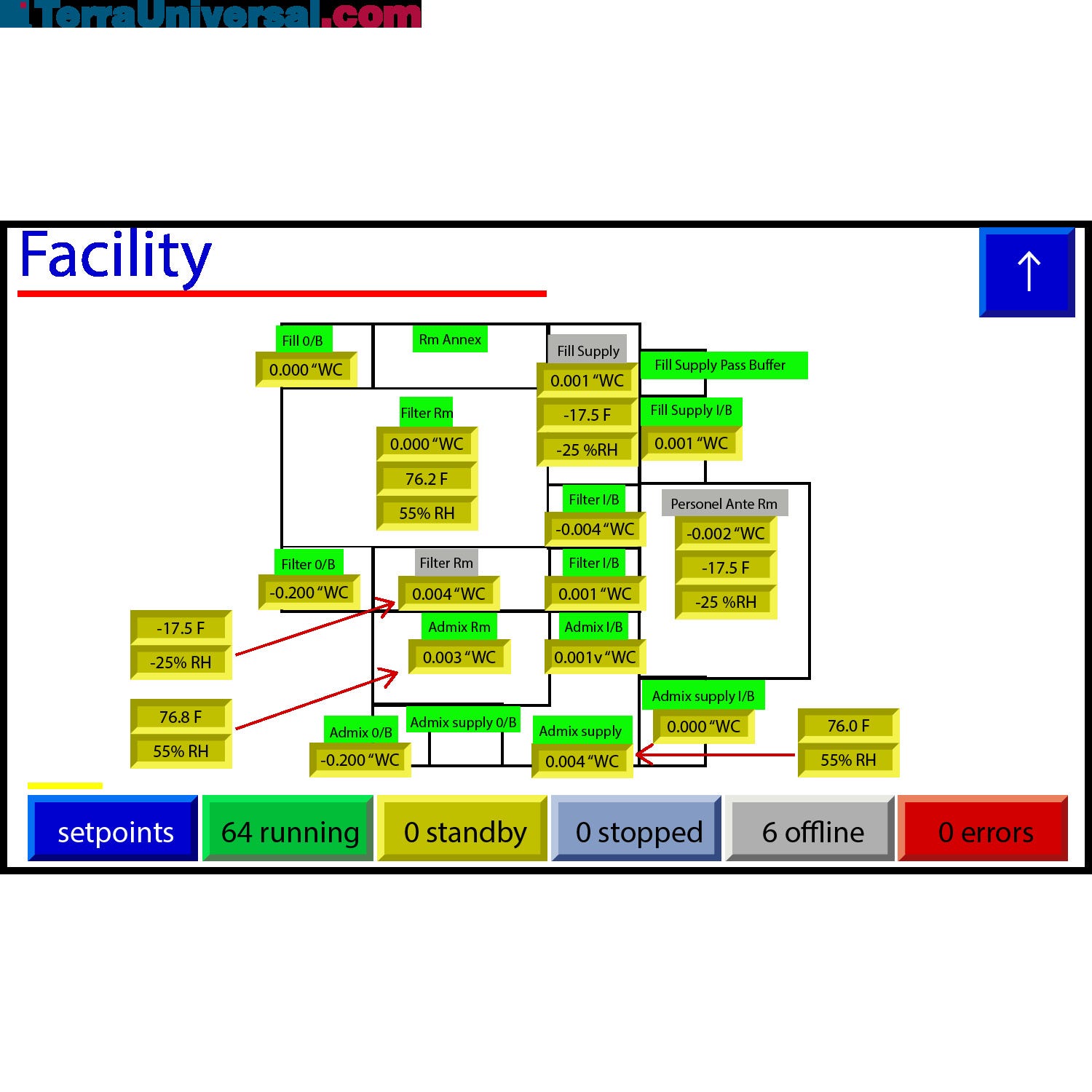

Smart® Cleanroom, ACA Facility Screen

Facility overview screen shows the total number of nodes and groups defined in the system. It also shows the number of fans found with an error, offline, stopped, running and in standby

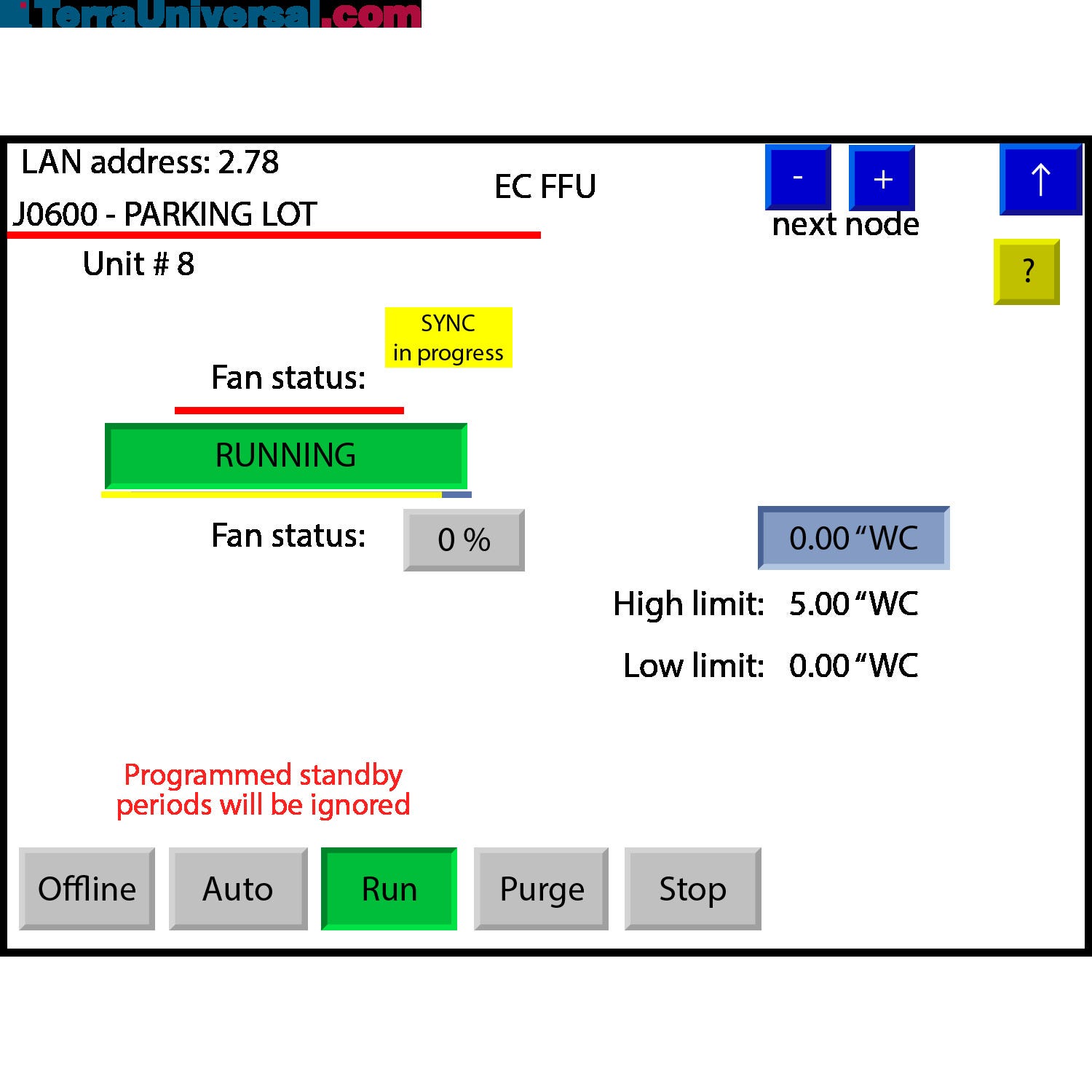

Smart® Cleanroom, FFU Screen

Fan control screen shows the status of the fan identified by the unit # and group name. The fan’s current speed setting, and RPM value are also shown.

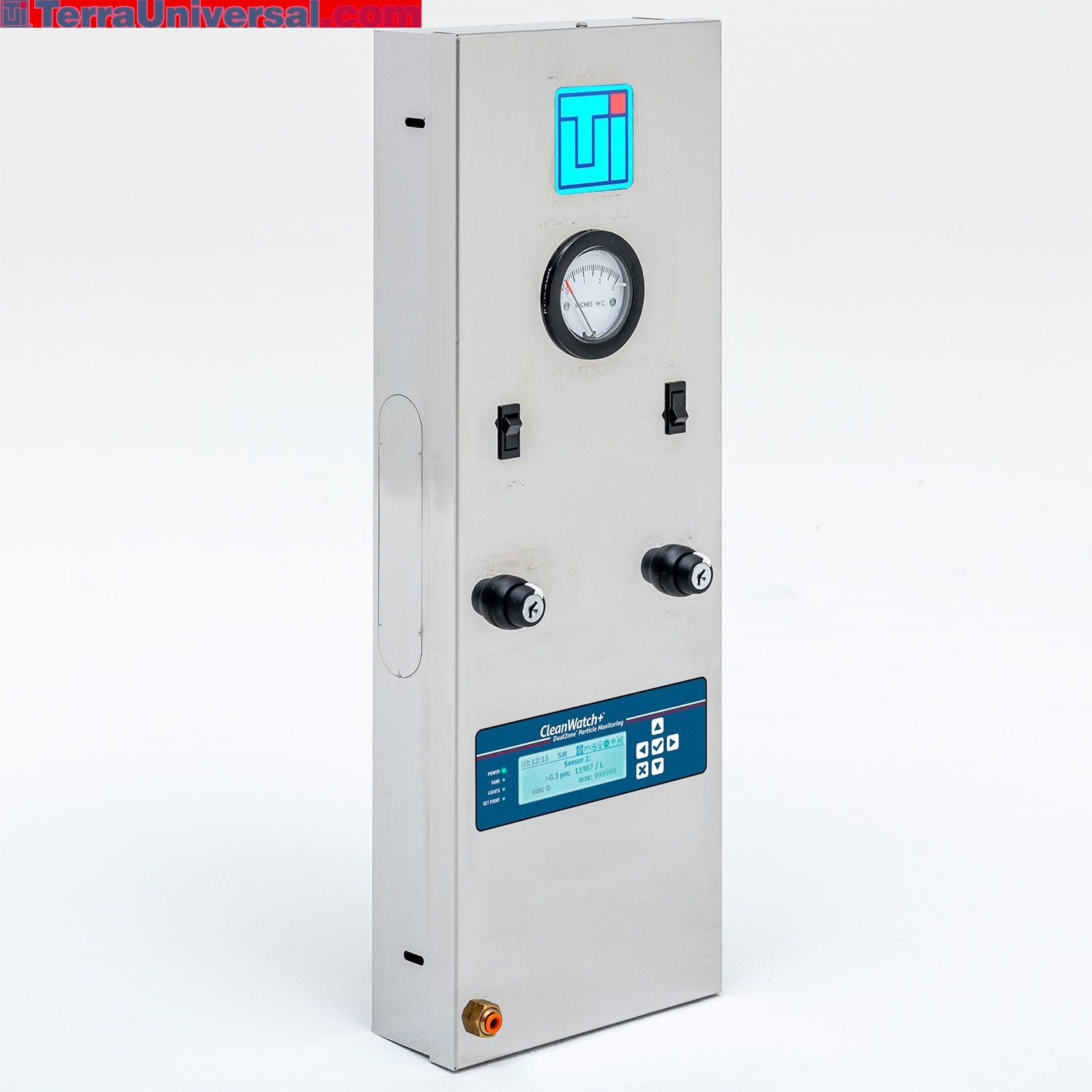

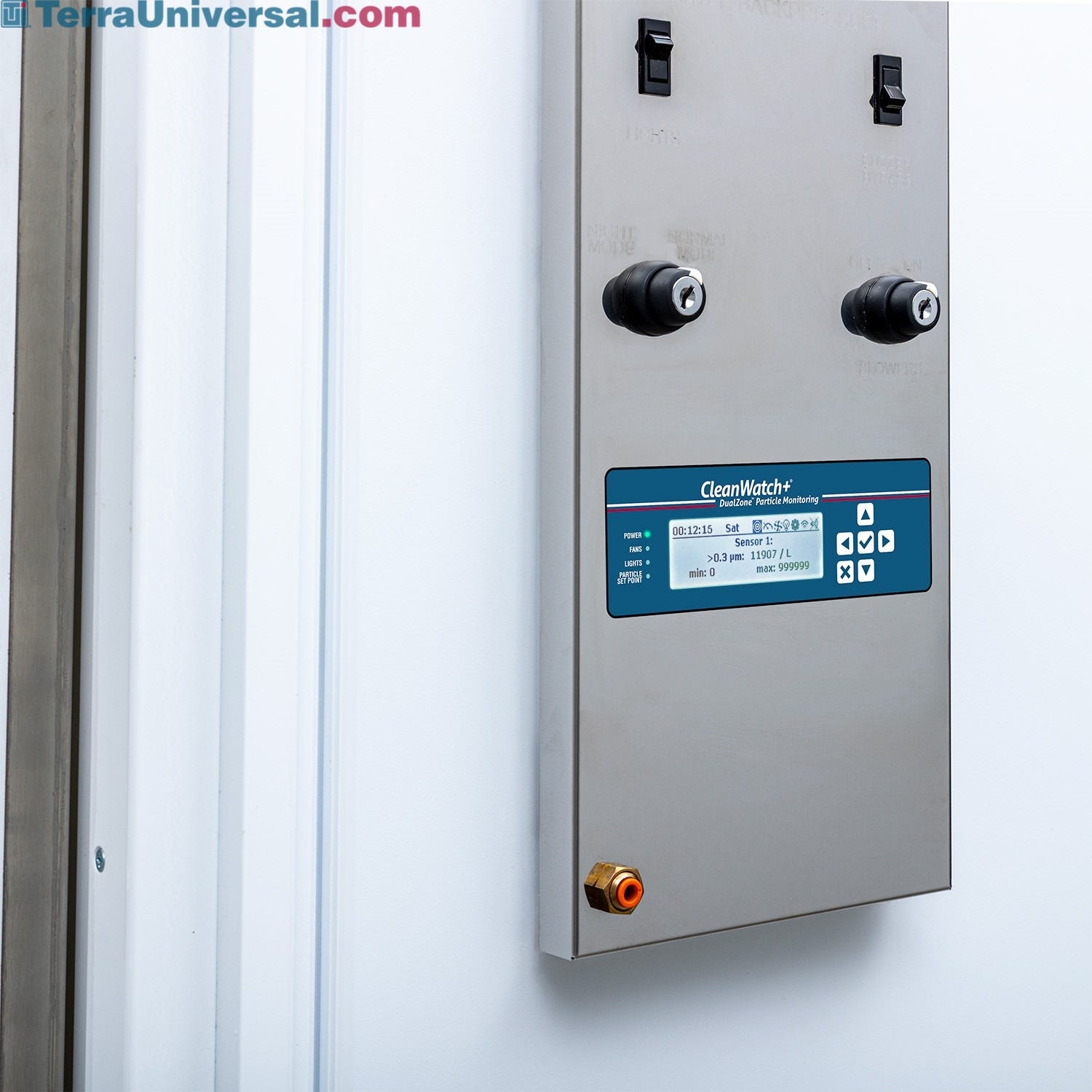

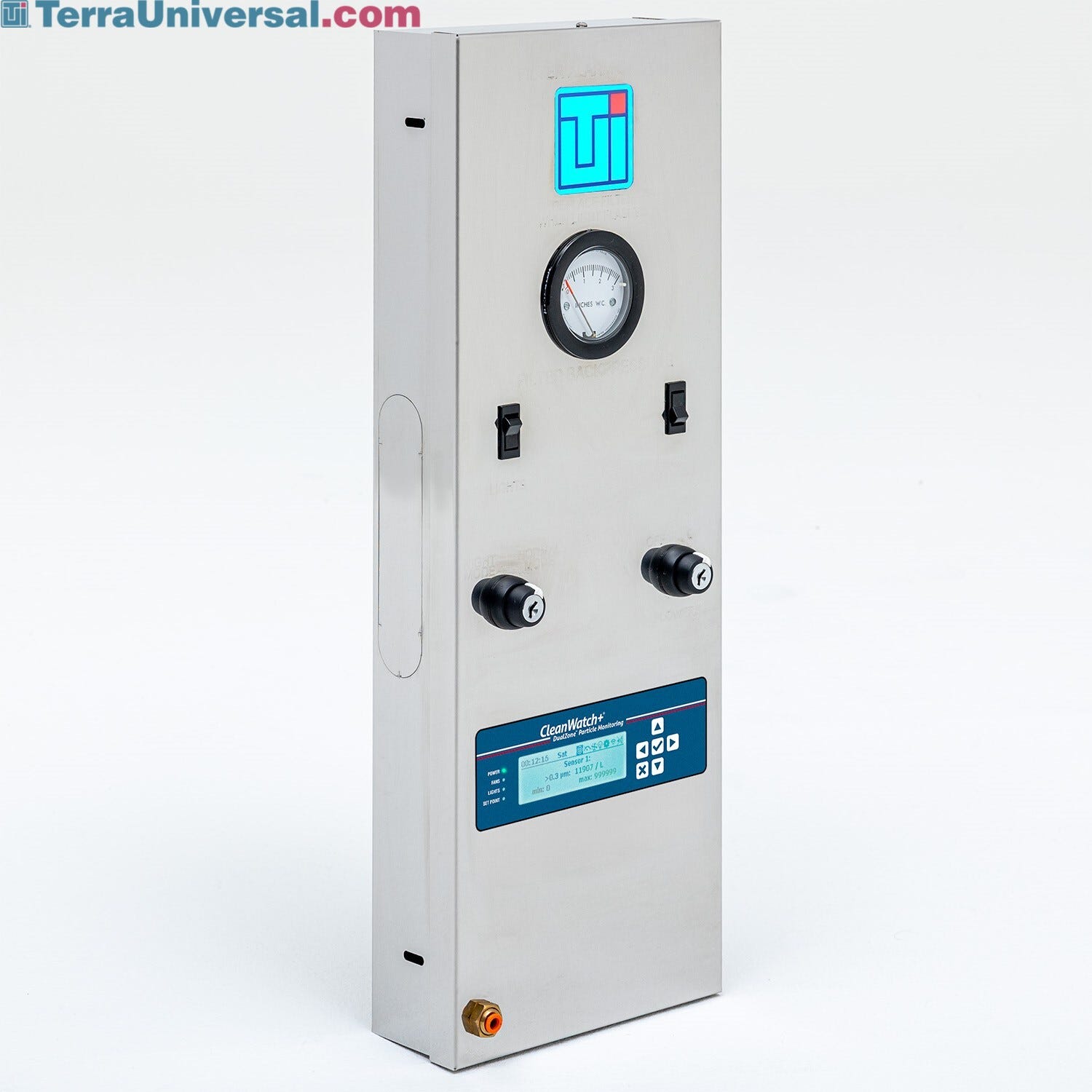

Control Panel with Built-in CleanWatch+®

This NEC-compliant control panel measures particle counts at six size thresholds and differential pressure, with a mirror-finished stainless steel enclosure, tamper-resistant key switches, and an integrated filter replacement alarm.

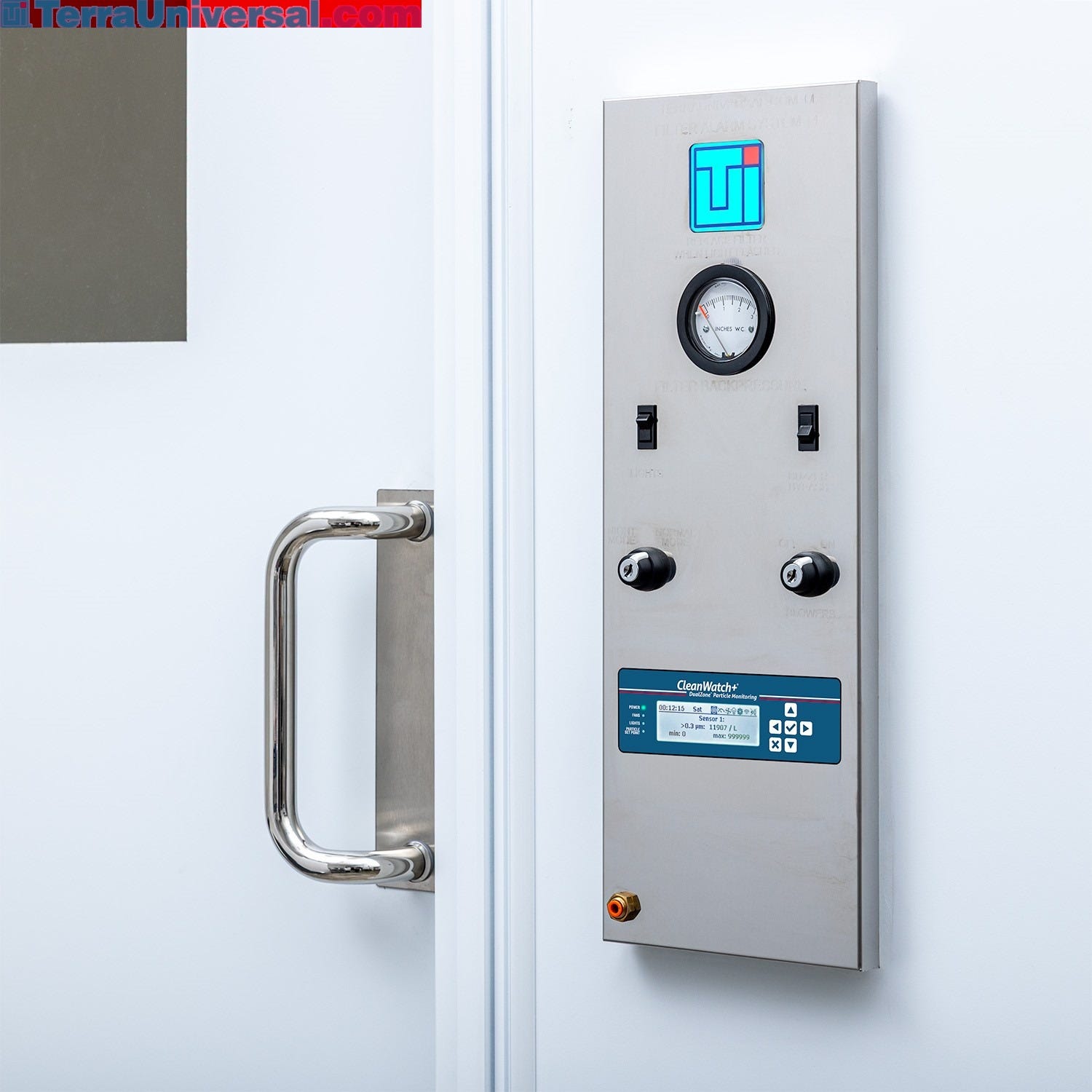

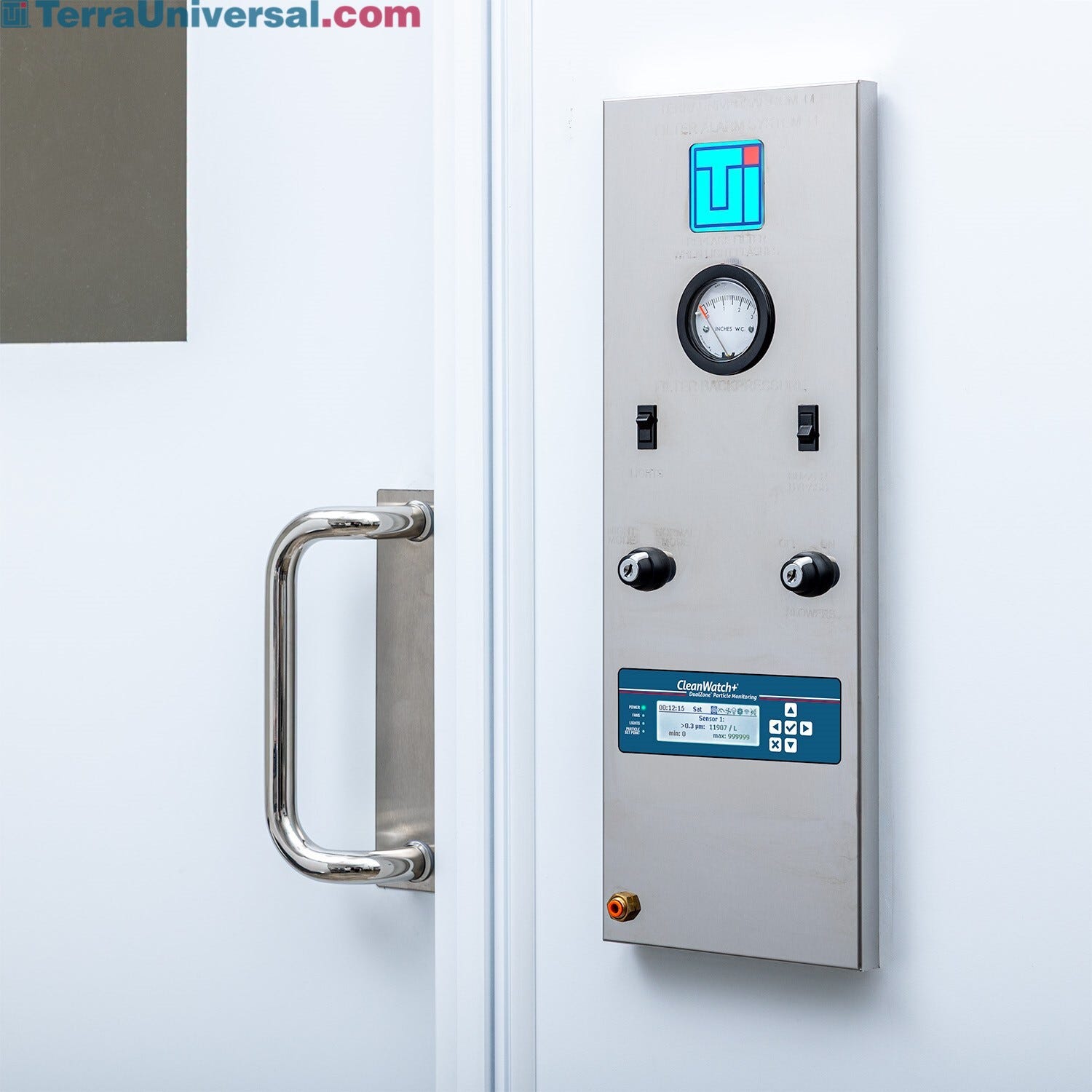

Installed Control Panel with Built-in CleanWatch+®

Quick-connect fittings and plug-and-play modular design speed up installation in both Terra modular cleanrooms and custom cleanroom structures, reducing setup time and complexity

Cleanroom Control Panel with Filter Replacement Alarm

Terra’s Cleanroom Control Panel with Operation Status Indicator LED provides convenient access to all controls and includes a filter replacement alarm to keep your FFUs working safely and efficiently. The filter replacement alarm provides visual (blinking LED) and audible alerts when filters need to be replaced.

Softwall Cleanroom Control Panel with Filter Replacement Alarm

Terra’s Softwall Cleanroom Control Panel with Operation Status Indicator LED provides convenient access to all controls and includes a filter replacement alarm to keep your FFUs working safely and efficiently. The filter replacement alarm provides visual (blinking LED) and audible alerts when filters need to be replaced.

Power Distribution Module (PDM) for Smart® Tier System

Terra’s Power Distribution Modules (PDMs) drastically simplify connection of fan/filter modules (FFUs) and ceiling lights, while providing low-voltage power for one or more Smart® Control Panels. The UL-listed high-voltage power distribution system ensures the highest safety and quality.

Power Distribution Module (PDM) for Smart® Tier System

Terra’s Power Distribution Modules (PDMs) drastically simplify connection of fan/filter modules (FFUs) and ceiling lights, while providing low-voltage power for one or more Smart® Control Panels. The UL-listed high-voltage power distribution system ensures the highest safety and quality.

Cleanroom Control Panel for Tier 1 Graphic-Console 2.4" Screen

Cleanroom control panel with Tier 1 system monitors and controls up to 50 FFUs in 5 rooms. It includes six inputs for pressure/RH/temperature sensors, FFU performance alarm, remote data logging, and email alarm notification.

BioSafe® Smart® Control Panel with 7" Tier 3 Console

Terra’s Tier 3 cleanroom control panel intelligently monitors and controls clean room and facility environments. Monitor differential pressure, temperature, and/or RH. The Tier 3 console supports cleanroom monitoring for up to 12 rooms and control of up to 120 FFUs. The plug-and-play design is field configurable to match your facility layout and needs.

Master Power Distribution Module for Custom Cleanroom

Main panel board simplifies installation of high voltage power supply to cleanroom

Room-Side Accessible Power Distribution Module

Room-Side Accessible PDMs are to be mounted in a cleanroom's ceiling grid to provide easy access for any electrical configurations.

Primary Power Distribution Module for Lights

Light power distribution modules (PDMs) act as a prmary unit, and have ports to allow connection to a secondary PDM if needed.

Power Distribution Module (PDM) for Tier System allows Smart monitoring and control of cleanroom

Terra’s Power Distribution Modules (PDMs) drastically simplify connection of fan/filter modules (FFUs) and ceiling lights, while providing low-voltage power for one or more Smart® Control Panels. The UL-listed high-voltage power distribution system ensures the highest safety and quality.

Power Distribution Module (PDM) for Tier System allows Smart monitoring and control of cleanroom

Terra’s Power Distribution Modules (PDMs) drastically simplify connection of fan/filter modules (FFUs) and ceiling lights, while providing power support for one or more Smart® Control Panels. The high-voltage system, designed for ease of access, is UL-Listed.

External-Mount Control Panel for Hardwall Cleanroom

This external-mount control panel provides centralized cleanroom control. Integrated filter replacement alarm keeps fan filter units working safely and efficiently.

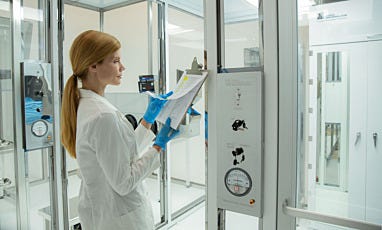

Control Panel for Hardwall Modular Cleanrooms

Mirror-finished panel includes light and fan controls, night service switch (to reduce power when not occupied), internal pressure gauge; environmental monitoring system also available.

Master PDM Comparison Diagram

Comparison diagram with and without Master PDM that serves as a main panel board. Simplifies installation of cleanrooms with multiple PDMs, where each PDM supplies power to several FFUs and Lights.

Magnehelic Differential Pressure Gauge Control Panel

The Magnehelic is the industry standard to measure fan and blower pressures, filter resistance, air velocity, furnace draft, pressure drop across orifice plates, liquid levels with bubbler systems and pressures in fluid am-plifier or fluidic systems

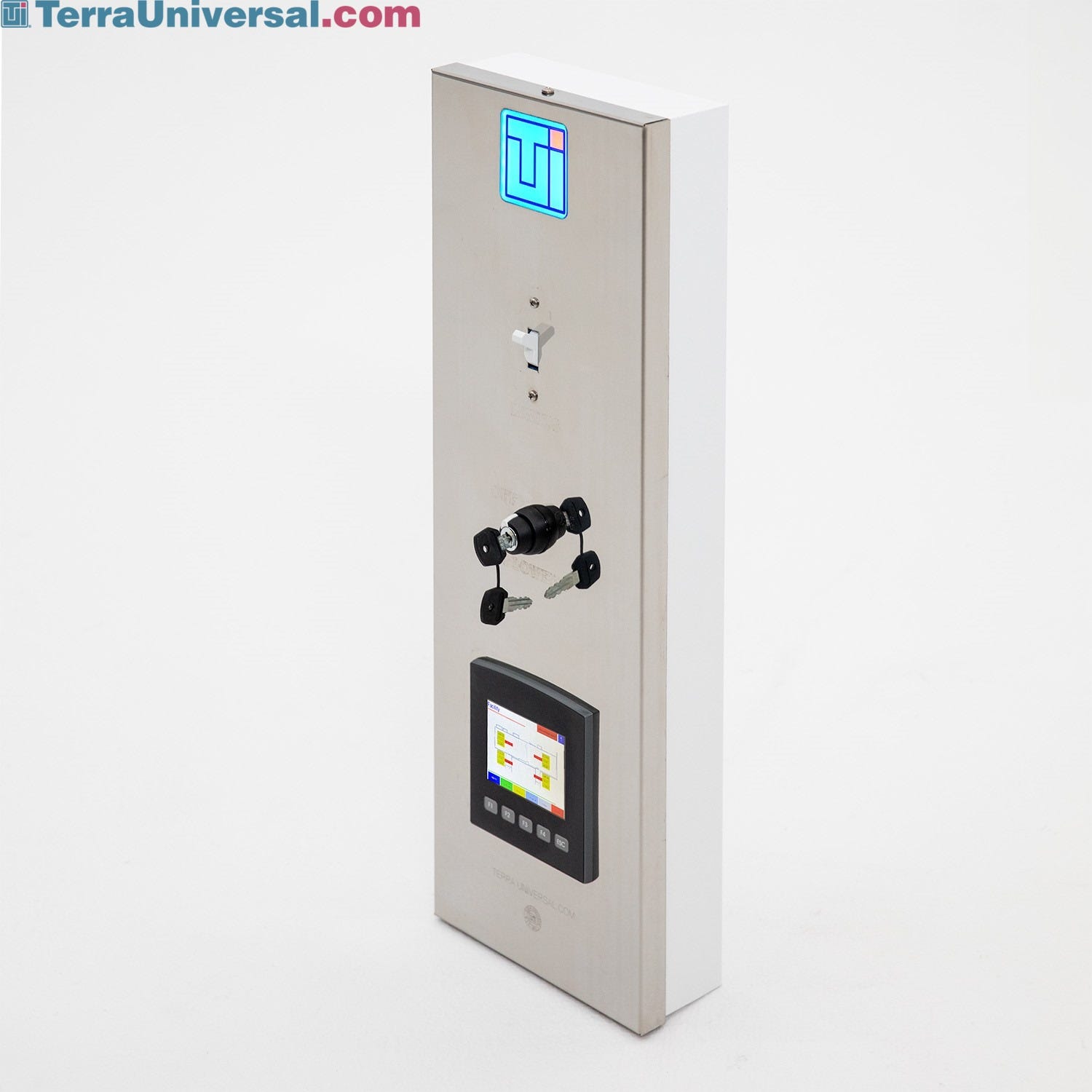

Cleanroom Control Panel for Tier 2 Graphic-Console 3.5" Screen

Cleanroom control panel with Tier 2 system monitors and controls up to 100 FFUs in 8 rooms. It includes six inputs for pressure/RH/temperature sensors, FFU performance alarm, remote data logging, and email alarm notification.

Available Environmental Control System

Standard cleanroom comes with analog pressure gauge and on/off controls; optional touchscreen FFU controller monitors, controls and logs internal pressure, as well as displaying temperature and RH.

Cleanroom Control Panel for Tier 2 Graphic-Console 3.5" Screen for Monitoring

Cleanroom control panel with Tier 2 system monitors and controls up to 100 FFUs in 8 rooms. It includes six inputs for pressure/RH/temperature sensors, FFU performance alarm, remote data logging, and email alarm notification.
