Gallery

ValuLine® Vertical Laminar Flow Stations

ValuLine® Vertical Laminar Flow Stations accommodate multiple users and bulky process equipment (shown: 8-foot wide powder-coated steel models).

Vertical Laminar Flow Station

Vertical-flow clean bench meets ISO 5 cleanliness standards; includes PLC-controlled HEPA filter/fan units, light, motorized shield and filter backpressure gauge (shown with optional stainless steel work station)

Portable CleanBooth™, 8’W x 4’D x 8’H

8’W x 4’D CleanBooth™ includes 4 HEPA fan/filter units and side curtains to create an inexpensive, portable ISO 5 processing enclosure

Laminar Flow Hoods

Portable CleanBooth Laminar Flow Stations

Vertical Laminar Flow Station, Stainless Steel without Shield

The backbone of the energy-efficient system is a low-energy, PLC-controlled HEPA filtration system that meets ISO 5 particle standards. Advanced baffling technology ensures uniform airflow across the filter face. Model shown without motorized shield.

Stainless Steel Vertical Laminar Flow Hood in Optometry Lab

A vertical laminar flow hood in stainless steel installed in an optometry lab over a workbench. Provides programmable control of lights, airspeed and backpressure.

Explosion Proof Fume Hoods

Explosion proof ductless fume hoods for safe venting of noxious fumes, includes explosion-proof blowers, power switches, and conduit rated for class I, division 1 hazardous operations.

Portable CleanBooth Hood; Vertical Laminar Flow, Vinyl, Knock-Down, 100.25" W x 52.25" D x 96.5" H

Internal baffling plates and anodized aluminum diffuser panel unsure uniform air speed across the work area. Moveable frame positions laminar airflow station wherever needed. Vinyl panels minimize static particle accumulation for cleaner procedures.

Portable Softwall Cleanroom with for Manufacturing Optical Transceivers for 5G

Portable clean room for manufacturing optical transceivers for 5G. This unit provides HEPA-filtered vertical airflow for particle-safe processing applications.

Multifunctional Stainless Steel Base Cabinet

Base cabinets are also suitable for supporting Terra Universal benchtop laminar flow or fume hoods. Use self-tapping screws to fasten the hood's frame to the cabinet's tabletop.

Recirculating Design Minimizes Turbulence

Recirculating ISO 5 vertical laminar flow hood exceeds Class 100 cleanroom conditions to protect your work area from particle contamination. The adjustable rear vents pull air back through the fan/filter unit mounted on top. Bench top hoods can also mount on top of base cabinets (sold separately) for easily accessible storage space underneath your workstation.

Stainless Steel Recirculating Vertical Laminar Flow Hood, 60"W

Recirculating vertical laminar flow hood exceeds Class 100 cleanroom conditions to protect your work area from particle contamination. The adjustable rear vents pull air back through the fan/filter unit mounted on top. Bench top hoods can also mount on top of base cabinets (sold separately) for easily accessible storage space underneath your workstation.

36"W Stainless Steel Recirculating Clean Bench with Vertical Flow

Recirculating bench designs with vertical flow exceed Class 100 cleanroom conditions to protect your work area from particle contamination. The adjustable rear vents pull air back through the fan/filter unit mounted on top. Bench top hoods can also mount on top of base cabinets (sold separately) for easily accessible storage space underneath your workstation.

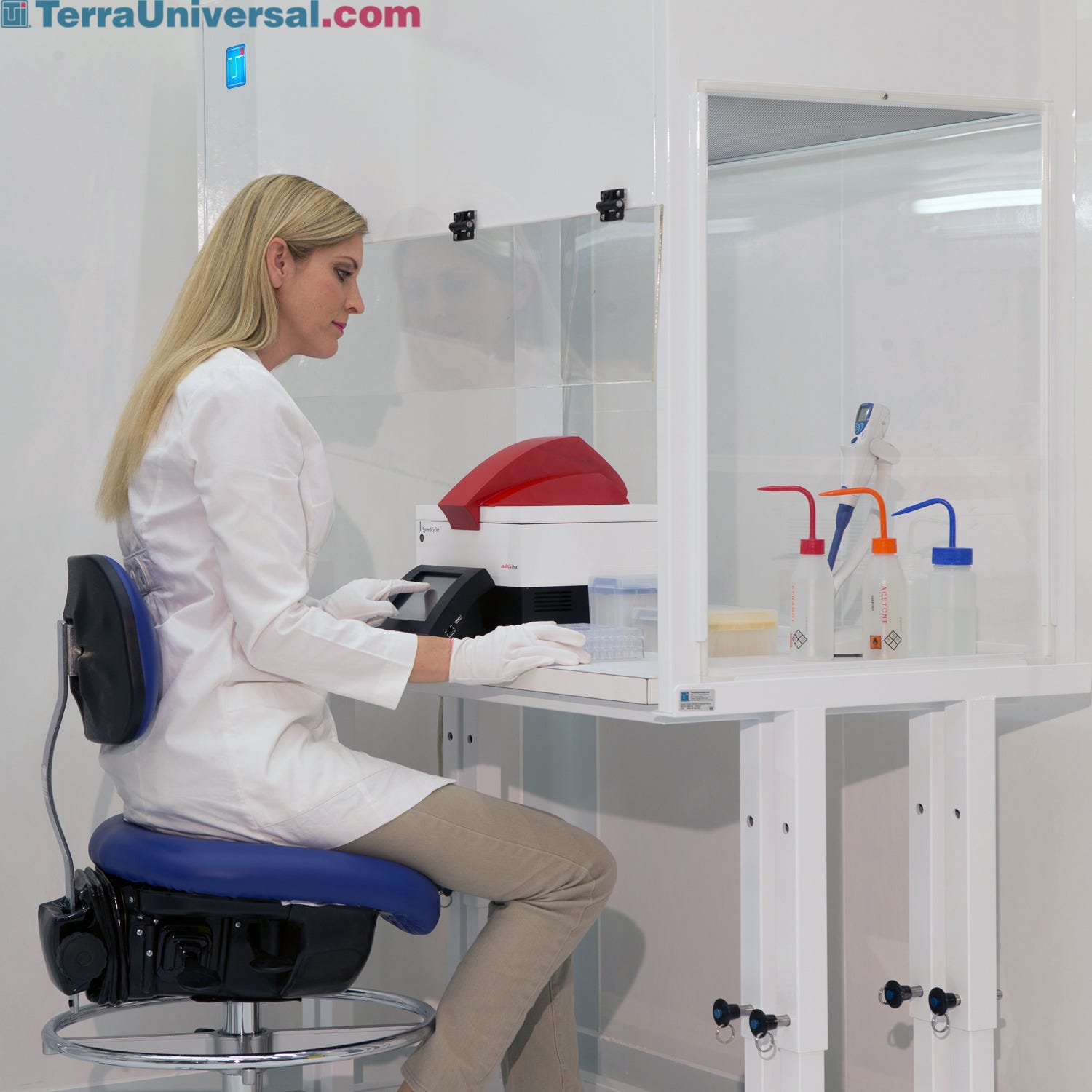

Polymerase Chain Reaction Work Station

Polymerase Chain Reaction Laminar Flow Hood is designed to meet your RNA- and DNA-amplification and sequencing needs. Portable, economical turnkey hood converts any benchtop surface into a controlled PCR workstation.

Portable Laminar Flow CleanBooth™, 4'W x 2'D

Terra's Portable CleanBooth™ provides a mobile, economical mini-cleanroom wherever you need it! It wheels into position above a workbench or equipment to provide an ISO-compliant flow of HEPA-filtered air (flexible side panels and frame included).

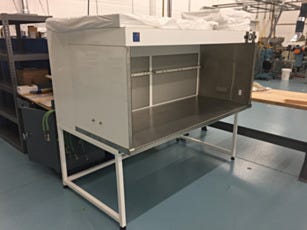

ISO 5 Explosion Proof Horizontal Laminar Flow Hood

Horizontal-flow explosion proof hoods protect a larger total area of work surface and eliminate the need for a sash.

HEPA Filtration for Particle-Free Airflow

Operators can create ISO 5 (or better) particle conditions within Terra’s laminar flow hoods to protect sensitive materials during processing.

Isolated Work Surface Enhances High Magnification Viewing

Stainless steel VLF Station provides HEPA-filtered airflow over a microscope workstation to prevent contamination of slide or optics; detached work surface isolates hood vibration for high-magnification viewing.

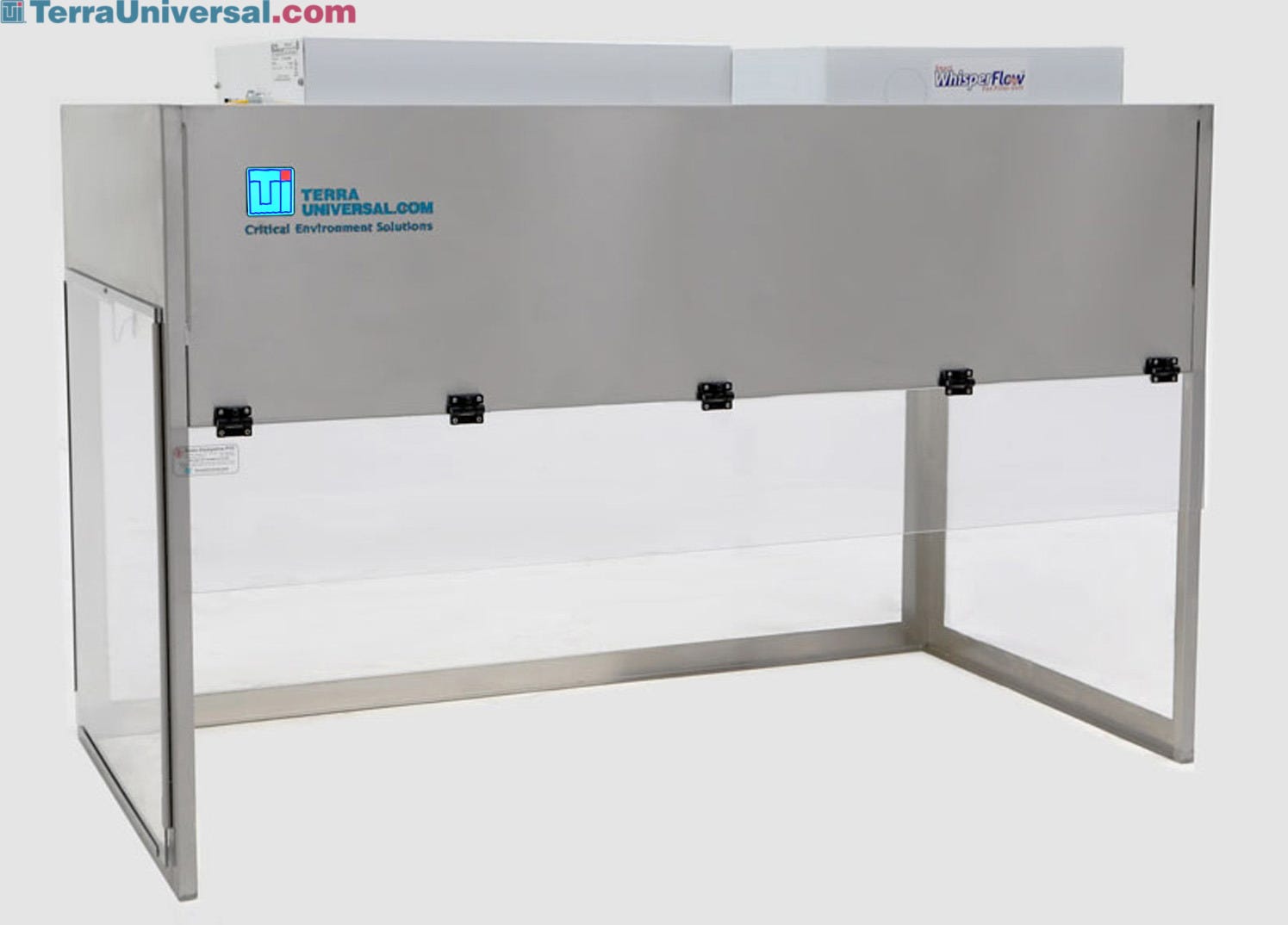

Benchtop Vertical Laminar Flow Hood with Dissipative PVC Panels

Portable WhisperFlow Benchtop Hoods include HEPA filtration units to create ISO 5 cleanliness conditions on lab counter space (shown: 60"W with dissipative PVC panels; other sizes, materials available).

Glovebox

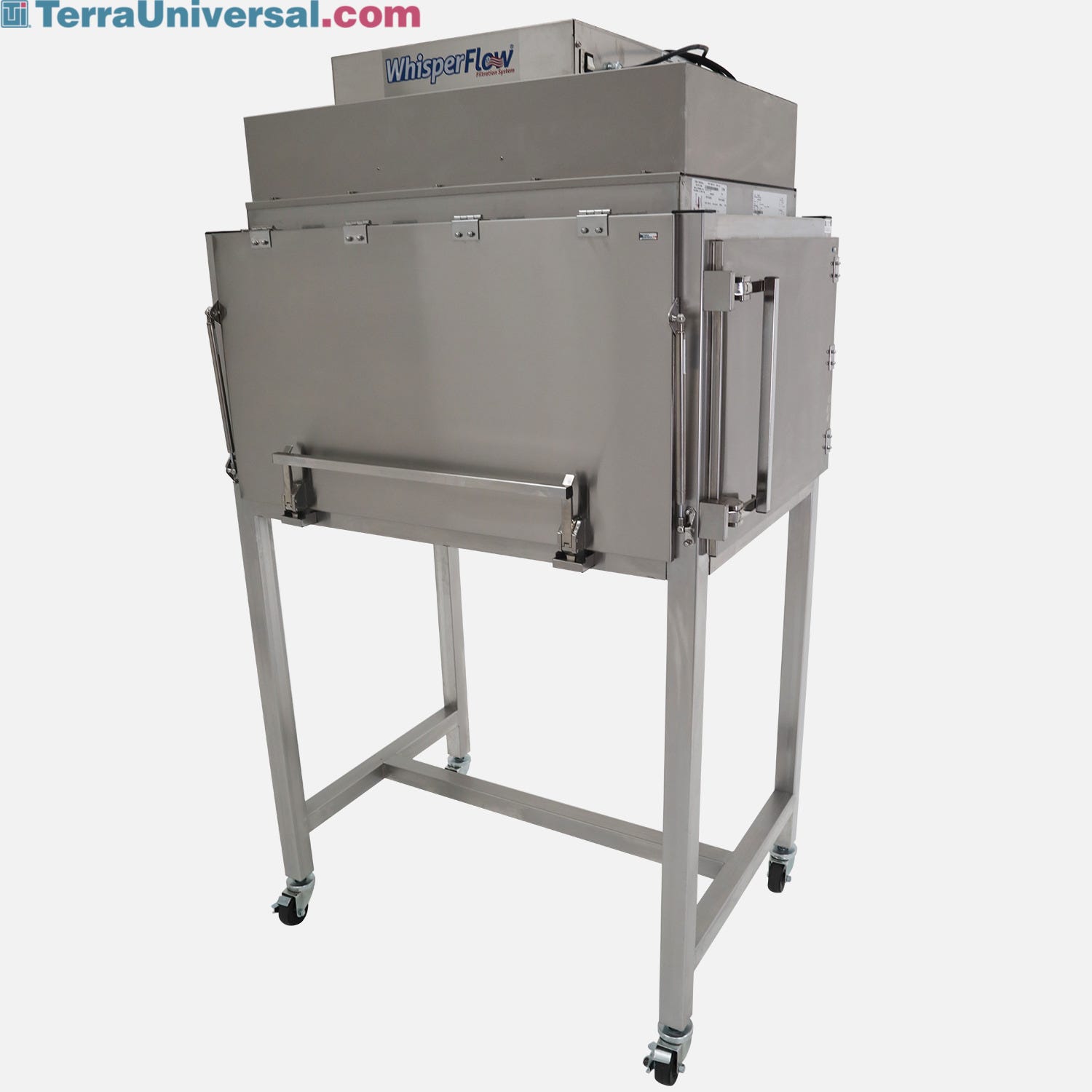

Custom-Hood-Portable-CleanBooth-316-Stainless-Steel

Custom-Hood-Portable-CleanBooth-316-Stainless-Steel

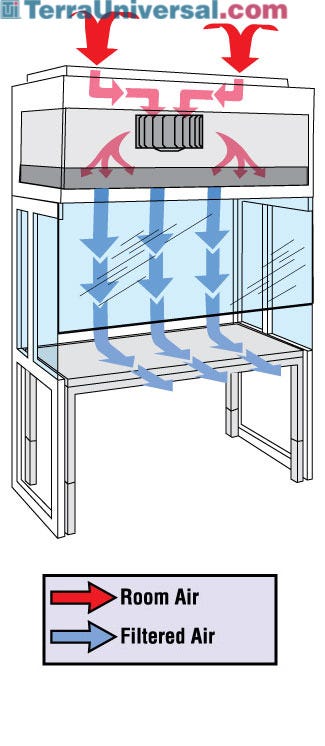

Vertical Flow of HEPA-Filtered Air Meets ISO 5 Particle Requirements

Side panels and access shield optimize unidirectional flow of HEPA-filtered air; advanced baffling technology ensures uniform face velocity to meet ISO 5 particle requirements.

Custom Hood; Vertical Laminar Flow Station, Double-Sided 120V

Custom vertical laminar flow hood features double-sided construction for all-around access. Two motorized shields protect users on either side of the hood. Digital display alerts to changes in airflow pressure to indicate the need to change filters.

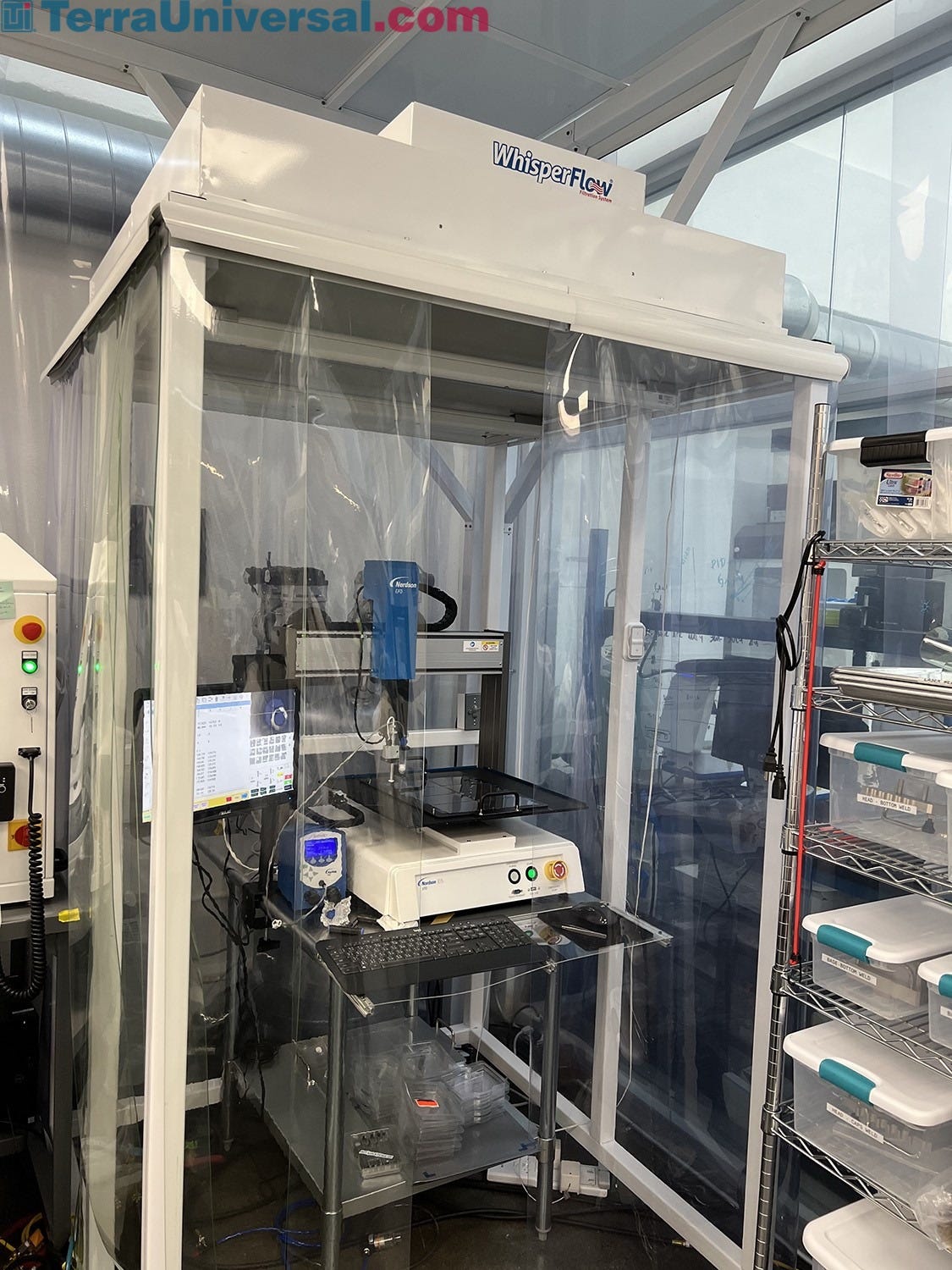

Portable CleanBooth For Manufacturing Microfluidic Cartridges

This Portable CleanBooth is used for manufacturing microfluidic cartridges in ISO 5 conditions. The vinyl side paneling prevents any static from interfering in the flow of air. HEPA-filtered ceiling allows for low concentrations of contamination.

Critical Environment Solutions

Terra's mission is to help customers in highly regulated industries transform the world with critical environment solutions that improve health, safety, performance, and yields. These environments may comply with stringent UL, ISO, IEST, ASTM and OSHA standards and local requirements.
