Select Product

Top Material

Frame Material

Width

Depth

Height

Terra Part #PriceShips in
304 Stainless Steel 304 SS 48" 30" 31" 1725-03 78181 $2,0081-3 Days2
Stocked
304 Stainless Steel 304 SS 60" 30" 31" 1725-04 78182 $3,2001-3 Days3
Stocked
304 Stainless Steel 304 SS 72" 30" 31" 1725-05 78183 $3,4481-3 Days4
Stocked
304 Stainless Steel 304 SS 24" 30" 31" 1725-01 78179 $1,4921-3 Days5
Stocked
304 Stainless Steel 304 SS 36" 30" 31" 1725-02 78180 $1,7601-3 Days6
Stocked
Epoxy Resin 304 SS 48" 30" 31" 1725-13 78231 $2,0461-3 Days7
Stocked
Epoxy Resin 304 SS 60" 30" 31" 1725-14 78232 $3,2491-3 Days8
Stocked
Epoxy Resin 304 SS 72" 30" 31" 1725-15 78233 $3,5061-3 Days9
Stocked
Epoxy Resin 304 SS 24" 30" 31" 1725-11 78229 $1,5131-3 Days10
Stocked
Epoxy Resin 304 SS 36" 30" 31" 1725-12 78230 $1,7901-3 Days11
Stocked
Top Material
Frame Material
Width
Depth
Height
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

• Cabinet workbench ideal for ISO 5 Class 100 cleanrooms and labs with contamination sensitive work

• Base cabinets are suitable for supporting Terra Universal benchtop laminar flow or fume hoods

• Provides effective and easily accessible storage space underneath your workstation for a clean and tidy lab

• Easy-to-clean design is ideal for applications that require frequent wipe-downs

REQUIRES ASSEMBLY: Base cabinet and table top ship separately

• Appropriate for laboratory, research, medical device, microelectronic, or pharmaceutical processes.

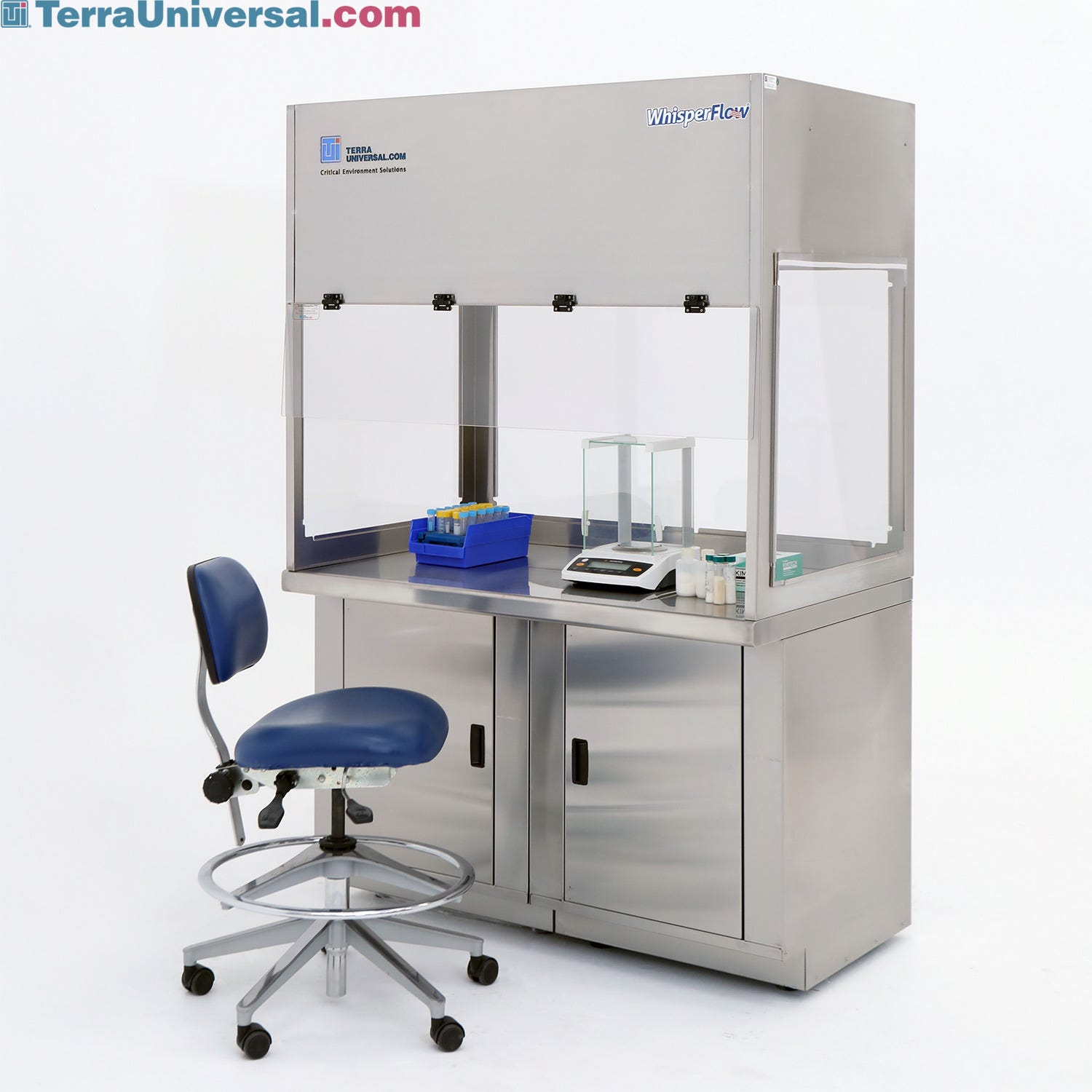

• To mount a Terra Universal laminar flow or fume hood on top: Use self-tapping screws to fasten the hood 's frame to the cabinet's tabletop.

Choose tabletop materials that match your application and budget:

Solid stainless steel tabletop is easy to sterilize. One-piece bull-nose rounded edges increase operator comfort and reduce particulate shedding caused by sharp or abrasive edges. Smooth, continuous-seam welds also eliminate cracks and crevices that can harbor contaminants.

Epoxy Resin tabletop offers excellent chemical resistance and durability to a wide range of corrosive chemicals.

Polypropylene tabletop offers a lower cost alternative to epoxy, also with excellent chemical resistance to a wide range of corrosive chemicals.

Static-Dissipative Laminate tabletop offers a lower cost alternative to stainless steel and Safely dissipates static charges (10^7 ohms/sq).

Non-Dissipative Laminate tabletop offers economical option for applications that are not sensitive to ESD. It is ISO 5 (Class 100) cleanroom compatible and resistant to common cleaning agents.

• Cabinet uses magnets to keep doors firmly shut and reduce hazards of accidentally knocking into open doors. Doors can also be easily configured to swing in either direction.

INCLUDES:

• Tabletop and base cabinet.

• Smooth, chemical resistant, and adjustable Nylon leveling feet for stability on uneven floors.

Workstations and Tables

  • BioSafe® WhisperFlow Benchtop Laminar Flow Hood with Model BioSafe® WhisperFlow Benchtop Laminar Flow Hood
  • Stainless Steel Benchtop Vertical Laminar Flow Hood ValuLine™ WhisperFlow Benchtop Laminar Flow Hood
  • Static-Dissipative Benchtop Vertical Laminar Low Hood, Shown in Use WhisperFlow® Hood
  • Explosion Proof Vertical Laminar Flow Hood in Use Explosion Proof Vertical Laminar Flow Hood
  • Horizontal Laminar Flow Clean Bench Horizontal Laminar Flow Station
BioSafe® WhisperFlow Benchtop Laminar Flow Hood with Model
Stainless Steel Benchtop Vertical Laminar Flow Hood
Static-Dissipative Benchtop Vertical Laminar Low Hood, Shown in Use
Explosion Proof Vertical Laminar Flow Hood in Use
Horizontal Laminar Flow Clean Bench

Features & Benefits

Features and Benefits

Hood Materials Ordering Guide

How to Order:

Optional panel kits are available for models with interchangeable side panels. Application specific materials help support required conditions inside your laminar flow hood.

    Standard Panel Configurations:
    • [-SS] 304 Stainless Steel (with transparent SD-PVC sash)
      • Solid stainless steel walls simplify cleaning by minimizing cracks and crevices where particles or germs can accumulate.
      • Superior durability resists corrosion from a wide range of chemicals/solvents
      • Preferred material wherever frequent cleaning and sterilization are required
      • Not compatible with interchangeable panel kits
    • [-SD] Static-Dissipative PVC (SD-PVC)
      • Transparent with blue-gray tint
      • Safely conducts surface charges to ground, protects against particle aggregation
      • Broad resistance to wide range of cleaning agents such as isopropyl alcohol for easy sterilization
    Additional high performance panel kits available:
    • [-PC] Polycarbonate
      • Transparent with slight gray tint
      • Cracks less easily with approx. 250x impact resistance of glass and 15x impact resistance of acrylic
      • Increased thermal resistance (115–130 °C (239–266 °F)) helps withstand repeated steam sterilization
      • Broad resistance to wide range of cleaning agents such as isopropyl alcohol for easy sterilization
    • [-BA] Black Acrylic (with transparent SD-PVC sash)
      • Opaque black panels block ambient light for photo-sensitive applications or improved privacy
      • Economical, and provides high tensile strength
      • Damaged by frequent contact with alcohol and other common cleaning agents
    • [-TG] Tempered Glass
      • Combines visual clarity with broad chemical resistance
    • [-AA] Amber Acrylic
      • Orange tint filters out UV and blue light to protect light sensitive materials from degrading, or changing composition
      • Economical and provides high tensile strength
      • Damaged by frequent contact with alcohol and other common cleaning agents
    • [-WA] White Acrylic (with transparent SD-PVC sash)
      • Translucent, diffuses ambient light and provides some privacy
      • Economical and provides high tensile strength
      • Damaged by frequent contact with alcohol and other common cleaning agents
    • [-FP] FM4910 Polypropylene (with transparent SD-PVC sash)
      • Opaque white panels block light for light-sensitive applications or improved privacy
      • FM 4910 compliant, flame retardant
      • Excellent chemical resistance
    • [-FV] FM4910 CPVC
      • Transparent with slight blue tint
      • FM 4910 compliant, flame retardant
      • Controls static electricity, prevents charge generation on the surface thereby controlling particle attraction
      • Excellent chemical resistance, surface hardness, and mar resistance

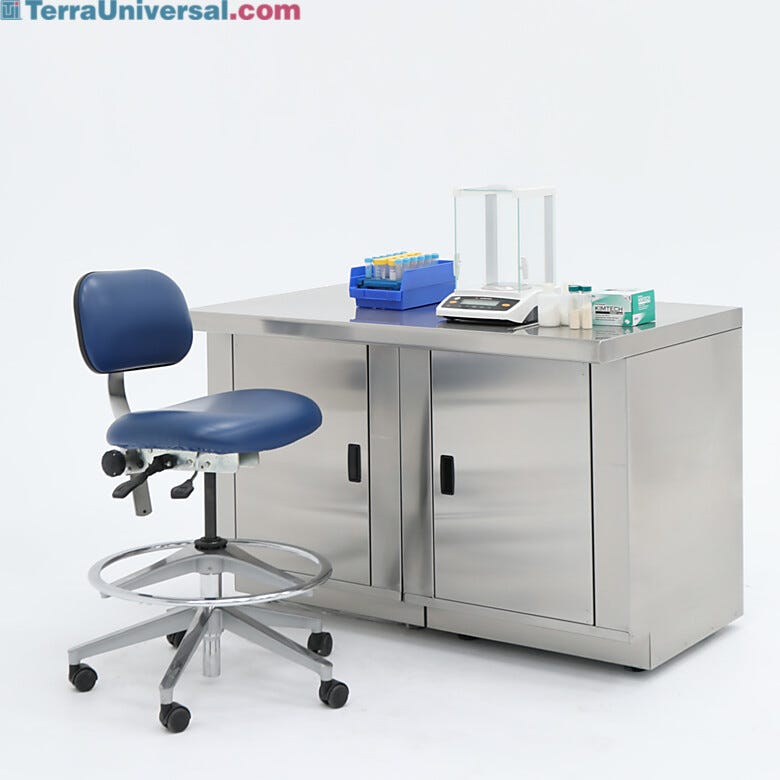

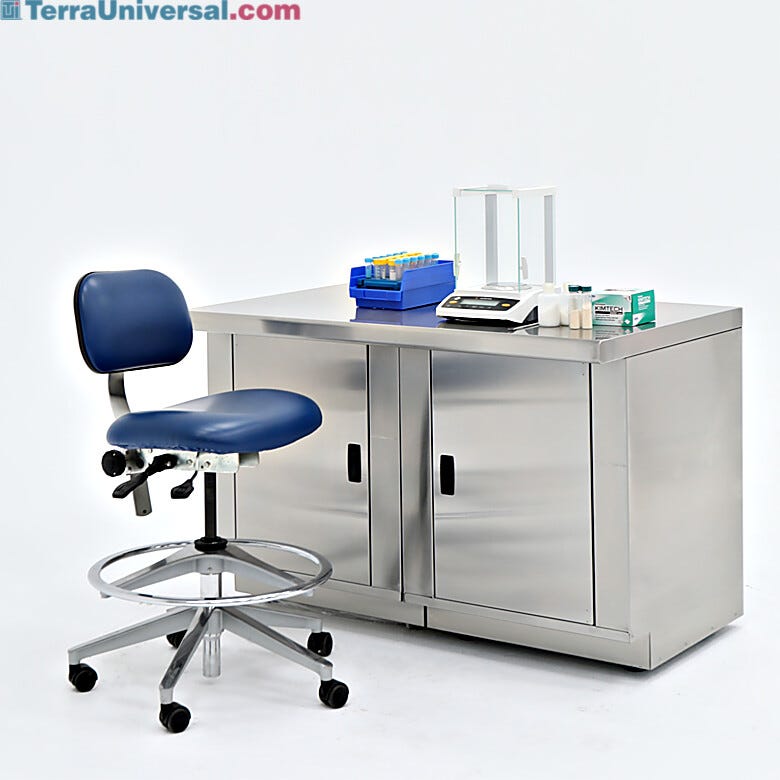

Multifunctional Stainless Steel Base Cabinet

Base cabinets are also suitable for supporting Terra Universal benchtop laminar flow or fume hoods. Use self-tapping screws to fasten the hood's frame to the cabinet's tabletop.

Ideal for Cleanrooms and Laboratory Use

Stainless steel base cabinets are ideal for ISO 5 Class 100 cleanrooms and labs with contamination sensitive work such as medical device, microelectronic, or pharmaceutical processes.

Round Table Edges Improve Comfort and Safety

Terra's one-piece bull-nose rounded edges increase operator comfort and reduce particulate shedding caused by sharp or abrasive edges. The smooth, continuous-seam welds also eliminate cracks and crevices that can harbor contaminants.

Clean and Easily Accessible Storage Space

Stainless steel laboratory base cabinets provide easily accessible storage space under your workstation for a clean and tidy lab.

Chemical Resistant Epoxy Top

Stainless steel base cabinet with epoxy table top is ideal for biochemistry labs. Epoxy resin is self-extinguishing, non-absorbent and non-reactive.

High Caliber Hardware

Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Electropolish Finish
    Electropolishing increases corrosion resistance and improves ease of cleaning with a smooth, reflective, mirror-like finish. You can see the difference in reflection from the catalog placed on the table.
