Gallery

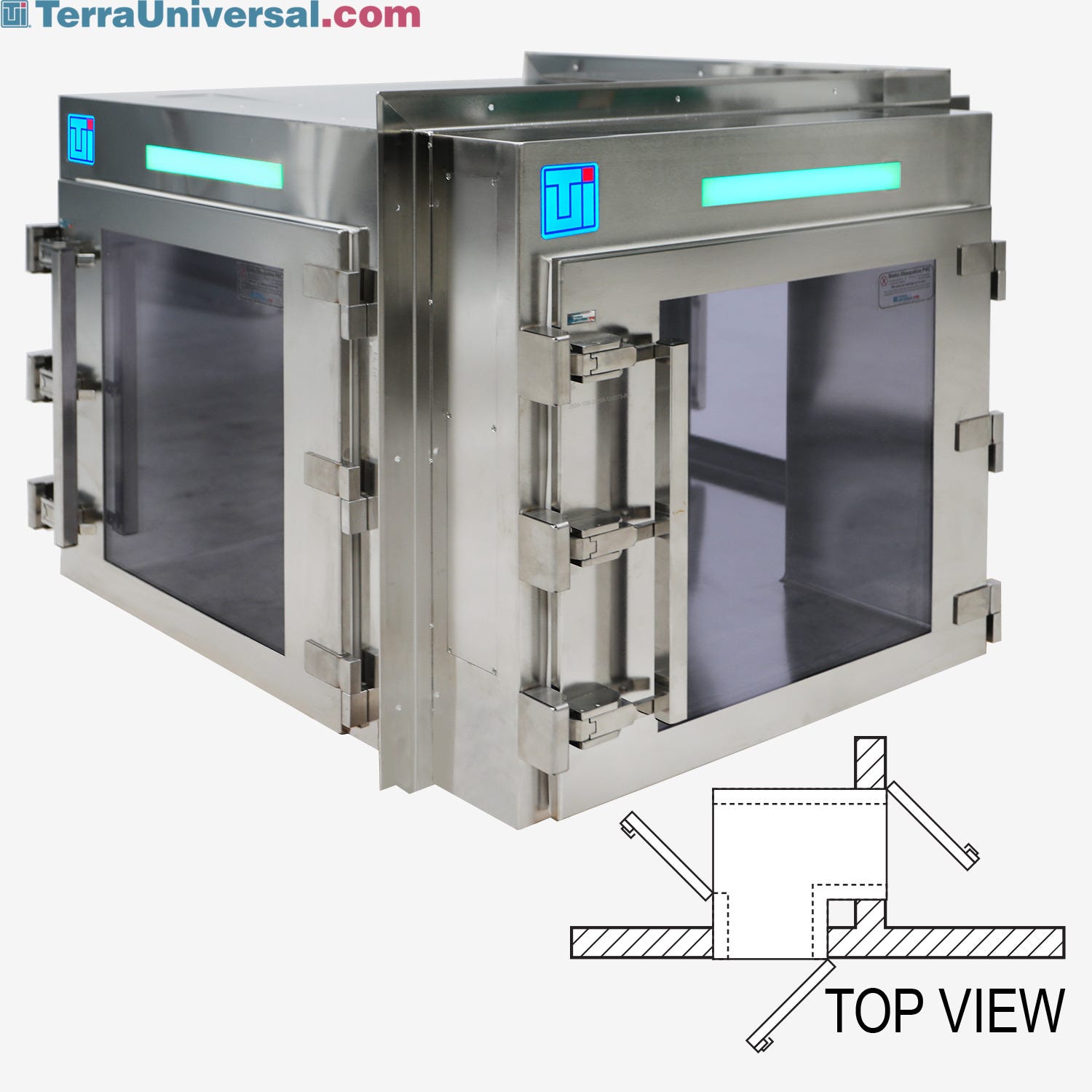

Smart® Pass-Through with "T" Shape 3-Door Design for USP 800 Hazardous Compounding

Terra’s Smart® pass-through chambers can be configured as a "T" or "X" shape to connect multiple rooms. This 3-door configuration for an in-patient pharmacy interconnects the USP 800 room (negative pressure), chemo room (negative pressure), and ante room.

General Use Polypropylene Pass Through with Filter Module in Aeronautics Lab

General-use polypropylene pass-through installed wall-mounted in an aeronautics lab. For convenient item transfer between rooms with reduced risk of cross-contamination due to a mechanical interlock. The filtered air blower mounted on top helps clean out contaminating particles from the ambient air.

Ad 2

Air Return Slots for Recirculating HEPA Filtration

Air return slots along bottom interior of the cleanroom passthrough cabinet circulate air back through the built-in fan and HEPA filter to remove airborne particles inside the chamber.

HEPA Filtered Smart Cleanroom Pass Through with Intercom System

HEPA filtered Smart cleanroom passthrough uses recirculating HEPA filtration to prevent cleanroom cross-contamination when the chamber opens. Optional pushbutton intercom facilitates through-wall communication.

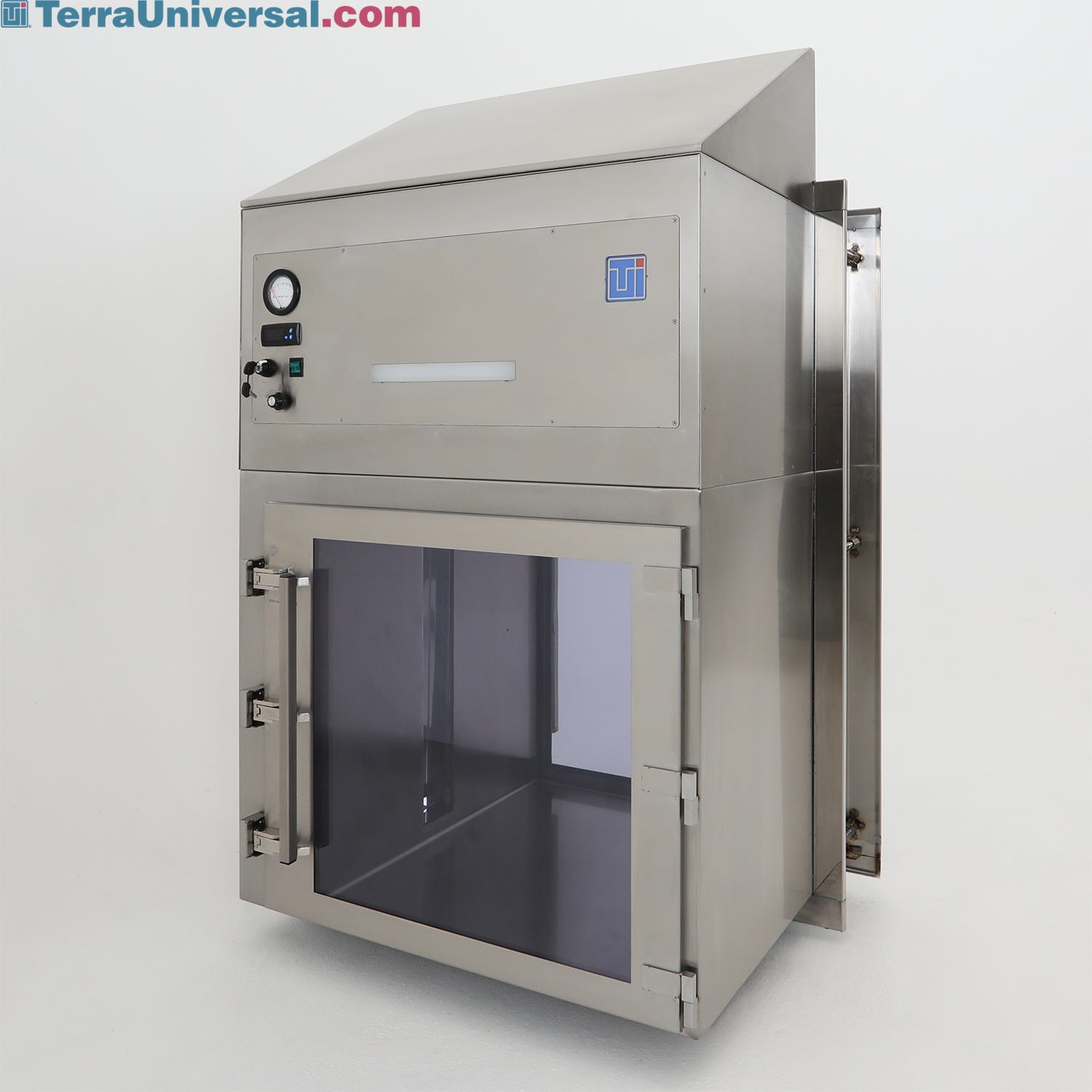

ISO 5 Smart Pass-Through-Box with Side-Mount UV Light and Recirculating HEPA Filtration

Smart pass-through-box for USP 800 compounding of hazardous drugs, configured with a side-mount UV light to help disinfect interior. The HEPA filtration system mounted on top recirculates air through return vents on the wall opposite to the UV-light. Electronic interlocking doors allow only one door to open at a time to prevent cross-contamination.

Refrigerated Smart® Passthrough with 90 Degree Corner to Transfer Active Pharmaceutical Ingredients

Refrigerated Smart® passhthrough chamber with 90 degree corner for transferring active pharmaceutical ingredients into a cleanroom. The refrigeration system is mounted above the passthrough. The double-wall, insulated chamber boosts thermal efficiency. Electronic interlocking doors allow only one door to open at a time.

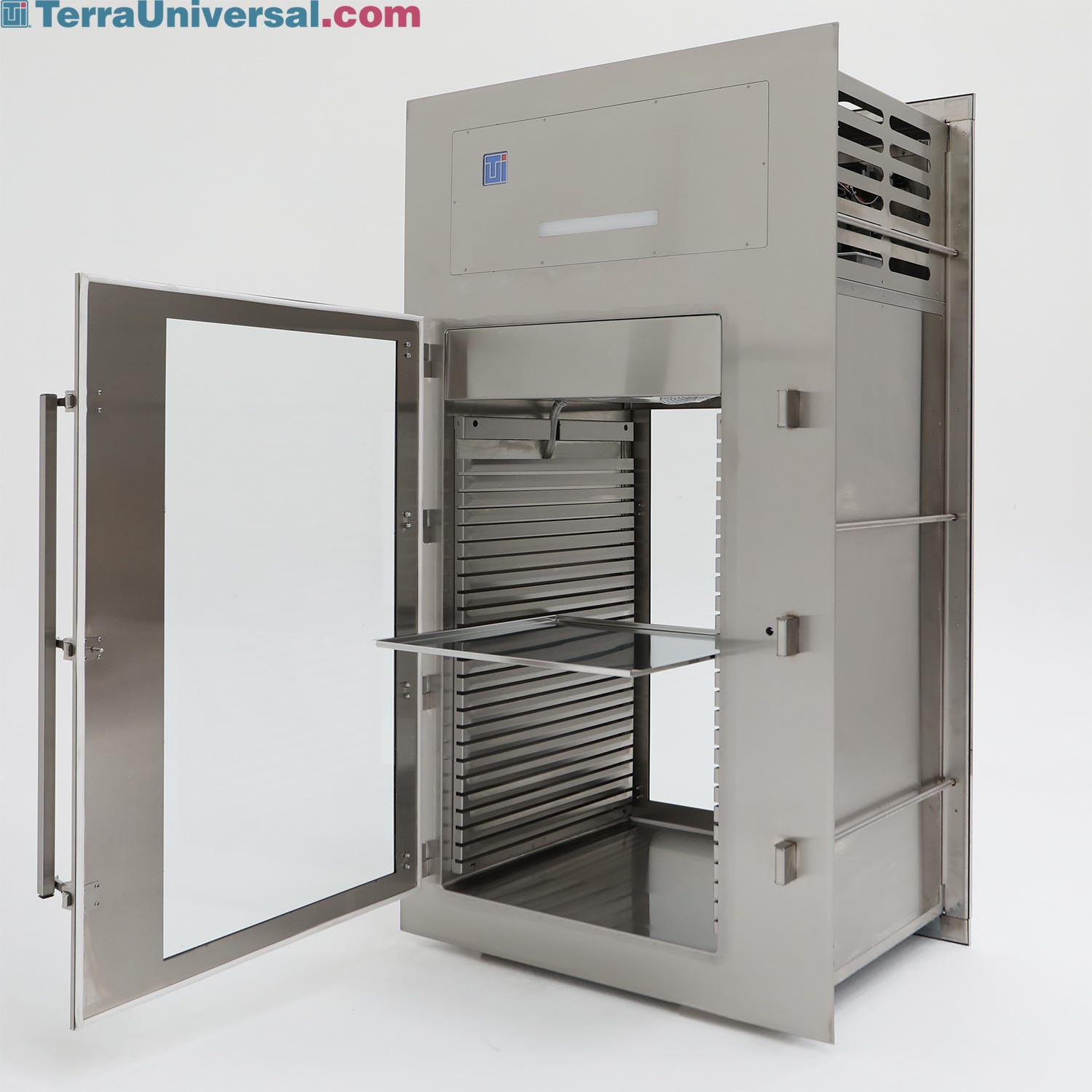

Smart® Pass-Thru Pharmacy Refrigerator for USP797 Sterile Pharmaceutical Cleanroom

Terra’s pass-thru refrigerator helps meet USP 797 requirements for sterile pharmaceutical cleanrooms. Refrigeration meets pharmaceutical storage standards to ensure safe and dependable storage of active pharmaceutical ingredients. Electronic interlocking doors allow only one door to open at a time. The built-in shelf-rack system is fully-removable for complete sterilization.

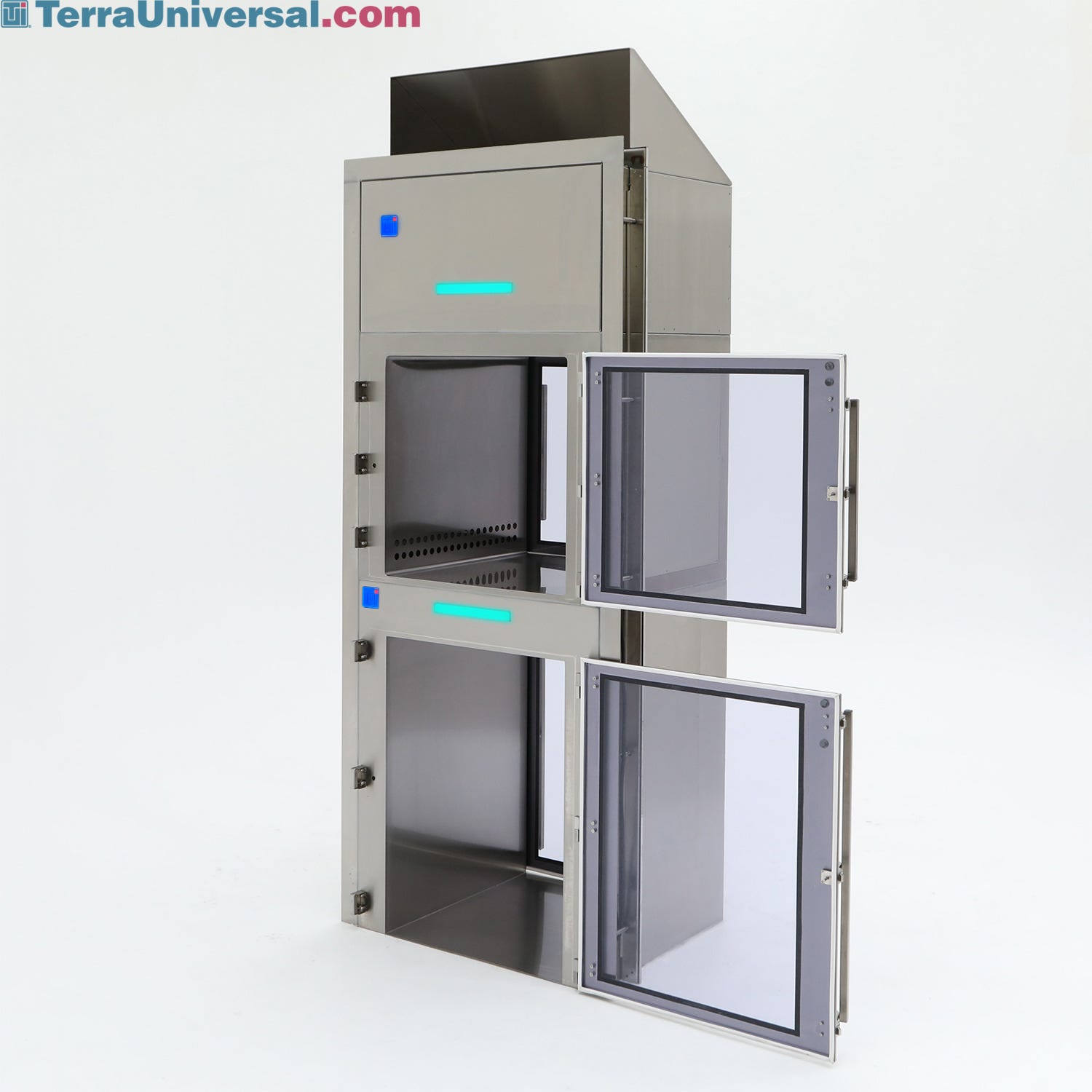

Vertically Stacked Smart® Passthrough Chambers with HEPA Filtration on Top for Stem Cell Lab

This vertically stacked passthrough chamber system is designed for a stem cell lab with high ceilings and limited wall space. The integrated recirculating filtration system exceeds USP <797> and <800> standards for sterile drug compounding. a sloped-top on the "clean side" minimizes particle build-up.

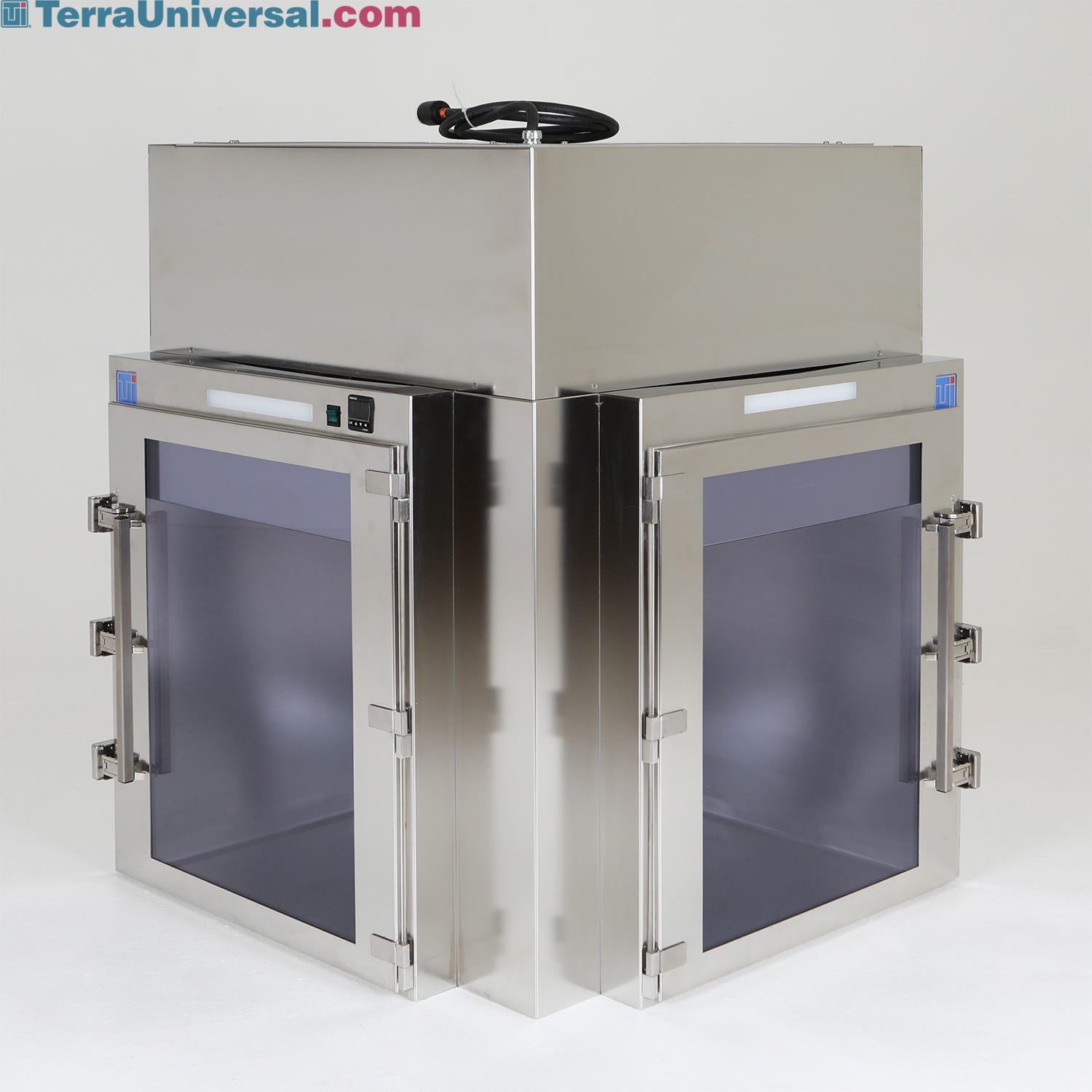

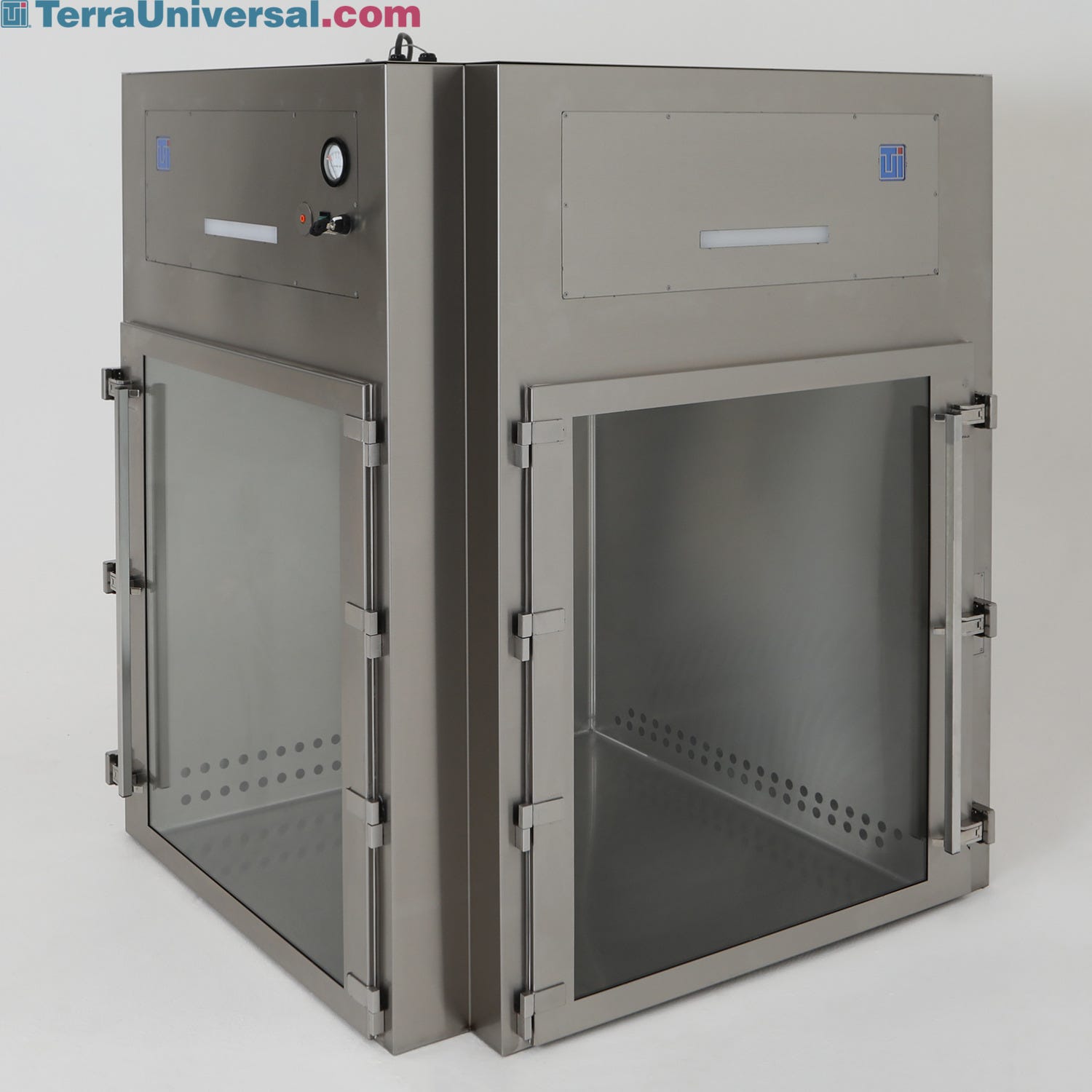

Smart Cleanroom Pass-Through with 90 Degree Corner and HEPA Filtration

Smart cleanroom pass-through chambers feature electronic interlocking doors that allow for countless add-on capabilities, plus special door configurations. This unit is designed for an anti-tumor therapy incubation room. It features a 90 degree corner design with re-circulating HEPA filtration.

Smart® CleanMount® CleanSeam™ Stainless Steel Pass-Through for Bio-Pharmaceutical Applications

Smart® Control Pass-Through provides advanced control and monitoring. Stainless steel door frames extend pass-through chamber’s service life and provide a tight seal. Obstruction free interior, lipless edges, and continuous welds allow for strict disinfection.

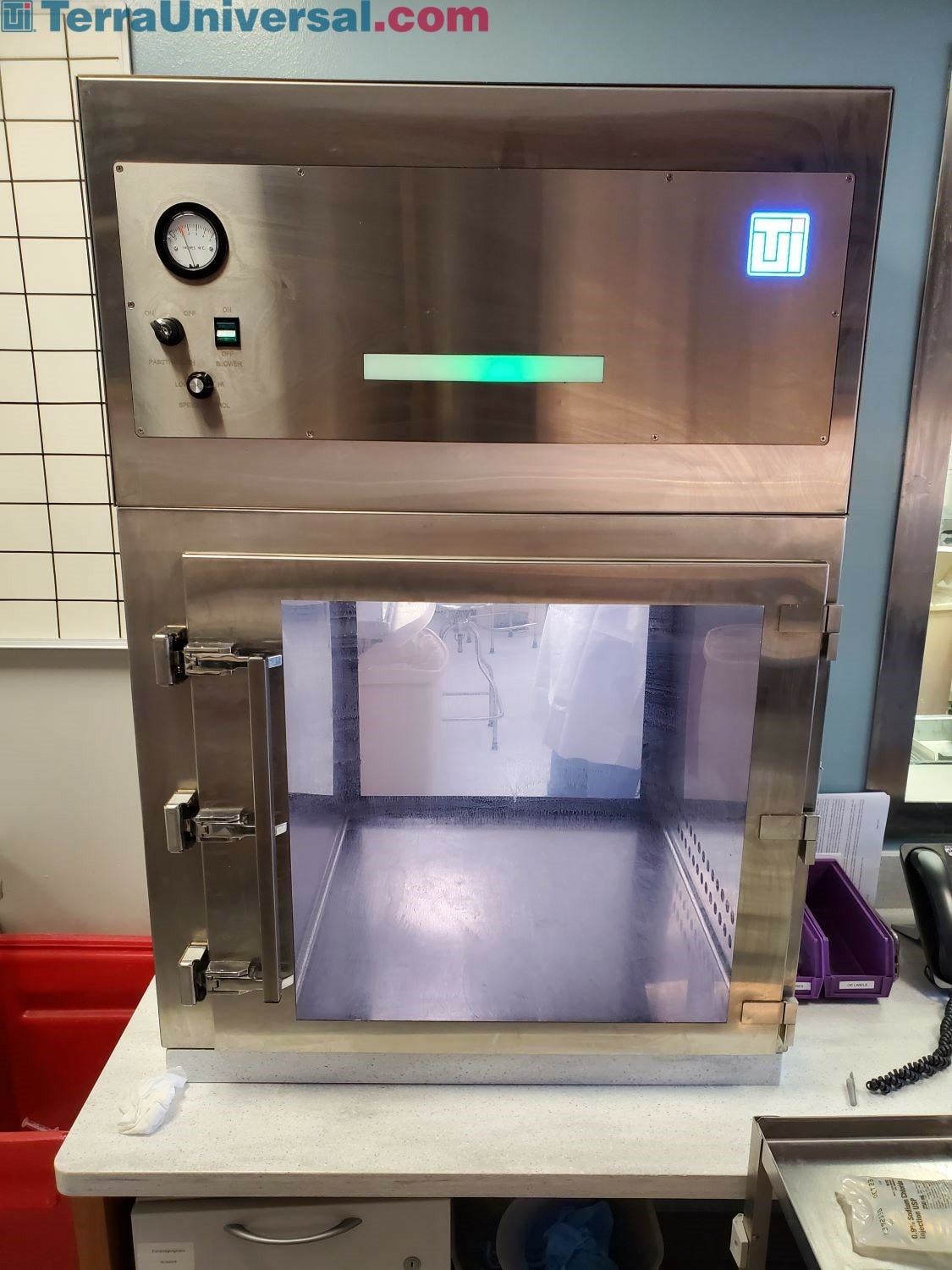

Smart® CleanMount™ CleanSeam™ Pass-Through used for Pharmacy Work

This Smart® CleanMount™ CleanSeam™ pass-through is used for pharmacy work. ULPA-filtered vertical laminar flow removes airborne particles from the chamber. Electronic interlock system includes visual and audible door status alerts.

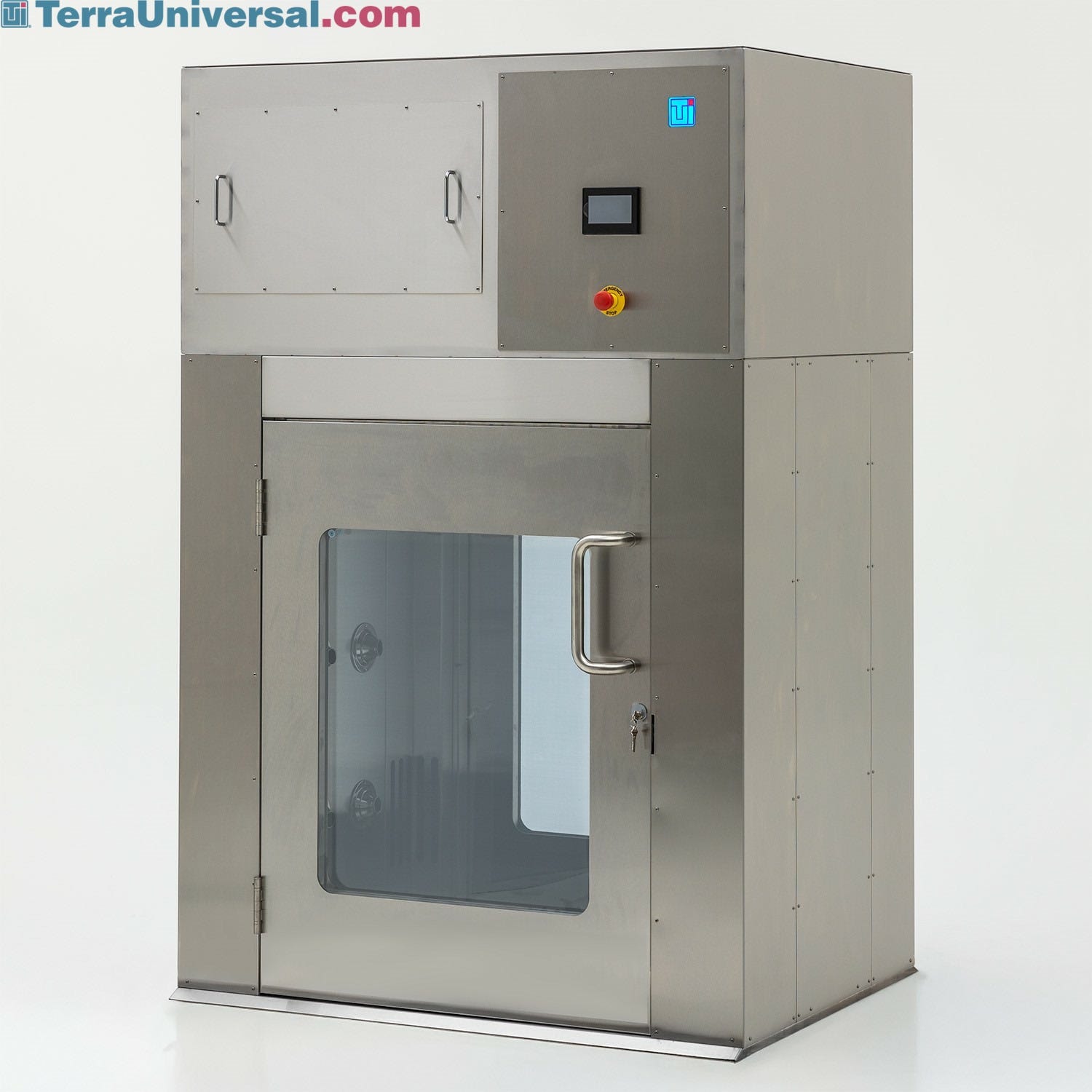

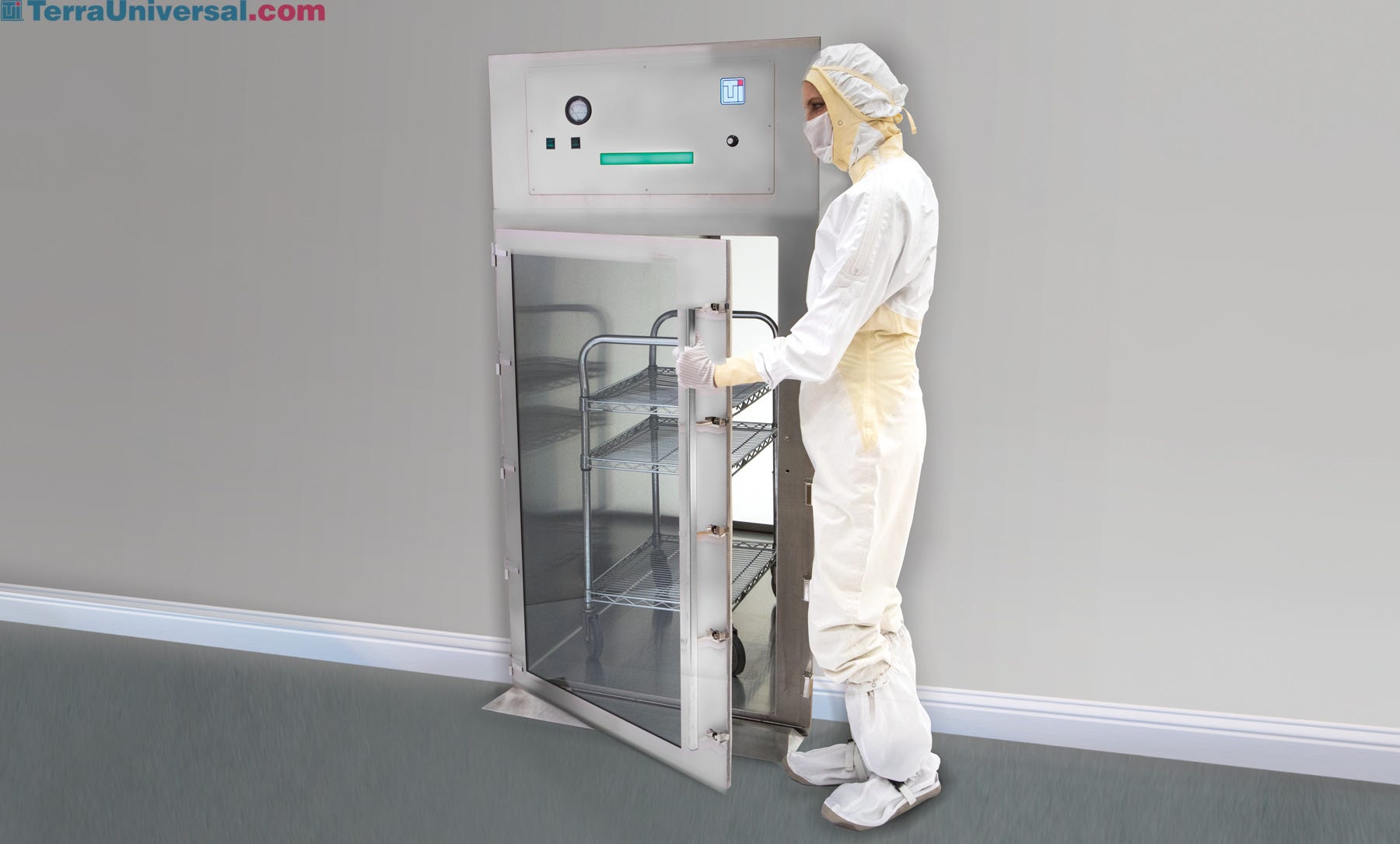

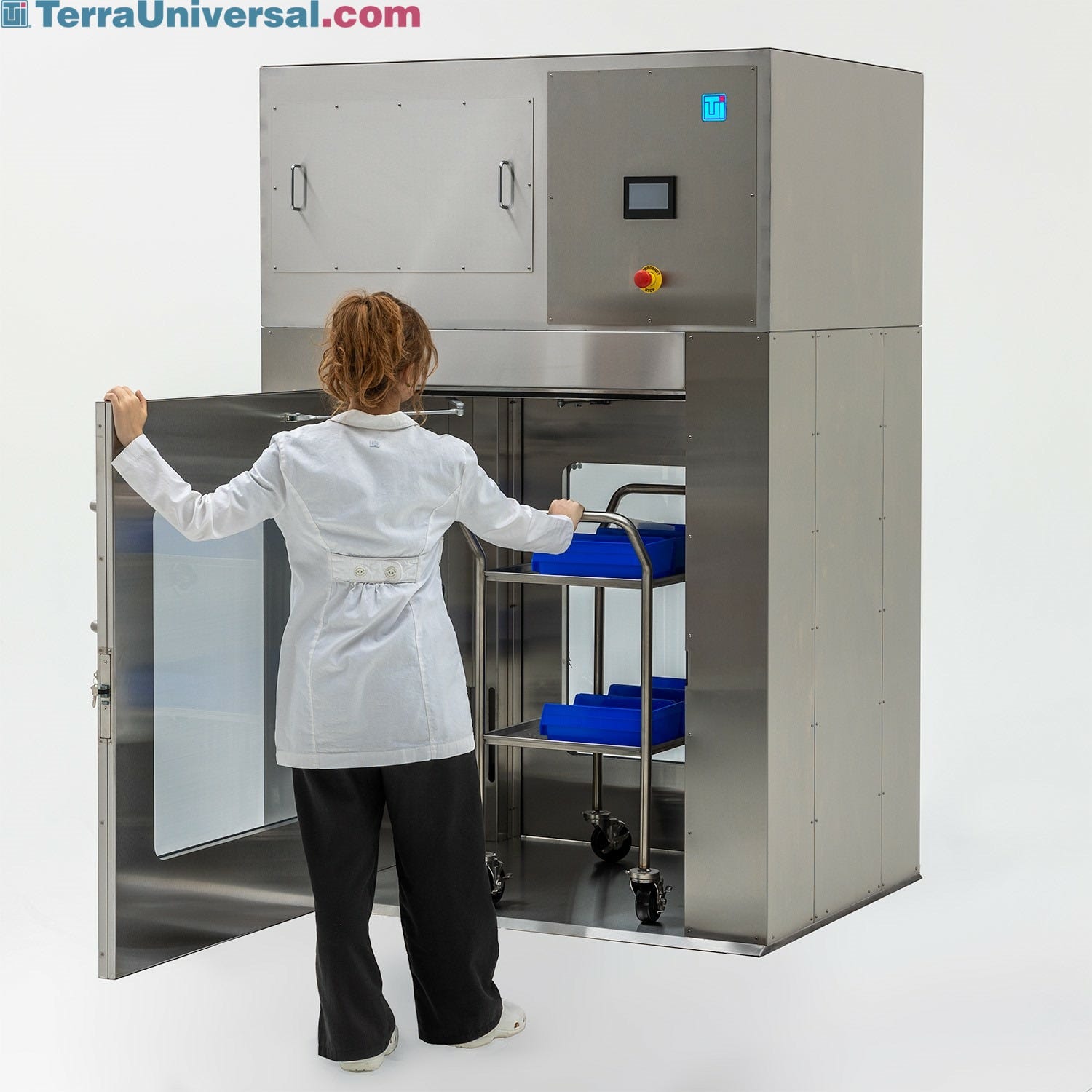

Air Shower Pass-Through for Carts

Stainless steel construction facilitates easy sterilization. Floor-mounted to enable the passage of rolling carts.

Custom Pass-Through w/ Intake Vents & Perforated Bottom

Integrated HEPA filter helps maintain sanitary conditions during material transfer through the pass-through. The filter captures contaminating particles 0.3 µm or larger at 99.99% efficiency.

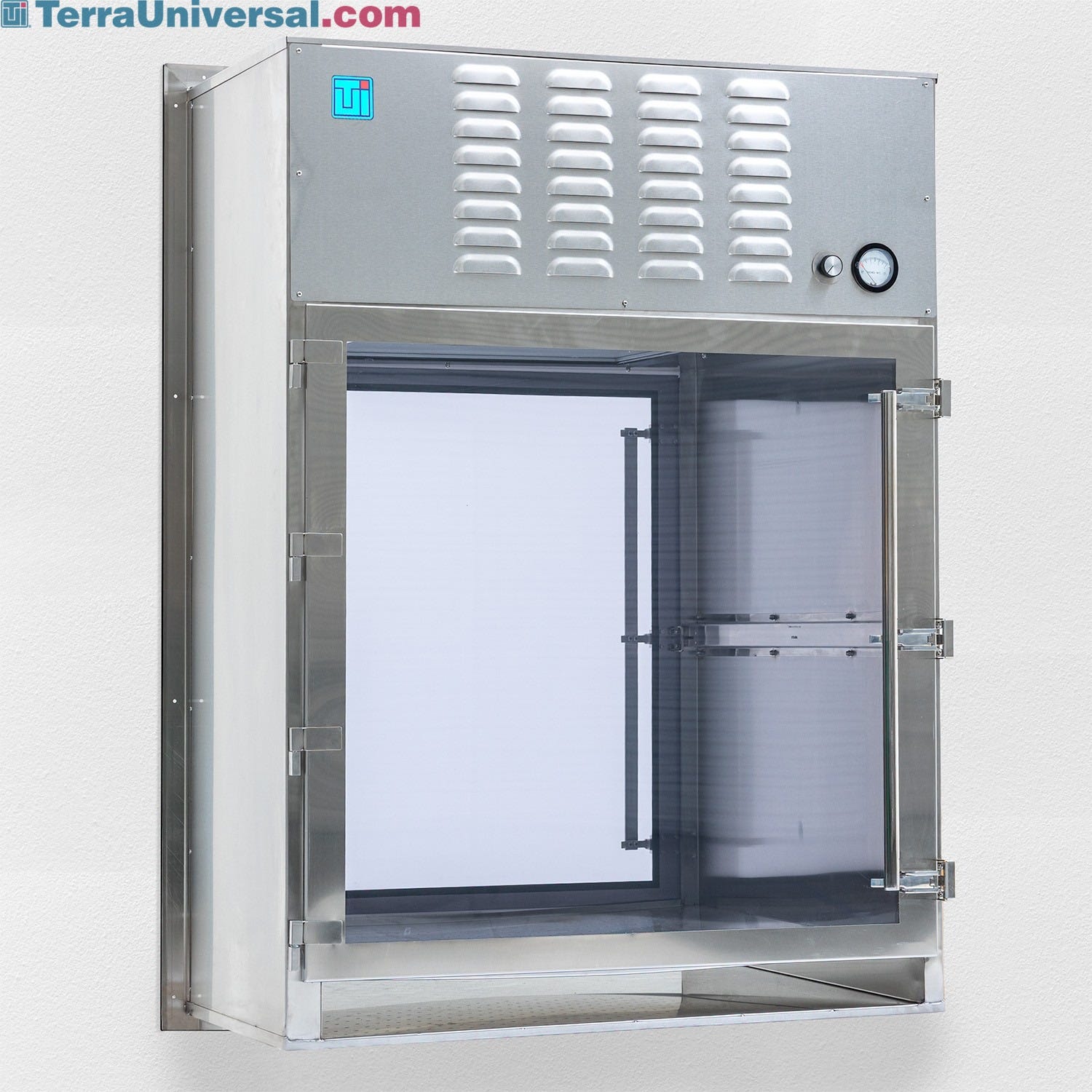

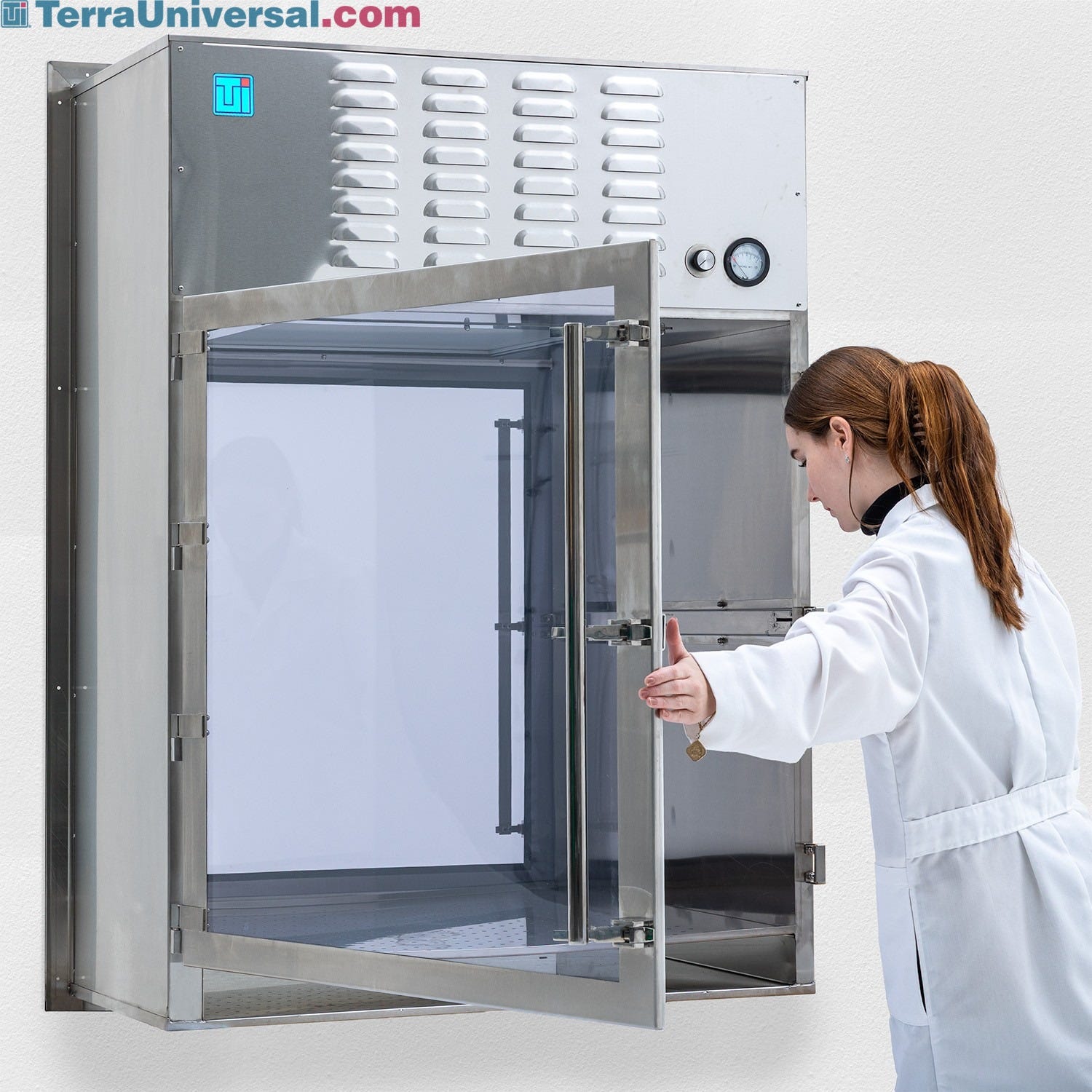

Custom Pass-Through; Recirculating HEPA Filtration

The recirculating filtration version delivers an added layer of protection against contamination during material transfer. HEPA-filtered air continuously cycles through the pass-through to help maintain a clean transfer environment.

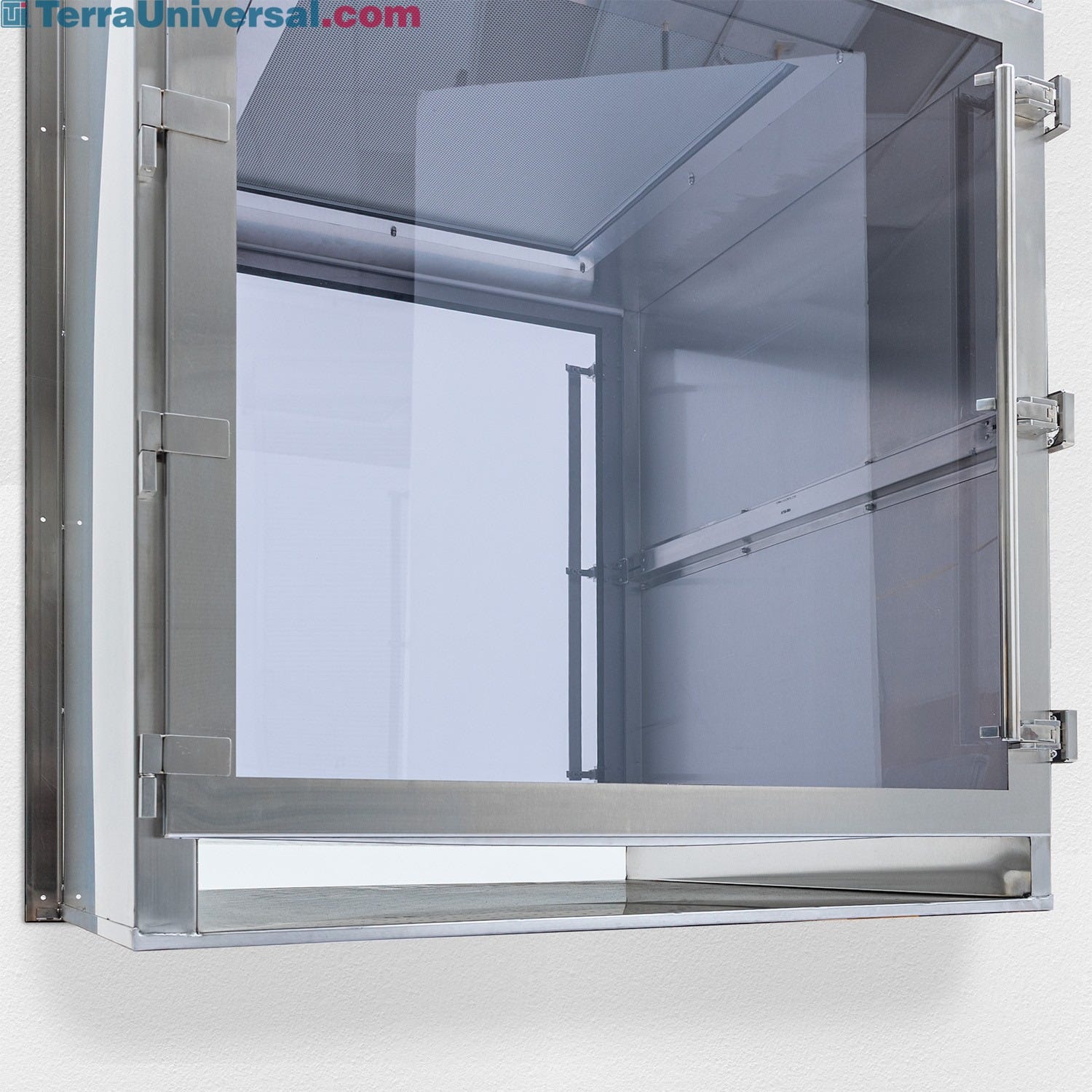

Open Through Channel Under Pass-Through

An open through channel underneath the pass-through offers versatility for a range of cleanroom applications. Common uses include cable and utility management, pressure equalization, and drainage.

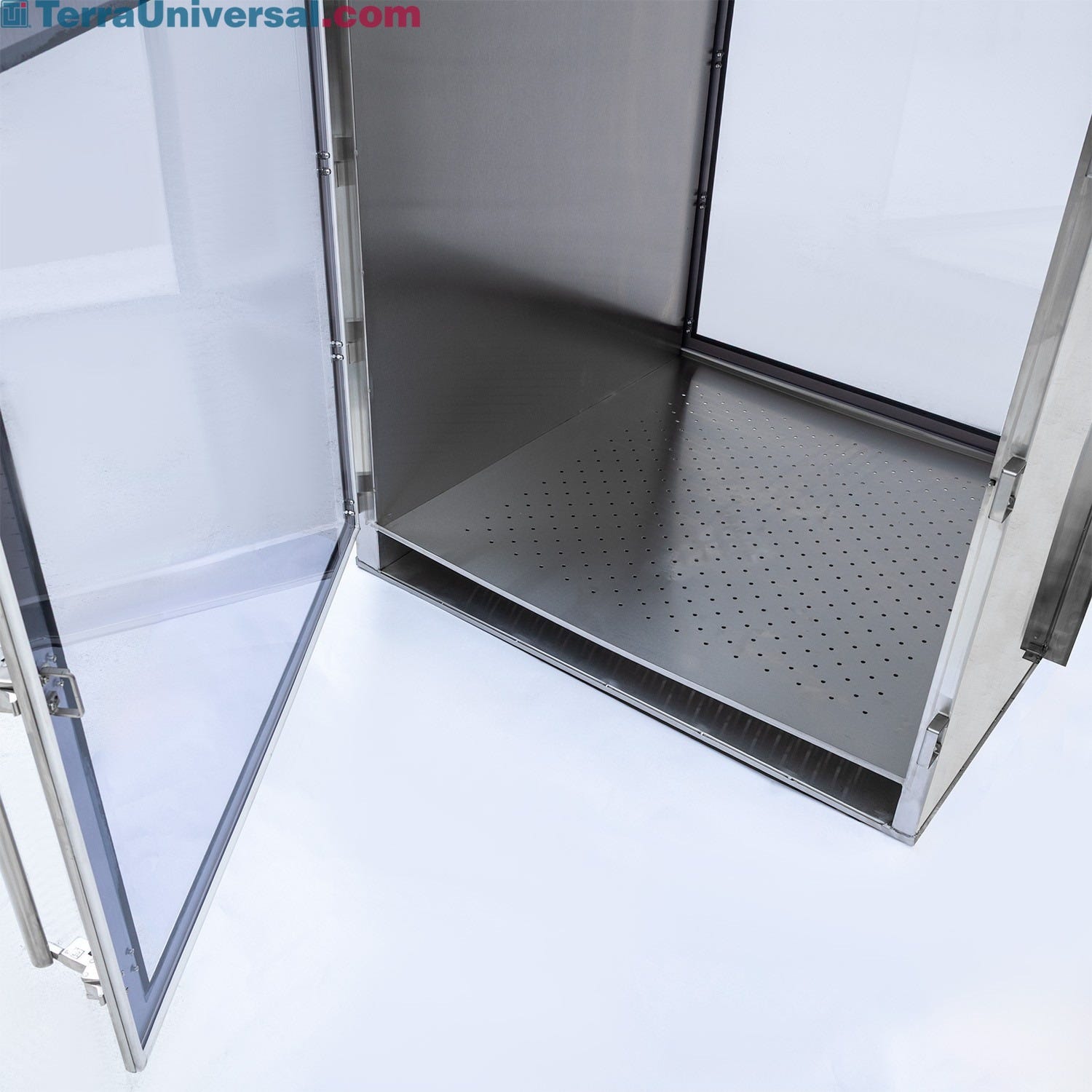

Preforated Bottom on Pass-Through

A perforated bottom panel over the open channel allows liquids, debris, and contaminants to drain freely while still providing a stable surface for transferring materials. This design helps maintain cleanliness within the pass-through by preventing pooling and buildup on the transfer surface.

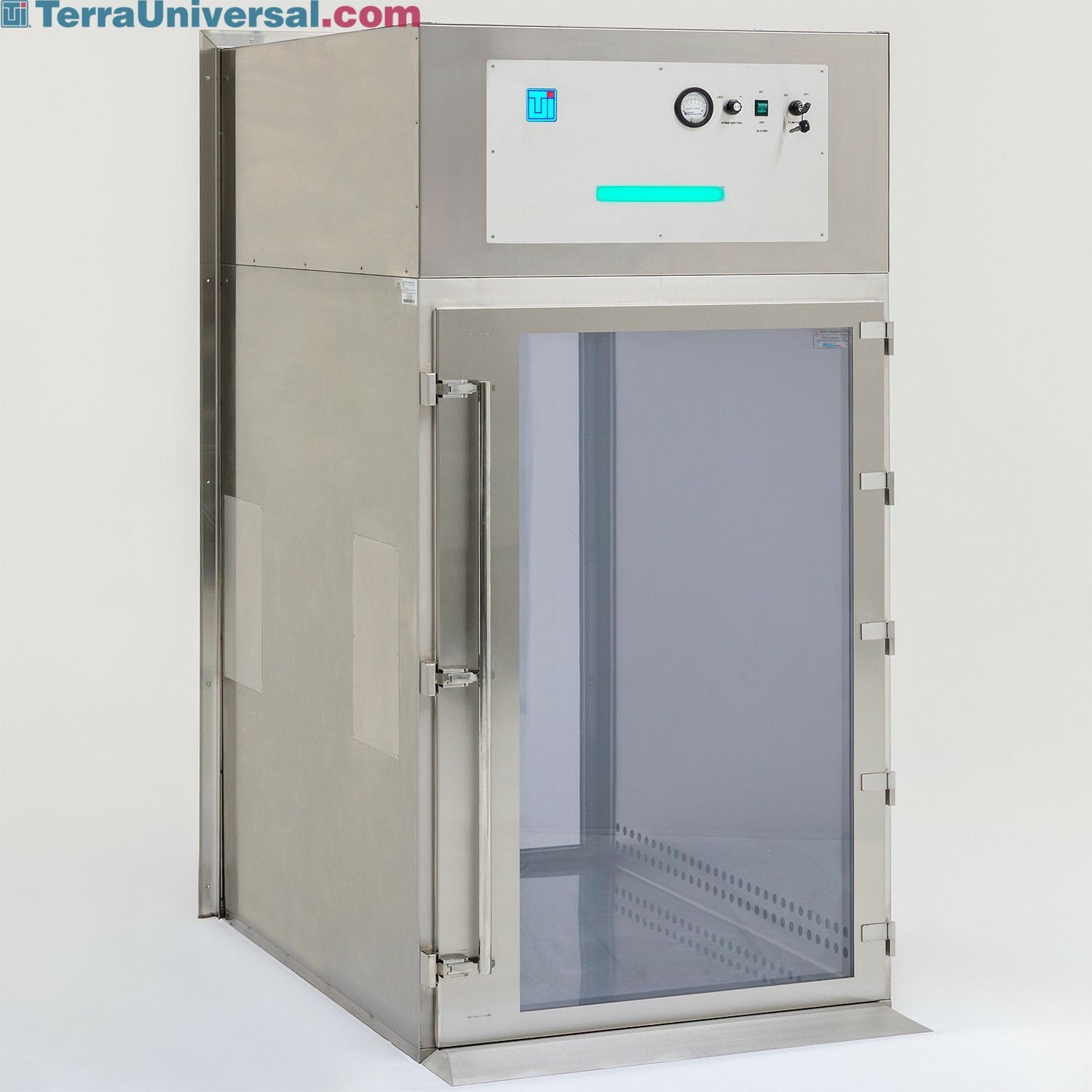

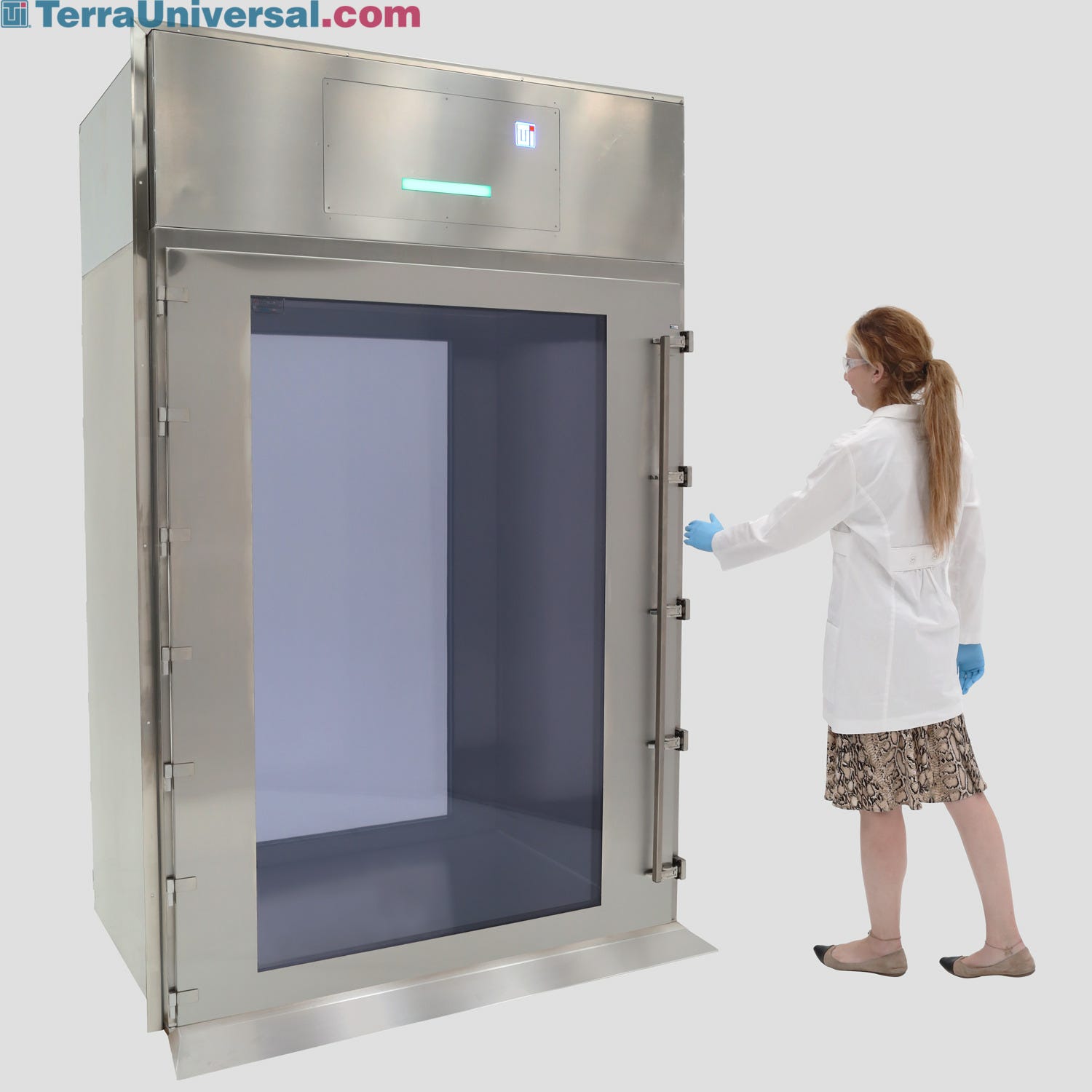

Extra-Large ISO 5 Smart Pass-Through with Recirculating ULPA Filtration

Custom sizes are no problem. Smart ULPA Recirculating Pass-throughs can be customized to your application.

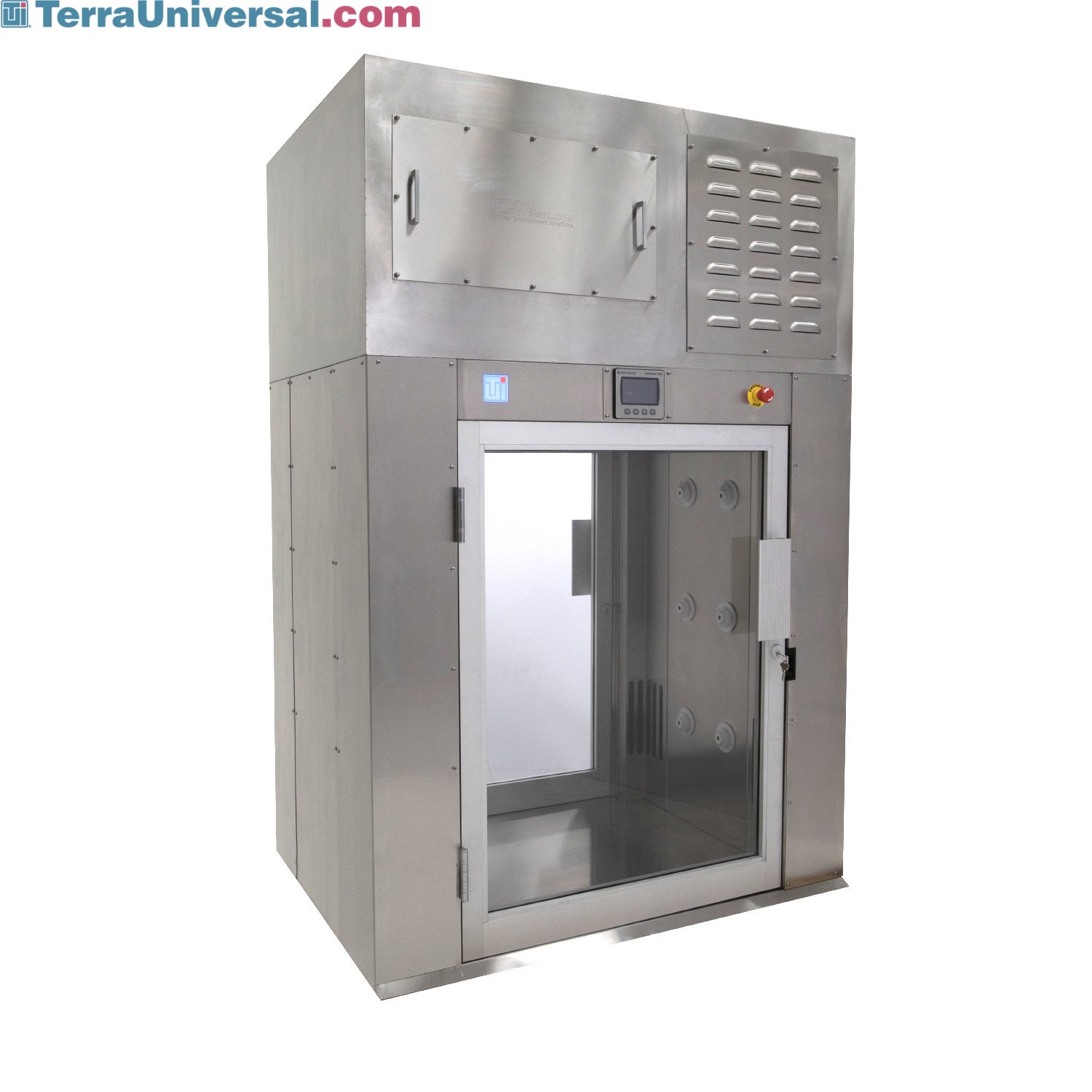

Stainless Steel Air Shower Pass-Through

Stainless Steel Air Shower Pass-Through

10'H Modular Cleanroom with Integrated Air Shower Passthrough Chamber

This hardwall modular cleanroom features spacious 10ft high ceilings to accomodate tall equipment such as vertical laminar flow work stations. A floor-mounted air shower passthrough facilitates transfer of carts.

Pass Through

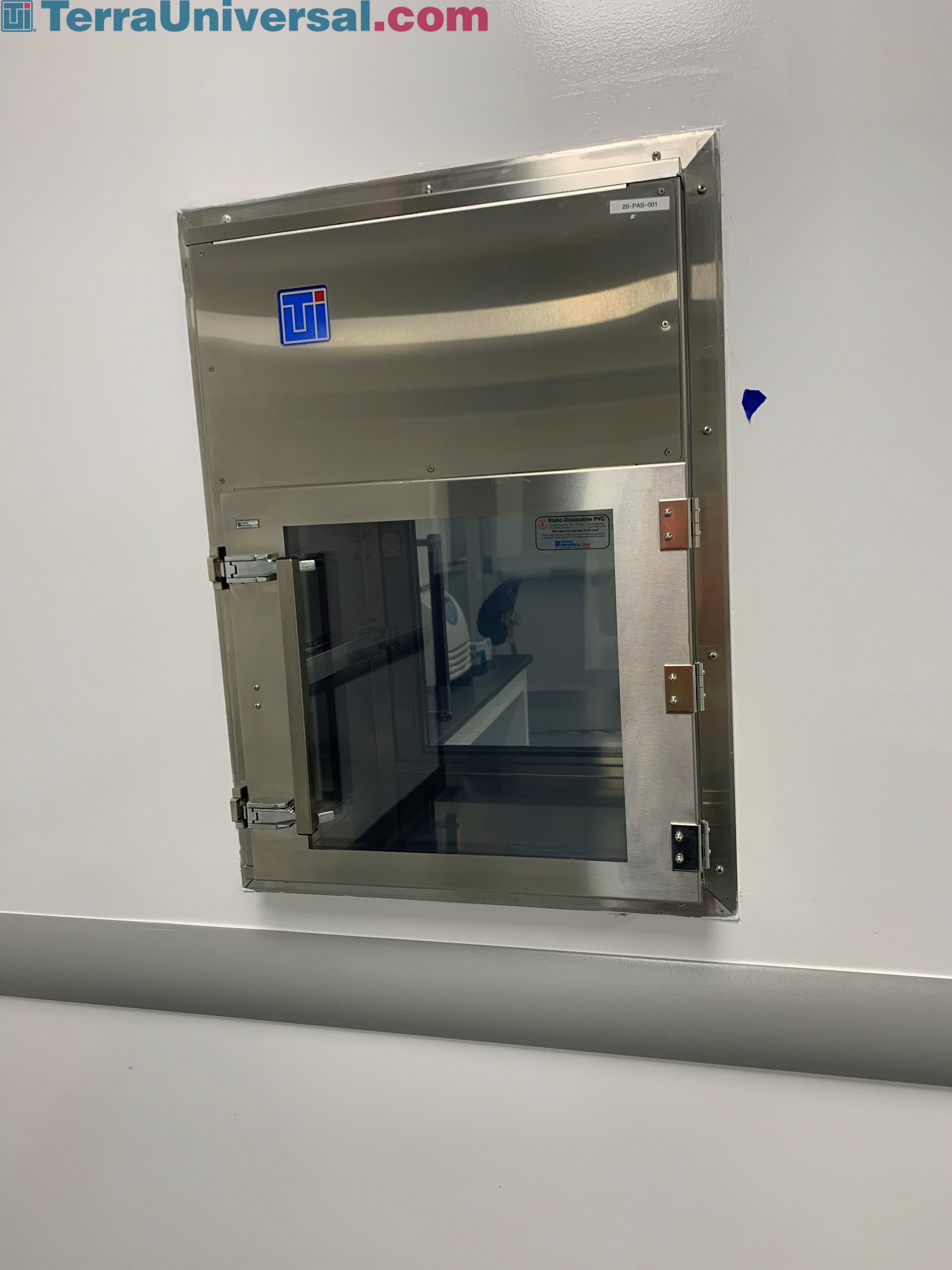

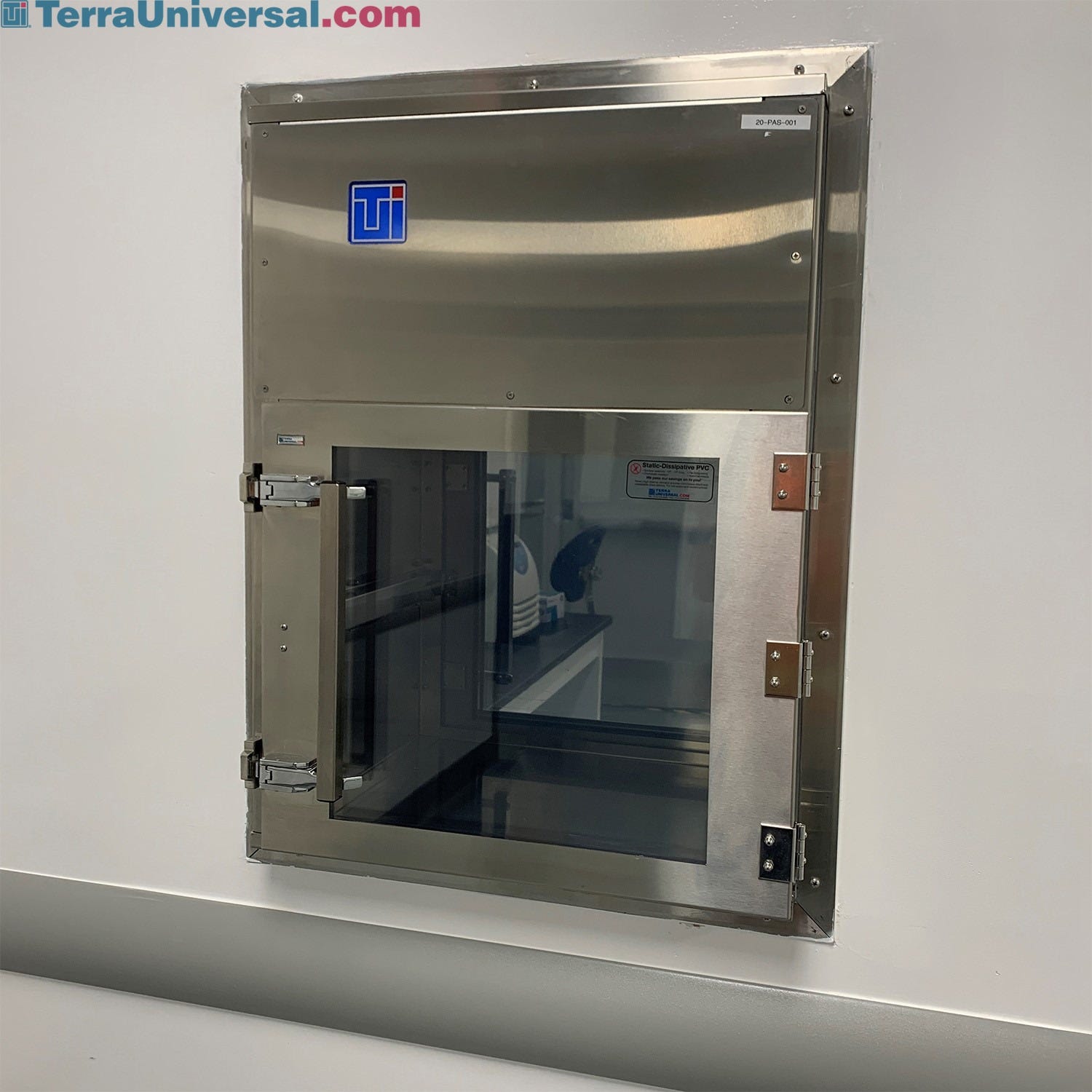

Cleanroom Passthrough with Recirculating HEPA Filtration for Gene Therapy Research

This cleanroom passthrough with recirculating HEPA filtration is used for gene therapy research. HEPA filtration adds another layer of protection against contamination of transferred materials. The chamber also includes a mechanical door interlock to prevent both doors from opening simultaneously.

Smart® CleanMount™ Pass-Through for a Sterile Compounding Cleanroom

This 316L Smart® CleanMount™ CleanSeam™ Pass-Through is configured with HEPA filtration for use in a sterile compounding cleanroom. The Smart® control system provides advanced control and monitoring over the chamber. When one door opens, the other side automatically locks. The red light indicates an open door.

Cleanroom Passthrough with Single-Pass HEPA Filtration for Medical Equipment Manufacturing

This Cleanroom pass-through is configured with single-pass HEPA filtration for medical equipment manufacturing. The electropolished all-316L stainless steel surfaces withstand harsher cleaning agents and degradation from bleach-based disinfectants. Doors are leak-rated by UL for tight seal to maintain cleanroom pressure gradients.

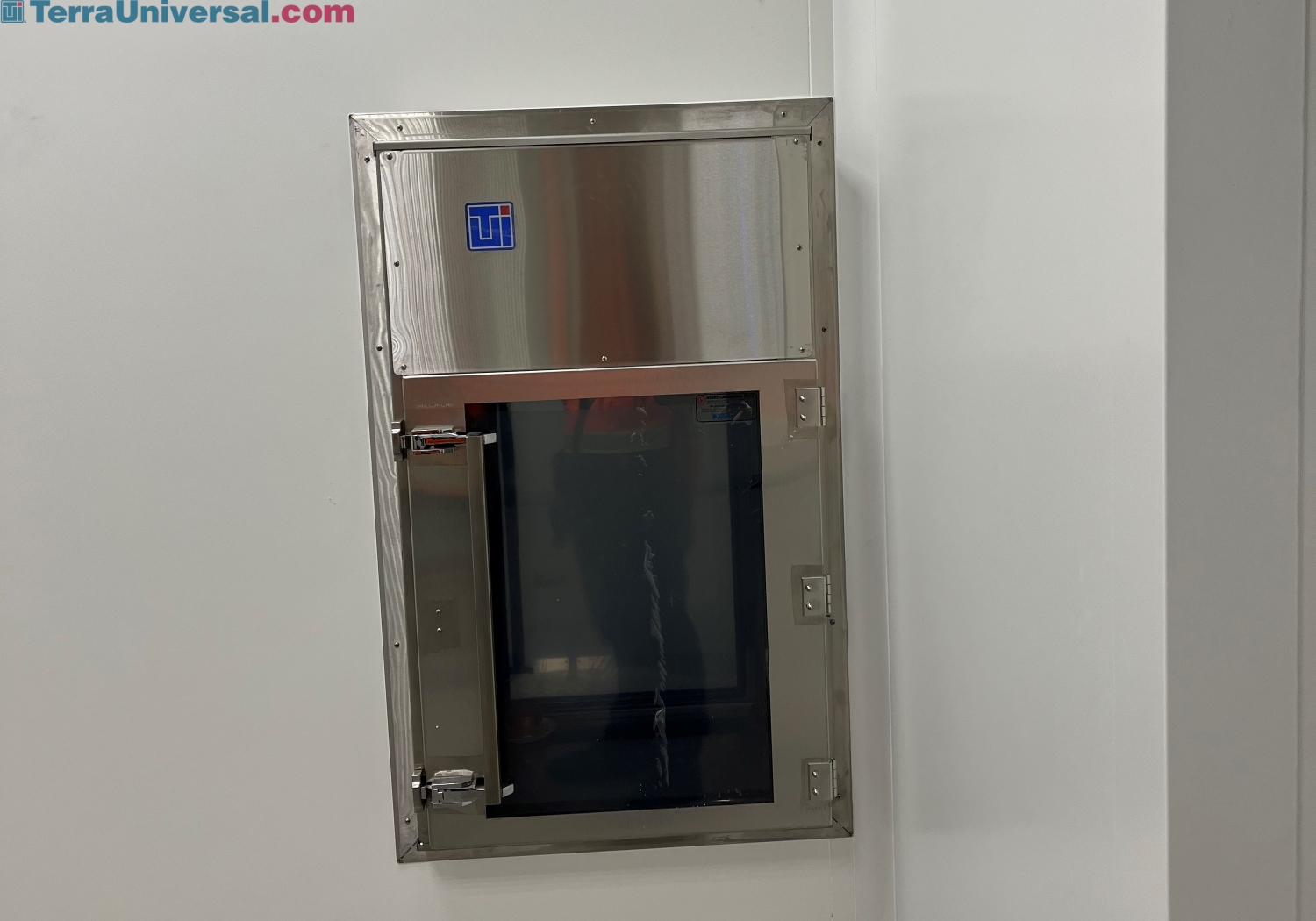

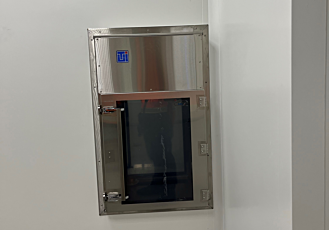

Recirculating HEPA-Filtered Pass-Through used for Protein-Based Biologics

This recirculating pass-through is used for protein-based biologics. Air return slots along the bottom of the chamber’s interior circulate air back through the HEPA filter to remove contaminating particles.

Critical Environment Solutions

Terra's mission is to help customers in highly regulated industries transform the world with critical environment solutions that improve health, safety, performance, and yields. These environments may comply with stringent UL, ISO, IEST, ASTM and OSHA standards and local requirements.

Stainless Steel Air Shower Pass-Through

Includes stainless steel air nozzles to filter out contaminants when carts are passed through. Stainless steel is corrosion-resistant, and easy to clean, perfect for controlled environments.

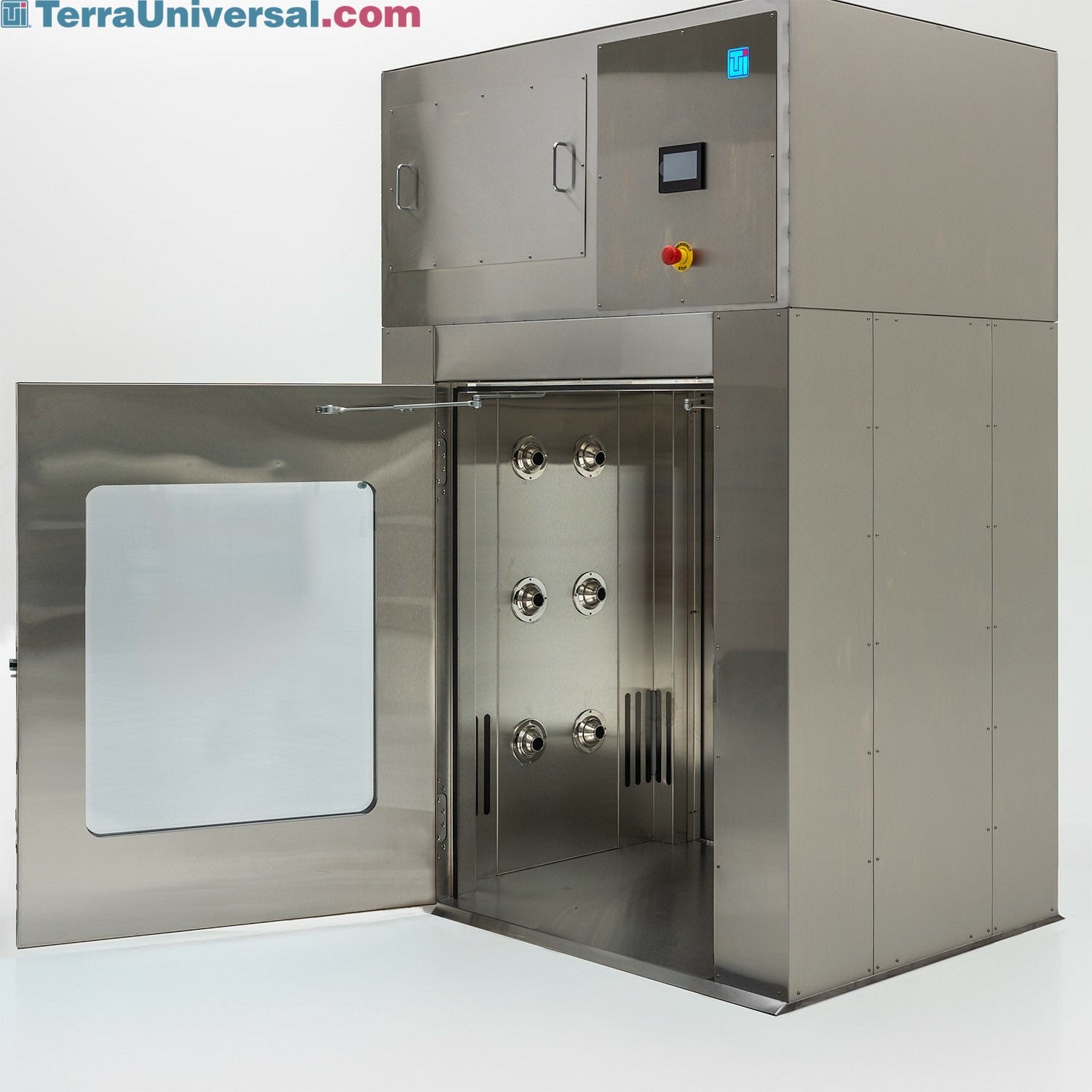

Stainless Steel Air Shower and Nozzles

Stainless steel air shower uses HEPA-filters to provide an ISO 5 air cleanliness to passed contents.

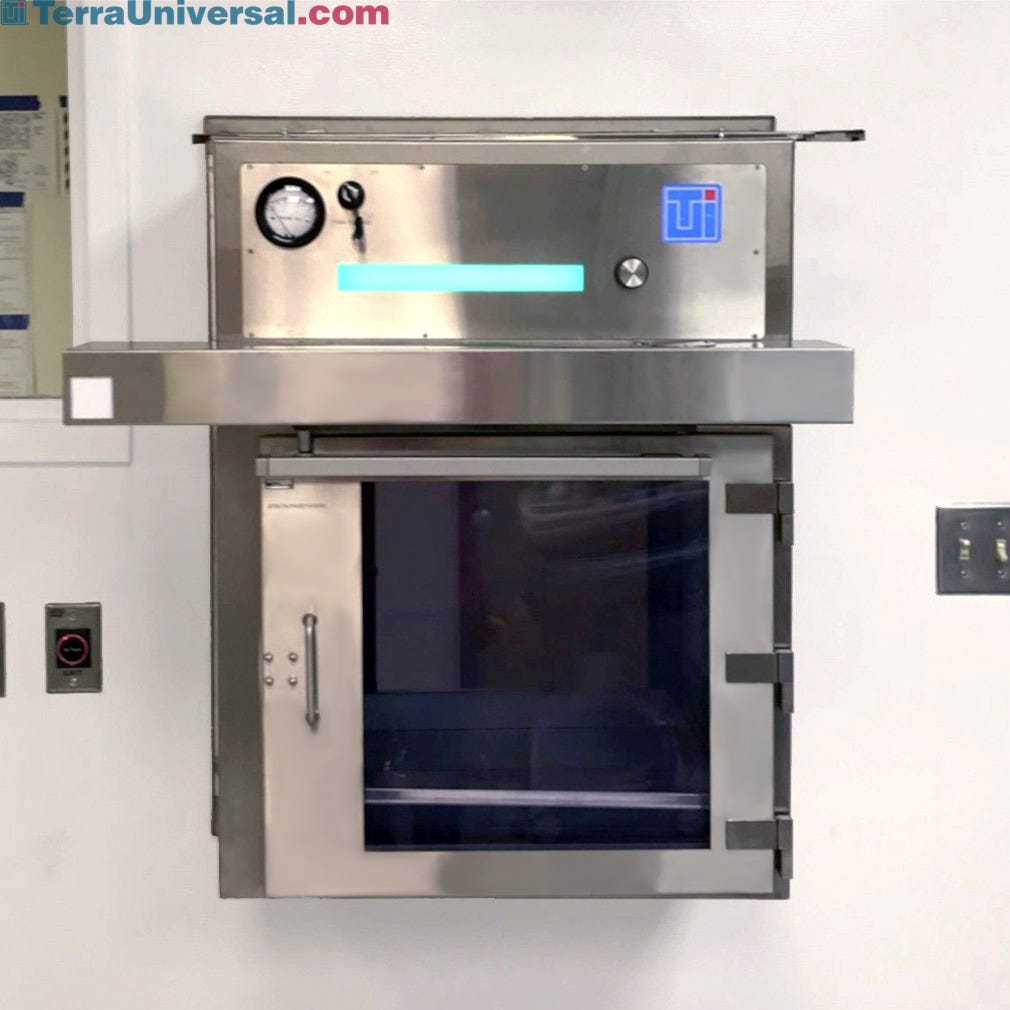

Smart® Pass-Through with Recirculating HEPA Filter System for Transferring Equipment into Nuclear Medicine Lab

Smart® pass-through provides recirculating HEPA-filtered air to rapidly remove particles and reduce leak risk. A fully-automatic door is ideal for transferring shielded syringe carriers and other equipment into nuclear medicine labs.
