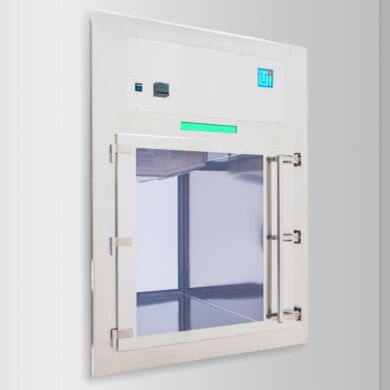

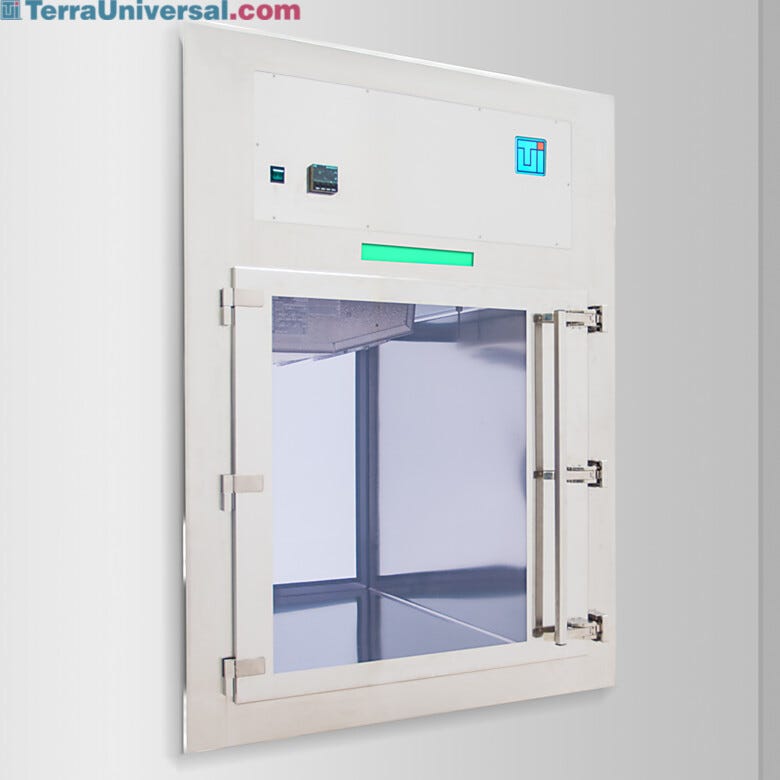

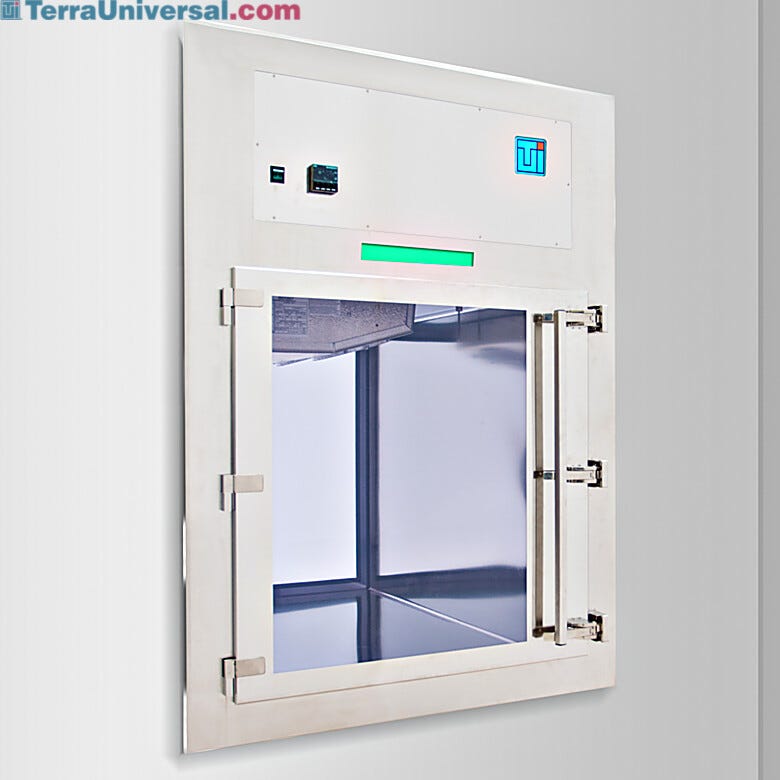

Smart® CleanMount® Refrigerated Pass-Through Chambers
Read more
Manufactured By: Terra Universal
Print
Want a quote quickly ?
Submit a QuickQuote request Fasktrak Footer
Print Copy Copied
Here at Terra Universal, we’ve made it our mission to offer the best possible lead times in the industry. In addition to aggressive stocking programs and streamlined fulfillment, Terra Universal also offers several services that ensure you receive your products as quickly as possible.
Terra FasTrak Guaranteed Delivery Services
FasTrak 24/7 guarantees to meet the shipping date YOU specify, regardless of quoted lead times.
Terra Universal can provide FasTrak 24/7 service for both in-stock products and custom orders.
Examples of FasTrak 24/7 services include:
- Assigning a dedicated senior expediter
- Assigning a dedicated production team and up to three shifts per day
- Eliminating internal purchase approvals to speed the receipt of parts and materials
Terra FasTrak service fees are only meant to cover the cost of additional Terra services, they are not designed to generate profit. If Terra fails to ship on or before the specified date, Terra will refund up to 100% of the FasTrak charges at the client's request. This guarantee does NOT cover direct, special, consequential, or other damages. It is strictly limited to 100% of the amount paid for the FasTrak service.
The FasTrak 24/7 refund policy does not apply when a specified ship date is missed due to factors outside Terra's control, such as vendor performance or shipping company delays. The FasTrak 24/7 guarantee DOES apply in instances where the shipping date is missed due to Terra's own negligence.
Terra Sales and Customer Service
Mon - Fri, 09:00 AM - 08:00 PM PST
Tel: +1 (714) 578-6100
Email: [email protected]
Product Details
Product Details
- Available ISO Ratings: ISO 5, ISO 6, ISO 7, ISO 8
- CleanMount design allows for installation without drilling and prevents cleanroom shutdown for rapid servicing or replacement
- Provides a dry, cold environment for transferring temperature-sensitive samples
- Integrated 1050 BTU closed-loop refrigeration module designed to maintain temperatures as low as 5°C
- Temperature controller automatically maintains the set-point programmed by the user
- Includes all of the features of a standard Smart® Pass-through in addition to the refrigeration module
- Double-wall, stainless steel chamber insulated with ½"-thick polyurethane foam
- Continuous-seam 316-stainless steel welding
- CleanMount® system allows fast installation without any fasteners, flush with the wall surface
- Electronic door interlock automatically prevents cross-contamination by preventing both doors from opening simultaneously
- LED status bar above the door alerts personnel that the interlock is engaged
- Wireless alert-chimes ring when a pass-through door is left open
- 316-stainless steel, ergonomic LiftLatches ensure a snug door seal and spring open with a smooth pull
- Non-outgassing gasket mechanically adheres to the stainless steel door to form a tight-fitting, uniform seal
- Static-dissipative PVC windows are chemical-resistant and eliminate static-cling that attracts particles
- Wall braces are included with each pass-through to support the increased weight of the refrigerated chamber
• Marks & Listings: UL, ULC
Smart® CleanMount® Refrigerated Pass-Through Chambers
Smart® Pass-Through with “T” Shape 3-Door Design for USP 800 Hazardous Compounding- Smart® Pass-Through Chambers by Terra Universal
- Refrigerated Smart® Passthrough with 90 Degree Corner to Transfer Active Pharmaceutical Ingredients
- Smart® Pass-Thru Pharmacy Refrigerator for USP797 Sterile Pharmaceutical Cleanroom
- Cleanroom Pass-Through Features and Selection Guide
- Hands-Free, Automatic Pass-Through Door
Smart® pass-through with “T” shape 3-door design, for USP 800 hazardous compounding; interconnects chemo room, USP 800 room, and ante room | 2635-10B-2-316 displayed Smart® Pass-Through with “T” Shape 3-Door Design for USP 800 Hazardous Compounding Terra’s Smart® pass-through chambers can be configured as a “T” or “X” shape to connect multiple rooms. This 3-door configuration for an in-patient pharmacy interconnects the USP 800 room (negative pressure), chemo room (negative pressure), and ante room.
Terra Universal’s Smart Pass-Through Chamber redefines the capabilities of a pass through by solving a host of challenges that hospitals and labs face every day Smart® Pass-Through Chambers by Terra Universal Terra Universal’s Smart Pass-Through Chamber redefines the capabilities of a pass through by solving a host of challenges that hospitals and labs face every day. When first introduced to the market, the pass through chamber had one-specific purpose: to reduce personnel traffic by providing a convenient means for sample transfer into and out of the cleanroom. With the Smart Pass Through, Terra has reimagined the jobs a pass through can perform by offering a menu of standard, add-on features compatible with every unit. These features are mounted external to the work area, so the integrity of the internal chamber is not impacted. Beyond sample transfer, the Smart Pass Through can disinfect products, log environmental conditions, track personnel or sample lots, streamline employee communication and add layers of security to your cleanroom.
Refrigerated Smart® passhthrough chamber with 90 degree corner for transferring active pharmaceutical ingredients into a cleanroom | 2635-10B-2-316 displayed Refrigerated Smart® Passthrough with 90 Degree Corner to Transfer Active Pharmaceutical Ingredients Refrigerated Smart® passhthrough chamber with 90 degree corner for transferring active pharmaceutical ingredients into a cleanroom. The refrigeration system is mounted above the passthrough. The double-wall, insulated chamber boosts thermal efficiency. Electronic interlocking doors allow only one door to open at a time.
Smart® pass-thru pharmacy refrigerator for sterile pharmaceutical cleanroom; 1 door on each side, electronic interlocking doors, removable shelf-rack system | 2635-13B-2-316-R displayed Smart® Pass-Thru Pharmacy Refrigerator for USP797 Sterile Pharmaceutical Cleanroom Terra’s pass-thru refrigerator helps meet USP 797 requirements for sterile pharmaceutical cleanrooms. Refrigeration meets pharmaceutical storage standards to ensure safe and dependable storage of active pharmaceutical ingredients. Electronic interlocking doors allow only one door to open at a time. The built-in shelf-rack system is fully-removable for complete sterilization.
Video introduction to pass-through chamber designs, construction and accessories | 1948-20D displayed Cleanroom Pass-Through Features and Selection Guide Video introduction of pass-through chamber designs, construction and accessories. Discover how these chambers increase efficiency and reduce contamination during between-room transfer of samples and supplies.
This video shows how the hands-free operation of the Automatic Pass-Through Door minimizes the potential for touch contamination. Hands-Free, Automatic Pass-Through Door The Automated Pass-Through Door (exclusive to Terra's Smart Pass-Through Chambers) prevents personnel from inadvertantly contaminating their gloves or surfaces around the cleanroom.
Features & Benefits
Features and Benefits
CleanMount Basics
The simplicity of this CleanMount clamping system makes removal of the pass-through chamber just as easy as installation. If the wall cut-out framing is properly sealed prior to installation, the pass-through can be quickly removed and replaced without ever having to shut down the cleanroom. Maintain the positive-pressure differential and protect the cleanroom environment by sealing off the "dirty side" with plastic sheeting prior to removal. Loosen the lag bolt so that the pass-through lifts out of the wall without contaminating the room. Once out, the pass-through can be serviced, modified, or even replaced with an upgraded version to accommodate new applications.
A - Inside of flush-mount bracket on opposing side
B - Bolt guide extending from nut welded to opposing bracket
C - Mounting bolt (one, two or three per side, depending on chamber height) - standard sizes accommodate any wall thicknesses
D - Mounting bracket
E - Bracket cover
F - Standard wall (masonry or drywall) Finish cut-out framing to minimize contamination exposure during servicing Terra's quick-mount system installs in under five minutes, regardless of wall thickness and without contamination Access Clearances
Width = W (nominal) – 1.88”
Depth = D (nominal) – 0.12”
Height = H (nominal) – 1.25”
Print Copy Copied
CleanMount CleanSeam Pass-Through Chamber
CleanMount™ Design Allows Servicing or Replacement without Cleanroom Shutdown!
The simplicity of this CleanMount clamping system makes removal of the pass-through chamber just as easy as installation. If the wall cut-out framing is properly sealed prior to installation, the pass-through can be quickly removed and replaced without ever having to shut down the cleanroom. Maintain the positive-pressure differential and protect the cleanroom environment by sealing off the "dirty side" with plastic sheeting prior to removal. Loosen the lag bolt so that the pass-through lifts out of the wall without contaminating the room. Once out, the pass-through can be serviced, modified, or even replaced with an upgraded version to accommodate new applications. A - Inside of flush-mount bracket on opposing side
B - Bolt guide extending from nut welded to opposing bracket
C - Mounting bolt (one, two or three per side, depending on chamber height) - standard sizes accommodate any wall thicknesses
D - Mounting bracket
E - Bracket cover
F - Standard wall (masonry or drywall)
Finish cut-out framing to minimize contamination exposure during servicing Terra's quick-mount system installs in under five minutes, regardless of wall thickness and without contamination
Access Clearances Width = W (nominal) – 1.88”
Depth = D (nominal) – 0.12”
Height = H (nominal) – 1.25”
Lift-Off, Non-Shedding Door Hinges
Non-shedding, barrel-type door hinges allow the doors to lift off for thorough cleaning and decontamination (no tools required). Unlike industry standard continuous designs, these hinges comply with strict ISO levels.
Interlock Status Lights
Prevent operator damage! A green light bar indicates the door is available for use, with the electronic interlock disengaged. The bar turns red when the opposing door is open to indicate the electronic interlock is engaged.
CleanMount™ Quick Install System
Clean-Mount™ clamping design allows pass-through installation flush against a cleanroom wall in a few minutes, without drilling into the finished wall; mounting brackets clamp flush against walls of any thickness.
Easy Installation Simplifies Cleanroom Commissioning
Installing conventional passthroughs can be very messy, making it impossible to perform while a cleanroom is operational. Terra’s innovative CleanMount® fastening system changes that, allowing for clean installation without drilling or penetrating the cleanroom wall. Framing a CleanMount® passthrough chamber on a finished cut-out eliminates the need for cleanroom shut-down during installation or service.
Rerigerated Pass-through Chamber
The interior of the Refrigerated Smart® Pass-Through features a compact ceiling-mounted fan unit to circulate cool conditioned air inside the chamber. The cooling fan system connects to the compressor and condenser system which is externally mounted above the chamber. A drain tube is ported through the wall to carry condensation and prevent leaks.
Flush-Mount Design Prevents Dust Accumulation
CleanMount® pass-throughs hug the cleanroom wall, eliminating gaps that collect germs and particle and making them ideal for critical bio/pharmaceutical cleanroom use.
CleanMount® Lipless Chamber Eliminates Clearance Obstructions
Instead of welded seams, the corners of the CleanMount® pass-through interior are coved to eliminate dust and germ traps. The lipless opening presents no clearance obstructions and further simplifies cleaning.
Highest Standards For Electronic Components
Terra’s electronic components are designed and built to the highest standards required by defense and semiconductor industries for long-term reliability and protection against damage, injuries, and electrical hazards.
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
Pass Through Racks
Designed to be installed into any pass through. Install these racks within minutes with no special tools. Simply tighten a compression screw. Forgot to order racks before? No problem!-
Video Camera
Interior HD video camera records continuously or upon door-opening; can also be used for remote monitoring the transfer chamber. -
Iris Scanner
Fully automated iris scanner for secure, hands-free access (includes datalogging and optional secondary keycard reader). -
Intercom System
Built-in intercom system lets users easily call and communicate between rooms. No more knocking on windows, shouting, or awkward sign language. -
LCD Message Panel
Displays critical environmental information related to the interior chamber such as temperature and relative humidity (customizable). -
Support Brackets for Pass-Through Chambers
Stainless steel support brackets are recommended for pass-throughs deeper than 24". Brackets fasten to the wall and the body of the chamber rests upon the horizontal bar; no fasteners are used on the pass-through itself. -
Removable CleanMount Pass-Through Racks and Shelves
Stainless steel CleanMount racks and shelves can be removed for cleaning and sterilization; won't produce contaminants like chrome-plated steel systems. -
Electropolish Finish
Electropolishing increases corrosion resistance and improves ease of cleaning with a smooth, reflective, mirror-like finish. -
Available UV & LED lights
Lights are recessed with a transparent lens for easy cleaning; UV-C module neutrailizes microbes using a timed disinfection cycle.
