Terra Part # 2602-19
$4,163
Usually ships in 8-12 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 2602-19
66068

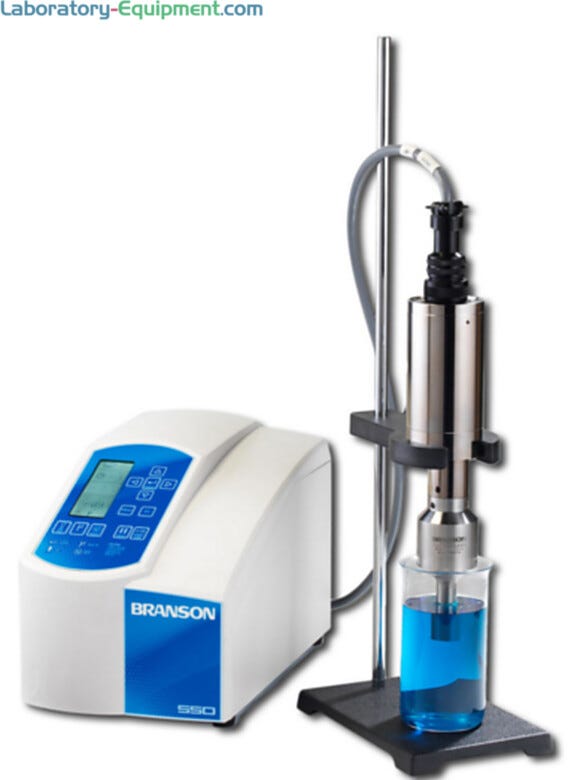

Sonicator; Cell Disruptor, 1/2" Disruptor Horn, SFX550, Branson, 120 V

• For disruption of cellular materials at volumes from 0.2 to 1000 ml

• True Temperature control with user-specified temperature range

• Stand-mountable for longer duration sample processing

• Includes 550 watt power supply, converter, and 1/2-inch disruptor horn

• Two-year manufacturer warranty

• Advanced energy control mode for precise energy input in continuous or pulse modes

• True Temperature control manages sample temperature within user-specified limits

• (requires separate temperature probe)

• Control modes: time, temperature, and energy

• Continuous or pulsed ultrasonics

• High efficiency, stand-mountable converter requires no internal cooling

• Scrollable, multi-function screen with push buttons,

• Microtip mode extends tool life by limiting amplitude to 70%

• Amplitude control range from 10 to 100%.

• Powerful 20 kHz ultrasonics

• Stores up to 20 programs

• In-process feedback provides users with experimental progress, temperature, energy usage, power level and elapsed time

• Features industry exclusive adaptive temperature control to protect samples

Programmable parameters include: continuous or pulsed ultrasonics; time, energy, or temperature control modes; pulse on-time/energy, off-time and total on-time/energy; or amplitude as a percentage.

Type: Sonicator

Wattage Output: 550 W

Frequency Output: 20 kHz

Controls: Digital

Design: Benchtop

Pulse Mode Operation: Yes

Model: SFX250

Manufactured by: Branson

Probe Type: Horn

Probe Diameter: 0.5"

Cooling Method: Glass-Cooling Cell

Manufacturer SKU: 101-063-969R

Unit of Measure: EA

Electrical Specifications: 120 V, 550 W, 50/60 Hz

Weight, Product: 14 Lbs

Dimensions, Product: 7.5"W x 12.5"D x 9.25"H

Weight, Shipping: 20 Lbs

Dimensions, Shipping: 8" W x 13" D x 10" H
