5323-14
Terra Part # 5323-14
$3,040
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA In stock
Accessories related to Terra Part # 5323-14
65337

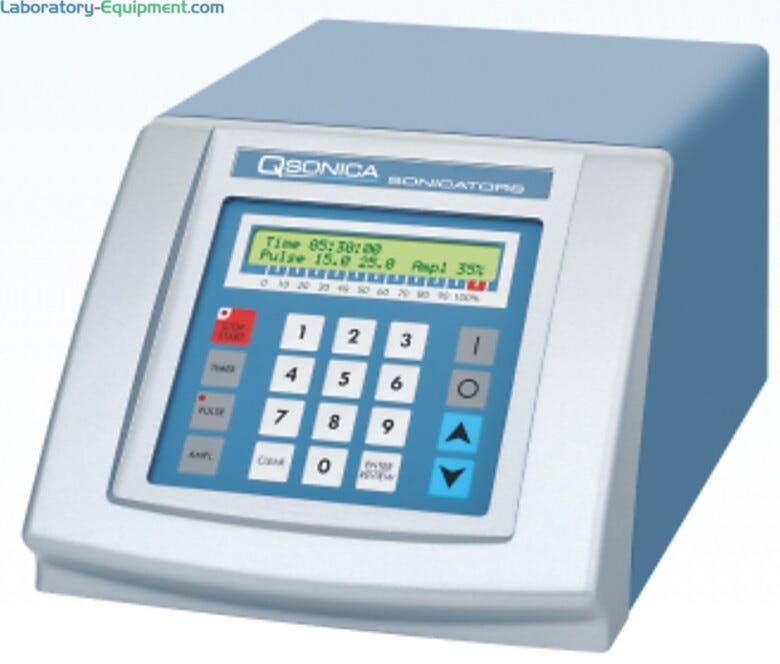

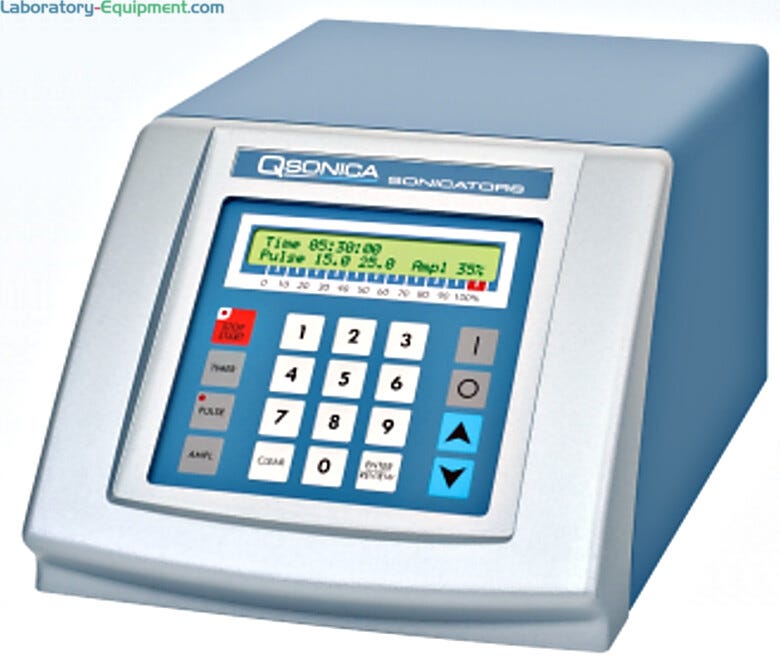

Sonicator; Q125, 1/8" Probe, QSonica, 110 V
Product Details
  • Compact microprocessor based, programmable ultrasonic processor
  • Programmable Timer: 10 hours
  • Adjustable Pulse On/Off: 1 second to 1 minute
  • Application: small volume DNA/RNA shearing and homogenization
  • Includes: Generator, Converter, 1/8" (3mm) probe, power cable, converter cable, and wrench set
  • Power Rating: 125 watts
  • Frequency: 20 kHz
  • Pulse mode and digital display of wattage and joules
  • Programmable operation: hands free operation with set time and amplitude
  • Pulse Mode prevents heat build-up in temperature sensitive samples
  • Digital amplitude/intensity control: output intensity can be set from 20-100%
  • Elapsed time indicator displays duration of sonication
  • Display of wattage and joules for  real-time energy monitoring
  • Overload protection protects circuitry (prevents damage) if a fault occurs
  • RoHS compliant: lead free components

• Type: Sonicator

• Wattage Output: 125 W

• Frequency Output: 20 kHz

• Controls: Digital

• Design: Benchtop

• Pulse Mode Operation: Yes

• Model: Q125

• Manufactured by: QSonica

• Probe Type: Generator

• Probe Diameter: 0.125"

• Cooling Method: Cup Horn

• Manufacturer SKU: Q125-110

• Unit of Measure: EA

• Electrical Specifications: 110 V, 125 W, 50/60 Hz

• Weight, Product: 30 Lbs

• Dimensions, Product: 8"W x 13.75"D x 5.75"H

• Weight, Shipping: 45 Lbs

• Dimensions, Shipping: 9" W x 14" D x 6" H

• Package Type: Box

Buy Accessories
  1. Causes cavitation which constitutes the main mechanism for sample processing.  |  5323-09 displayed
    Probe Tip, 5/64", 200ul - 5ml, Very High Ships Free Free shipping in contiguous USA In stock
    $291
    Increase Down Increase Up
  2. Causes cavitation which constitutes the main mechanism for sample processing.  |  5323-09 displayed
    Probe Tip, 1/8", 500ul - 15ml, High Ships Free Free shipping in contiguous USA In stock
    $291
    Increase Down Increase Up
  3. Causes cavitation which constitutes the main mechanism for sample processing.  |  5323-09 displayed
    Probe Tip, 1/4", 10ml - 50ml, Medium Ships Free Free shipping in contiguous USA In stock
    $291
    Increase Down Increase Up

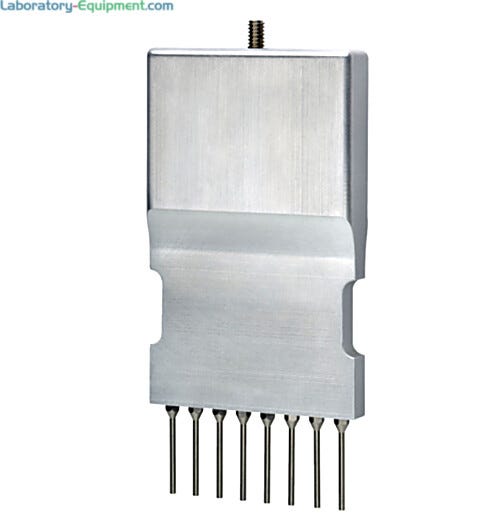

  4. #4602 for Q125 Sonicator  |  5323-17 displayed
    Tip Horn, 8; For Q125 Sonicator, QSonica Ships Free Free shipping in contiguous USA In stock
    $1,281
    Increase Down Increase Up

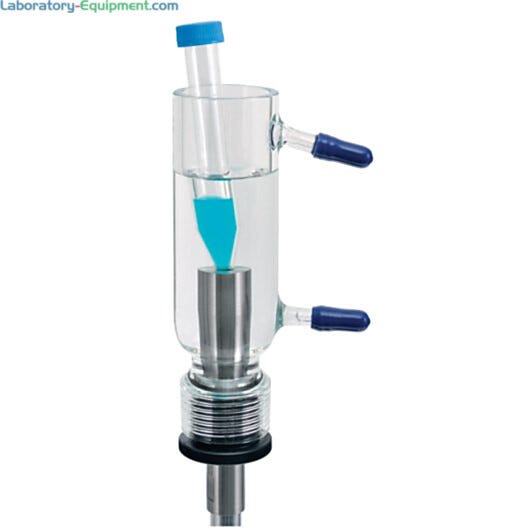

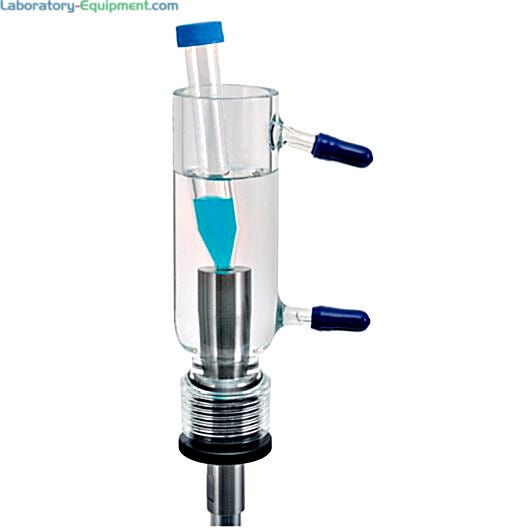

  5. #4608 for Q125 Sonicator  |  5323-18 displayed
    Cup Horn; 1.5" diameter, For Q125 Sonicator, QSonica Ships Free Free shipping in contiguous USA In stock
    $769
    Increase Down Increase Up
  6. Tube Holder; for 1.5mL Eppendor tubes, QSonica
    Tube Holder; for 1.5mL Eppendor tubes, QSonica Ships Free Free shipping in contiguous USA In stock
    $43
    Increase Down Increase Up
  7. Tube Holder; for 1.5mL Evergreen tubes, QSonica
    Tube Holder; for 1.5mL Evergreen tubes, QSonica Ships Free Free shipping in contiguous USA In stock
    $43
    Increase Down Increase Up
  8. Securely holds the converter and probe assembly in place during operation  |  5323-07 displayed
    Support Stand with Converter Holder for Q55 and Q125 Sonicators Ships Free Free shipping in contiguous USA In stock
    $111
    Increase Down Increase Up

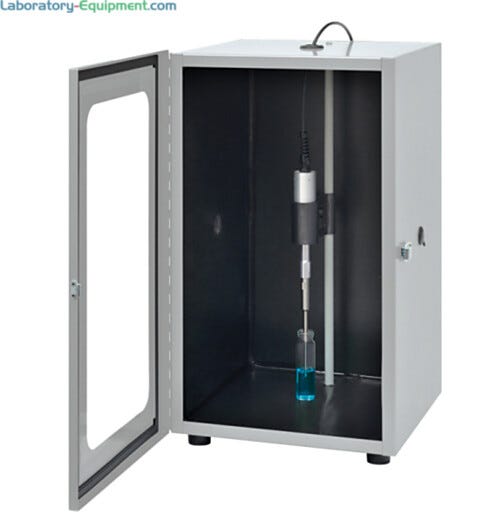

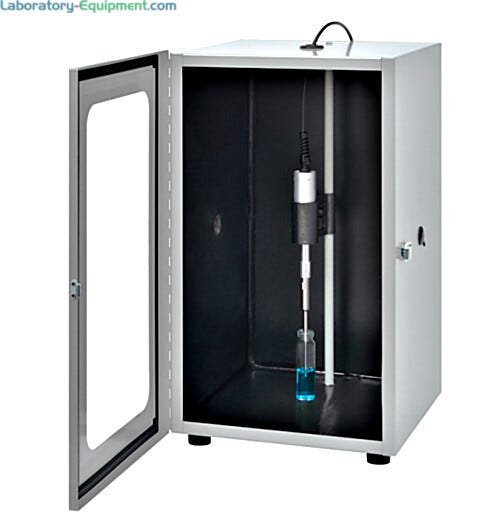

  9. #432A Sound Enclosure with Converter Holder for use with Q125 and Q55 Sonicators  |  5323-19 displayed
    Sound Enclosure with Converter Holder; For Q125 and Q55 Sonicators, QSonica Ships Free Free shipping in contiguous USA In stock
    $769
    Increase Down Increase Up
  10. #CL18 for use with Q125 Sonicator  |  5323-20 displayed
    Replacement Converter; Q125, QSonica Ships Free Free shipping in contiguous USA In stock
    $777
    Increase Down Increase Up
  11. Open End Wrench; Requires 2 for Q125, QSonica
    Open End Wrench; Requires 2 for Q125, QSonica Ships Free Free shipping in contiguous USA In stock
    $4
    Increase Down Increase Up
  12. #4004 for hands free operation  |  5323-22 displayed
    Foot Switch; Sonicators; QSonica Ships Free Free shipping in contiguous USA In stock
    $77
    Increase Down Increase Up

  • Sonicator; Booster & Probe, QSonica, 220V, 1375W
  • Sonicator; 1/2" Probe, QSonica, 500W, 110V
  • Q55 Sonicator, 110V, w/ 1/8" Probe
  • Q700 Sonicator by QSonica with optional probe and clampstand Q700 Sonicator by QSonica
  • QSonica Q125 Sonicator QSonica Q125 Sonicator

Features and Benefits

QSonica Programmable Sonicator Display

Select QSonica Sonicators feature a programmable microprocessor control for real-time monitoring of time and pulse mode

QSonica Q500 Sonicator Display Panel

Microprocessor Control for real-time monitoring of time and pulse mode.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Replacement Converter; Q125, QSonica

  • Tip Horn, 8; For Q125 Sonicator, QSonica

  • Dual Horn, Double; 3/4" Solid Probes, Q500 Sonicator, QSonica

  • Probe; 3/4" Half Wave Extender, Replaceable Tip, for Q500 Sonicator, QSonica

  • Foot Switch; Sonicators; QSonica

  • Probe; 3/4" High Gain, Replaceable tip, Q500, Sonicator, QSonica

  • Jack Stand; 6" x 6", Q500 Sonicator, QSonica

  • Probe; 1" dia., Nodes, QSonica

  • Probe; 2" dia., QSonica

  • Probe Tip, 5/64", 200ul - 5ml, Very High

  • Microtip, 1/16", 0.2-5ml, Ultra High

  • Large Clamp Stand, for Q700

  • QSonica Sound Enclosure with Converter Holder

    Select QSonica Sonicators available with an optional sound enclosure that reduces noise by 20 dBA; interior wall lined with water acoustical foam
  • Sound Enclosure; Converter Holder, QSonica

  • Probe; 1/2", Replaceable Tip, for Q500 Sonicator, QSonica

    1/2" probe with replaceable tip for Q500 Sonicator by QSonica delivers direct sonication of samples from 20-50ml
  • Probe; Temperature, QSonica

  • QSonica Direct Probes for High Volume Batch Processing

    The three available probes are driven at their resonant frequencies causing them to expand and contract longitudinally
  • QSonica High Volume Flocell with Probe for In-Line Processing

    High Volume Flocell (HVF) Includes #4625 1" Probe
  • Tube Holder; 8 tubes, Stem and Cover (White), Q500 Sonicator, QSonica

  • Tube Holder; 24 tubes, Stem (Blue), Q500 Sonicator, QSonica

  • Tube Holder; 8 tubes, Stem (Green), Q500 Sonicator, QSonica

  • Tube Holder; 8 tubes, Stem (Black), Q500 Sonicator, QSonica

    #451 holds 8 tubes (1.5ml polypropylene, Eppendorf tubes)
  • Flocell, High Volume; Probe, QSonica

  • Flocell; Low Volume, Continuous, Q500 Sonicator, QSonica

  • Water Jacket; Low Volume Flocell, Q500 Sonicator, QSonica

  • Booster; 2:1 gain, Q500 Sonicator, QSonica
