Terra Part # 5323-35
$3,864
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

In stock
Accessories related to Terra Part # 5323-35
66413

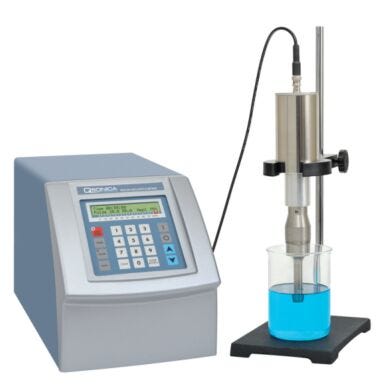

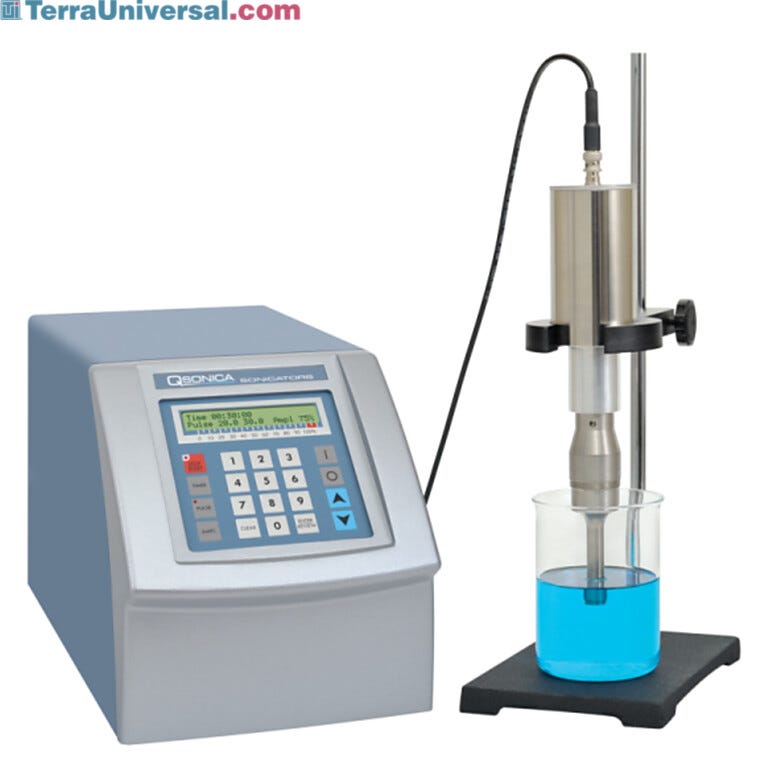

Sonicator; Q500, 1/2" Probe, QSonica, 110 V
  • Powerful ultrasonic processor with a programmable operation and digital display
  • Programmable Timer: 10 hours
  • Adjustable Pulse On/Off: 1 second to 1 minute
  • Wide variety of probes and accessories
  • Includes: Generator, Converter, 1/2" (13mm) probe, power cable, converter cable, and wrench set
  • Power Rating: 500 watts
  • Frequency: 20 kHz
  • Applications: nanoparticle dispersion, emulsions, cell lysis and homogenization
  • Programmable operation: set time and amplitude for hands free operation
  • Pulse mode prevents heat buildup in temperature sensitive samples
  • Digital amplitude/intensity control output set from 20-100%
  • Elapsed time indicator displays sonication duration
  • Real-time energy monitoring with wattage and joules display
  • Overload protection protects circuitry damage in even of a fault
  • RoHS compliant with lead free components

Type: Sonicator

Wattage Output: 500 W

Frequency Output: 20 kHz

Controls: Digital

Design: Benchtop

Pulse Mode Operation: Yes

Model: Q500

Manufactured by: QSonica

Probe Type: Horn

Probe Diameter: 0.5"

Cooling Method: Cup Horn

Manufacturer SKU: Q500-110

Unit of Measure: EA

Electrical Specifications: 110 V, 500 W, 50/60 Hz

Weight, Product: 25 Lbs

Dimensions, Product: 8"W x 15.25"D x 8.5"H

Weight, Shipping: 40 Lbs

Dimensions, Shipping: 19" W x 16" D x 9" H

Buy Accessories
  1. Causes cavitation which constitutes the main mechanism for sample processing. | 5323-01 displayed
    $506
    Increase Down Increase Up
  2. Causes cavitation which constitutes the main mechanism for sample processing. | 5323-01 displayed
    $506
    Increase Down Increase Up
  3. Designed for processing small sample volumes. | 5323-03 displayed
    $323
    Increase Down Increase Up
  4. Designed for processing small sample volumes. | 5323-03 displayed
    $278
    Increase Down Increase Up
  5. Designed for processing small sample volumes. | 5323-03 displayed
    $278
    Increase Down Increase Up
  6. #PS500-110 powerful ultrasonic processor compatible with Q500 QSonica Sonicators | 5323-38 displayed
    $506
    Increase Down Increase Up
  7. Causes cavitation which constitutes the main mechanism for sample processing. | 5323-09 displayed
    $246
    Increase Down Increase Up
  8. Coupler; for Q500 Sonicator, QSonica
    $237
    Increase Down Increase Up
  9. #440 holds 8 tubes | 5323-45 displayed
    $112
    Increase Down Increase Up

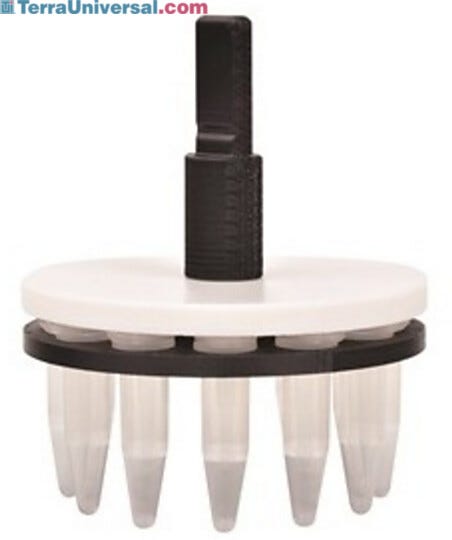

  10. #451 holds 8 tubes (1.5ml polypropylene, Eppendorf tubes) | 5323-48 displayed
    $112
    Increase Down Increase Up

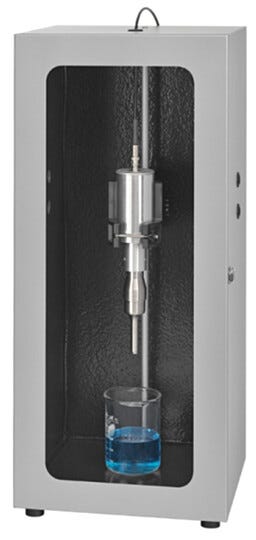

  11. Designed to hold the converter and probe assembly securely while reducing noise level | 5323-06 displayed
    $762
    Increase Down Increase Up
  12. Securely holds the converter and probe assembly in place during operation | 5323-07 displayed
    $108
    Increase Down Increase Up

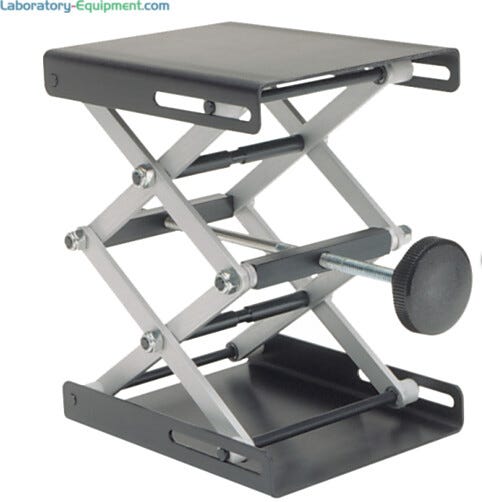

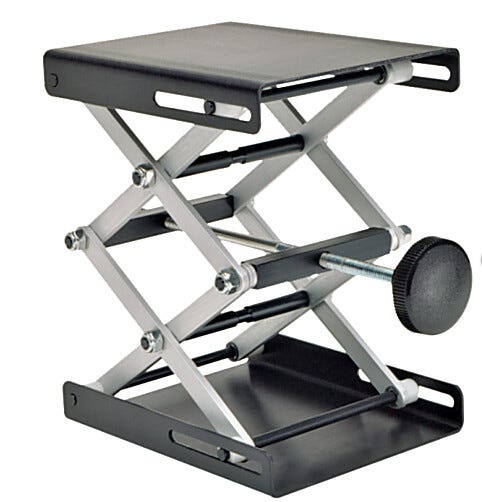

  13. #357 compatible with Sound Enclosure #43282 | 5323-58 displayed
    $134
    Increase Down Increase Up

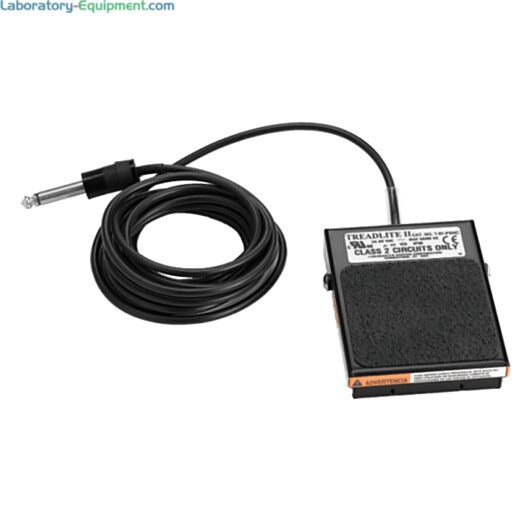

  14. #4004 for hands free operation | 5323-22 displayed
    $76
    Increase Down Increase Up

  • Sonicator; Booster & Probe, QSonica, 220V, 1375W
  • Sonicator; 1/2" Probe, QSonica, 500W, 110V
  • Q55 Sonicator, 110V, w/ 1/8" Probe
  • Q700 Sonicator by QSonica with optional probe and clampstand Q700 Sonicator by QSonica
  • QSonica Q125 Sonicator QSonica Q125 Sonicator

Features and Benefits

QSonica Programmable Sonicator Display

Select QSonica Sonicators feature a programmable microprocessor control for real-time monitoring of time and pulse mode

QSonica Q500 Sonicator Display Panel

Microprocessor Control for real-time monitoring of time and pulse mode.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Replacement Converter; Q125, QSonica

  • Tip Horn, 8; For Q125 Sonicator, QSonica

  • Dual Horn, Double; 3/4" Solid Probes, Q500 Sonicator, QSonica

  • Probe; 3/4" Half Wave Extender, Replaceable Tip, for Q500 Sonicator, QSonica

  • Foot Switch; Sonicators; QSonica

  • Probe; 3/4" High Gain, Replaceable tip, Q500, Sonicator, QSonica

  • Jack Stand; 6" x 6", Q500 Sonicator, QSonica

  • Probe; 1" dia., Nodes, QSonica

  • Probe; 2" dia., QSonica

  • Probe Tip, 5/64", 200ul - 5ml, Very High

  • Microtip, 1/16", 0.2-5ml, Ultra High

  • Large Clamp Stand, for Q700

  • QSonica Sound Enclosure with Converter Holder

    Select QSonica Sonicators available with an optional sound enclosure that reduces noise by 20 dBA; interior wall lined with water acoustical foam
  • Sound Enclosure; Converter Holder, QSonica

  • Probe; 1/2", Replaceable Tip, for Q500 Sonicator, QSonica

    1/2" probe with replaceable tip for Q500 Sonicator by QSonica delivers direct sonication of samples from 20-50ml
  • Probe; Temperature, QSonica

  • QSonica Direct Probes for High Volume Batch Processing

    The three available probes are driven at their resonant frequencies causing them to expand and contract longitudinally
  • QSonica High Volume Flocell with Probe for In-Line Processing

    High Volume Flocell (HVF) Includes #4625 1" Probe
  • Tube Holder; 8 tubes, Stem and Cover (White), Q500 Sonicator, QSonica

  • Tube Holder; 24 tubes, Stem (Blue), Q500 Sonicator, QSonica

  • Tube Holder; 8 tubes, Stem (Green), Q500 Sonicator, QSonica

  • Tube Holder; 8 tubes, Stem (Black), Q500 Sonicator, QSonica

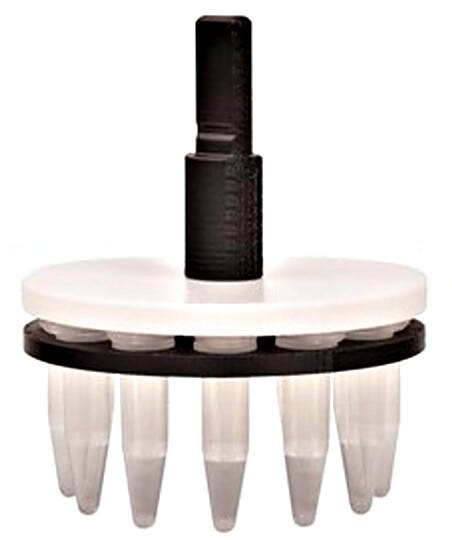

    #451 holds 8 tubes (1.5ml polypropylene, Eppendorf tubes)
  • Flocell, High Volume; Probe, QSonica

  • Flocell; Low Volume, Continuous, Q500 Sonicator, QSonica

  • Water Jacket; Low Volume Flocell, Q500 Sonicator, QSonica

  • Booster; 2:1 gain, Q500 Sonicator, QSonica
