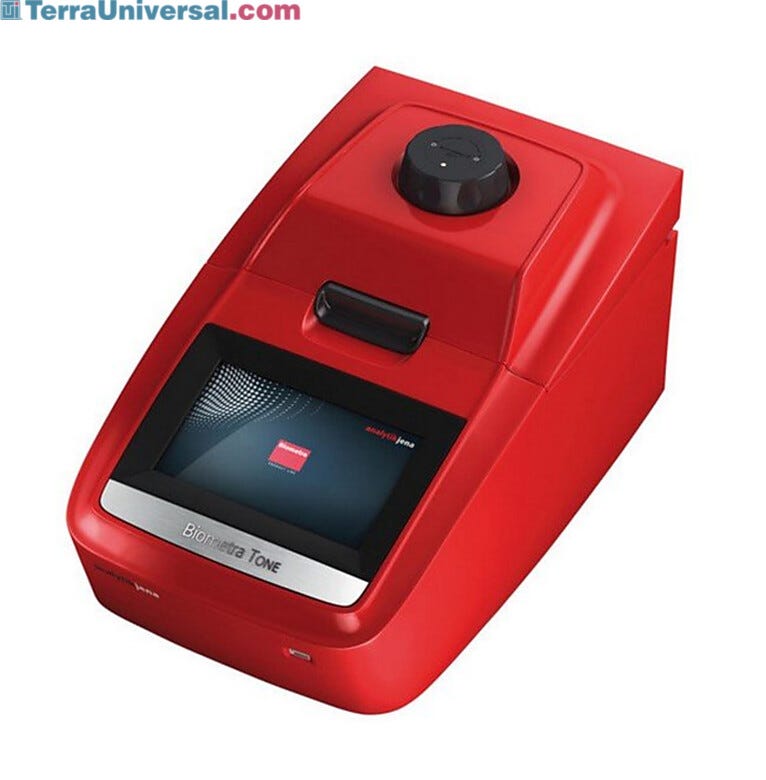

Thermal Cycler; Biometra Tone, 96 Well, 115 V

Stocked
Manufacturer SKU: 846-4-070-311
Manufactured By: Analytik Jena
Print
Need Help?

(714) 578-6100

Mon - Fri, 5:30 AM - 5:30 PM, PST

Chat

Want a quote quickly ?

Submit a QuickQuote request
Demo Available
Demo Available
Terra Part # 1014-80
$4,530
Usually ships in 7-9 business days

Want it faster ? Read about FasTrak

Stocked Item is in stock and ready for immediate shipping
Details & Specs
Related Products

• Economical, Fast Ramping, Best Accuracy: Superior sample block temperature control

• Block Capacity: 96 x 0.2 ml, 96-well microtiter plates, 12 x 8 well strips 0.2 ml

• Max. Heating Rate: 4.0 °C/sec;;Average Heating Rate: 3.8 °C/sec

• High Performance Smart Lid: Defined pressure control for highly reproducible results

• Whisper Quiet: Low noise emission of max. 45 dB

• Block Coating: Special alloy

• Block Material: Aluminum

• Temperature Uniformity: 95 °C ± 0.60 °C after 15s; 70 °C ± 0.30 °C after 15s; 55 °C ± 0.20 °C after 15s

• Control Accuracy: ± 0.1 °C

• Display: 7“ color touchscreen

• Noise emission: Approx. 45 dB max.

• Interfaces: USB A, Ethernet

• Standard Features

• Intuitive multi-step programming for easy design novel thermal cycling protocols

• Direct spreadsheet and graphical programming allows users to quickly modify cycling parameters

• Built-in extended self-testing quickly access the thermal cycler performance and summarizes results in a storable report format.

• • Automatic lid opening mechanism

• • Equipped with preprogrammed templates to meet a wide variety of applications

• DEMO AVAILABLE – Schedule a demonstration unit at your facility for no or low cost excluding freight. Please contact Evan Messenger at 714-578-6124 (Evan@TerraUniversal.com)

Show more

• Dimensions, Product: 10.2"W x 16.9"D x 8.3"H

• Electrical Specifications: 115 V, 50/60 Hz

• Gradient Function: No

• Electrical Specifications: 115 V, 50/60 Hz

• Plug Type: US Plug

• Weight, Product: 25 Lbs

• Weight, Shipping: 40 Lbs

• Dimensions, Shipping: 14"W x 20"D x 12"H

• Package Type: Box

• Unit of Measure: EA

Show more
Other products you may find relevant
  1. Terra's PCR Workstation features a built-in UV light for decontamination of the hood following DNA- and RNA-processing
    From
    $2,728
    Some ship in 25 - 35 days
    Polymerase Chain Reaction (PCR) Workstations
  2. Cleanroom-compatible vibration isolation platform eliminates operator fatigue and nausea during microscope operations | 1580-03 displayed
    $1,441
    Usually Ships in 1 - 3 days
    Platform, Vibration-Free; 304 Stainless Steel, Solid Top, 21.75"W x 18.25"D x 3"H
  3. Pneumatic dampeners isolate work surface from building vibration; ideal for weighing and microscopy work (shown: 60"W model) | 1570-81A displayed
    From
    $3,253
    Some ship in 1 - 3 days
    Vibration-Free Work Stations
  4. Versatile, portable, light-weight platforms isolate vibration in the X-Y plane | 1580-20 displayed
    From
    $442
    Some ship in 5 - 7 days
    Granite Isolators
  5. Cleanroom-compatible vibration isolation platform eliminates operator fatigue and nausea during microscope operations | 1580-03 displayed
    $2,215
    Usually Ships in 1 - 3 days
    Platform, Vibration-Free; 304 Stainless Steel, Solid Top, 24" W x 24" D x 3" H

Features and Benefits

Features and Specifications
Print Copy Copied

Additional Features

  • Automatically restarts after power failure
  • Automatic lid opening mechanism
  • 7" color touchscreen display and intuitive software interface
  • Preprogrammed templates meet a wide variety of applications
  • Intuitive multi-step programming allows users to easily design novel thermal cycling protocols
  • Direct spreadsheet and graphical programming allow users to quickly modify cycling parameters
  • Built-in extended self-testing quickly assesses the thermal cycler performance and summarizes results in a storable report format
  • Provides optimum contact pressure regardless of PCR tubes
  • Heated lid opens at a 90° angle for easy sample access and user safety
Technical Specifications for Biometra TOne 96 and 96G (with Linear Gradient Tool)
Model Biometra TOne 96 Biometra TOne 96G
Gradient Span N/A 0.1 to 20.0°C
Dimensions 10.2 x 16.9 x 8.3 in. (260 x 430 x 210 mm)
Block Capacity 96 x 0.2 ml, 96-well microtiter plates, 12 x 8 well strips 0.2 ml
Block Coating Special alloy
Block Material Aluminum
Max. Heating Rate 4.0°C/sec
Average Heating Rate 3.8°C/sec
Temperature Uniformity 95°C ± 0.60°C after 15s
70°C ± 0.30°C after 15s
55°C ± 0.20°C after 15s
Control Accuracy ± 0.1°C
Display 7“ color touchscreen
Noise emission Approx. 45 dB max.
Interfaces USB A, Ethernet
Software User-specific quick start option for the five most recent programs; program preview before start; option for toggling between table and graph programming mode; linear gradient tool; service info file (SINF) generation; expanded self-test; adjustable heating and cooling rates; gradient temperature diagram view; Ethernet-based PC control; comprehensive user administration tool
