6601-27B-R-RC
Terra Part # 6601-27B-R-RC
$627
Usually ships in 3-5 business days

Want it faster ? Read about FasTrak

In stock soon
Accessories related to Terra Part # 6601-27B-R-RC
84151
Filter; HEPA, 2'x2', Aluminum, Rated 99.999% efficient, for Roomside Replaceable FFU, Roomside Challenge Port
Qty Unit Price %
1 $627 -
2 $596 5%
41 $586 6.5%
Product Details
  • Available Certified ISO Grade Designs: ISO 4, ISO 5, ISO 6, ISO 7, ISO 8
  • Filter Type: HEPA, for Roomside Replaceable FFU with Challenge Port
  • Dimensions: 23-5/8" x 23-5/8" (600 mm x 600 mm), 99.99%
  • Rated 99.99% efficient @ 0.3µ particles
  • Replacement filter for Terra-manufactured 2' x 2' (610 mm x 610 mm) FFU
  • Two holes located in the middle of the filter enable aerosol injection and measuring aerosol concentration. If used on FFUs with built-in adjustable dampers, the center hole provides access to adjust the damper.
  • Because filters are delicate and subject to damage during handling, all filter sales are final; no failure claims can be accepted

• Size: 2'x2'

• Filter Frame Material: Aluminum

• Filter Type: HEPA

• Unit of Measure: EA

• Marks & Listings: UL

• Weight, Product: 11 lb

• Dimensions, Product: 23.625" W x 23.625" D x 5" H

• Weight, Shipping: 59 lb

• Dimensions, Shipping: 53" W x 28" D x 9" H

• Package Type: Crate

Manuals & Resources
Buy Accessories
  1. MERV 7 pre-filter for Terra Fan Filter Units (FFUs)), 4 pack  |  6601-34 displayed
    $170
    Increase Down Increase Up
  2. MERV 7 pre-filter for Terra Fan Filter Units (FFUs)), 12 pack  |  6603-84 displayed
    $454
    Increase Down Increase Up

Fan Filter Units With HEPA & ULPA Filters

  • HEPA filters prevent infections HEPA Filters Prevent Infection
  • Portable HEPA Filtration System Watch Terra's Portable HEPA Filtration System Video
  • Terra Universal WhisperFlow® Filter Fan Units Terra Universal WhisperFlow® Filter Fan Units
HEPA filters prevent infections
Portable HEPA Filtration System
Terra Universal WhisperFlow® Filter Fan Units

Features and Benefits

Learn More: Filter Fan Units Prevent Infection

Did You Know?
HEPA/ULPA Filters Do More Than Meet ISO Requirements - they also prevent infection.

Most cleanroom professionals understand that HEPA and ULPA filters capture contaminants that degrade particle-sensitive samples. But they also help remove bacteria, mold spores, and many viruses that contribute to a host of infections.

Most common bacteria are contained by the 0.3-micron pore size of high-efficiency particular air (HEPA) filters. Ultra-Low Penetration Air (ULPA) filters, which are rated 99.999% efficient at retaining particles of 0.12 microns and larger in diameter, capture ultra-fine contaminants, including many large viruses and mold spores.

These filters also remove aerosol-born pathogens - germs that hitch a ride on larger particles and liquid droplets that are captured in a HEPA or ULPA filter. HEPA- or ULPA-based Fan/Filter Units (FFUs) thus can play an important role in infection prevention in surgical theaters, ICUs and other medical settings.

Additionally, HEPA filters can help filter pollen, tiny insects, bacteria, mold, and other fungal spores that might be present during plant tissue culture or cannabis production. Contaminants such as these can find a way in via personnel or normal HVAC units and can blight crops and reduce yields. HEPA Filters help increase crop yields, pass inspection/meet regulations, and reduce contamination.

Here is a list of common human pathogens that HEPA/ULPA filters capture and remove from circulation:

Pathogens: Bacteria and Diseases
  • SARS-CoV-2: Coronavirus (COVID-19)
  • Escherichia coli: Gastrointestinal infection
  • Bacillus anthracis : Anthrax
  • Aspergillus brasiliensis: Sinus infections
  • Francisella tularensis: Tularemia
  • Bordetella pertusis : Whooping cough
  • Mycoplasma pneumoniae: Pneumonia
  • Chlamydia pneumoniae: Bronchitis
  • Clamydia psittaci : Psittacosis
  • Klebsiella pneumoniae: Opportunistic infections
  • Haemophilus influenzae : Meningitis
  • Coxiella burnetii: Q fever
  • Pseudomonas aeruginosa: Opportunistic infections
  • Actinomyces israelii: Actinomycosis
  • Legionella pneumophila: Legionaire's disease
  • Thermoactinomyces sacchari: Farmer's lung
  • Alkaligenes: Opportunistic infections
  • Streptococcus pyogenes: Scarlet fever
  • Mycobacterium Tuberculosis: Tuberculosis

UL 900 Certified for Fire Safety

HEPA and ULPA filters are UL certified for UL 900 to meet local and state fire safety requirements for most applications. The standard covers requirements and tests for allowable combustibility and amount of smoke generated.

Diffuser Panel Promotes Air Flow Uniformity and Protects Filter Integrity

Unlike other manufacturers, Terra’s FFUs include a unique perforated panel beneath the filter, acting as a shower head, to guarantee filter protection and laminar air flow uniformity, which prevents localized air swirling, particle build-up and turbulence.

Protect Against Contaminants and Pathogens

HEPA and ULPA filters help capture many bacteria, viruses (COVID-19), and mold spores that contribute to a host of infections for both humans and plant/animal tissue cultures

Long Running FFU Motors

Terra’s filter fan unit motors are rated for 5 years of continuous, 24/7 operation, if the HEPA filters are consistently replaced. To accurately monitor your HEPA filter’s saturation levels, purchase Terra’s audible and visual filter replacement alarm system.

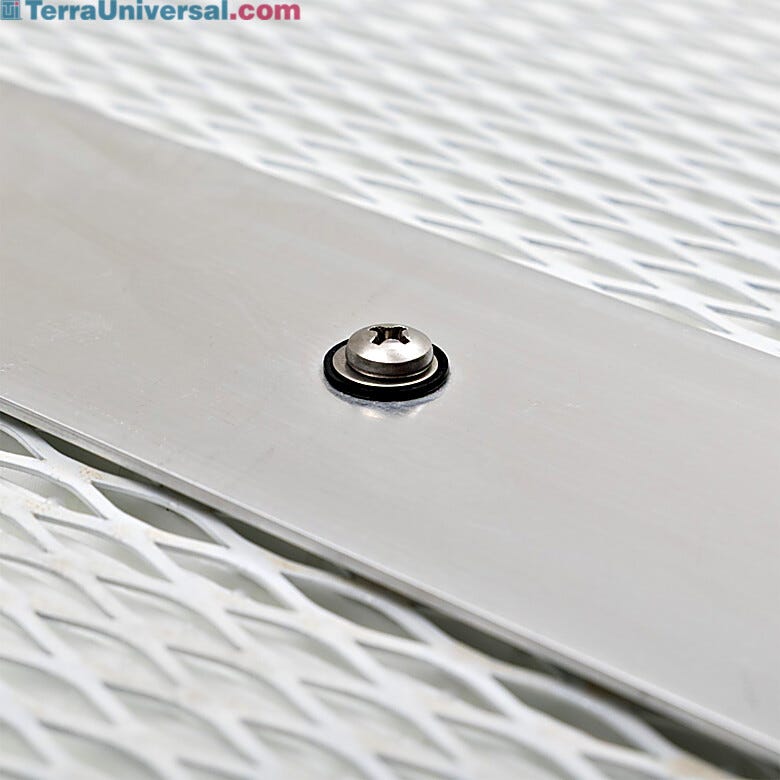

Challenge Port for Fan Filter Unit

Terra made room-side-replaceable filters include an Integrated challenge port for optimal convenience. Challenge report facilities filter leak testing and connection of filter back pressure alarm.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Comprehensive Product Portfolio

Terra’s comprehensive product portfolio includes solutions for every application and budget. Our technical sales staff will guide you toward the product most suitable for your requirements.

Long-Term Customers

Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers

Complete Project Transparency

Terra is dedicated to complete transparency on project status, shipment tracking, and installation scheduling
