3900-87
Terra Part # 3900-87
$29,464
Usually ships in 20-26 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3900-87
57693
Glovebox; Hypoxia, Bactrox, 49" W x 32" D x 33.5" H, 2 Glove Ports, 120 V
Product Details
  • Gloveless design: patented cuffs seal around operator's arms for bare-hand specimen processing
  • Ergonomic arm ports expand range-of-motion, reduce operator fatigue
  • Control panels displays operating conditions, saves pre-programmed sequences
  • Automatic pressure control maintains positive pressure at 3" W.C.
  • Includes: vacuum pump, AMG regulator, sleeve assembly, 7 petri racks, installation and training workshop
  • Capacity: 300 plated cultures
  • Capacity of Passbox: 90 Plates
  • Incubator Interior Dimensions: 27.5"W x 8"D x 13.5"H (699 x 203 x 343 mm); Incubator Volume: 1.7 cu. Ft. (48 L)
  • Airlock Interior Dimensions: 9"W x 10.75"D x 8.5"H (229 x 273 x 216 mm); Airlock Volume: 0.5 cu. Ft. (14L)
  • Interior Outlet: 2, 1 amp. Max (120V); Exterior Outlet, Vacuum: 2
  • Temperature Range: Amb + 5°C to 70°C; Temperature Uniformity: (+/-) 0.5°C
  • Optional start-up kit includes: Anatox odor control, work surface cleaner (Benzalkonium Chloride), spare gasket, scratch remover, plexiglass window cleaner, anaerobic indicator strips, spare o-ring and replacement latex cuffs
  • Precise oxygen and carbon dioxide control from a range of 1% to 20% and in increments of 1/10th of a percent
  • Advanced Atmospheric PID Controller: Highly Accurate Zirconium Dioxide Oxygen Sensor, CO2 Control & Logging, O2 Control & Logging, Uses Ambient Air Pump Instead of O2 Tank, Uses Standard Nitrogen & CO2 Tanks
  • Vibrant LED Exam Lights; Stainless Steel Construction Independent gas and condensation control
  • Product categorized by the Export Administration Regulations (EAR) under Export Control Classification Number (ECCN) 2B352: Biological Processing Equipment.  Export of this product outside of the United States may require a license to be obtained by the exporter, unless the client holds an active license exemption.  Any fees associated with obtaining an export license will be borne by the customer.

• Chamber Width: 33"

• Chamber Depth: 28.9"

• Incubator Volume: 1.8 ft³

• Chamber Volume: 12.5 ft³

• Chamber Height: 25"

• Maximum Working Height: 25"

• Exterior Material: Finished Steel

• Chamber Dimensions: 33"W x 28.9"D x 25"H

• Control Type: Hypoxia

• Interior Material: Stainless Steel

• Window Material: Acrylic

• Number of Glove Ports: 2

• Unit of Measure: EA

• Marks & Listings: CE, UL, ULC, TUV, CUE

• Electrical Specifications: 120 V, 9 A, 1,080 W, 50/60 Hz

• Weight, Product: 324 lb

• Dimensions, Product: 49" W x 32" D x 33.5" H

• Weight, Shipping: 480 lb

• Dimensions, Shipping: 61" W x 47" D x 41" H

• Package Type: Palletized

Buy Accessories
  1. Bactron Sleeve Assembly Size 9 Large Cuffs for Ergonomic Arm Port Doors  |  3901-02 displayed
    $612
    Increase Down Increase Up
  2. Bactron Sleeve Assembly Size 9 Large Cuffs for Ergonomic Arm Port Doors  |  3901-02 displayed
    $612
    Increase Down Increase Up
  3. Foot pedal valve assembly for BACTRON and BACTROX Anaerobic Chambers  |  3901-09 displayed
    Foot Pedal Valve Assembly for BACTRON Anaerobic Chambers Ships Free Free shipping in contiguous USA
    $1,142
    Increase Down Increase Up
  4. Nitrogen Regulator Assembly  |  3901-12 displayed
    Nitrogen Regulator Assembly Ships Free Free shipping in contiguous USA
    $2,424
    Increase Down Increase Up
  5. Bactron Bacloop metal inoculation loop sterilizer is compatible with standard nichrome loops  |  3901-16 displayed
    Bacloop Metal Inoculation Loop Sterilizer 120V Ships Free Free shipping in contiguous USA
    $220
    Increase Down Increase Up
  6. Stainless Steel Petri Dish Rack for BACTRON or BACTROX anaerobic chambers  |  3901-17 displayed
    Rack; Petri Dish, 2x13 (Holds 26 Petri Plates) Ships Free Free shipping in contiguous USA
    $140
    Increase Down Increase Up
  7. Absorbs odors within Bactron and Bactrox Chambers  |  3900-90 displayed
    $494
    Increase Down Increase Up
  8. Benzalkonium Chloride Chamber Cleaner  |  3901-21 displayed
    Cleaner; Benzalkonium Chloride Chamber Cleaner 0.133% - 1 Gallon Ships Free Free shipping in contiguous USA
    $118
    Increase Down Increase Up
  9. Removes volatile fatty acids and sulfur compounds to extend the life of BACTRON palladium catalyst  |  3900-88 displayed
    Anatox Fan, Bactron and Bactrox Ships Free Free shipping in contiguous USA
    $366
    Increase Down Increase Up
  10. Stand; Rolling, 48.1" W x 30" D x 29.3" H, for BACTRONEZ and BACTROX
    $2,231
    Increase Down Increase Up
  11. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  12. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  13. Equipment Testing
    Request Quote
    Increase Down Increase Up
  14. White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  15. Bactron Sleeve Assembly Size 9 Large Cuffs for Ergonomic Arm Port Doors  |  3901-02 displayed
    $612
    Increase Down Increase Up
  16. Anaerobic Mixed Gas (AMG) Regulator for Shelf Labs BACTRON and BACTROX glove boxes  |  3901-10 displayed
    Anaerobic Mixed Gas (AMG) Regulator Ships Free Free shipping in contiguous USA
    $826
    Increase Down Increase Up
  17. Stainless Steel Petri Dish Rack for BACTRON or BACTROX anaerobic chambers  |  3901-17 displayed
    Rack; Petri Dish, 2x11 (Holds 22 Petri Plates) Ships Free Free shipping in contiguous USA
    $120
    Increase Down Increase Up

Low Oxygen Glove Box Isolators by Shel Labs

  • Shel Lab Bactrox Hypoxia Chamber Shel Lab Bactrox Hypoxia Chamber

Features and Benefits

Bactrox Hypoxia Chamber

Bactrox Hypoxia Chamber

Shel Lab Bactrox Hypoxia Chamber
  • Precise oxygen and carbon dioxide control from a range of 1% to 20% and in increments of 1/10th of a percent
  • 300 plate capacity with a working chamber volume of 13.7 (388 L)
  • Advanced Atmospheric PID Controller: Highly Accurate Zirconium Dioxide Oxygen Sensor, CO2 Control & Logging, O2 Control & Logging, Uses Ambient Air Pump Instead of O2 Tank, Uses Standard Nitrogen & CO2 Tanks
  • Independent Incubator (5°C above ambient to 70°C) has a 300 plate capacity, temperature control and logging and it incubates your samples and experiments
  • Ultra-Fast Extra Large Pass Box: completes cycle time in 60 seconds with a 90 plate capacity
  • Vacuum-Less Sleeve Entry for easy chamber access that eliminates need for foot pedal
  • Vibrant LED Exam Lights: Stainless Steel Construction Independent gas and condensation control; CE Certification on 230V models
  • Features: RSS232 data collection; Condensation control; easy chamber access via sleeves; PC calibration of oxygen sensor; independent gas controls; standard microscope adapter accessories
  • Applications: Stem Cell Research, Mammalian Cancer Research, Clinical Microbiology, and Research Microbiology
  • One-Year Manufacturer Limited Time Warranty

The Bactrox Hypoxia Chamber is a complete workstation that provides oxygen and carbon dioxide control for the optimum growth of cells and bacteria. Unlike a tri-gas incubator, these units perform microaerophilic bacteriology and hypoxic tissue or cell culture processes in desired oxygen conditions throughout all culturing processes.

Specifications
  • Exterior Dimensions (W x D x H): 48.7 x 31.3 x 32.5 in. (1237 x 795.1 x 825.5 mm)
  • Working Chamber Interior Dimensions (W x D x H): 33 x 28.5 x 25 in. (838.5 x 724 x 635 mm)
  • Incubator Interior Dimensions (W x D x H): 27.5 x 8 x 13.5 in. (698.5 x 203.2 x 343 mm)
  • Airlock Interior Dimensions (W x D x H): 9 x 10.75 x 8.5 in. (229 x 273.10 x 216 mm)
  • Material: Stainless Steel
  • Electrical Requirements: 110V-120V/220V-240V 50/60Hz, 1100W, 9.17A
  • Nominal Voltage: 50/60Hz (V) 110-120/220-240
  • Maximum Energy Consumption (W): 1100/1440
  • Capacity of Independent Incubator: 300 Plates
  • Capacity of Passbox: 90 Plates
  • Airlock Volume: 0.5 cu. ft. (14L)
  • Working Chamber Volume: 13.7 cu. ft. (388 L)
  • Incubator Volume: 1.7 cu. ft. (48 L)
  • Communications: RS232
  • Temperature Range: Amb + 5°C to 70°C
  • Temperature Uniformity: (±) 0.5°C
  • Petri Plate Racks: Includes 7

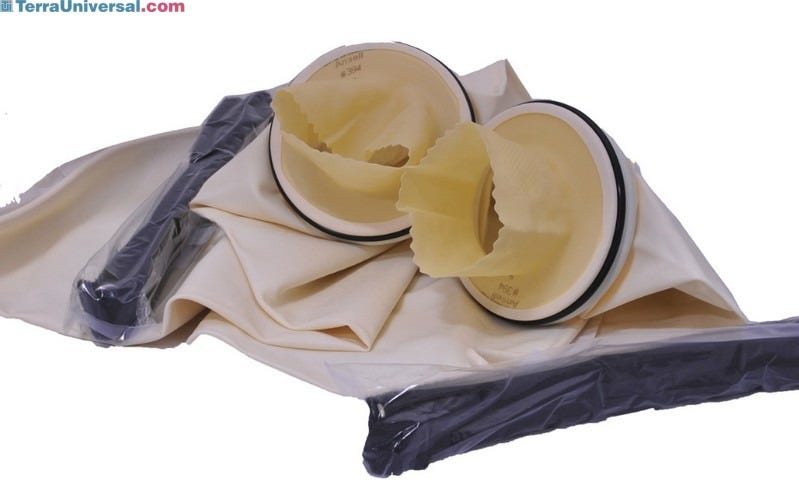

Sleeve Assembly Cuffs for BACTRON and BACTROX Ergonomic Arm Port

For use with BACTRON (EZ, 300, 600, 900) and BACTROX Chambers For ergonomic armports Includes sleeves, cuffs and O-rings

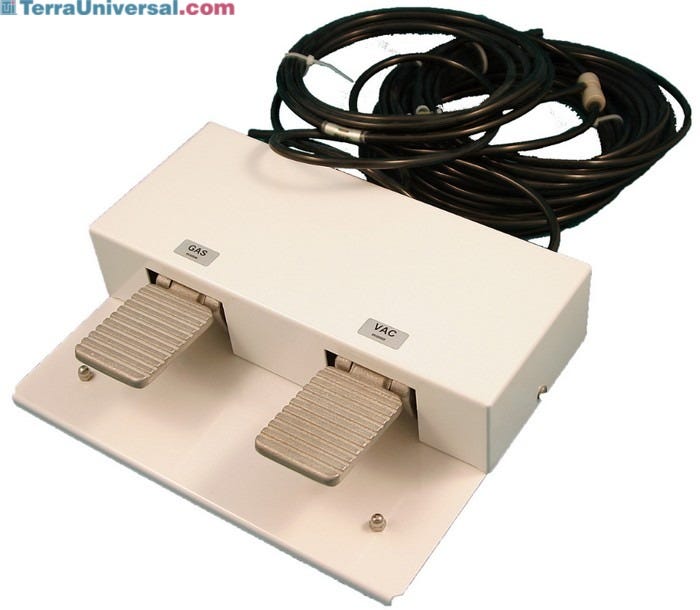

BACTRON or BACTROX Anaerobic Chambers Foot Pedal Valve

Use foot pedal valve assembly to evacuate sleeves of BACTRON and BACTROX Anaerobic Chambers prior to accessing chamber.

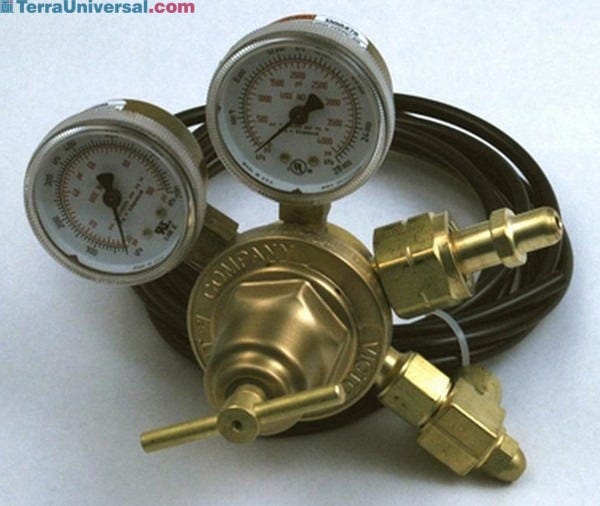

Bactron Anaerobic Mixed Gas Regulator

Anaerobic Mixed Gas (AMG) Regulator for Shelf Labs BACTRON and BACTROX glove boxes includes barbed adapter fitting and 10 ft. flexible tubing; delivers precise and constant outlet pressure ideal for most lab applications.

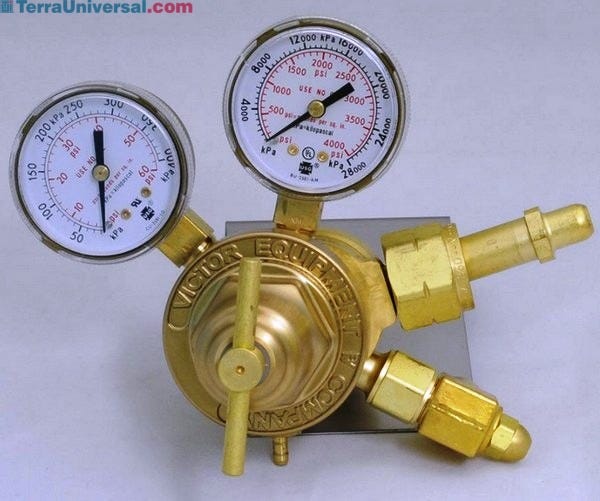

Bactron VTS 250 Series Hydrogen Regulator

VTS 250 Series regulator for medium duty gas services with BACTRON and BACTROX glove boxes; delivery range for Hydrogen: 4-80 PSIG

Bactron Nitrogen Regulator Assembly

Delivers precise and constant outlet pressure that is ideal for most laboratory applications. Delivery gauge range is 2-40 PSIG. Includes barbed adapter fitting and 10 feet of flexible tubing.

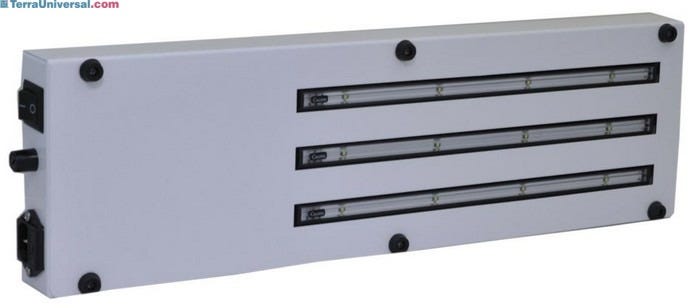

BACTRON or BACTROX Exterior LED Light Fixture

This BACTRON or BACTROX fixture is used on the top of the the chamber to increase workspace light. It has three independantly adjustable LED light bars.

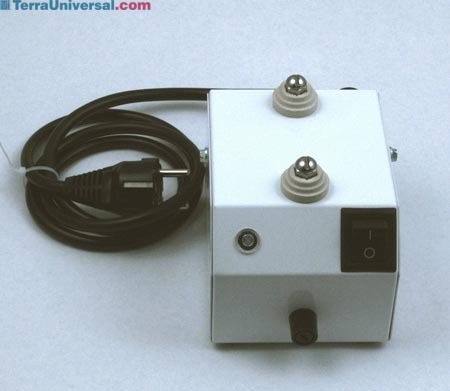

Bacloop Metal Inuculation Loop Sterilizer

For use inside or outside BACTRON and BACTROX Chambers, this resistance-based heater is suited to many microbilogy applications and compatible with standard nichrome loops. Adjustable electrode posts can be used with other wire length loops.

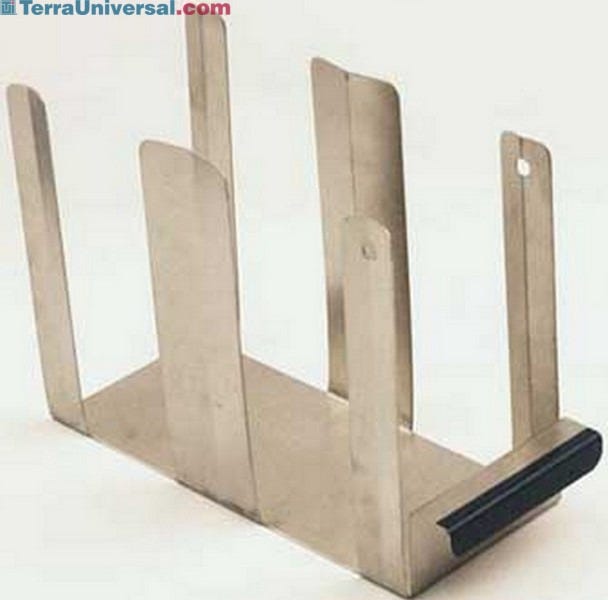

Stainless Steel Petri Dish Rack for BACTRON or BACTROX anaerobic chambers

Stainless Steel Petri Dish Rack for BACTRON or BACTROX anaerobic chambers holds 26 Petri Plates.

Anatox Activated Charcoal, 2 lbs.

Anatox Activated Charcoal absorbs odors within BACTRON and BACTROX Chambers

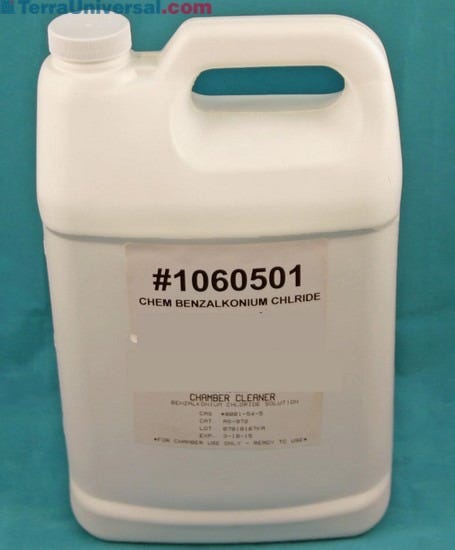

Benzalkonium Chloride Chamber Cleaner

Use with BACTRON and BACTROX Chambers

Anatox Fan for Bactron and Bactrox Anaerobic Glove Boxes

The Anatox fan removes volatile fatty acids and sulfur compounds to extend the life of BACTRON palladium catalyst.

Barrel Adapter Assembly; Size 1cc

BactronEZ and Bactrox Microscope Adapter

Compatible with: Leica S6 Spotting Stereo Microscope For use with BactronEZ and Bactrox models
