3644-02
Terra Part # 3644-02
$58,896
Usually ships in 30-34 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3644-02
51486
Glovebox; Protector Filtered, Stainless Steel Liner, 108.9" W x 31" D x 45.7" H, 4 Glove Ports, Protector Series, 120 V
Product Details
  • Available ISO Ratings: ISO 5, ISO 6, ISO 7, ISO 8
  • ULPA filtration maintains ISO Class 4 conditions in work area
  • Requires Supporting Base
  • Factory leak-tested with a mass spectrometer while pressurized with Helium at 1 inch of water gauge
  • Particulate containment <20nm/cm≈ as confirmed by Safebridge Consultants
  • LCD display that provides real time monitoring of volume dilution rates in cubic feet per minute (CFM), air changes/minute (ACM), and main chamber pressure (in inches of water)
  • Large viewing area, 36" W x 27.6" H (914 x 701 mm), for maximum viewing capabilities

Model: Protector Filtered

Material Type: Stainless Steel

Number of Glove Ports: 4

Chamber Material: Powder Coated Steel

Window Material: Laminated Safety Glass

Liner Material: Stainless Steel

Chamber Width: 81.8"

Chamber Depth: 30"

Chamber Height: 44"

Maximum Working Height: 39"

Filter: ULPA

Unit of Measure: EA

Marks & Listings: CE

Electrical Specifications: 120 V, 10 A, 1,200 W, 50/60 Hz

Dimensions, Product: 108.9" W x 31" D x 45.7" H

Weight, Shipping: 1,300 lb

Dimensions, Shipping: 144" W x 44" D x 56" H

Package Type: Palletized

Buy Accessories

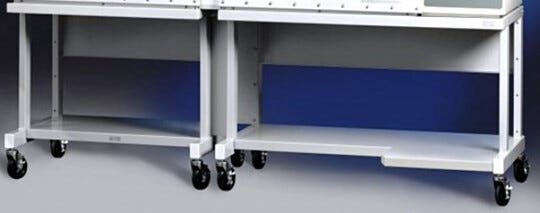

  1. Designed to support Protector and Precise Glove Boxes  |  3643-24 displayed
    $6,125
    Increase Down Increase Up
  2. Foot Switch, Blower, for Protector Labconco Gloveboxes
    $626
    Increase Down Increase Up
  3. Gloves, Neoprene, Size 8 1/2, one pair, for Labconco Gloveboxes
    $521
    Increase Down Increase Up
  4. Gloves, Neoprene, Size 9-3/4, one pair, for Labconco Gloveboxes
    $521
    Increase Down Increase Up
  5. One-piece, seamless gloves for use with Labconco glove boxes
    $713
    Increase Down Increase Up
  6. One-piece, seamless gloves for use with Labconco glove boxes
    $735
    Increase Down Increase Up
  7. Hypalon glove and sleeve combination provides superior  dexterity  |  3643-02 displayed
    $604
    Increase Down Increase Up
  8. Hypalon glove and sleeve combination provides superior  dexterity  |  3643-02 displayed
    $604
    Increase Down Increase Up
  9. Straight Sleeves, one pair, for Labconco Gloveboxes
    $521
    Increase Down Increase Up
  10. Meets demanding daily ventilation requirements of various hood types  |  3645-52 displayed
    $1,461
    Increase Down Increase Up
  11. Shown are exterior glove port covers placed over gloveports on a Labconco glovebox.   |  3643-51 displayed
    $184
    Increase Down Increase Up
  12. Glove Port Cover, Interior, for Labconco Gloveboxes
    $1,413
    Increase Down Increase Up
  13. Window, Polycarbonate Viewing, for Labconco Glove boxes
    $1,763
    Increase Down Increase Up
  14. Flowmeter, for Protector Labconco Glove boxes
    $683
    Increase Down Increase Up
  15. Thimble Exhaust Connect, 6", for Protector Labconco Glove boxes
    $670
    Increase Down Increase Up
  16.  |  3643-46 displayed
    $254
    Increase Down Increase Up
  17. Filter, Gas and Vacuum, 0.2 Micron, for Labconco Gloveboxes
    $477
    Increase Down Increase Up
  18. Replacement Media for Molecular Sieve, for Labconco Gloveboxes
    $154
    Increase Down Increase Up
  19. Filters particulates before entry in to vacuum pump.  |  3644-19 displayed
    $761
    Increase Down Increase Up

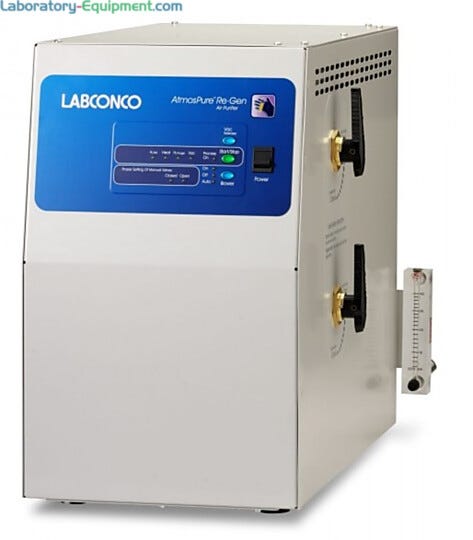

  20. Maintains ultrapure inert atmosphere, with low oxygen and mositure ppm levels, in controlled atmosphere glove boxes  |  3644-18 displayed
    $14,146
    Increase Down Increase Up
  21. Filters the glove box's inlet and outlet as the inert gas is purified.  |  3644-20 displayed
    $127
    Increase Down Increase Up
  22. Filters the glove box's inlet and outlet as the inert gas is purified.  |  3644-21 displayed
    $254
    Increase Down Increase Up

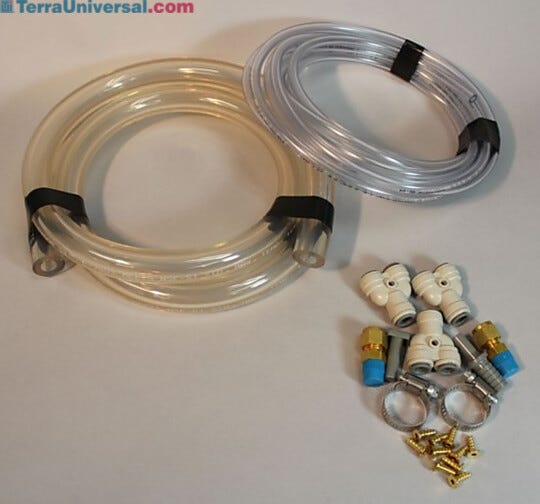

  23. Regenerates plumbing connections  |  3644-22 displayed
    $235
    Increase Down Increase Up

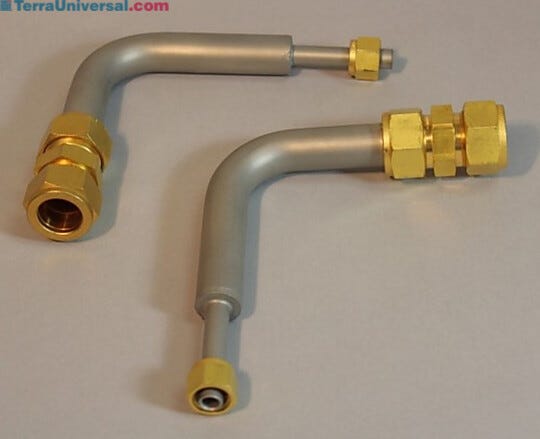

  24. Fittings permit neoprene hose (not included) to attach to Precise Glove Box's inlet/outlet.  |  3644-27 displayed
    $288
    Increase Down Increase Up

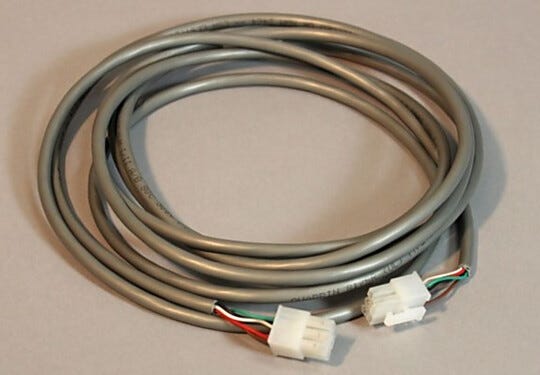

  25. Allows AtmosPure and glove box configured with Auto Pressure Controller to share one vacuum pump.  |  3644-28 displayed
    $159
    Increase Down Increase Up

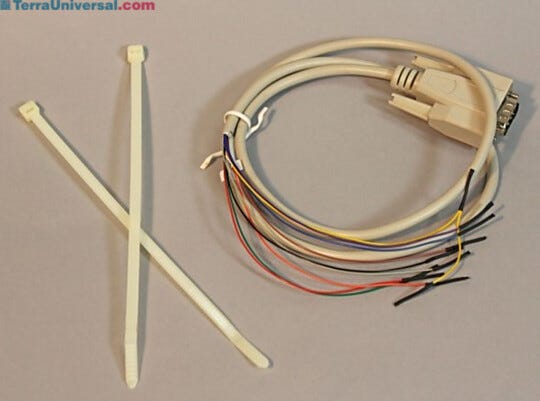

  26. Allows for automatic control of the AtmosPure blower from an accessory Oxygen or Mositure Monitor  |  3644-29 displayed
    $156
    Increase Down Increase Up

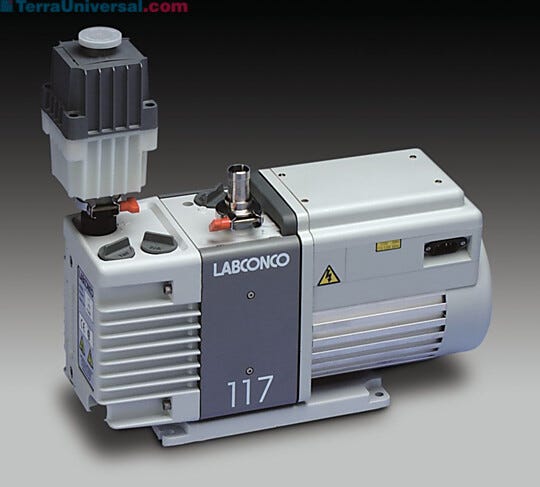

  27. Rotary Vane Vacuum Pump by Labconco delivers a reliable vacuum source for lyophilizers, glove boxes and  concentrators  |  3643-79 displayed
    $4,524
    Increase Down Increase Up
  28. For use with Class II, Type A2 and B2 Biosafety Cabinets  |  3647-40 displayed
    $293
    Increase Down Increase Up
  29. Measures dew point range from -80 to 0C or 0 to 6000 ppm.  |  3644-30 displayed
    $5,977
    Increase Down Increase Up

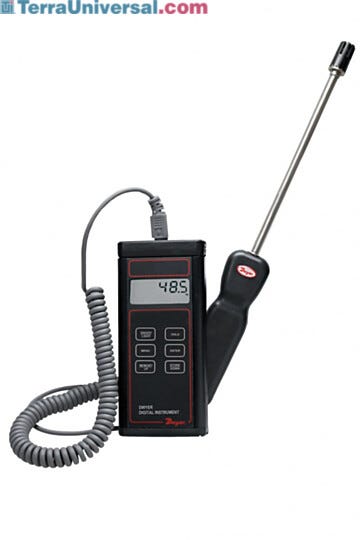

  30. Hand-held Digital Hygrometer, measures % RH from 0-100% and temperature in °F or °C; calculates dew point and wet bulb temperature based on RH and temp readings  |  3643-58 displayed
    $853
    Increase Down Increase Up
  31.  |  3643-71 displayed
    $4,025
    Increase Down Increase Up
  32.  |  3643-71 displayed
    $5,888
    Increase Down Increase Up
  33.  |  3643-71 displayed
    $1,545
    Increase Down Increase Up
  34. Add-A-Valve kit for Labconco Glove boxes
    $376
    Increase Down Increase Up
  35. Pass through Installation kit, for Plastic Labconco glove box
    $203
    Increase Down Increase Up
  36. White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  37. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  38. Equipment Testing
    Request Quote
    Increase Down Increase Up
  39. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up

Glove Box Isolators by Labconco

  • Protector Filtered Glove Box by Labconco
  • Labconco Protector Fiberglass Controlled Atmosphere Glove Box Labconco Controlled Atmosphere Glovebox

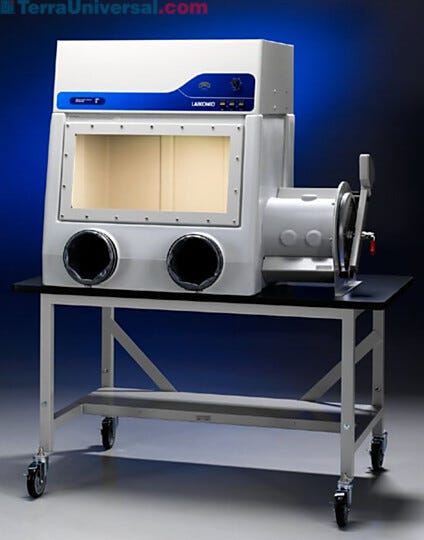

  • Labconco Precise Controlled Atmosphere Glovebox Labconco Precise Series Controlled Atmosphere Glove Boxes
  • Protector Combination Glove Box with Stainless Steel Lining Labconco Stainless Steel Protector Filtered Glove Boxes
  • Labconco Protector Filtered Glove Box Labconco Protector Filtered Glove Box
  • Labconco Protector Stainless Steel Double Filtered Glove Box Labconco Protector Stainless Steel Double Filtered Glove Box
  • Protector Filtered Barrier Isolator Glove Box with HEPA Filter Protector Filtered Barrier Isolator Glove Box with HEPA Filter
  • Labconco Protector Combination Glove Boxes Labconco Protector Combination Glove Boxes
  • Labconco Precise Basic Glove Box With Stand Labconco Precise Basic Glove Box

Features and Benefits

Learn More: Labconco Protector Combination Glove Boxes

Labconco Combination Glove Boxes – Controlled Atmosphere and Filtered

Protector Combination Glove Boxes merges the features of filtered and controlled atmosphere models into one unit. Closure of two internal valves converts the box to a controlled atmosphere glove box that can be pressurized up to ±5 inches of water gauge for a leak-tight inert atmosphere. When atmosphere-sensitive procedures are complete, opening the two internal valves allows air from inside the box to pass through a HEPA outlet filter and optional second HEPA or Carbon outlet filter before exhausting via a ductwork to the outside. The physical barrier and filtration system protect users from exposure to hazardous materials and contamination-sensitive materials from degradation.

Additional Features of Protector Combination Isolation Glove Boxes
  • Automatic control of main chamber pressure, main chamber evacuation and filling cycles and transfer chamber evacuation and filling cycles
  • Factory-leak tested with a mass spectrometer while pressurized with Helium at 5 inches of water gauge
  • Detectable leaks: No greater than 1 x 10-6 ml/sec
  • LCD display provides real time monitoring of volume dilution rates in cubic feet per minute (CFM), air changes/minute (ACM), main chamber pressure (inches of water), and transfer chamber in inches of mercury and mBar
  • Interior right-hand side wall-mounted electrical receptacle with 10 amp maximum (100/115 volt models) or 10 amp maximum (230 volt models) circuit load
  • Two 8” ID, epoxy-coated aluminum double-grooved glove ports mounted 17” apart, with neoprene gaskets
  • RS-232 port, gas/liquid port, or port for oxygen or moisture monitor
  • Two 25-watt fluorescent lights
Features of Protector Filtered Glove Boxes
  • Airborne particulate cleanliness (measured under positive and negative pressures per ISO 14644-1 test method) exceeds ISO Class 5 conditions and achieves ISO Class 4 conditions
  • Inlet and outlet HEPA filters, 99.99% efficient on 0.3 micron particulates, rated for 70 CFM at <0.90" static pressure
  • Particulate containment: <20 nanograms per cubic meter as confirmed by SafeBridge Consultants, incorporated
  • Test port: HEPA or ULPA filter integrity
  • Safe filter removal and replacement with true bag-in/bag-out filter disposal system
  • Built-in blower speed control: from 15 CFM to 85 CFM depending on voltage and frequency
  • Clean up time: 0.05 ppm average tracer gas levels or less detected during perimeter scan testing (surpasses ASHRAE 110 standards) after 5 minute dilution
  • Inlet and outlet particulate (HEPA or ULPA) filters provides a leak-tight environment preventing contaminants from entering or exiting chamber
  • One-piece molded fiberglass liner
  • Clear acrylic inner and outer transfer chamber doors
Features of Protector Controlled Atmosphere Glove Boxes
  • Exceeds Class 1 atmosphere containment conditions for oxygen permeation less than 1.67 ppm/min per ISO 10648-2 test method
  • Oxygen permeation: <0.3 ppm/min (fiberglass-lined models) and <0.15 ppm/min (stainless steel-lined models) per ISO 10648-2
  • Input/Output port for optional AtmosPure Re-Gen Gas Purifier
  • Four manual valves with 3/8” compression fittings (two on main chamber and two on transfer chamber for evacuating, filling and added control
  • Main chamber pressure: automatic control (-5 to +5 inches of water gauge)
  • Main chamber evacuation and filling cycles: up to 499 cycles
  • Evacuation and filling cycles of transfer chamber evacuation: up to 199 cycles
  • Vacuum/pressure regulation: between -5 and +5 inches of water gauge in the main chamber and between 0 and -29.5 inches of mercury in the transfer chamber

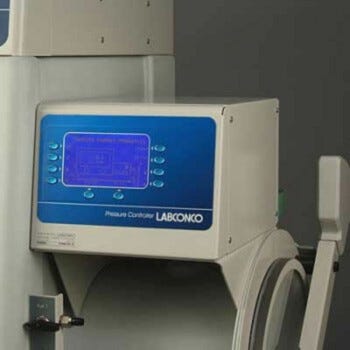

  • Alarms: mutable and audible (when pressure/vacuum level is outside set limits
  • Three-position foot pedal: increasing gas/fill, off, evacuate/decrease gas
  • Factory-installed, rear-mounted, low profile stainless steel pressure relief bubbler at ±6 inches of water gauge
  • Two rear-mounted inlet and outlet 3/4” OD compression fittings for easy connection to optional AtmosPure™ Re-Gen Gas Purifier or other accessory drying train
Fiberglass and Stainless Steel Models

The fiberglass-lined models feature a one-piece molded fiberglass liner with clear acrylic inner and outer transfer chamber doors. This model has been performance tested to maintain oxygen levels as low as 0.4 ppm and moisture levels as low as 2 ppm. The oxygen permeation is less than 0.3 ppm/min per ISO 10648-2 and illumination exceeds 120 footcandles.

The stainless steel-lined models feature a Type 304 stainless steel liner with Type 304 stainless steel inner and outer transfer chamber doors. Type 304 stainless steel material also comprises the front panel. This model has been performance tested to maintain oxygen levels as low as 0.2 ppm and moisture levels as low as 1 ppm. The oxygen permeation is less than 0.16 ppm/min per ISO 10648-2 and illumination exceeds 80 footcandles.

AtmosPure Re-Gen Gas Purifier

This gas purifier maintains ultrapure inert atmosphere within the Protector® Controlled Atmosphere Glove Boxes. It has the capacity to remove 5 liters of oxygen gas (13,500 ppm) and 660 grams of moisture (water vapor) which is equivalent to 18 million ppm. The regeneration is, in turn, completed in 13 hours. Additionally, the leak rate is ± 0.000001 mL/sec.

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Latex Gloves, Size 9-3/4, one pair, for Labconco Glove Boxes

    Choose latex gloves for optimal dexterity, gloves also available in neoprene, butyl and hypalon, with one or two-piece configurations.
  • Fan, Anti-static Ionizer, 100/115V, 50/60hz, for Labconco Glove boxes

    Labconco Anti-Static Ionizer Fan, compatible with Protector, Precise and XPert Glove Boxes, neutralizes static charge by circulating ionized air inside containment glove boxes; features a dual steady state DC circulator and easily mounts to light support.
  • Vibration Isolator, for Labconco Glove boxes

    Balance Vibration Isolator for Labconco Glove Boxes minimizes vibration within the chamber improve accuracy of sensitive analytical balances; includes a thick marble slab, 4 isolator pads and a 304 stainless steel protective top cover
  • Adjustable Height Mobile Stand for Labconco Glove Boxes

    Stationary and mobile adjustable-height stands provide stable support for 2- or 4-port Protector and Precise Glove Boxes (mobile stand shown with 5" casters)
