Select Product

Voltage

Chamber Material

Window Material

Chamber Width

Model

Liner Material

Terra Part #PriceShips in
120 VPowder Coated SteelLaminated Safety Glass81.8"30"44"Protector Filtered4Stainless Steel 3644-02 51486 $58,13130-34 Days2
120 VPowder Coated SteelLaminated Safety Glass35"30"44"Protector Filtered2Stainless Steel 3644-01 51484 $29,07330-34 Days3
120 VPowder Coated SteelLaminated Safety Glass35"30"44"Protector Filtered2 3644-00 51482 $23,26030-34 Days4
Voltage
Chamber Material
Window Material
Chamber Width
Chamber Depth
Chamber Height
Model
Number of Glove Ports
Liner Material
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

  • HEPA filtration maintains ISO Class 3 conditions in work area
  • Includes: LCD display, built-in blower( airflow from 15 CFM to 85 CFM) and neoprene gloves
  • Required accessories: Adjustable Height Base Stands
  • Optional Accessories: Anti-Static Ionizer Fan, Balance Vibration Isolator and HEPA Inlet or Exhaust Filter

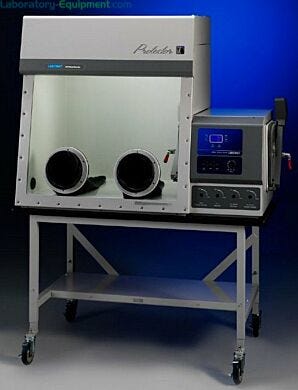

  • Protector Filtered Barrier Isolator Glove Boxes by Labconco feature an inlet/outlet for HEPA or ULPA filtration for a leak-tight barrier ideal for labs working with hazardous materials
  • Fiberglass (2-glove ports) and stainless steel (2- and 4-glove ports) barrier isolator glove boxes have a particulate containment of <20 nanograms per cubic meter as confirmed by Safebridge Consultants
  • Large viewing area, 36"W x 27.6" H (914 mm x 701 mm) for maximum viewing capabilities
  • Factory leak-tested with a mass spectrometer while pressurized with Helium at 1 inch of water gauge
  • LCD display that provides real time monitoring of volume dilution rates in cubic feet per minute (CFM), air changes/minute (ACM), and main chamber pressure (in inches of water)

Glove Box Isolators by Labconco

  • Protector Combination Glove Box with Stainless Steel Lining Labconco Stainless Steel Protector Filtered Glove Boxes
  • Labconco Protector Filtered Glove Box Labconco Protector Filtered Glove Box
  • Labconco Protector Stainless Steel Double Filtered Glove Box Labconco Protector Stainless Steel Double Filtered Glove Box
  • Protector Filtered Barrier Isolator Glove Box with HEPA Filter Protector Filtered Barrier Isolator Glove Box with HEPA Filter

Features & Benefits

Features & Benefits

Labconco Protector HEPA-Filtered Glove Boxes

Additional Features of Precise HEPA-Filtered Glove Boxes with Polyethylene Liner

  • Clean-up time: 0.05 ppm average tracer gas levels or less detected during perimeter scan testing (surpasses ASHRAE 110 standards) after 5 minute dilution Test port for testing HEPA or ULPA filter integrity Filter removal and replacement: True Bag-In/Bag-Out Filter Disposal System
  • LCD display: real time monitoring of volume dilution rates in cubic feet per minute (CFM), air changes/minute (ACM), and main chamber pressure (inches of water). Chamber transfer doors pivot upward (counterbalanced and equipped with quick-latches)
  • Interior right-hand side wall-mounted pass-through plug for on-site installation of an optional accessory: electrical outlet, RS-232 port, gas/liquid port, or port for oxygen or moisture monitor
  • Pair of neoprene gloves, 0.015” thick, 30” long, size 9 ¾
  • Switches for light, blower and electrical duplex
  • Two 8” ID, epoxy-coated aluminum double-grooved glove ports mounted 17” apart, with neoprene gaskets
  • Two 25-watt fluorescent lights that exceed 100 footcandles
Fiberglass and Stainless Steel Liners

Chemical-resistant fiberglass-lined models feature inlet and outlet HEPA filters that have a 99.99% efficiency rate on particulates 0.3 microns or larger. Models are composed of a one-piece molded fiberglass liner. There are clear acrylic inner and outer transfer chamber doors for convenient viewing of materials in the glove box.

Stainless steel-lined models utilize inlet and outlet ULPA filters. These glove boxes have an efficiency of 99.999% on particulates that are 0.12 microns or larger. This model has Type 304 stainless steel liners, Type 304 stainless steel inner and outer transfer chamber doors, and the front panel is also comprised of Type 304 stainless steel.

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Latex Gloves, Size 9-3/4, one pair, for Labconco Glove Boxes
    Choose latex gloves for optimal dexterity, gloves also available in neoprene, butyl and hypalon, with one or two-piece configurations.
  • Fan, Anti-static Ionizer, 100/115V, 50/60hz, for Labconco Glove boxes
    Labconco Anti-Static Ionizer Fan, compatible with Protector, Precise and XPert Glove Boxes, neutralizes static charge by circulating ionized air inside containment glove boxes; features a dual steady state DC circulator and easily mounts to light support.
  • Vibration Isolator, for Labconco Glove boxes
    Balance Vibration Isolator for Labconco Glove Boxes minimizes vibration within the chamber improve accuracy of sensitive analytical balances; includes a thick marble slab, 4 isolator pads and a 304 stainless steel protective top cover
  • Adjustable Height Mobile Stand for Labconco Glove Boxes
    Stationary and mobile adjustable-height stands provide stable support for 2- or 4-port Protector and Precise Glove Boxes (mobile stand shown with 5" casters)
