Select Product
Voltage

Chamber Material

Window Material

Chamber Width

Chamber Depth

Chamber Height

Model

Liner Material

Terra Part # Price Ships in
120 V Powder Coated Steel Laminated Safety Glass 35.5" 33" 44" Protector Combination 2 Fiberglass 3644-15 51500 $34,034 30-34 Days 2
120 V Powder Coated Steel Laminated Safety Glass 35.5" 33" 44" Protector Combination 2 Stainless Steel 3644-16 51502 $38,862 30-34 Days 3
120 V Powder Coated Steel Laminated Safety Glass 81.8" 33" 44" Protector Combination 4 Stainless Steel 3644-17 51504 $65,098 40-44 Days 4
Voltage
Chamber Material
Window Material
Chamber Width
Chamber Depth
Chamber Height
Model
Number of Glove Ports
Liner Material
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • HEPA or ULPA filtration maintains ISO Class 5 conditions in work area
  • Available in two- or four-glove port models
  • Provides an enclosed environment for handling hazardous substances and atmosphere-sensitive materials
  • Material: Fiberglass or stainless steel interior, dry-powder, epoxy-coated 18 and 20 gauge steel exterior panels
  • Two internal valves: converts glove box from a flow-through filtered unit to an inert atmosphere unit
  • Stainless steel glove box models with ULPA filter in 2- or 4- glove port models
  • Fiberglass (chemical resistant, molded) glove box models with HEPA filter in 2-glove port models
  • Features: built-in pressure control module and foot pedal, large viewing area, factory-leak tested, neoprene gloves (0.015” thick, 30” long, size 9 ¾), LCD display, inner and outer transfer chamber doors pivot upward (counterbalanced with quick-latches), centrally-mounted interior duplex receptacle (4 glove port models only), switches for light and electrical duplex
  • Viewing area: 36"W x 27.6" H (914 mm x 701 mm) for maximum viewing capabilities
  • Viewing window: 3/8” thick laminated safety glass
  • Built in blower with speed control capable of airflow from 15 CFM to 85 CFM (25.5 m³/hr. to 144.4 m³/hr.)
  • Particulate containment of less than 20 nanograms per cubic meter
  • Filtered and controlled atmosphere glove boxes achieve ISO Class 1, 4 or 5 containment conditions

Glove Box Isolators by Labconco

  • Labconco Protector Combination Glove Boxes Labconco Protector Combination Glove Boxes
Features & Benefits

Features & Benefits

Learn More: Labconco Protector Combination Glove Boxes

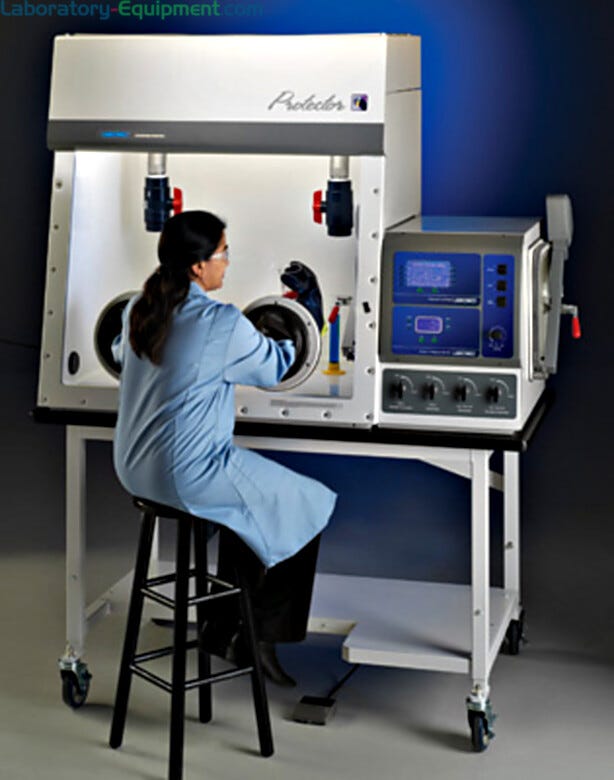

Labconco Combination Glove Boxes – Controlled Atmosphere and Filtered

Protector Combination Glove Boxes merges the features of filtered and controlled atmosphere models into one unit. Closure of two internal valves converts the box to a controlled atmosphere glove box that can be pressurized up to ±5 inches of water gauge for a leak-tight inert atmosphere. When atmosphere-sensitive procedures are complete, opening the two internal valves allows air from inside the box to pass through a HEPA outlet filter and optional second HEPA or Carbon outlet filter before exhausting via a ductwork to the outside. The physical barrier and filtration system protect users from exposure to hazardous materials and contamination-sensitive materials from degradation.

Additional Features of Protector Combination Isolation Glove Boxes
  • Automatic control of main chamber pressure, main chamber evacuation and filling cycles and transfer chamber evacuation and filling cycles
  • Factory-leak tested with a mass spectrometer while pressurized with Helium at 5 inches of water gauge
  • Detectable leaks: No greater than 1 x 10-6 ml/sec
  • LCD display provides real time monitoring of volume dilution rates in cubic feet per minute (CFM), air changes/minute (ACM), main chamber pressure (inches of water), and transfer chamber in inches of mercury and mBar
  • Interior right-hand side wall-mounted electrical receptacle with 10 amp maximum (100/115 volt models) or 10 amp maximum (230 volt models) circuit load
  • Two 8” ID, epoxy-coated aluminum double-grooved glove ports mounted 17” apart, with neoprene gaskets
  • RS-232 port, gas/liquid port, or port for oxygen or moisture monitor
  • Two 25-watt fluorescent lights
Features of Protector Filtered Glove Boxes
  • Airborne particulate cleanliness (measured under positive and negative pressures per ISO 14644-1 test method) exceeds ISO Class 5 conditions and achieves ISO Class 4 conditions
  • Inlet and outlet HEPA filters, 99.99% efficient on 0.3 micron particulates, rated for 70 CFM at <0.90" static pressure
  • Particulate containment: <20 nanograms per cubic meter as confirmed by SafeBridge Consultants, incorporated
  • Test port: HEPA or ULPA filter integrity
  • Safe filter removal and replacement with true bag-in/bag-out filter disposal system
  • Built-in blower speed control: from 15 CFM to 85 CFM depending on voltage and frequency
  • Clean up time: 0.05 ppm average tracer gas levels or less detected during perimeter scan testing (surpasses ASHRAE 110 standards) after 5 minute dilution
  • Inlet and outlet particulate (HEPA or ULPA) filters provides a leak-tight environment preventing contaminants from entering or exiting chamber
  • One-piece molded fiberglass liner
  • Clear acrylic inner and outer transfer chamber doors
Features of Protector Controlled Atmosphere Glove Boxes
  • Exceeds Class 1 atmosphere containment conditions for oxygen permeation less than 1.67 ppm/min per ISO 10648-2 test method
  • Oxygen permeation: <0.3 ppm/min (fiberglass-lined models) and <0.15 ppm/min (stainless steel-lined models) per ISO 10648-2
  • Input/Output port for optional AtmosPure Re-Gen Gas Purifier
  • Four manual valves with 3/8” compression fittings (two on main chamber and two on transfer chamber for evacuating, filling and added control
  • Main chamber pressure: automatic control (-5 to +5 inches of water gauge)
  • Main chamber evacuation and filling cycles: up to 499 cycles
  • Evacuation and filling cycles of transfer chamber evacuation: up to 199 cycles
  • Vacuum/pressure regulation: between -5 and +5 inches of water gauge in the main chamber and between 0 and -29.5 inches of mercury in the transfer chamber
  • Alarms: mutable and audible (when pressure/vacuum level is outside set limits
  • Three-position foot pedal: increasing gas/fill, off, evacuate/decrease gas
  • Factory-installed, rear-mounted, low profile stainless steel pressure relief bubbler at ±6 inches of water gauge
  • Two rear-mounted inlet and outlet 3/4” OD compression fittings for easy connection to optional AtmosPure™ Re-Gen Gas Purifier or other accessory drying train
Fiberglass and Stainless Steel Models

The fiberglass-lined models feature a one-piece molded fiberglass liner with clear acrylic inner and outer transfer chamber doors. This model has been performance tested to maintain oxygen levels as low as 0.4 ppm and moisture levels as low as 2 ppm. The oxygen permeation is less than 0.3 ppm/min per ISO 10648-2 and illumination exceeds 120 footcandles.

The stainless steel-lined models feature a Type 304 stainless steel liner with Type 304 stainless steel inner and outer transfer chamber doors. Type 304 stainless steel material also comprises the front panel. This model has been performance tested to maintain oxygen levels as low as 0.2 ppm and moisture levels as low as 1 ppm. The oxygen permeation is less than 0.16 ppm/min per ISO 10648-2 and illumination exceeds 80 footcandles.

AtmosPure Re-Gen Gas Purifier

This gas purifier maintains ultrapure inert atmosphere within the Protector® Controlled Atmosphere Glove Boxes. It has the capacity to remove 5 liters of oxygen gas (13,500 ppm) and 660 grams of moisture (water vapor) which is equivalent to 18 million ppm. The regeneration is, in turn, completed in 13 hours. Additionally, the leak rate is ± 0.000001 mL/sec.

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade™ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Latex Gloves, Size 9-3/4, one pair, for Labconco Glove Boxes

    Choose latex gloves for optimal dexterity, gloves also available in neoprene, butyl and hypalon, with one or two-piece configurations.
  • Fan, Anti-static Ionizer, 100/115V, 50/60hz, for Labconco Glove boxes

    Labconco Anti-Static Ionizer Fan, compatible with Protector, Precise and XPert Glove Boxes, neutralizes static charge by circulating ionized air inside containment glove boxes; features a dual steady state DC circulator and easily mounts to light support.
  • Vibration Isolator, for Labconco Glove boxes

    Balance Vibration Isolator for Labconco Glove Boxes minimizes vibration within the chamber improve accuracy of sensitive analytical balances; includes a thick marble slab, 4 isolator pads and a 304 stainless steel protective top cover
  • Adjustable Height Mobile Stand for Labconco Glove Boxes

    Stationary and mobile adjustable-height stands provide stable support for 2- or 4-port Protector and Precise Glove Boxes (mobile stand shown with 5" casters)
