6707-32
Terra Part # 6707-32
$3,407
Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 6707-32
75923

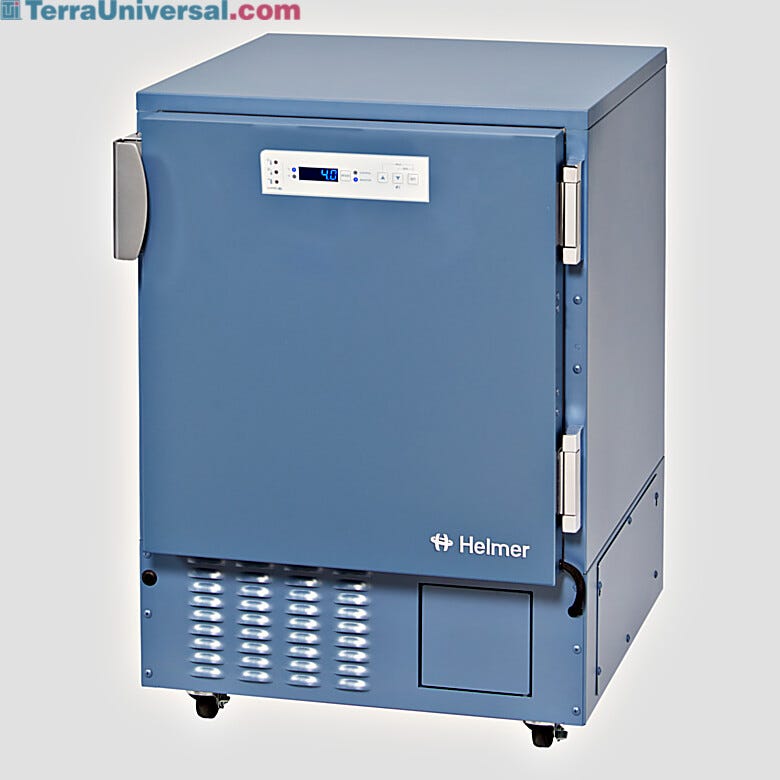

HPR105-GX Horizon ADA Undercounter Pharmacy Refrigerator by Helmer Scientific, 5.3 cu. ft., 5°C Setpoint, Solid Door, 115 V, 5116105-1
  • Compact HPR105-GX Horizon Series Medical-Grade ADA Undercounter Pharmacy Refrigerator with solid doors fits under standard 34” high ADA compliant countertops
  • 5.3 cu. ft. (150L) model stores up to 4,000 doses and factory pre-set to 5°C forPharmacy applications
  • NSF/ANSI 456 vaccine storage standard certified and supports CDC guidelines for vaccine storage
  • ENERGY STAR certified model features OptiCool system, digital microprocessor controller, LED Display, and sustainable refrigerants
  • Includes: two adjustable ventilated drawers and adjustable leveling feet
  • Field-reversible self-closing solid door maintains optimal storage conditions
  • Horizon Control: digital microprocessor with built-in alarms; optional integrated electromagnetic access control for secure access to refrigerator via Access Control Keypad
  • OptiCool features: variable capacity compressor (VCC) and natural hydrocarbon (HC) refrigerants optimize temperature performance, quiet operation and energy-efficiency
  • Professional medical-grade undercounter fridge features: temperature management protects patient samples and ensures efficacy of medication, low noise level and energy-efficiency helps reduce cost and sustains energy initiatives
  • High-Performance Features: ºC or ºF temperature display, key lock, manual alarm test, one stainless steel alarm probe in product simulation bottle, battery backup (9V, non-rechargeable, lithium), dry contact alarm connection, digital calibration, min/max temperatures (display and reset), standard alarm (high/low temperature, door open and power failure)
  • Refrigeration:
  • VCC compressor-based, forced-air hydrocarbon
  • Compressor: Hermetic, variable speed (VCC). Rated speed range: 2000-3500 rpm
  • Condenser Type: Air-cooled fin and tube, sealed
  • Evaporator Type: Direct expansion forced-air fin and tube
  • Supports sustainability with U.S. EPA, SNAP, and EU F-Gas compliant natural refrigerants and foaming agents
  • Refrigerant: R600a, Propane, EU F-Gas and EPA SNAP compliant
  • Automatic defrost method
  • Cap tube expansion device
  • Additional Features:
  • Forced air circulation maintains chamber temperature uniformity and quick recovery after door openings
  • 50-65% more energy efficient than traditional medical-grade models
  • Dual pane glass doors with ADA compliant handles
  • Optimized temperature control
  • No defrost cycle required to maintain constant temperature
  • Material: solid door, bacteria-resistant powder coated (interior, exterior), RTD stainless steel control sensor
  • Drawer design: mid-stop catch for proper closure maximizes airflow, maintains temperature uniformity and protects glass doors from slide-throughs
  • Easy-to-clean recessed floors contains spills and helps maintain product integrity
  • Power-plug: NEMA 5-15 hospital-grade | 115 V 60 Hz, 8 to 10 ft. (2.4-3.0m)
  • Access port
  • Specifications:
  • Temperature Range: +2°C to +10°C
  • Interior dimensions (w x d x h ):  19.5" W x 19.9" D x 22.8" H
  • Setpoint: 5°C
  • Uniformity: +/-1.0°C
  • Recovery to 8°C after 3 min door opening | min: 11
  • Stability | °C: 0.72
  • Energy Consumption | kWh/day: 1.2
  • Noise emission: 42 dB
  • Heat Rejection / Emission | BTU/hr.: 460
  • Pull-down time to 4°C | min:  37
  • Ambient Operating Temperature:+15°C to +32°C |+59°F to +90°F
  • Options and accessories: Contact a Terra Product Specialist for Details

Manufacturer SKU: 5116105-1

Capacity: 5.3 cu. ft.

Configuration: Undercounter

Brand: Horizon Series-GX

Plug Type: US Plug

Specialty: Pharmacy

Type: Refrigerator

Internal Dimensions: 19.5" W x 19.9" D x 22.8" H

Door Style: Single Solid

Refrigerator Temperature Range: +2°C to +10°C

Set Point Temperature: 5°C

Unit of Measure: EA

Marks & Listings: UL, CSA, ADA

Electrical Specifications: 115 V, 60 Hz

Weight, Product: 182 lb

Dimensions, Product: 24.3" W x 31.9" D x 27.8" H

Weight, Shipping: 243 lb

Dimensions, Shipping: 30" W x 36" D x 33" H

Buy Accessories
  1. Stainless Steel and powder-coated steel stands adjust to fit cabinets, desiccators and cleanroom equipment of any size. | 1609-20 displayed
    $578
    Increase Down Increase Up
  2. Small 4"H stainless steel desiccator stand; optional casters simplify positioning and cleaning
    $578
    Increase Down Increase Up

Refrigerators (4°C)

  • GX Horizon and GX i.Series Comparison Chart by Helmer Scientific GX Horizon and GX i.Series Comparison Chart by Helmer Scientific
  • Video of GX Solutions by Helmer Scientific Video of GX Solutions by Helmer Scientific
  • GX i.Series storage solution i.C3® Video Series: Access Control by Helmer Scientific i.C3® Video Series: Access Control
  • i.C3® Video Series: Interactive Temperature Graph on GX i.Series cold storage models by Helmer Scientific i.C3® Video Series: Interactive Temperature Graph
  • i.C3 Automatic Alarm Testing by Helmer Scientific i.C3 Automatic Alarm Testing
Video of GX Solutions by Helmer Scientific
GX i.Series storage solution i.C3® Video Series: Access Control by Helmer Scientific
i.C3® Video Series: Interactive Temperature Graph on GX i.Series cold storage models by Helmer Scientific
i.C3 Automatic Alarm Testing by Helmer Scientific

Features and Benefits

OptiCool Technology

GX i.Series and Horizon Refrigerators with OptiCool deliver a quiet and energy-efficient unit with optimal temperature control

Microprocessor Temperature Control

GX Horizon cold-storage solutions feature a microprocessor temperature control with a built-in alarm, an LED display and a touchpad entry

Meets Vaccine Regulations

GX Pharmacy Refrigerators help meet CDC vaccine storage regulations and USP 797 cleanroom requirements (pass-thru models) in the storage of medications and pharmaceuticals

ADA Compliant

GX i.Series and GX Horizon ADA Undercounter Pharma and Lab Refrigerators fit under standard 34” high ADA compliant countertop
