6705-30C-220
Terra Part # 6705-30C-220
$42,072
Usually ships in 20-30 business days

Want it faster ? Read about FasTrak

In stock soon
Accessories related to Terra Part # 6705-30C-220
64618

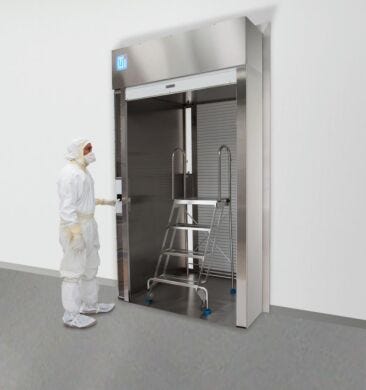

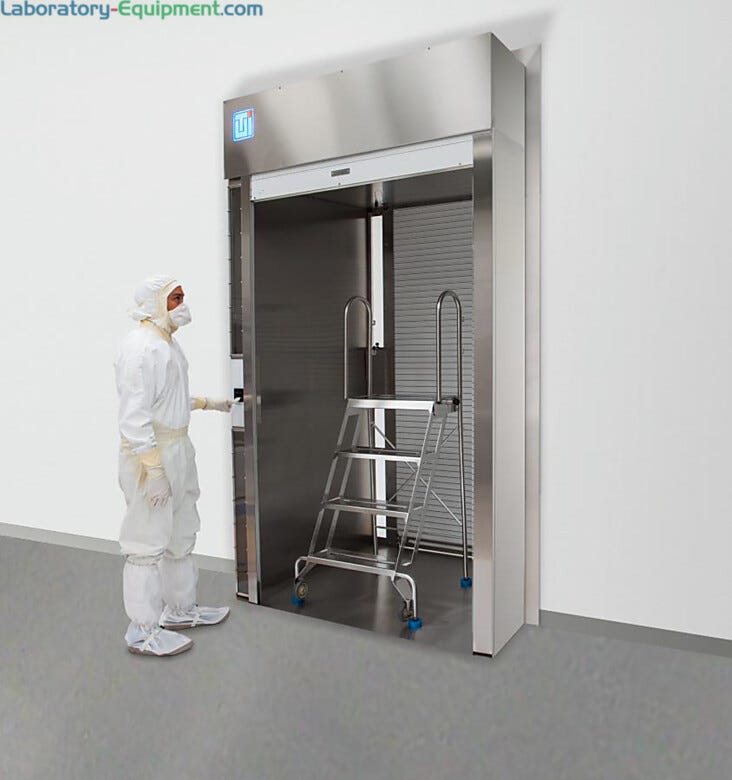

Pass-Through; Roll-Up, 63.75" W x 50.25" D x 104" H, 220 V
Product Details
  • •  Available ISO Ratings: ISO 6, ISO 7, ISO 8
  • Walk-through design allows for large carts or other processing equipment
  • Touch-activated control panel offers a smooth, cleanable surface
  • Safety circuit stops door motion if the pressure-sensor detects anything in the door's path
  • Electronic interlock prevents cross contamination
  • Bi-directional motor and disk brake ensure smooth, accurate door motion
  • Mounting brackets are included
  • To avoid manufacturing delays, please approve system drawings promptly

Door Material: Aluminum Slats

Opening Width: 63"

Opening Height: 84"

Speed: 4" per sec

Air Shower: No

Max Door Cycles: 6 per hour

Electropolished: Optional

Unit of Measure: EA

Electrical Specifications: 220 V, 1 Ph, 50/60 Hz

Weight, Product: 1,200 lb

Dimensions, Product: 63.75" W x 50.25" D x 104" H

Weight, Shipping: 1,350 lb

Dimensions, Shipping: 73" W x 57" D x 117" H

Package Type: Crate

Buy Accessories
  1. Iris Scanner For Smart Passthrough  |  2635-84 displayed
    $4,170
    Increase Down Increase Up
  2. Keycard Reader For Smart Passthrough  |  2635-85 displayed
    $230
    Increase Down Increase Up
  3. Warranty; 2 Year, Pass-Throughs, Parts
    Request Quote
    Increase Down Increase Up
  4. Warranty; 3 Year, Pass-Throughs, Parts
    Request Quote
    Increase Down Increase Up
  5. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  6. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  7. Electropolish Service
    Request Quote
    Increase Down Increase Up
  8. Upgrade to 316L stainless steel equipment for increased corrosion resistance and lasting durability  |  9999-316L displayed
    Request Quote
    Increase Down Increase Up

Features and Benefits

Learn More: Roll-Up Door Pass-Throughs

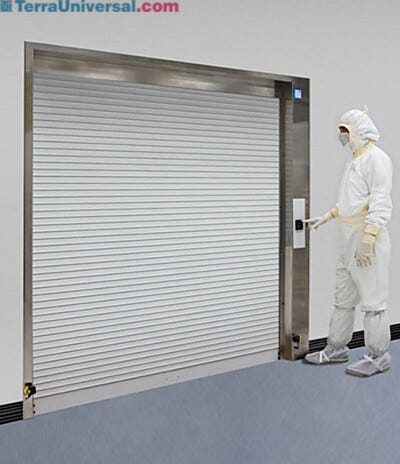

Roll-Up Door Pass-Throughs

Optional ULPA-Filtered Air Shower

The optional air shower includes a blower isolated inside the control unit above the access doors. When a door is closed, the unit activates the blower, which forces intake air through an ULPA filter into dual vertical stainless steel exhaust manifolds inside the pass-through chamber. Openings in these manifolds provide a cleansing wash of clean air to remove loose particles from items before they enter the cleanroom. Air exits the Pass-Through through exhaust vents on the "dirty" side. A time delay maintains air shower operation for 60 seconds after the door is closed.

Due to the intermittent operation of this unit the ULPA filter is rated for over five years of operation under normal conditions. As the filter nears the end of its service life, the increasing backpressure will cause louder fan operation. To replace the filter, simply remove the screws that hold the "dirty" side front panel in place; the cylindrical filter is easily accessible inside.

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.

Safety Pressure Sensor

The pressure-sensitive safety mechanism along the bottom edge of each roll-up door sends a signal to immediately reverse door direction when it detects an obstruction.

Automatic Electronic Interlock

The electronic interlock allows only one door at at time to open, preventing cleanroom cross-contamination. Side windows allow personnel to view opposing door status and chamber contents.

Touch Panel

The flat touch interface is easy to clean and operated by gloved personnel and impervious to moisture; includes emergency stop.

Door Position Sensors

Laser sensors mounted on the ceiling of the chamber monitor the position of the doors for proper interlock sequencing.

Interlock Override Switch

Key switches allow the door interlock to be disabled for chamber cleaning and maintenance.

Eliminates Swing Clearance

Roll-up door design requires no swing clearance, conserving valuable cleanroom floorspace. Many sizes accommodate all types of equipment.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Comprehensive Product Portfolio

Terra’s comprehensive product portfolio includes solutions for every application and budget. Our technical sales staff will guide you toward the product most suitable for your requirements.

Long-Term Customers

Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers
