Gallery

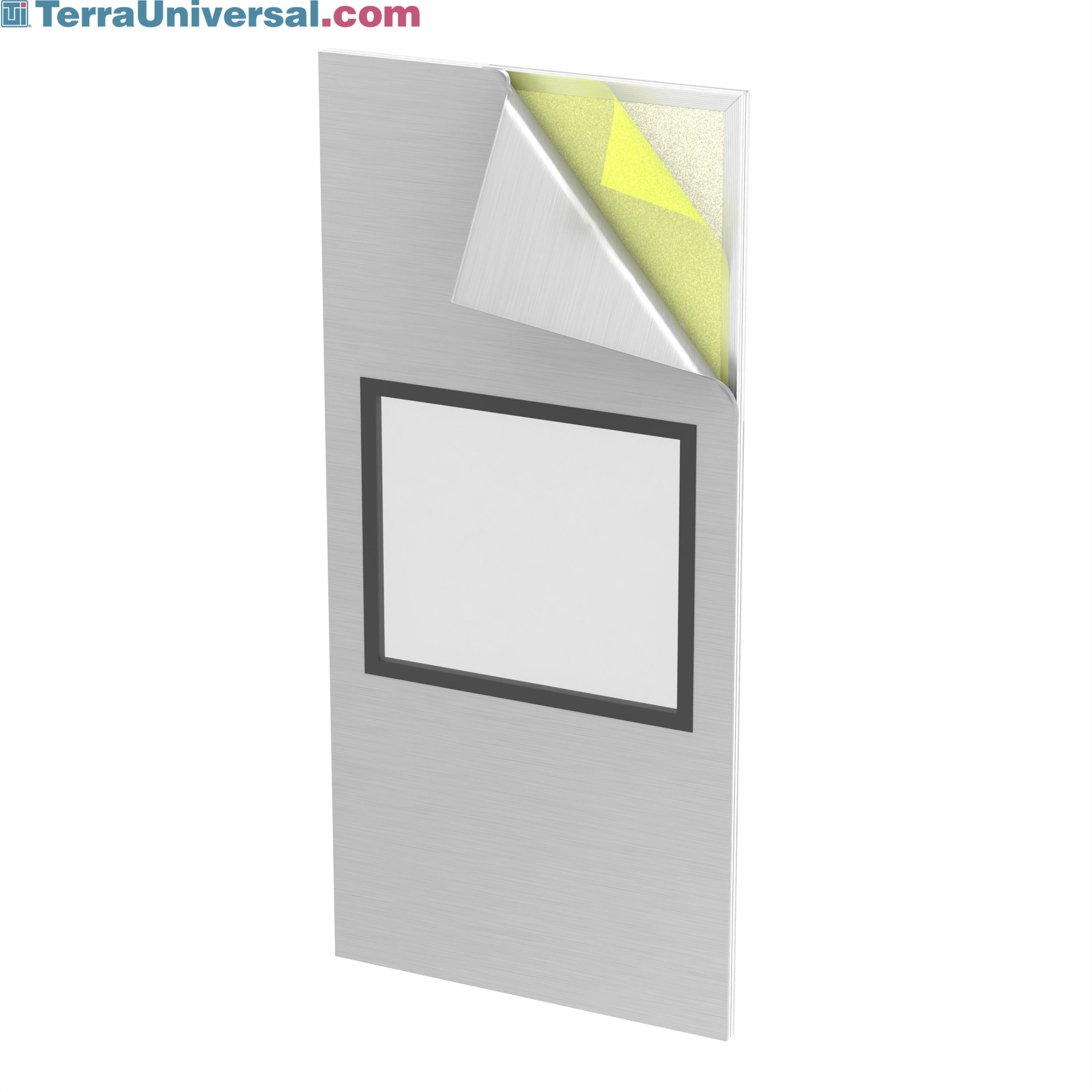

BioSafe® Stainless Steel Wall Panel with EPS Rigid Foam Core and Window

Fully-flush, smooth panels provide a stick-built aesthetic with seamless transitions between ceiling, walls, and floors for an air-tight enclosure. Standard window measures 3' x 3'

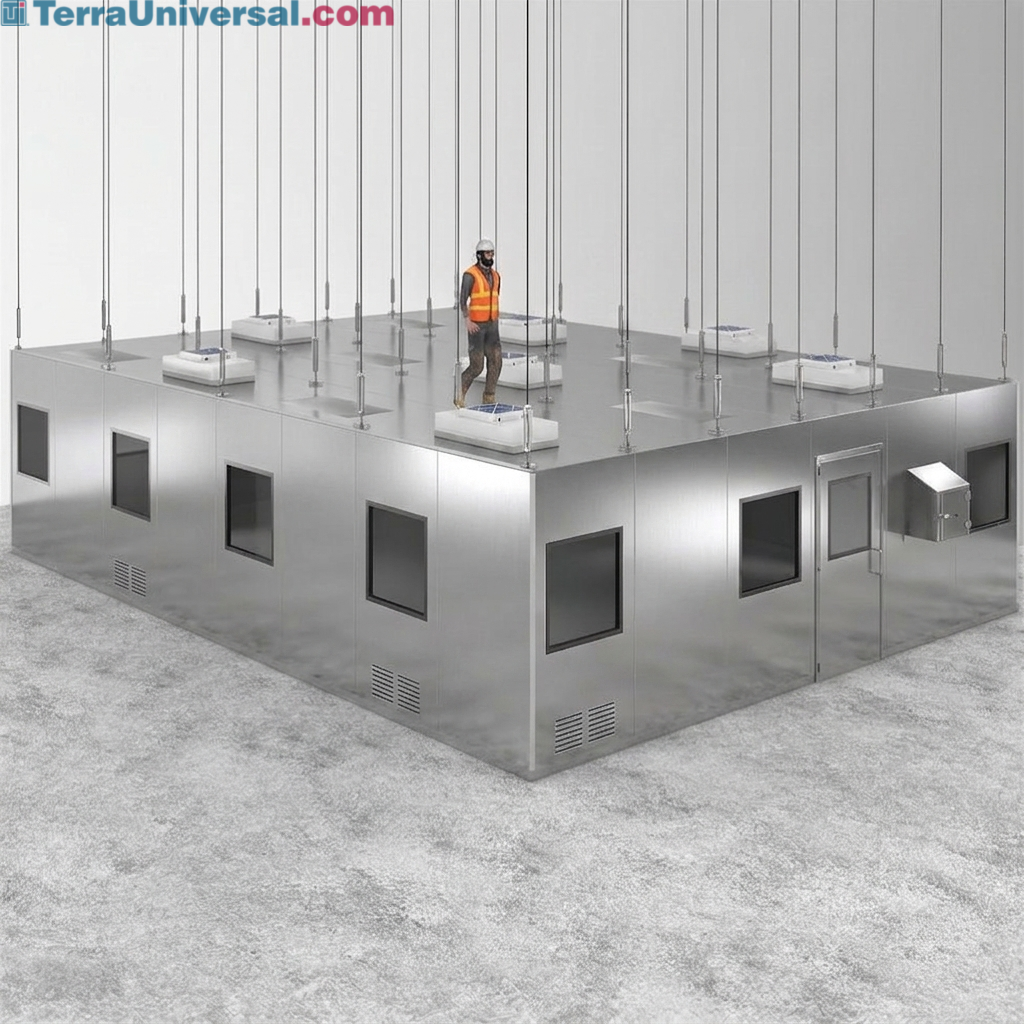

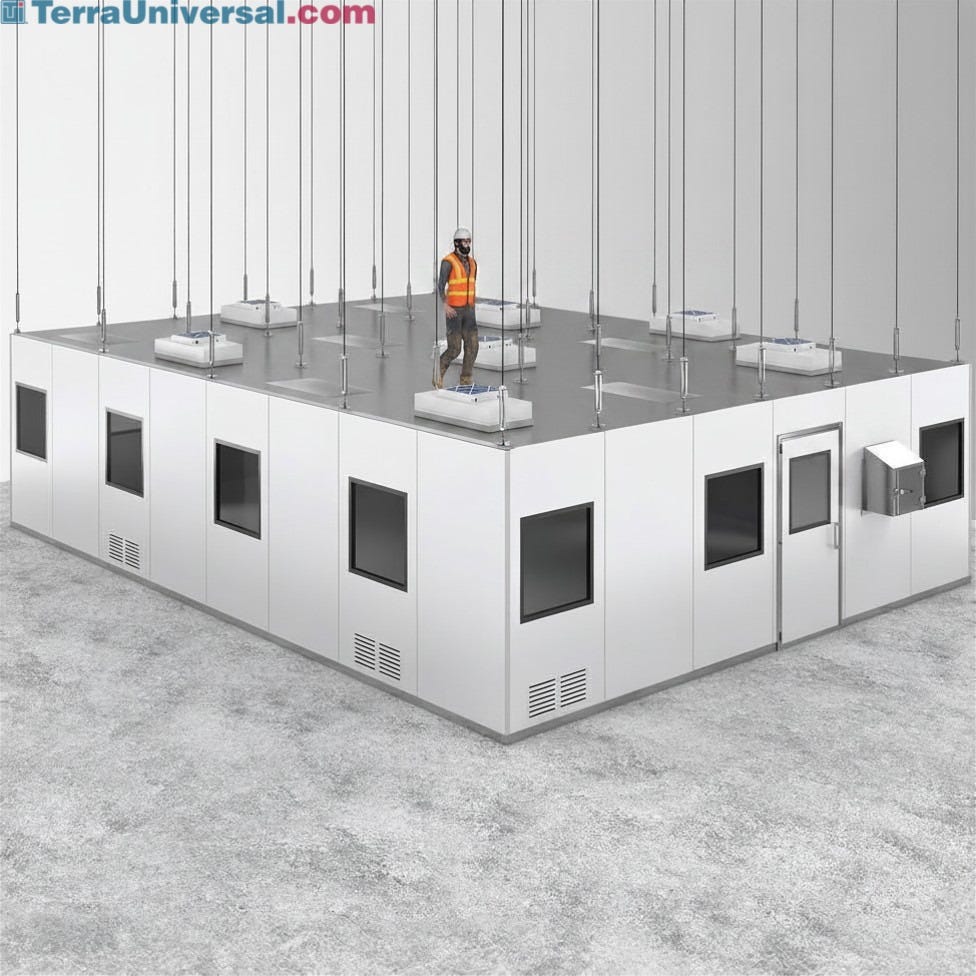

Terra Universal's BioSafe® Walkable Ceiling System

Terra's stainless steel ceiling panel system combines the structural integrity and hygienic properties of stainless steel with a fully walkable, flush, and seamless surface that simplifies maintenance, HEPA filter changeouts, and above-ceiling equipment access in ISO-rated cleanrooms

BioSafe Modular Cleanroom with Integrated Gowning Anteroom

This ISO 5 certified BioSafe cleanroom features monolithic wall panel connections without gaps or ledges, ensuring compliance with ISO-14644, cGMP, and GLP requirements.

BioSafe Cleanroom Communication Through Vision Panels

Vision panels allow personnel coordination while the monolithic flush-mount wall system maintains complete environmental separation.

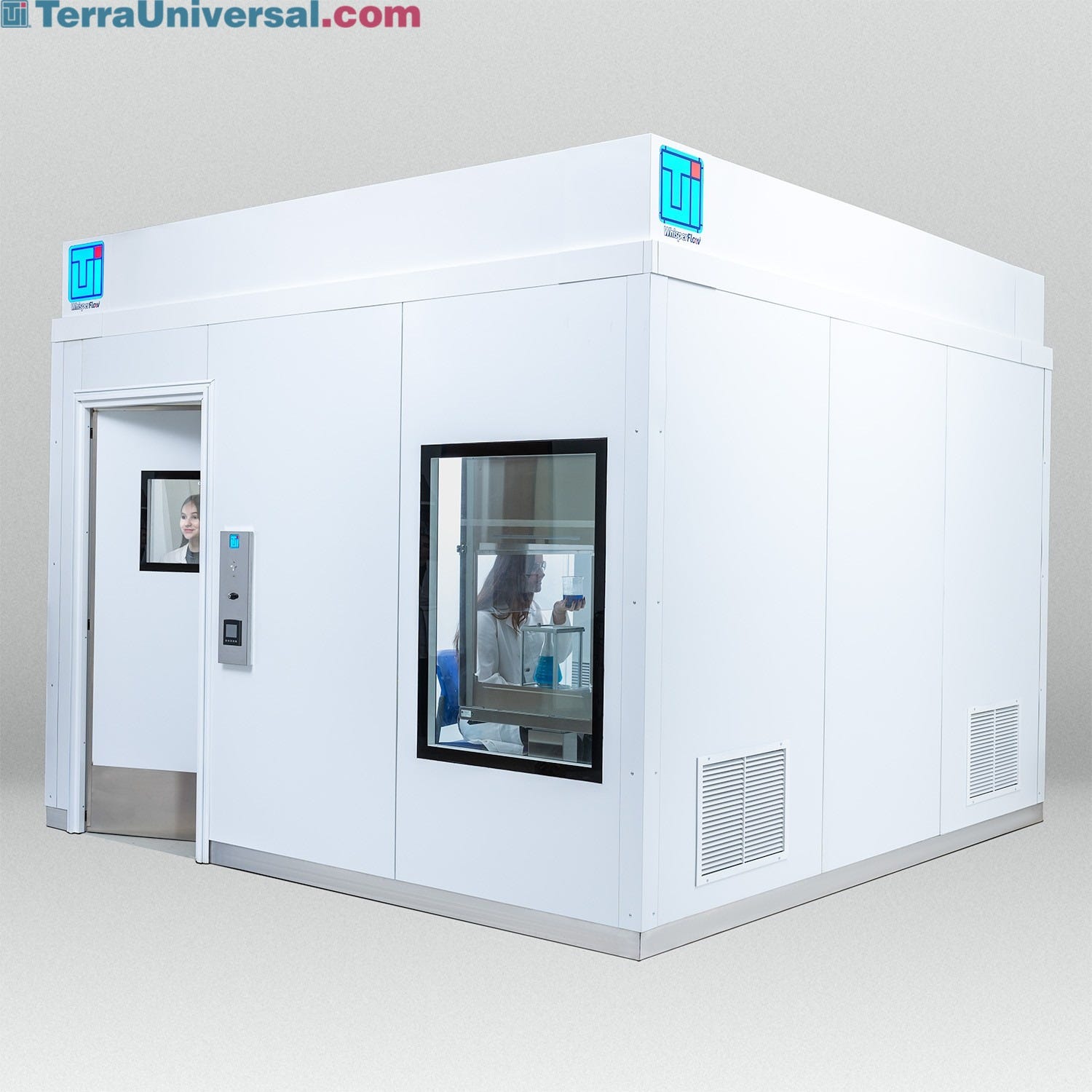

BioSafe Cleanroom in Active Laboratory Use

The fully integrated design supports multi-person workflows while maintaining cleanroom integrity through seamless wall panel construction.

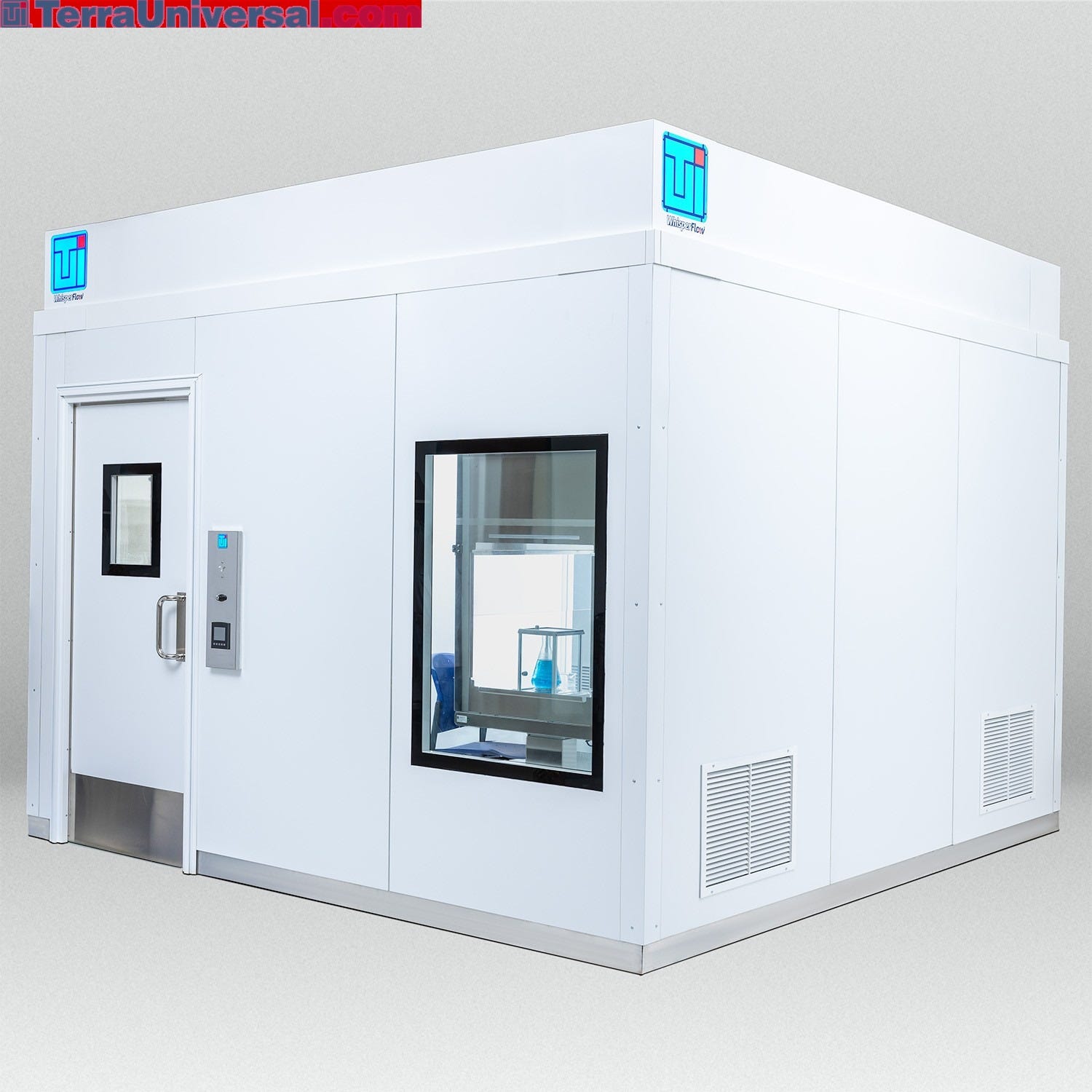

BioSafe Cleanroom with Laboratory Equipment

Prefabricated wall panels and pre-engineered components significantly reduce time to completion compared to traditional stick-built construction.

BioSafe Cleanroom with Integrated Return Air System

The seamless flush-mount design eliminates the gaps and ledges found in panel-post systems, meeting ISO-14644 cleanliness standards.

BioSafe Wall Panel Modular Cleanroom

The two-stage anteroom entry maintains contamination control while the prefabricated design enables future reconfiguration or relocation.

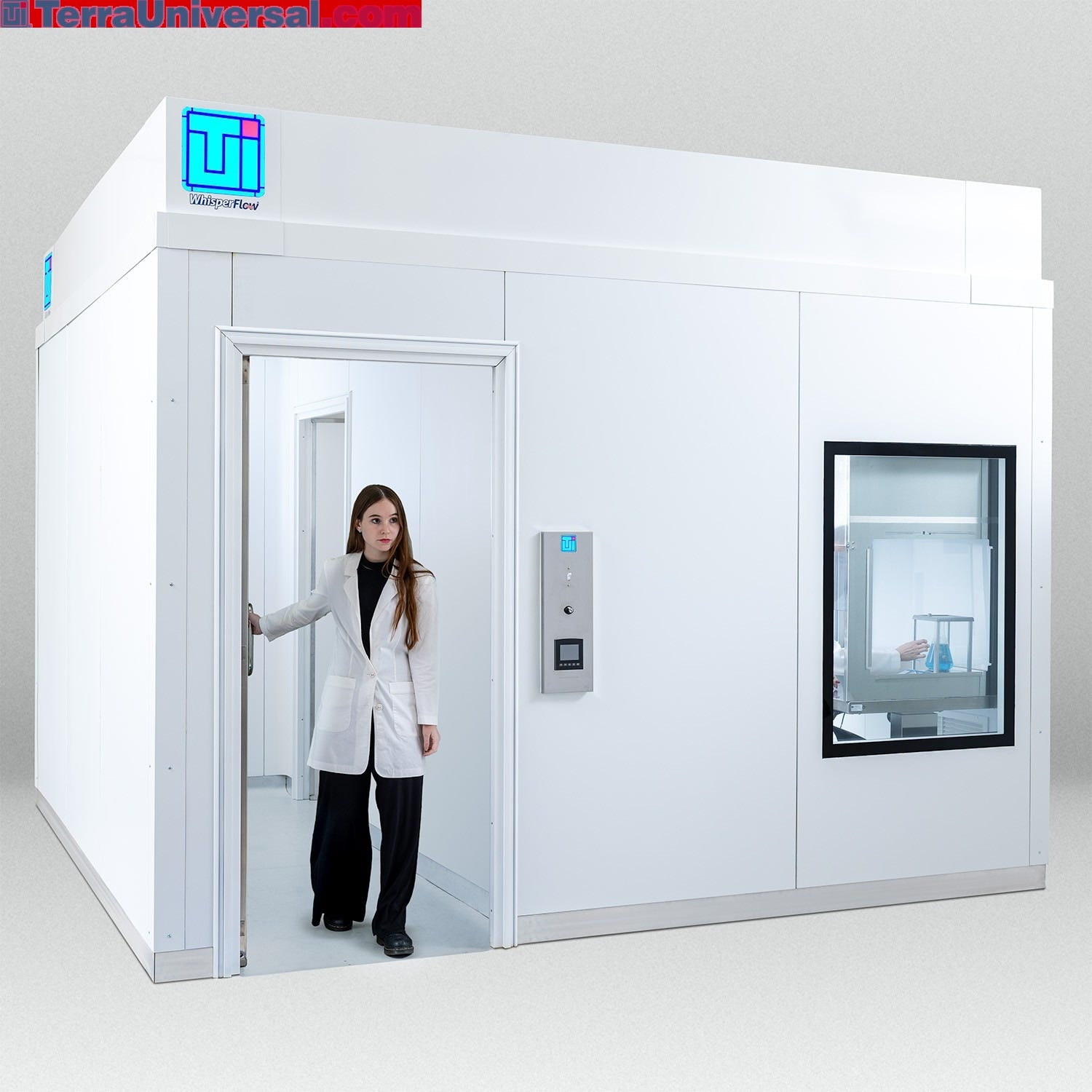

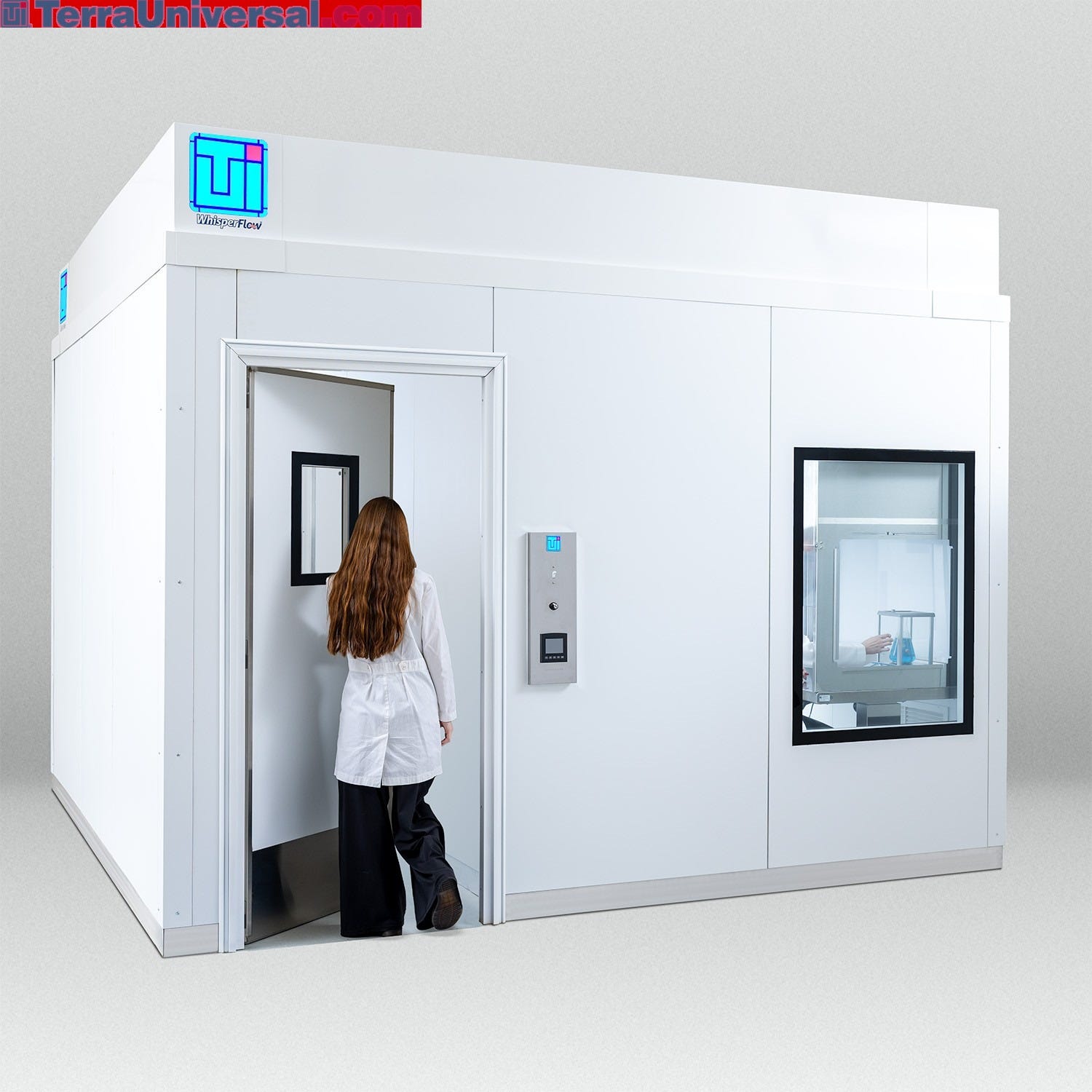

BioSafe Cleanroom Personnel Entry and Exit

Pre-engineered components and UL-listed construction optimize both installation speed and regulatory certification processes.

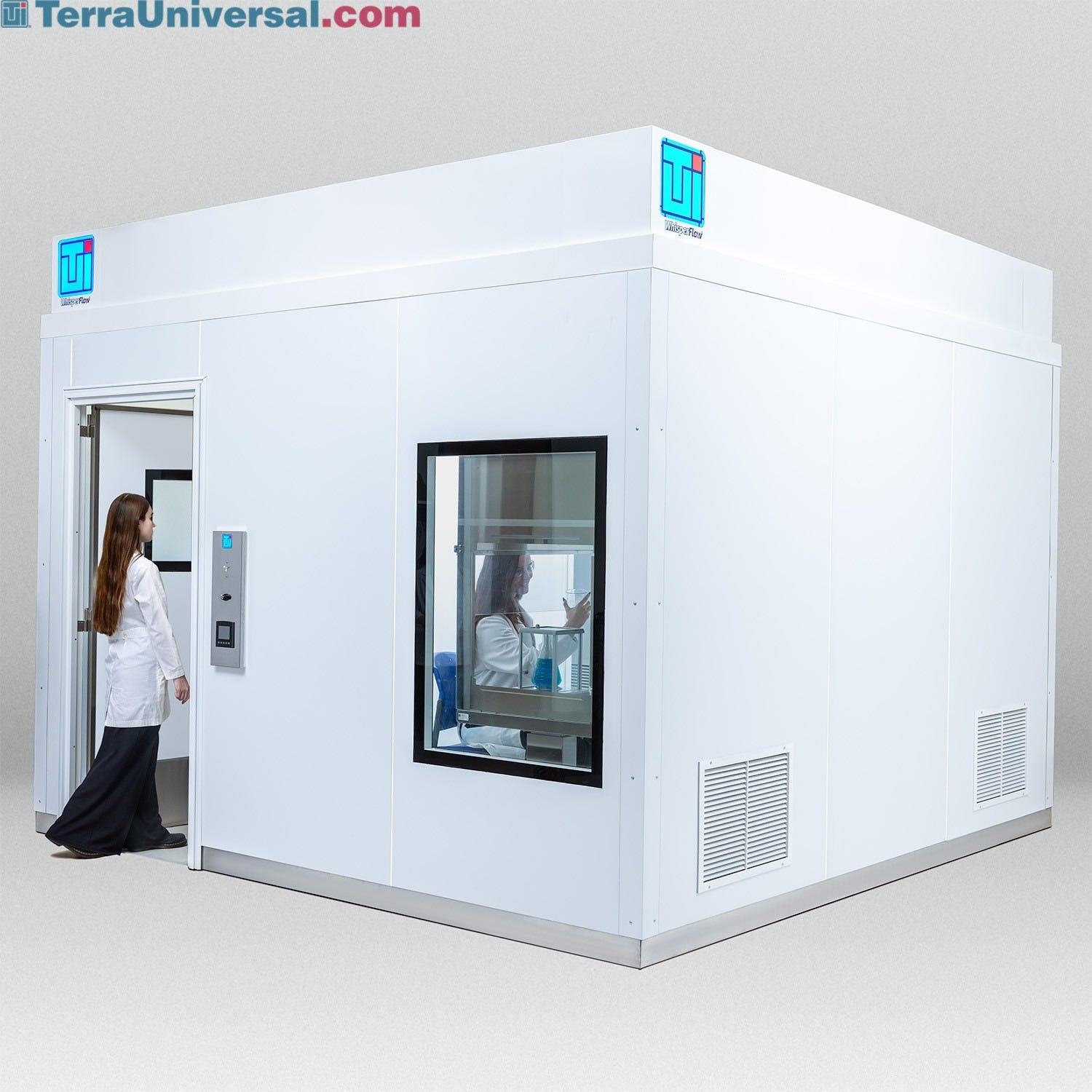

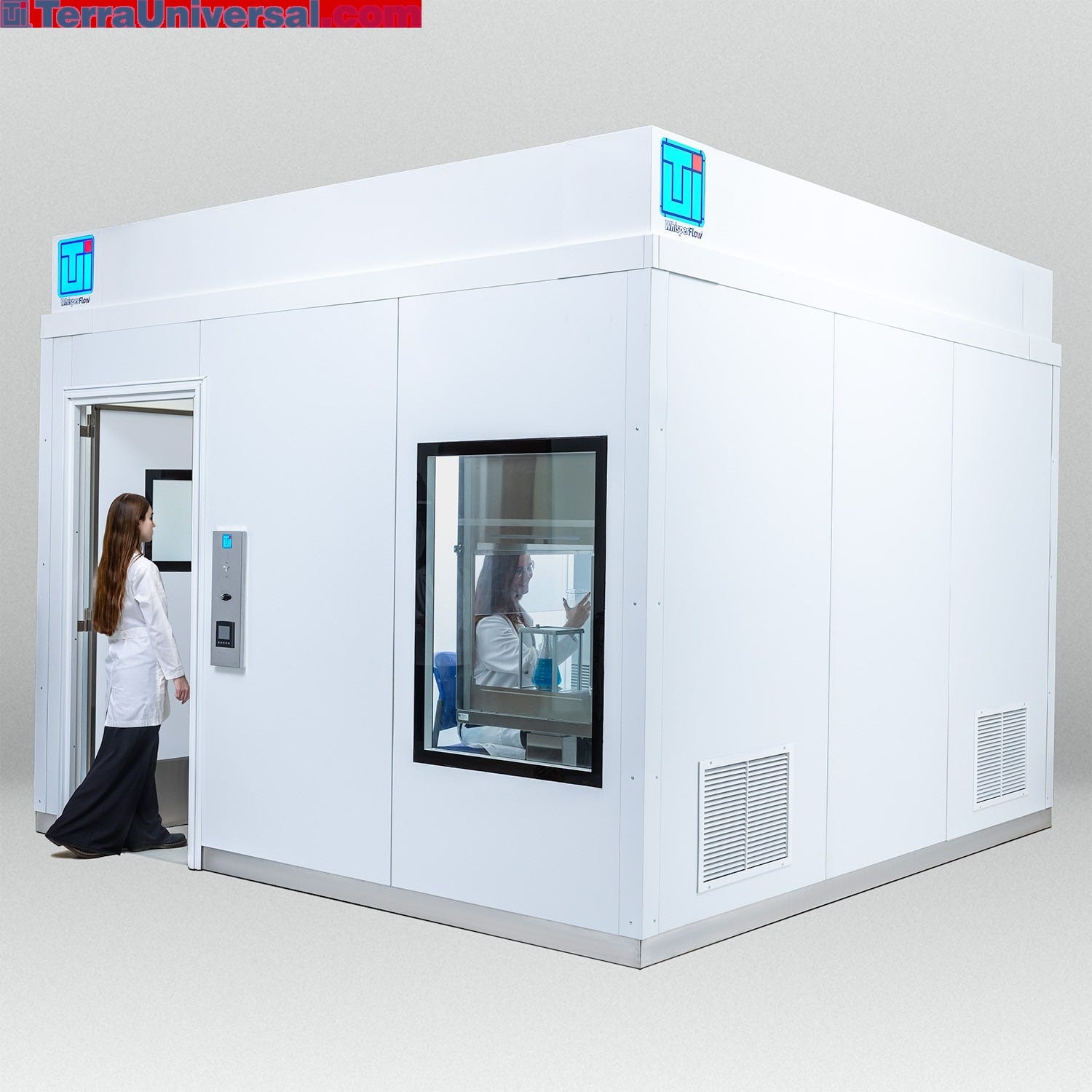

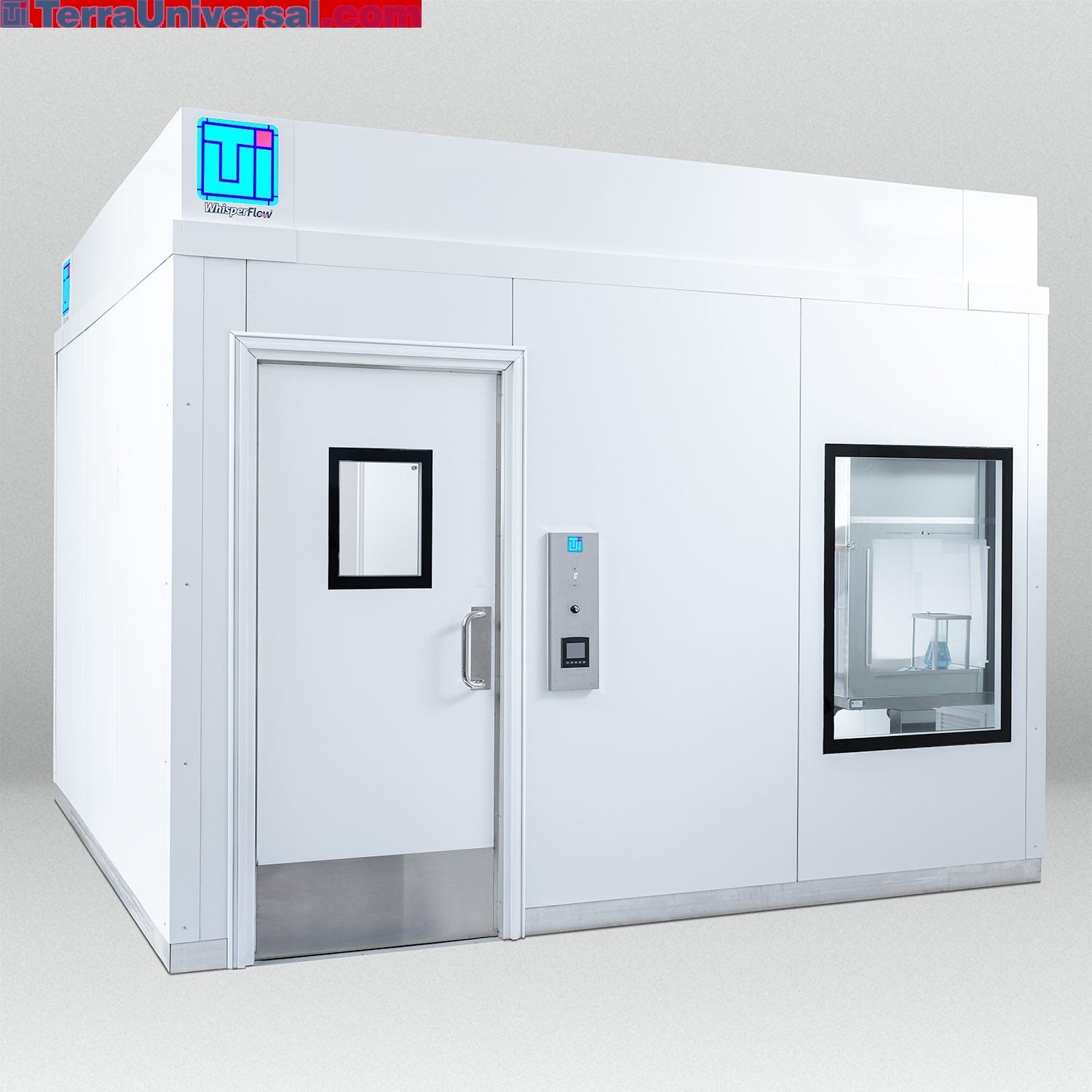

BioSafe Modular Cleanroom Exterior

Factory prefabrication reduces time to completion while the seamless monolithic design meets ASTM and IEST cleanroom requirements.

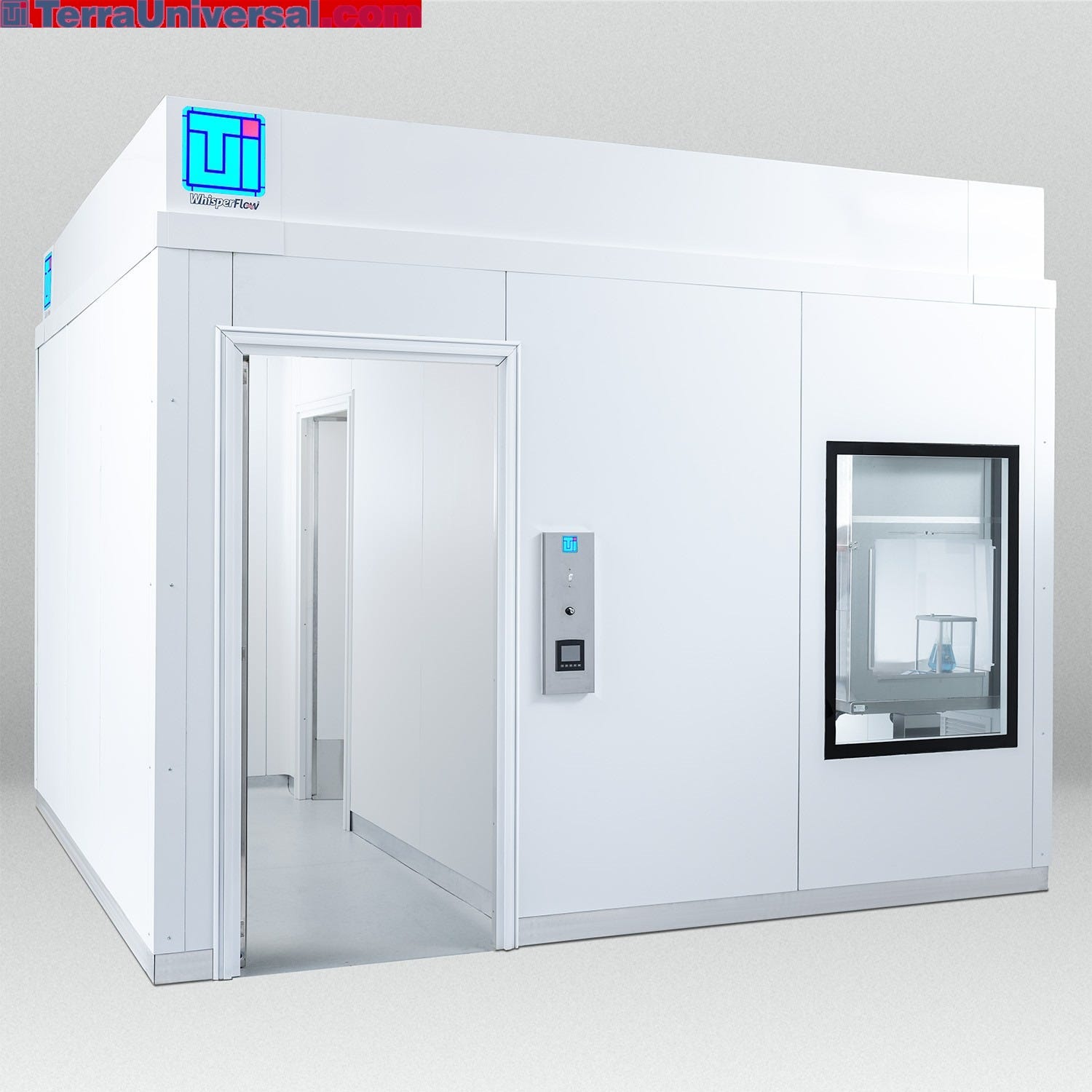

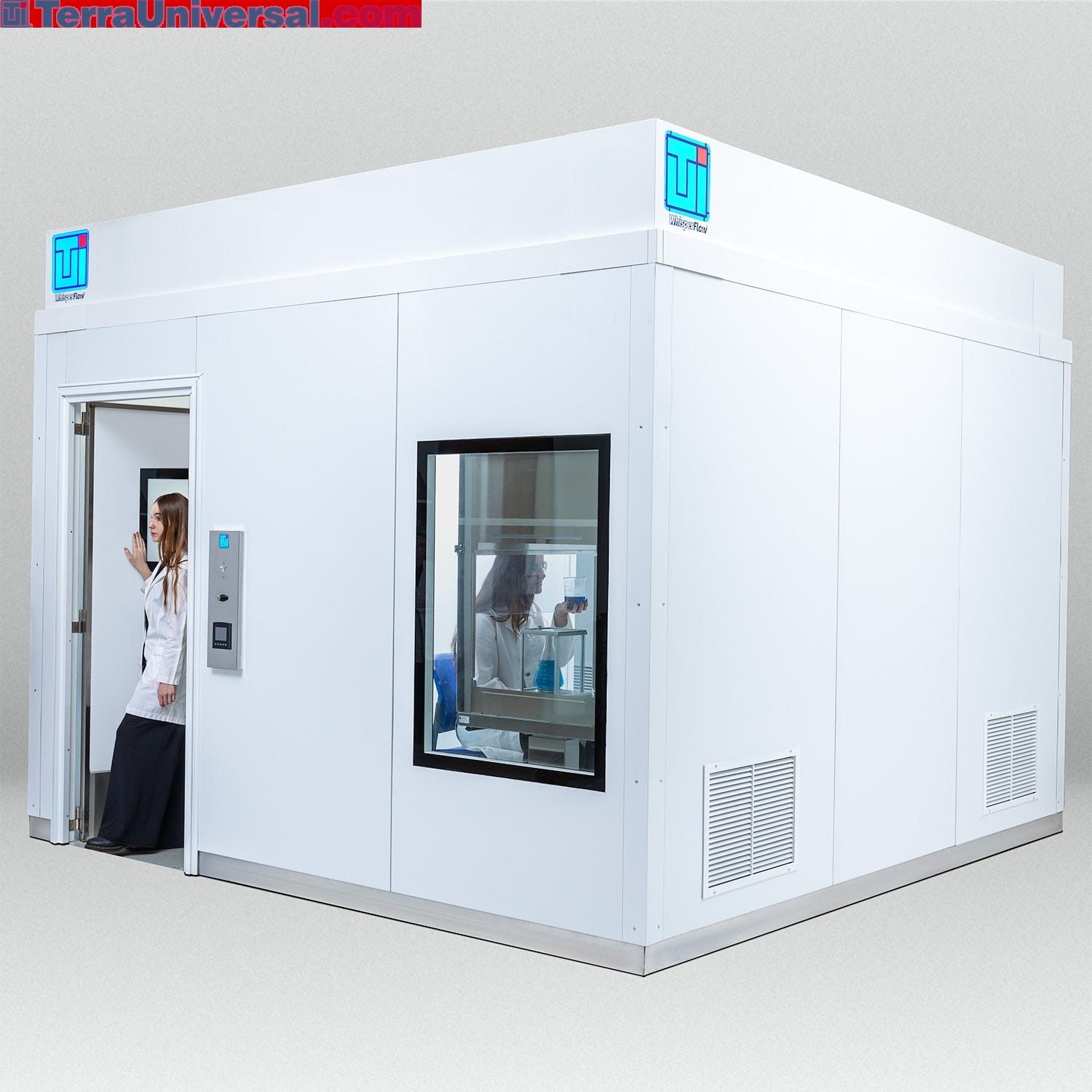

BioSafe Cleanroom with Gowning Anteroom Entry

The turnkey UL-listed design streamlines building permitting while the flush-mount wall panel system eliminates particle-trapping gaps found in traditional panel-post construction.

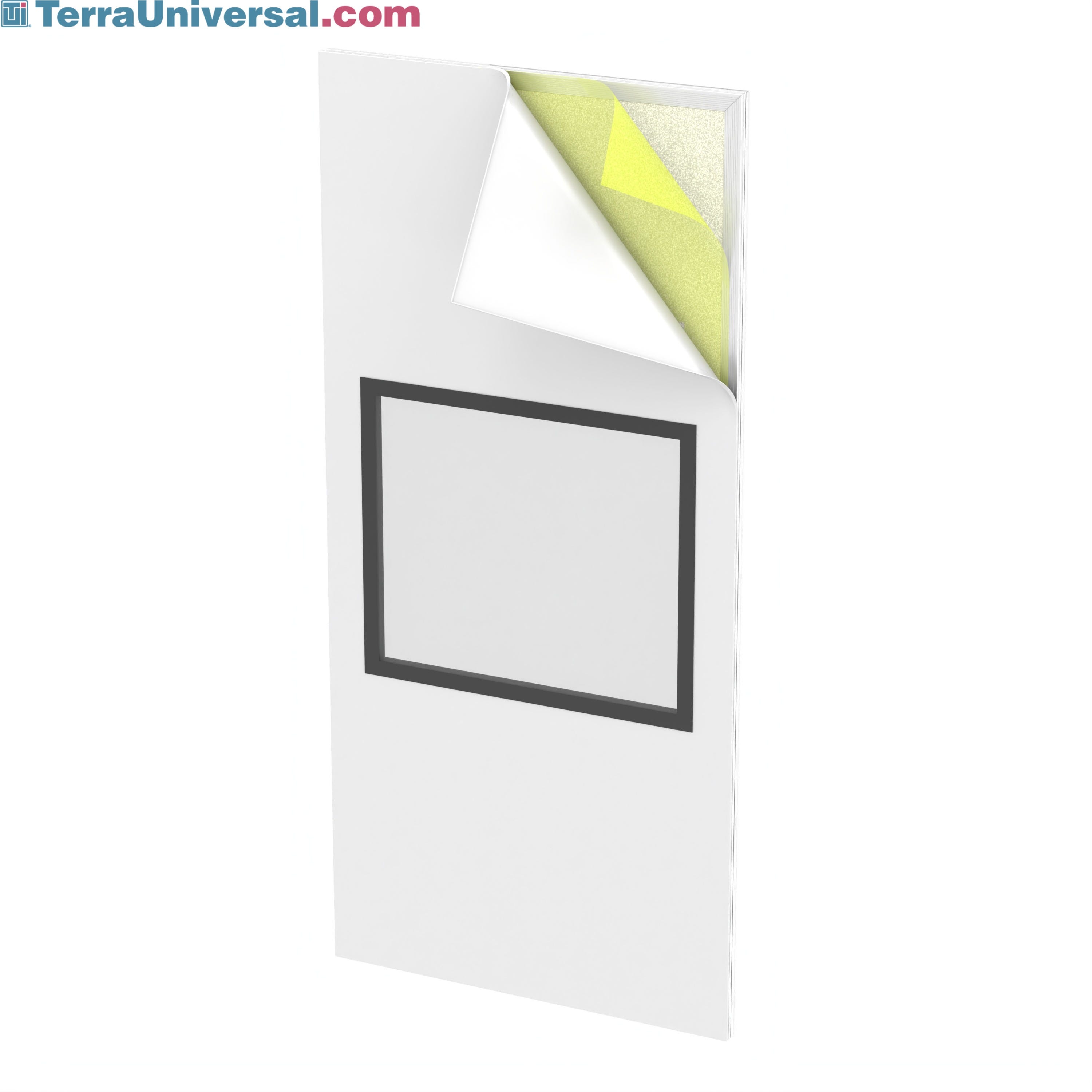

BioSafe® uPVC Panel with EPS Rigid Foam Core and Window

Fully-flush, smooth panels provide a stick-built aesthetic with seamless transitions between ceiling, walls, and floors for an air-tight enclosure. Standard window measures 3' x 3'

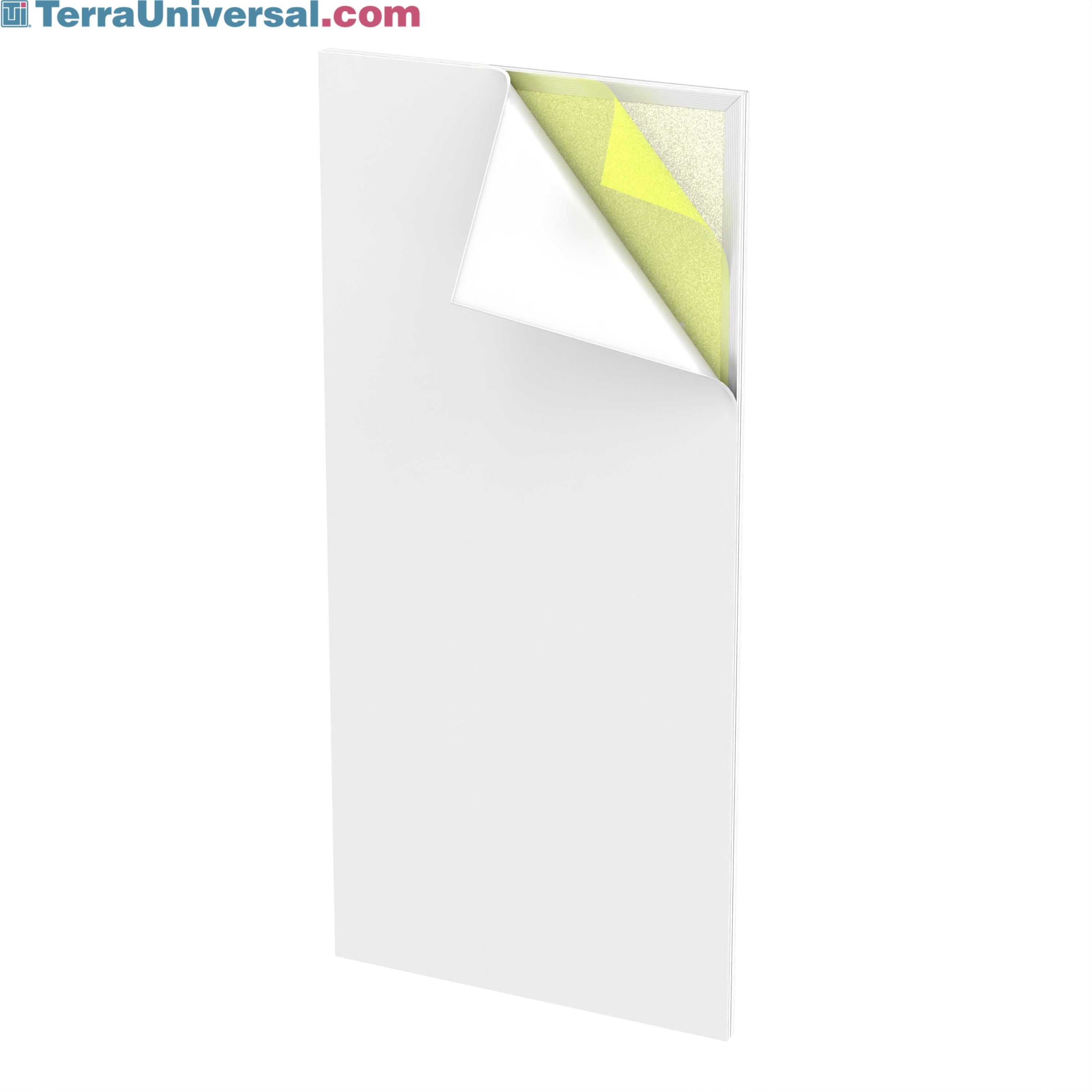

BioSafe® uPVC Wall Panel with EPS Rigid Foam Core

Fully-flush, smooth panels provide a stick-built aesthetic with seamless transitions between ceiling, walls, and floors for an air-tight enclosure

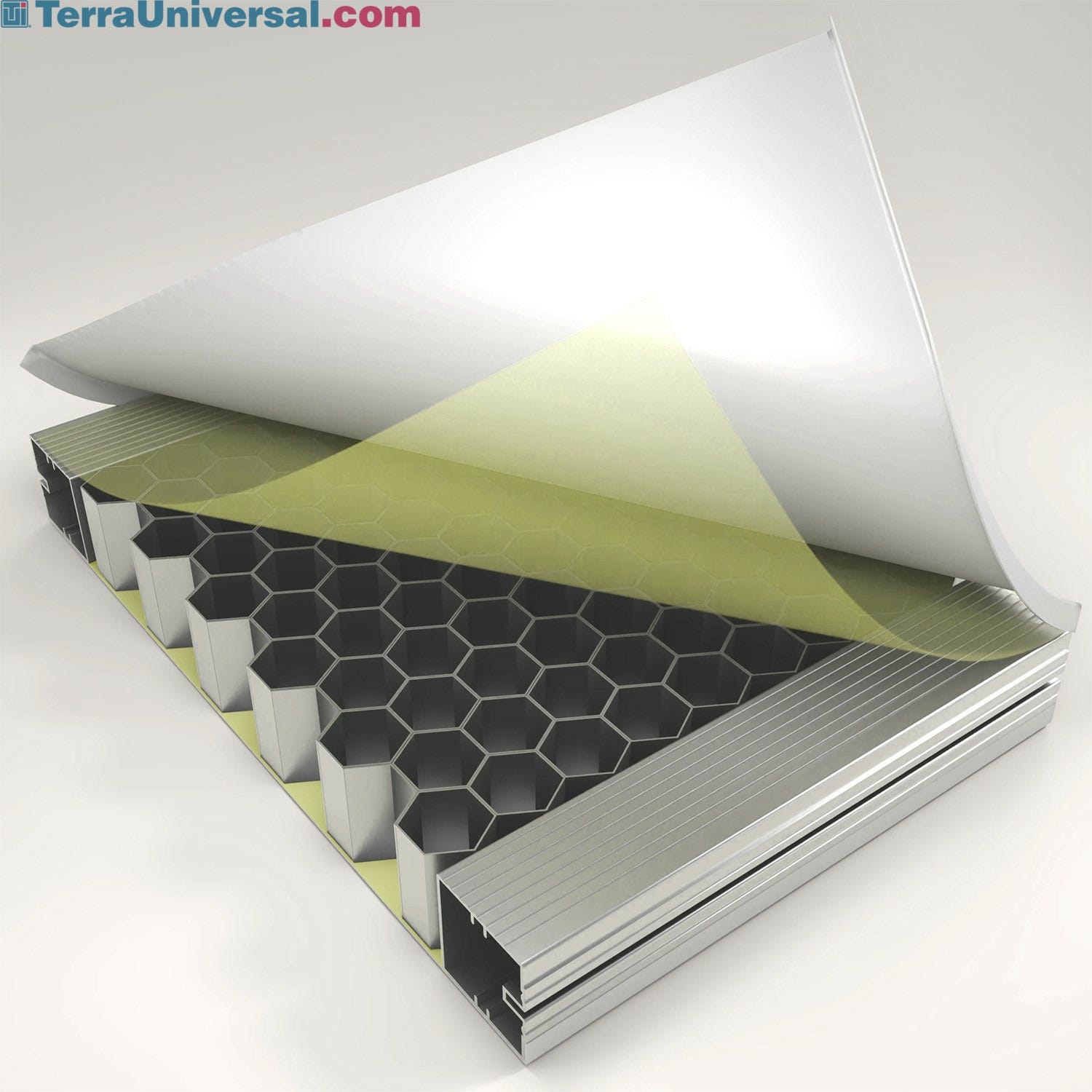

BioSafe® Wall Panel System Cutaway

Terra's wall panel system cutaway reveals the aluminum honeycomb core, adhesive layer, and aluminum rail system

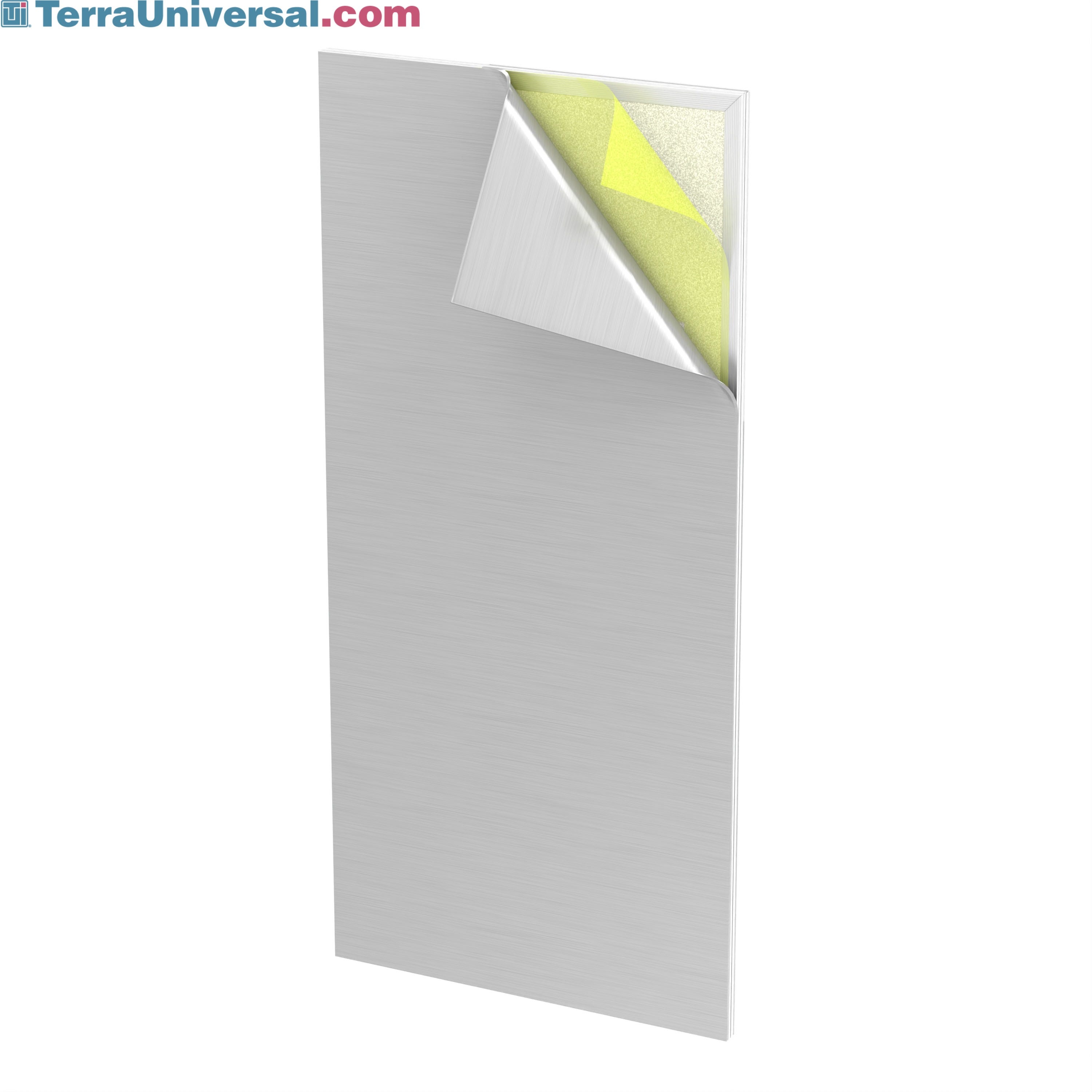

BioSafe® Stainless Steel Wall Panel with EPS Rigid Foam Core

Fully-flush, smooth panels provide a stick-built aesthetic with seamless transitions between ceiling, walls, and floors for an air-tight enclosure

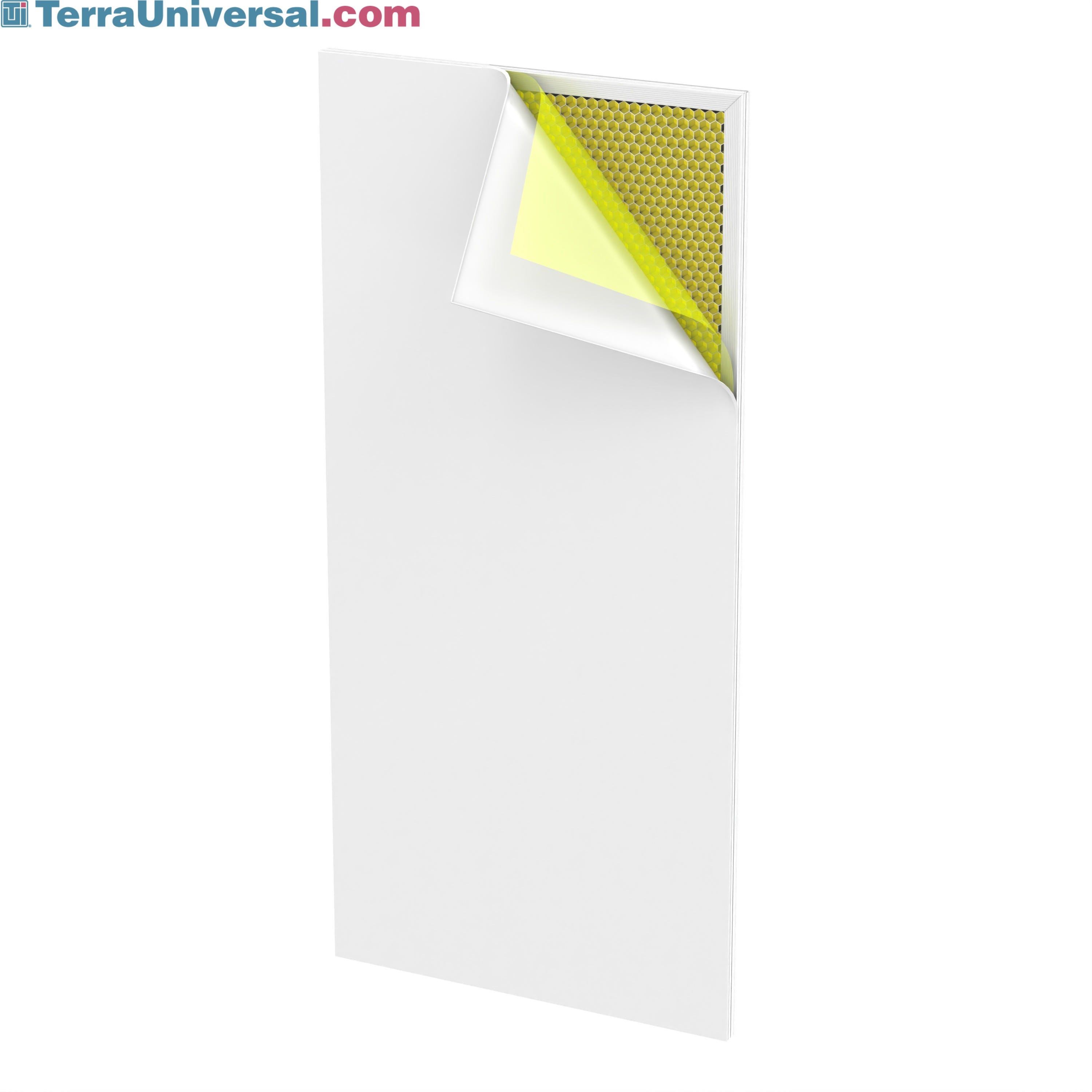

BioSafe® uPVC Wall Panel with Aluminum Honeycomb Core

Fully-flush, smooth panels provide a stick-built aesthetic with seamless transitions between ceiling, walls, and floors for an air-tight enclosure

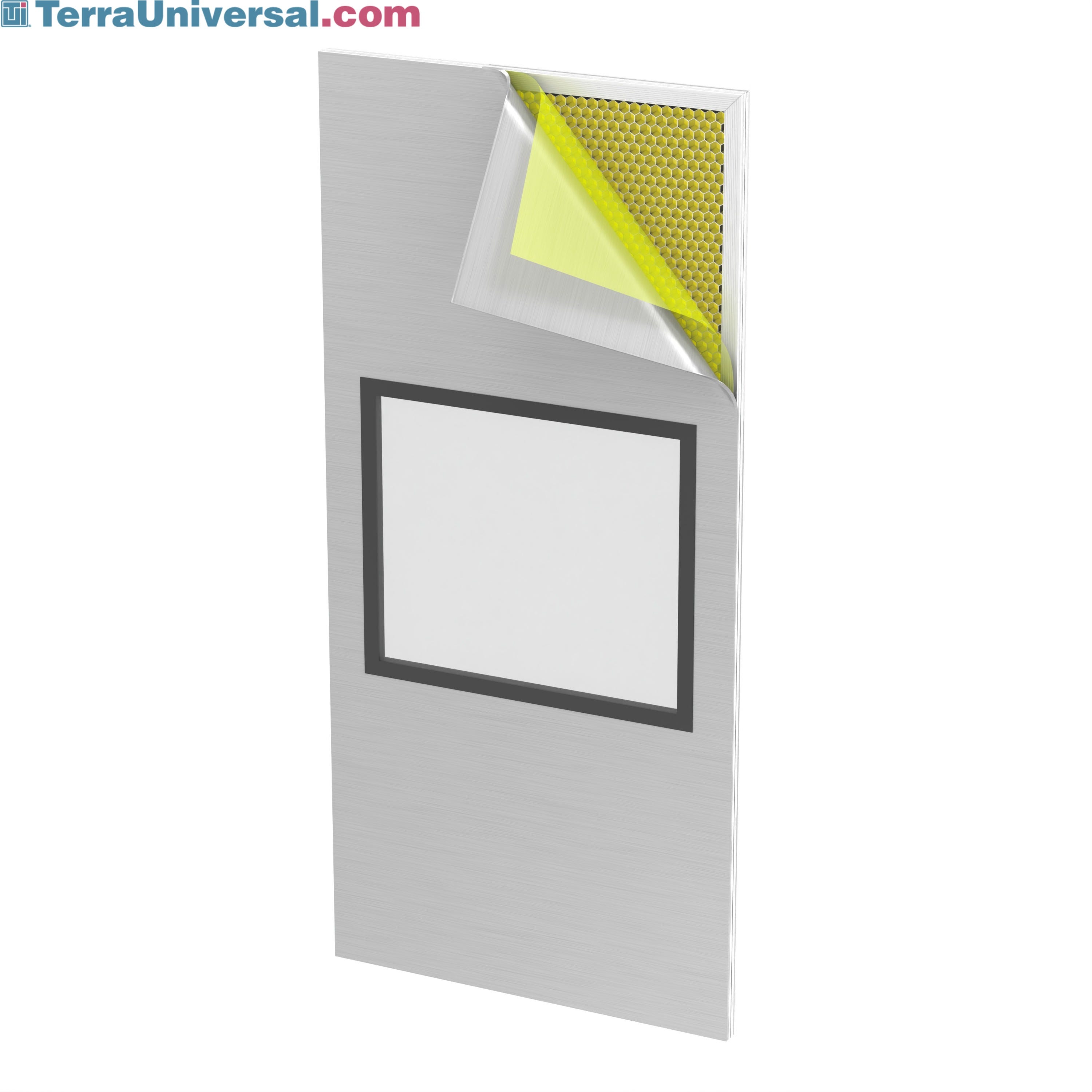

BioSafe® Stainless Steel Wall Panel with Aluminum Honeycomb Core and Window

Fully-flush, smooth panels provide a stick-built aesthetic with seamless transitions between ceiling, walls, and floors for an air-tight enclosure. Standard window measures 3' x 3'

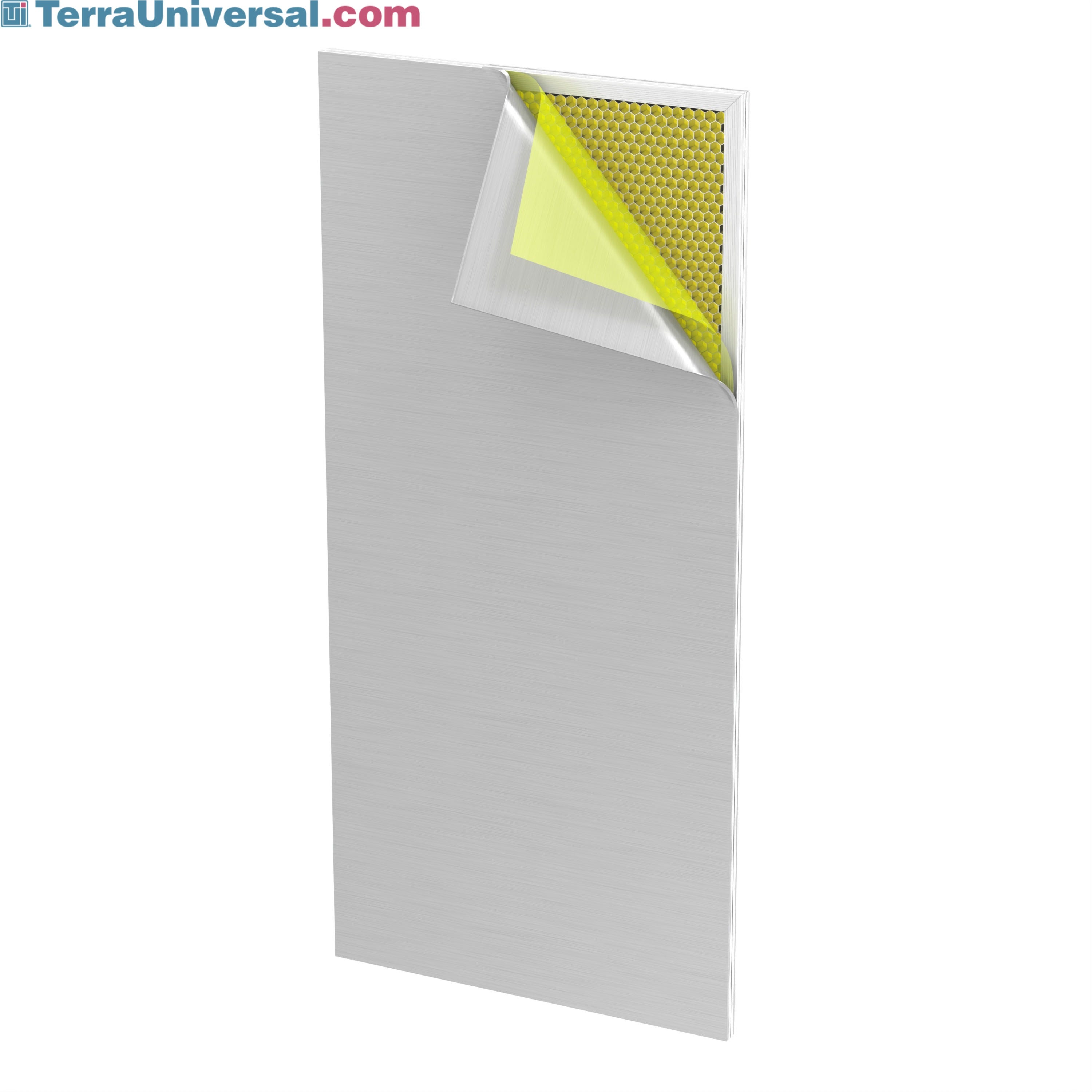

BioSafe® Stainless Steel Wall Panel with Aluminum Honeycomb Core

Fully-flush, smooth panels provide a stick-built aesthetic with seamless transitions between ceiling, walls, and floors for an air-tight enclosure

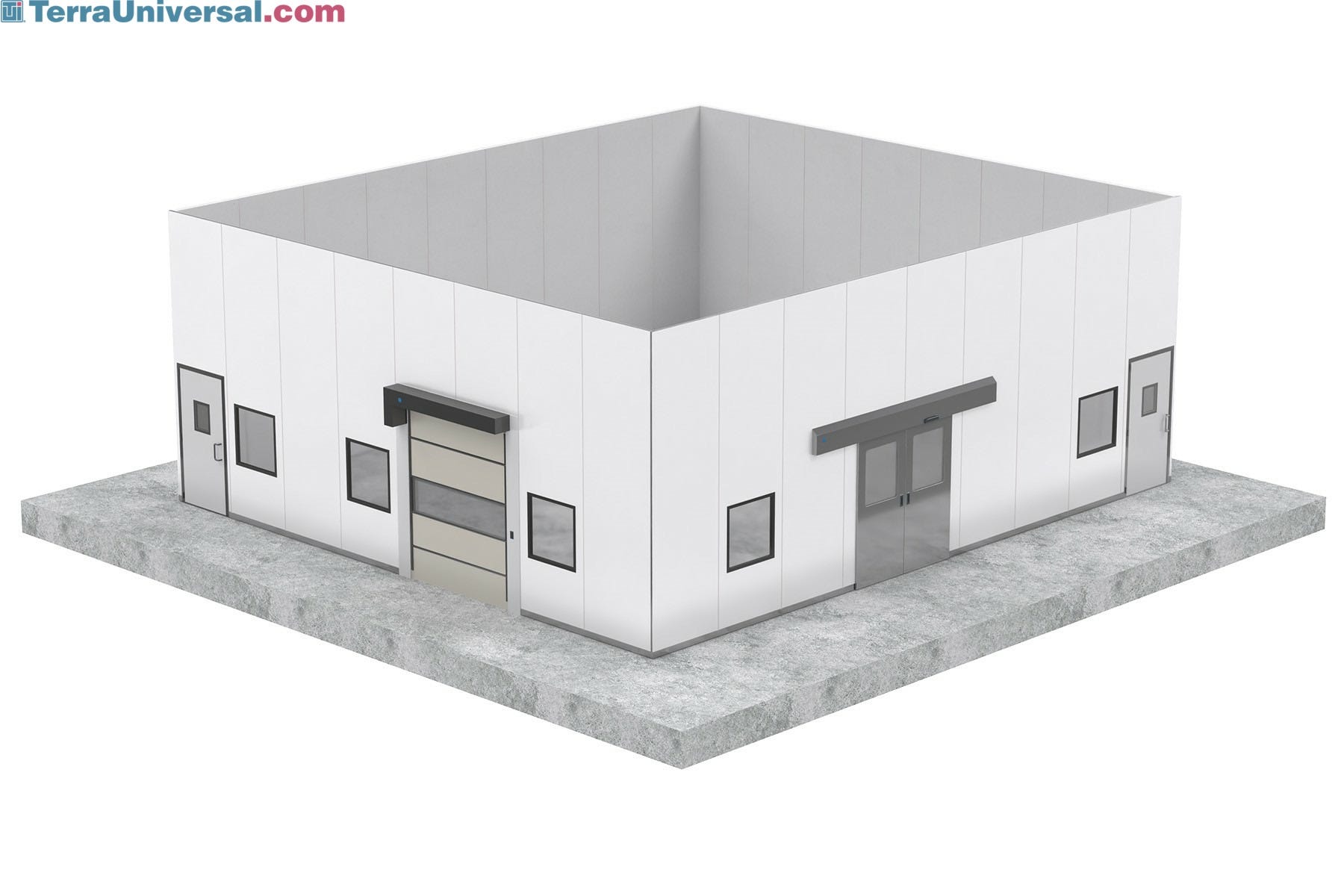

BioSafe® Modular Cleanroom with Wall Panel System Render

Custom BioSafe® modular cleanrooms with wall panel systems can be adpated to numerous different applications and industries.

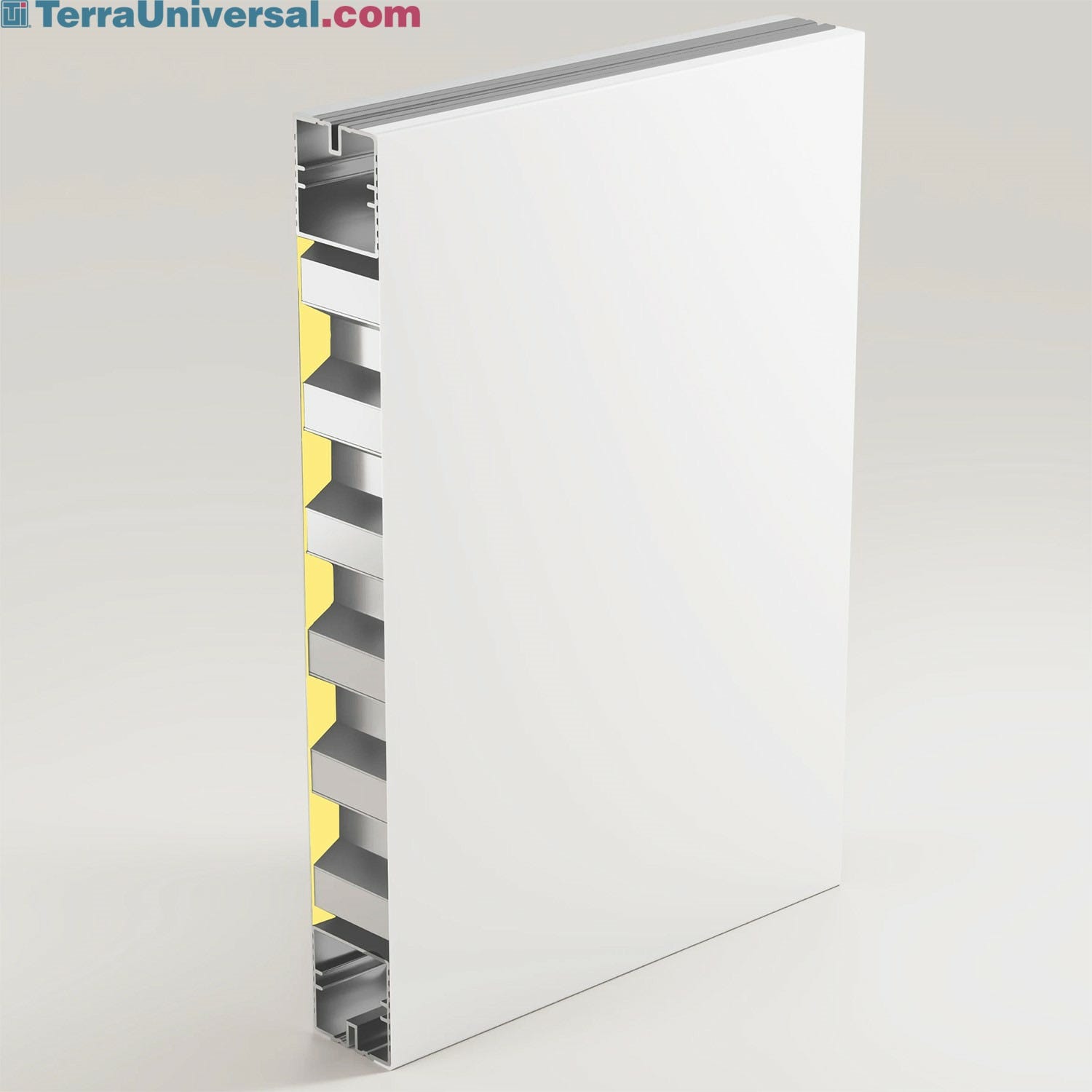

BioSafe® Wall Panel System Cutaway

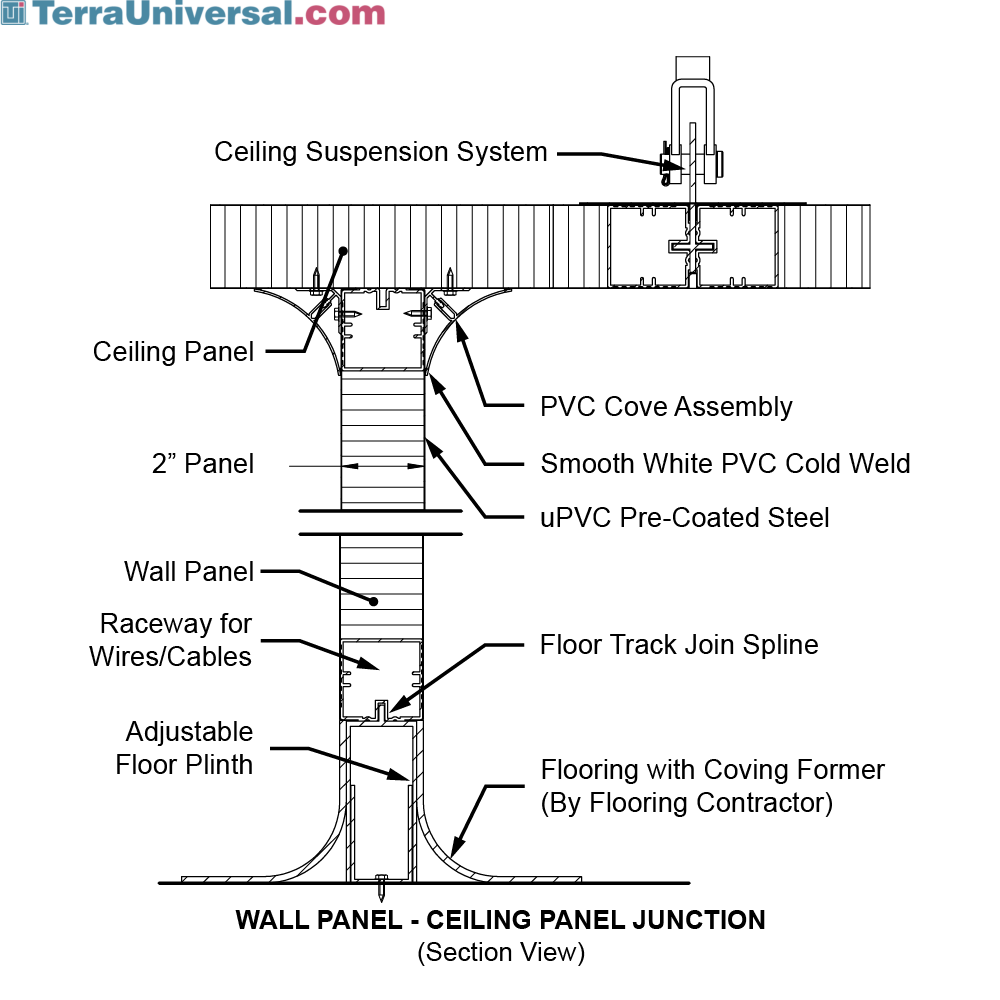

BioSafe® Wall Panel System, Wall Panel - Ceiling Panel Junction

Seamless design is compliant with ISO-14644, cGMP, GLP, ASTM and IEST requirements. Coved transitions between ceiling, walls, and floors allow for easy cleaning.

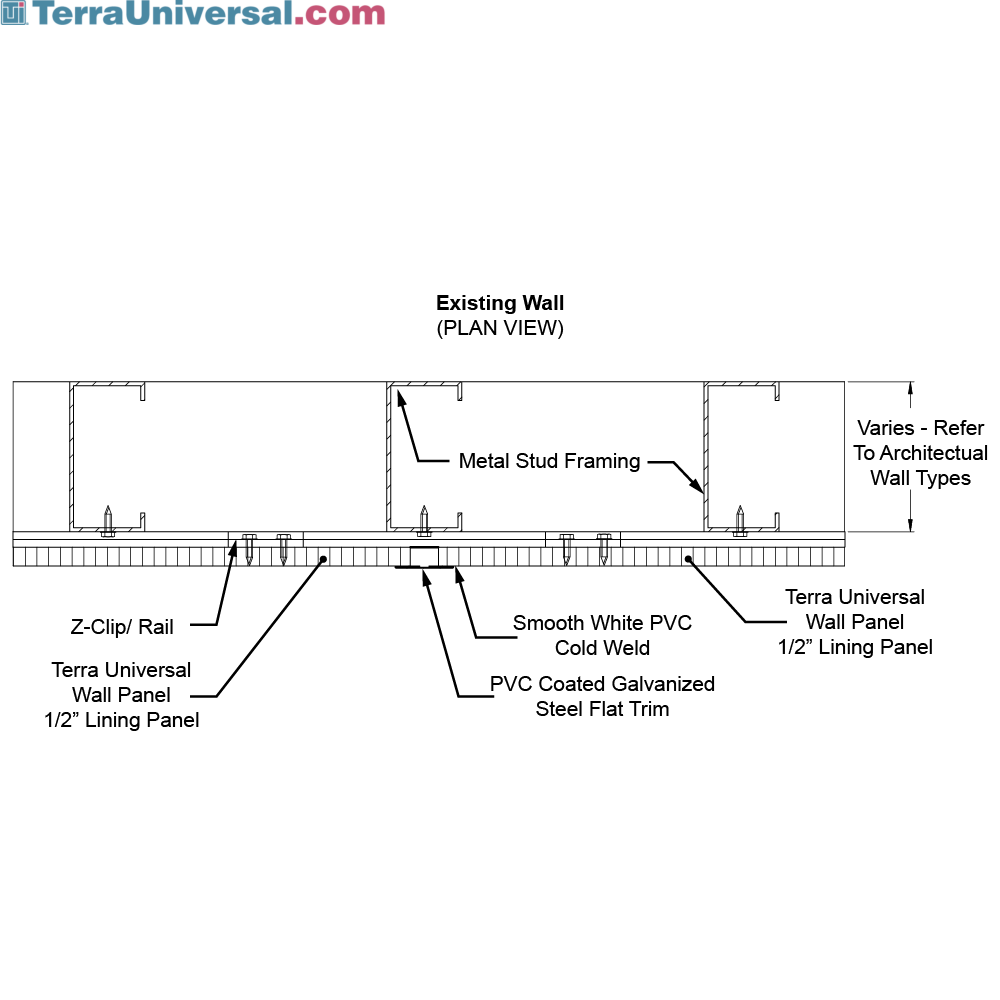

BioSafe® Wall Panel System, Existing Wall Plan View with 1/2" Liner

A 1/2" liner replaces the standard wall panel when the cleanroom is built against an existing wall, ensuring a flush fit and preserving cleanroom integrity.

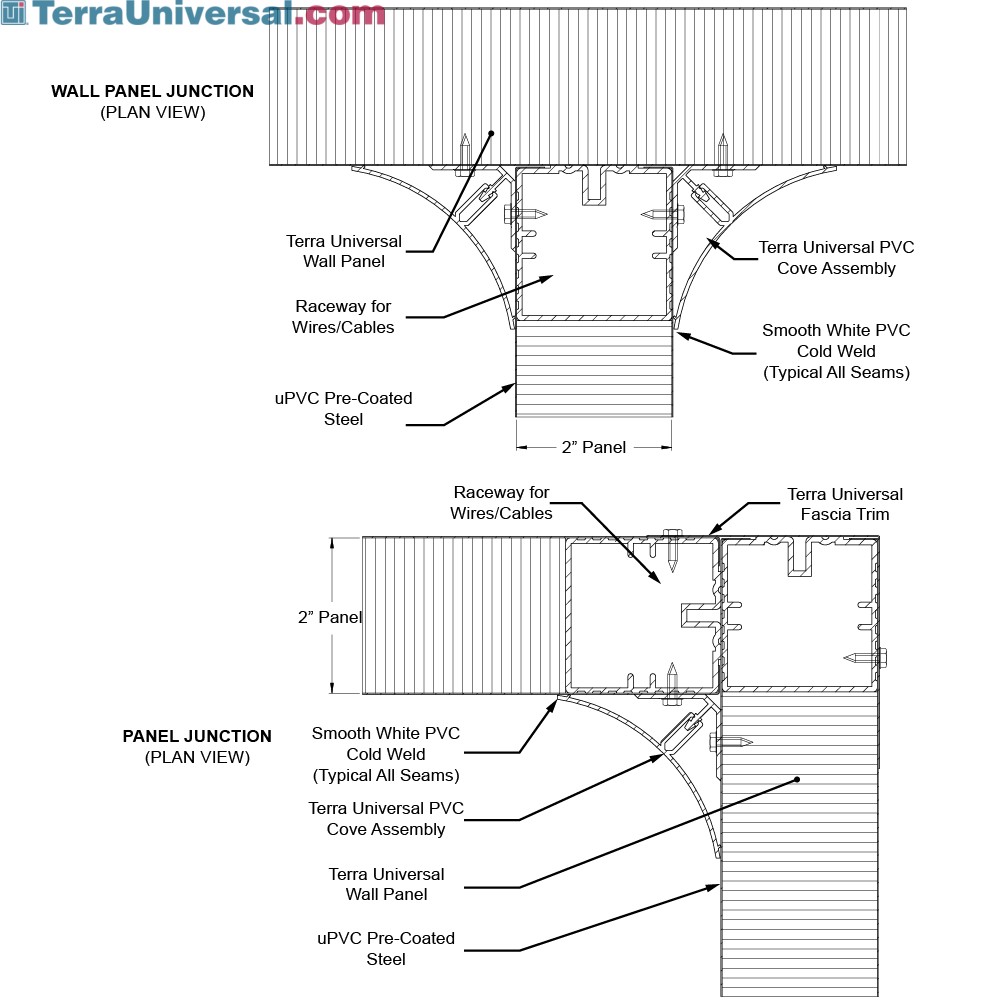

BioSafe® Wall Panel System, Wall Panel Junctions Plan View

Seamless coved transitions between ceiling, walls, and floors allow for easy cleaning.

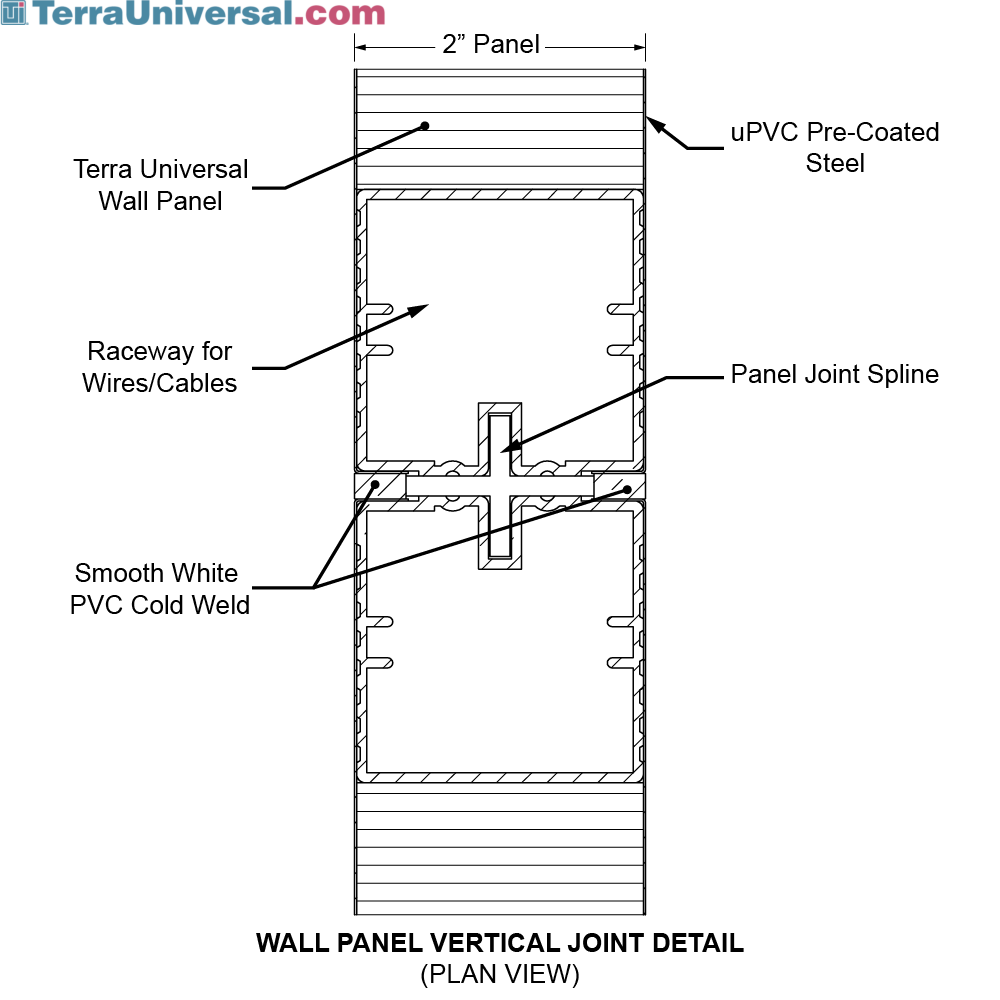

BioSafe® Wall Panel System, Wall Panel Vertical Joint Detail

Fully monolithic and seamless connecting wall panel system (not a panel-post system with gaps and ledges).

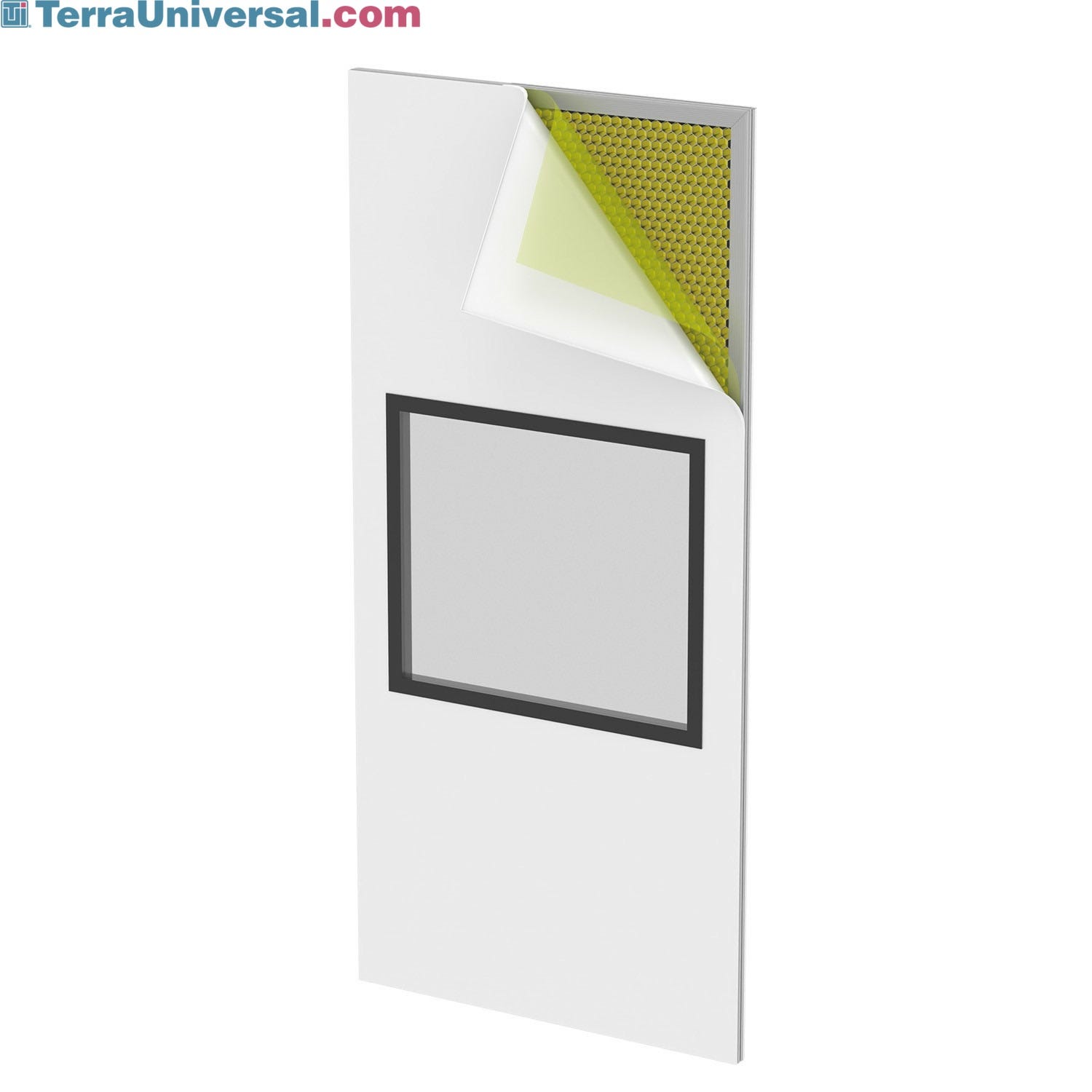

BioSafe® Wall Panel System, Wall Panel Segment With Window

Wall panels consist of an aluminum square tube frame, with aluminum honeycomb core sandwhiched and bonded between uPVC sheetmetal skin.
