Gallery

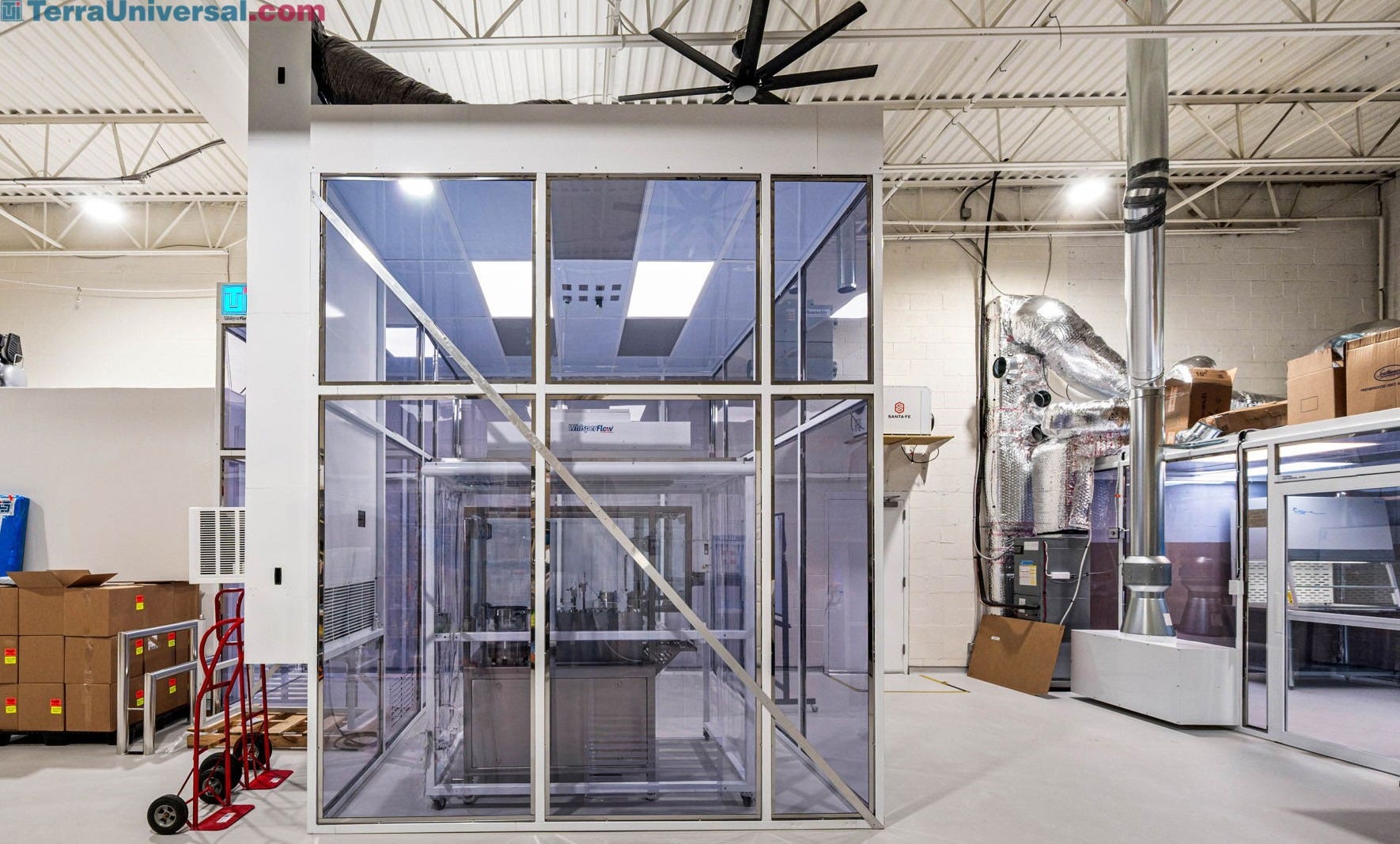

Extra Tall, Custom Hardwall Modular Cleanroom

Integrates WhisperFlow fan filter units directly into the powder-coated steel ceiling grid, which forms 2' x 4' bays for FFU placement. This installation includes 8 FFUs in the main cleanroom area and 2 FFUs in the gowning area.

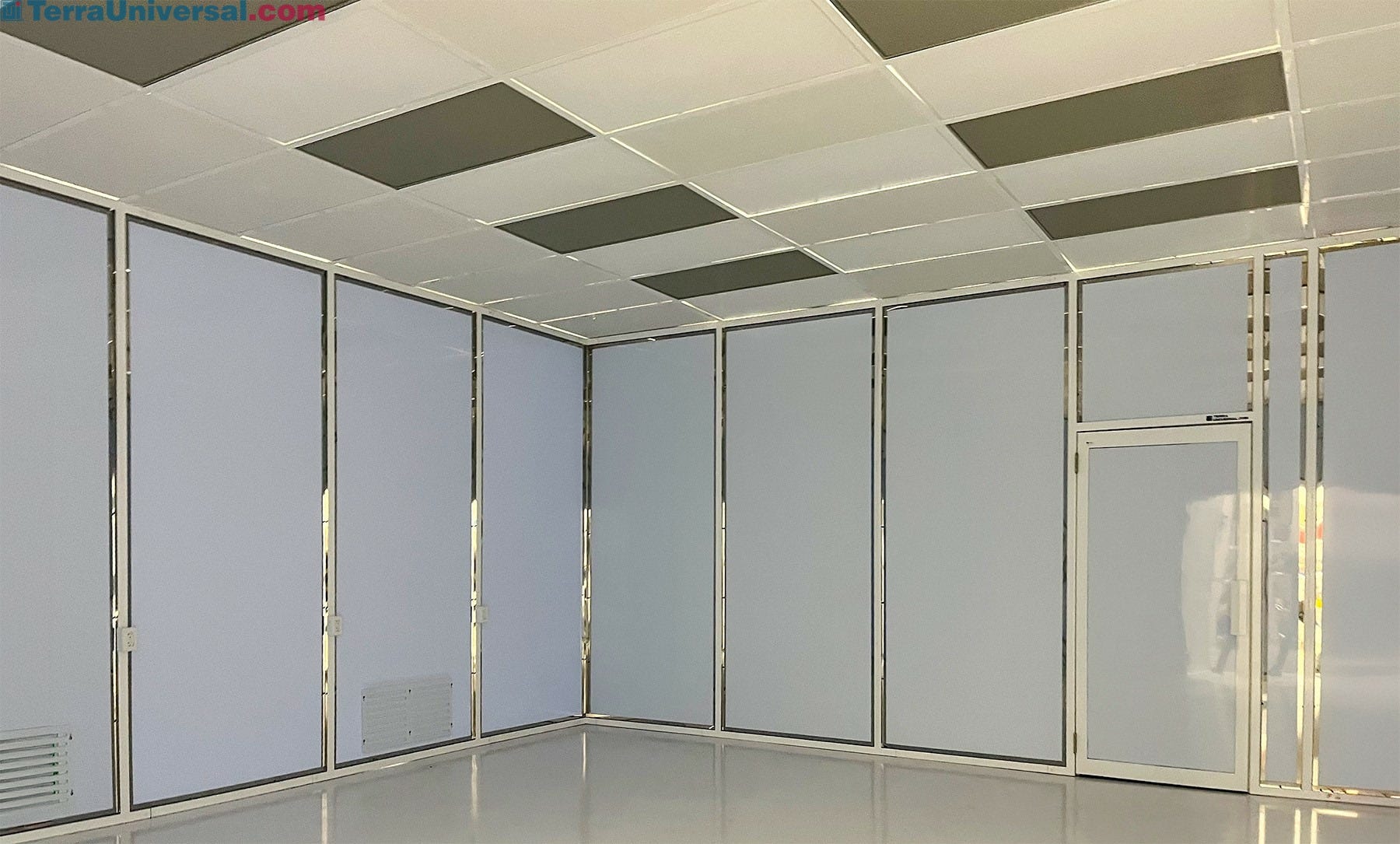

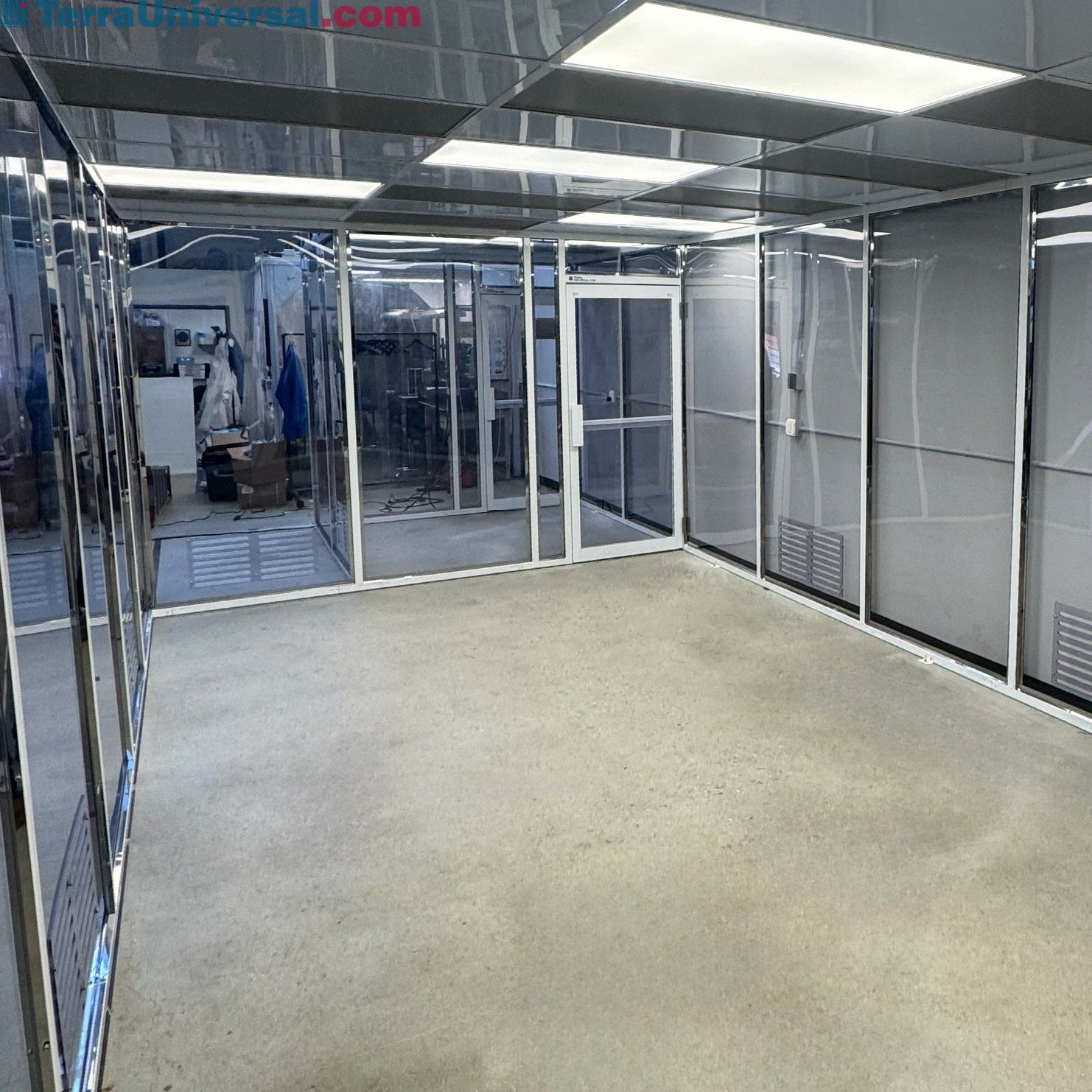

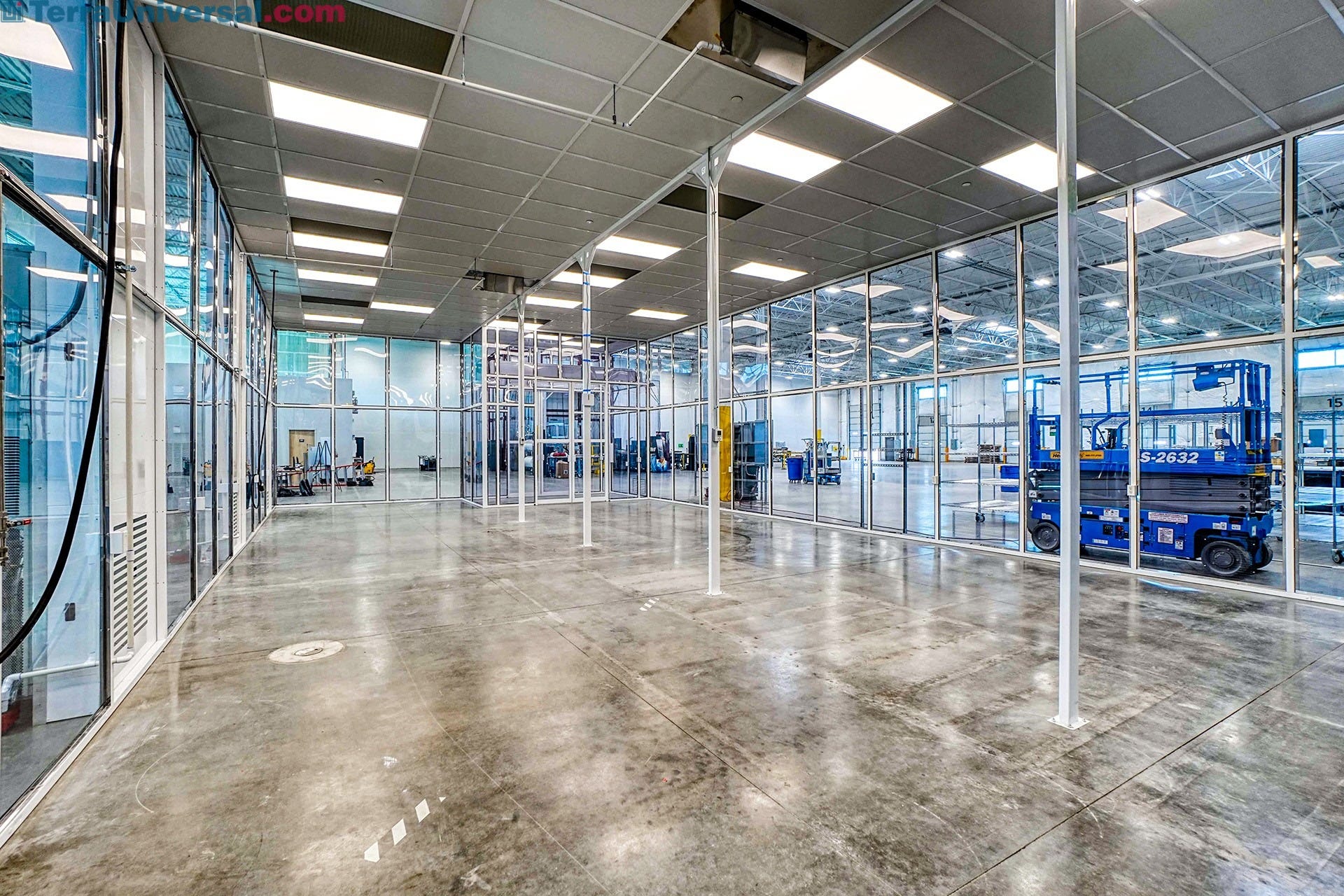

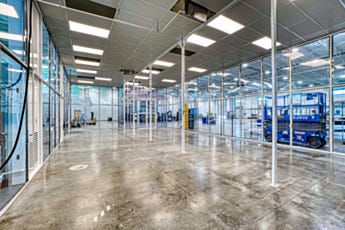

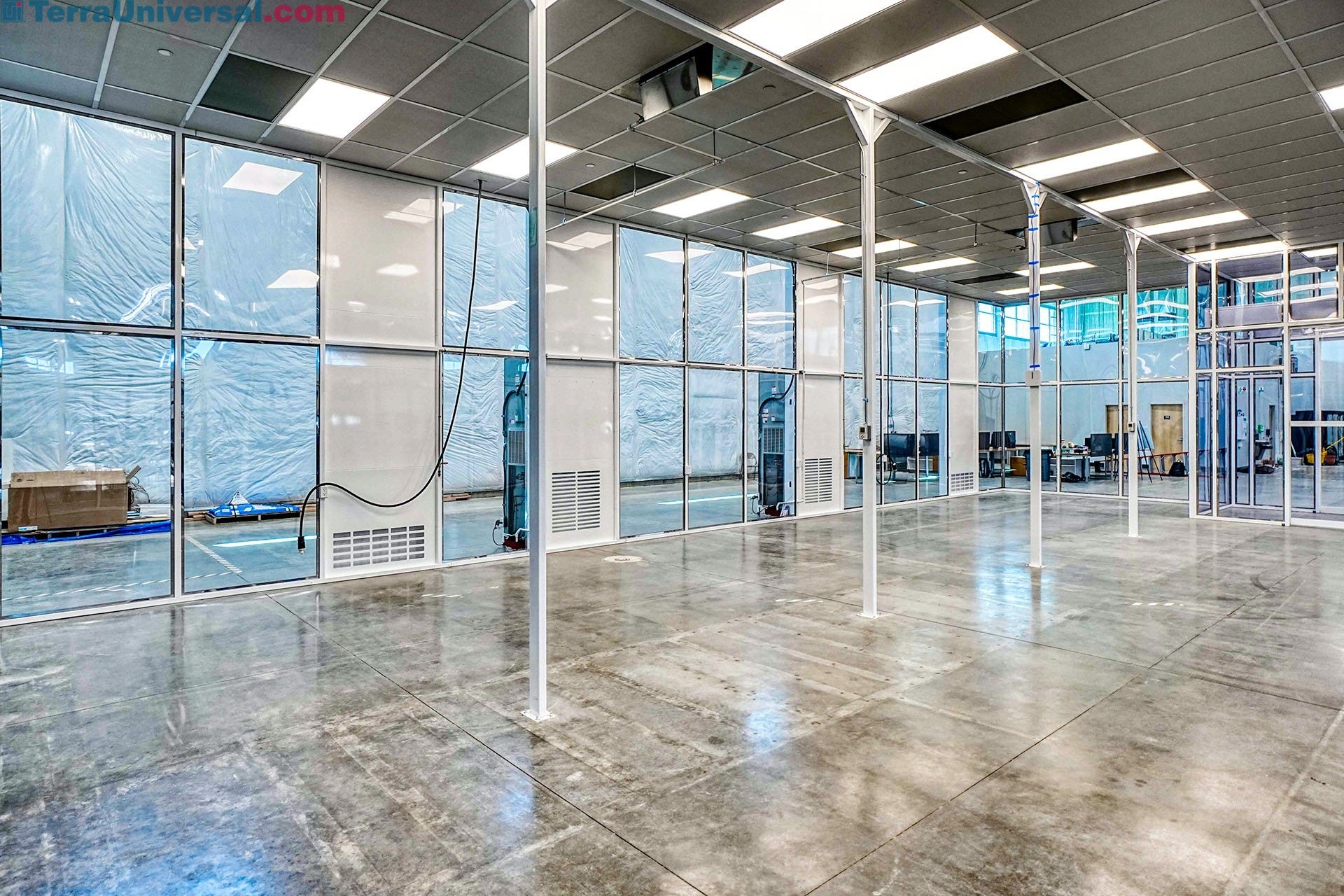

Hardwall Modular Cleanroom Open Interior

Large, open floor plan provides maximum usable workspace for cleanroom operations. Static-dissipative PVC panels are center-mounted to 2" powder-coated square steel uprights, with mirror-finish stainless steel L-bracket trim strips for an easy-clean interior.

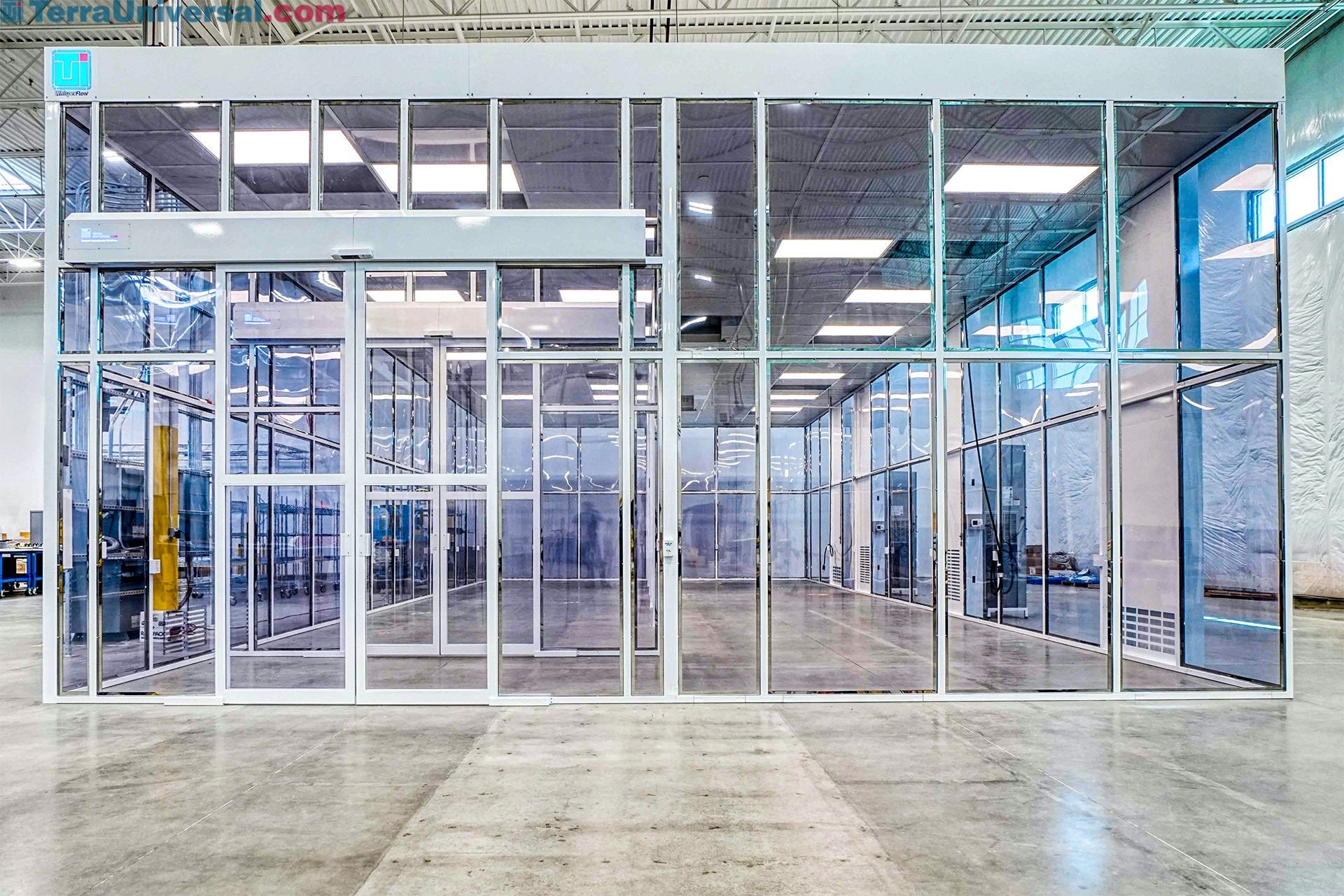

Hardwall Modular Cleanroom Custom Extra Tall

Automatic double sliding door spans 72" W x 120 "H for controlled, hands-free cleanroom access. The WhisperFlow FFU header above the entry integrates filtration directly into the entryway, maintaining air cleanliness throughout the gowning and cleanroom areas.

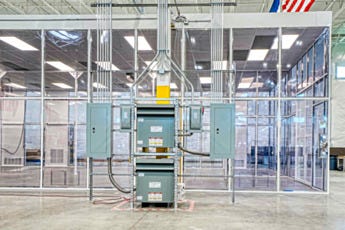

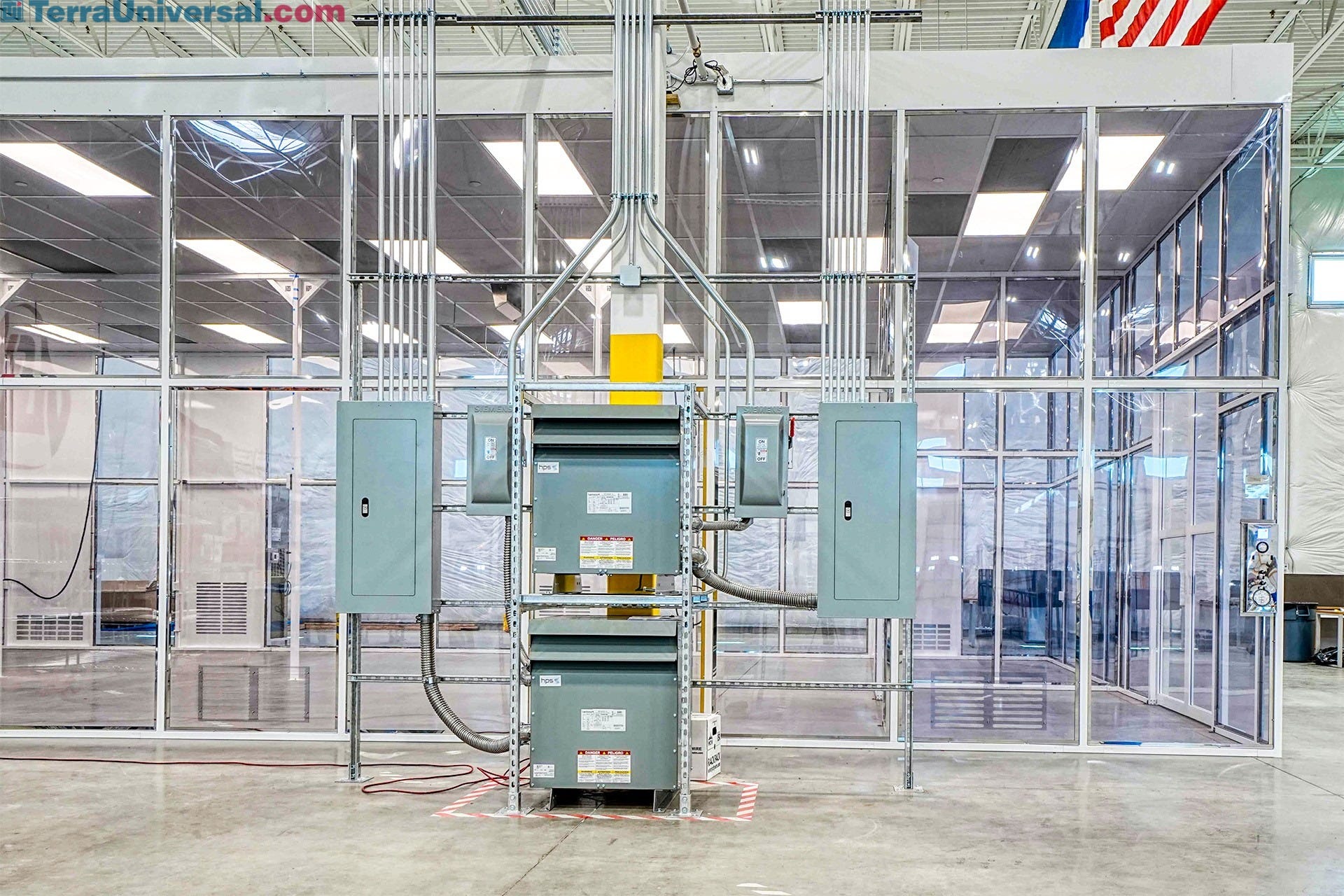

Electrical Infrastructure of Hardwall Modular Cleanroom

Hardwall modular cleanroom featuring step-down transformers and electrical disconnect equipment providing facility power to the cleanroom's FFUs, lighting, and electrical systems.

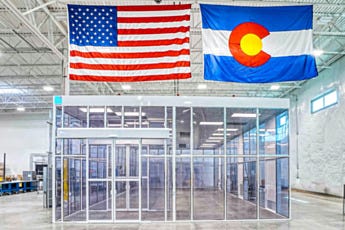

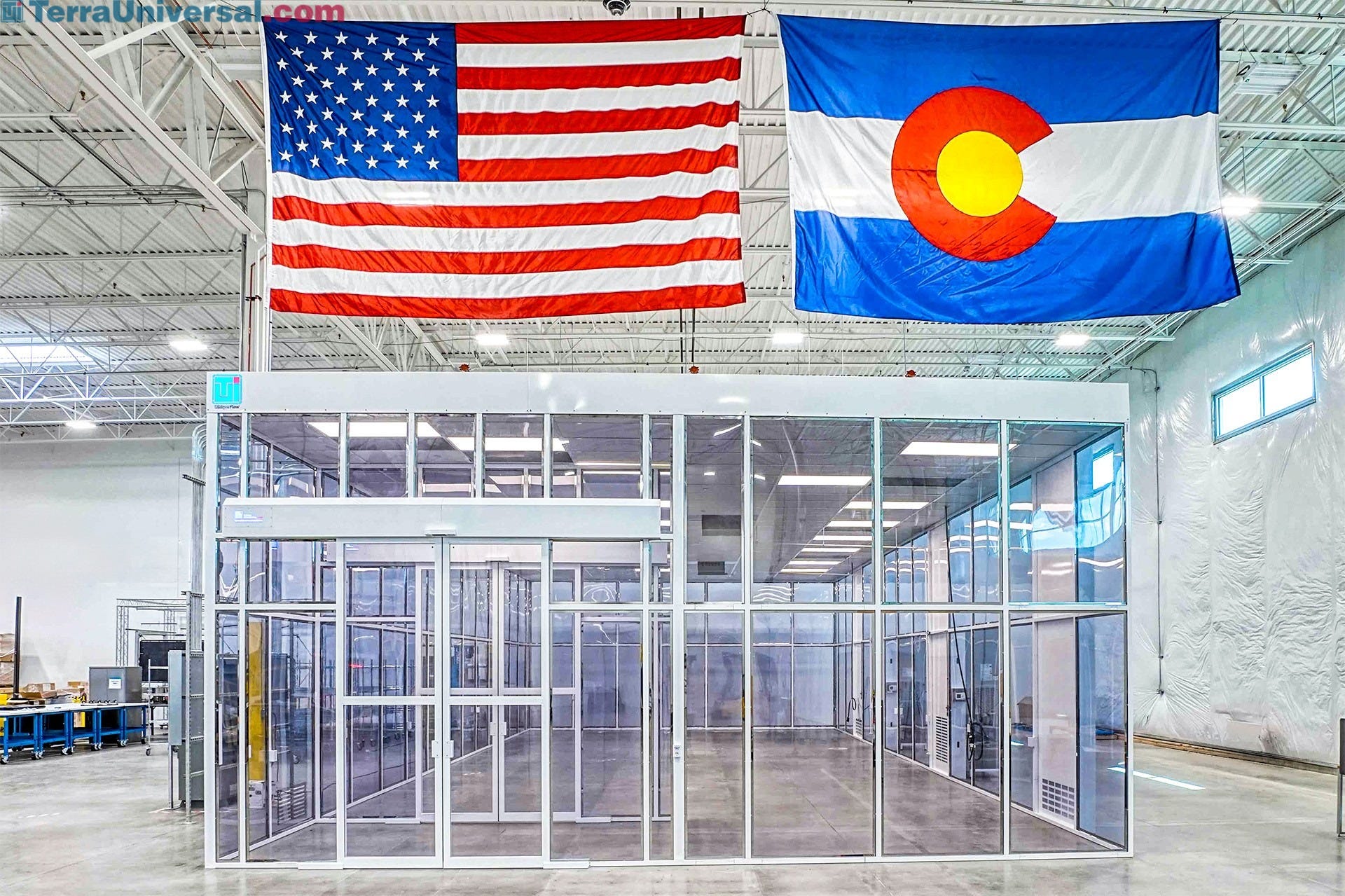

Hardwall Modular Cleanroom in Large-Scale Industrial Facility

Terra Universal hardwall modular cleanrooms are designed to scale to large industrial environments. This installation spans 58' x 28' x 14'H for the main cleanroom area and includes a spacious gowning area, both with static-dissipative PVC panels and a powder-coated steel frame.

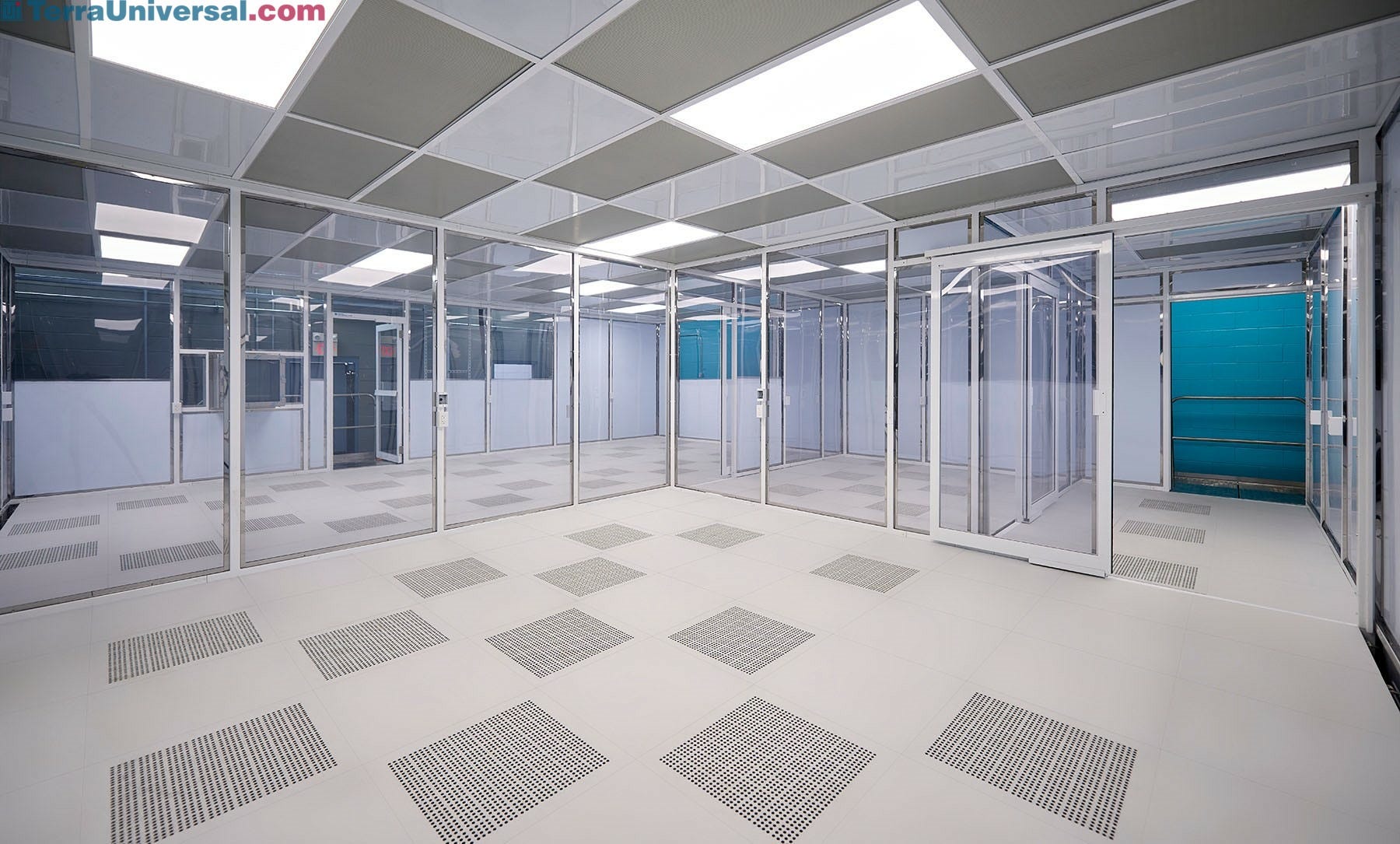

LED Lighting and Ceiling Grid in Hardwall Modular Cleanroom

Features 18 LED lights integrated into a powder-coated steel ceiling grid that forms 2' x 4' bays for FFU placement. The ceiling grid provides even illumination across the full cleanroom area while accommodating all filtration and lighting infrastructure overhead.

Vertical Air Returns for Climate Control, Hardwall Modular Cleanroom

Vertical air returns integrated into the lower wall sections to support consistent air circulation and maintain ISO grade air cleanliness. The air conditioning module and vertical air returns are ordered separately to accommodate site-specific HVAC configurations.

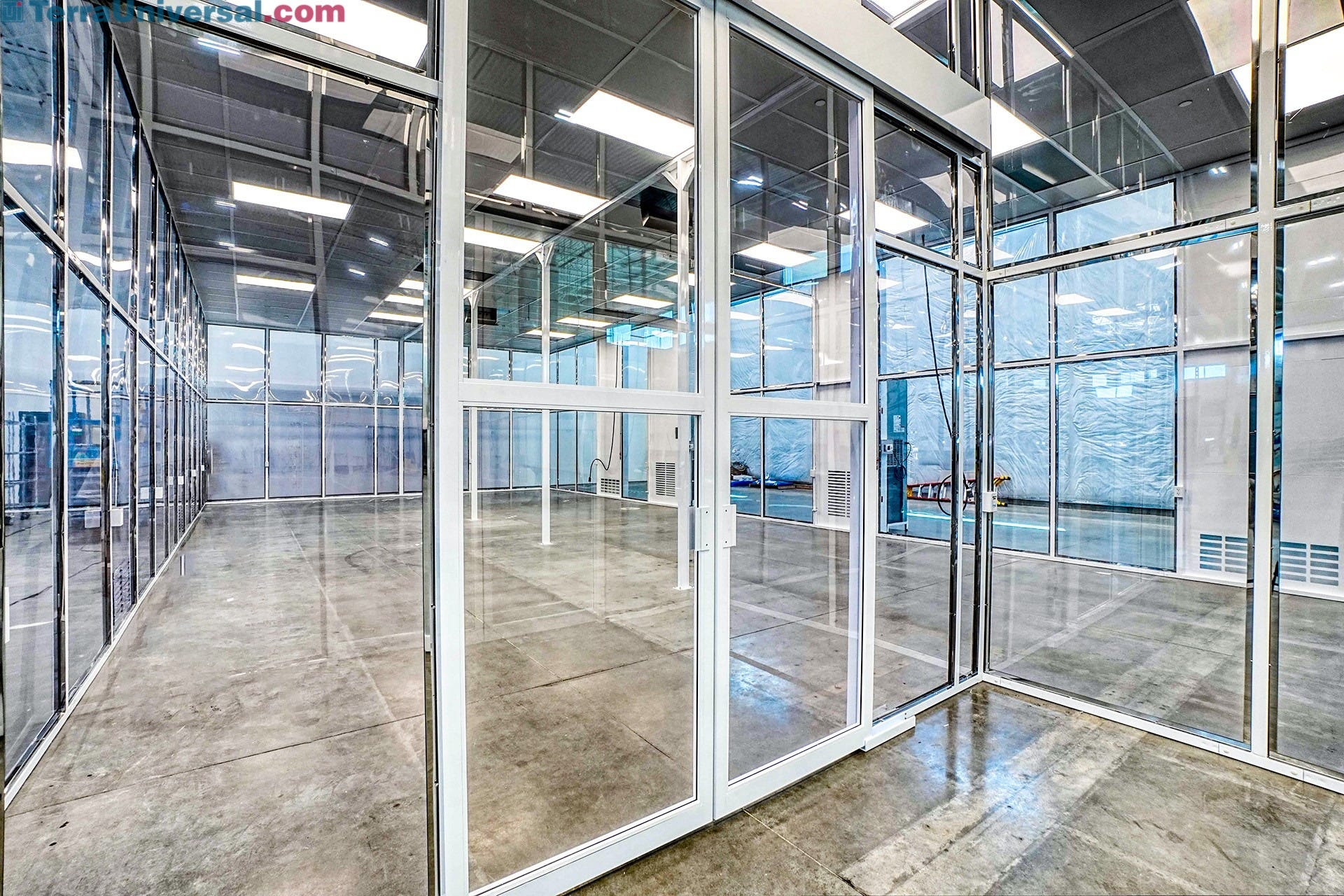

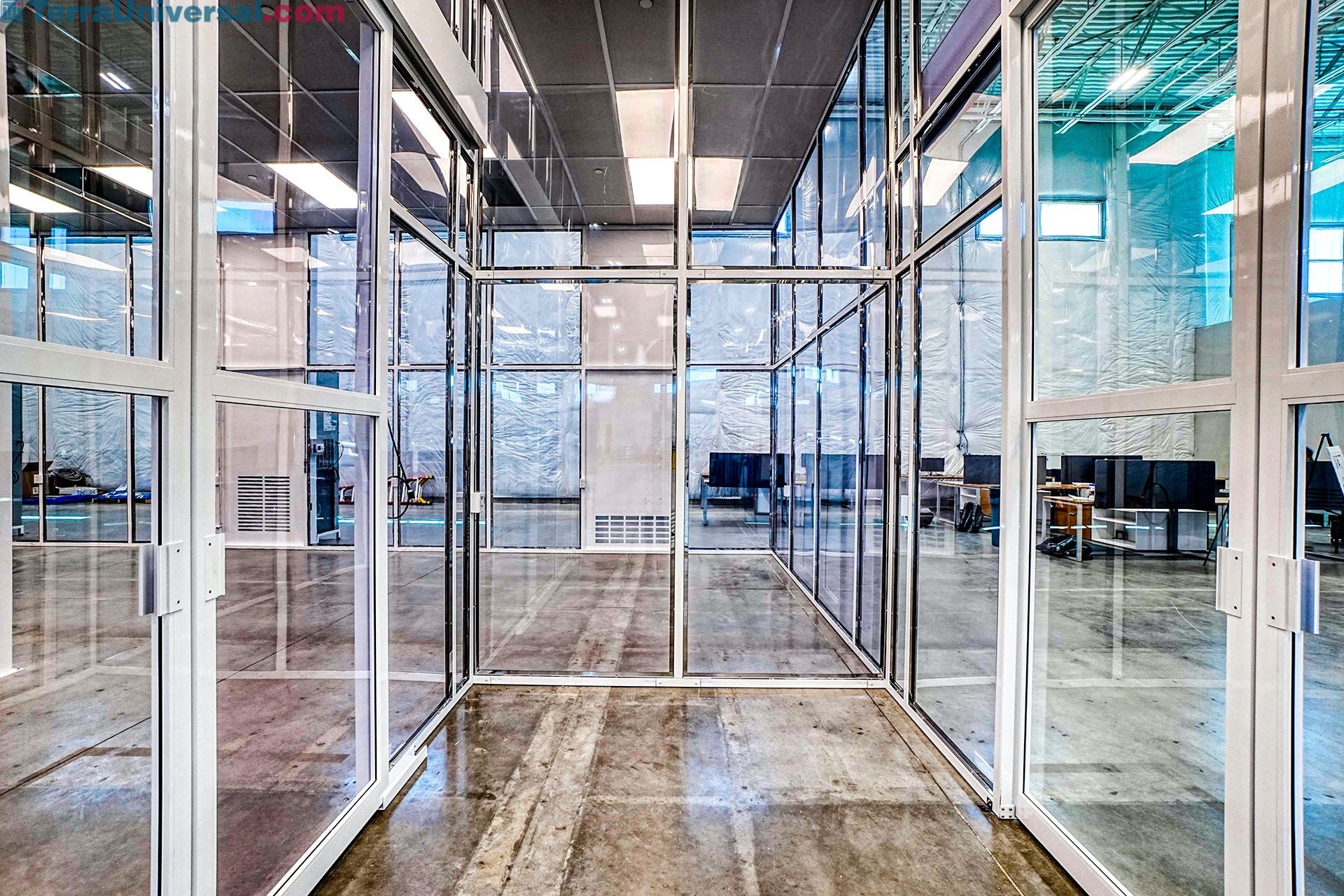

Gowning Area with Swing Door Access, Hardwall Modular Cleanroom

Dedicated gowning area (14' x 8' x 14'H) with swing door access into the main cleanroom. The gowning area is equipped with 2 FFUs and 2 LED lights to maintain air cleanliness during the gowning process before personnel enter the primary cleanroom space.

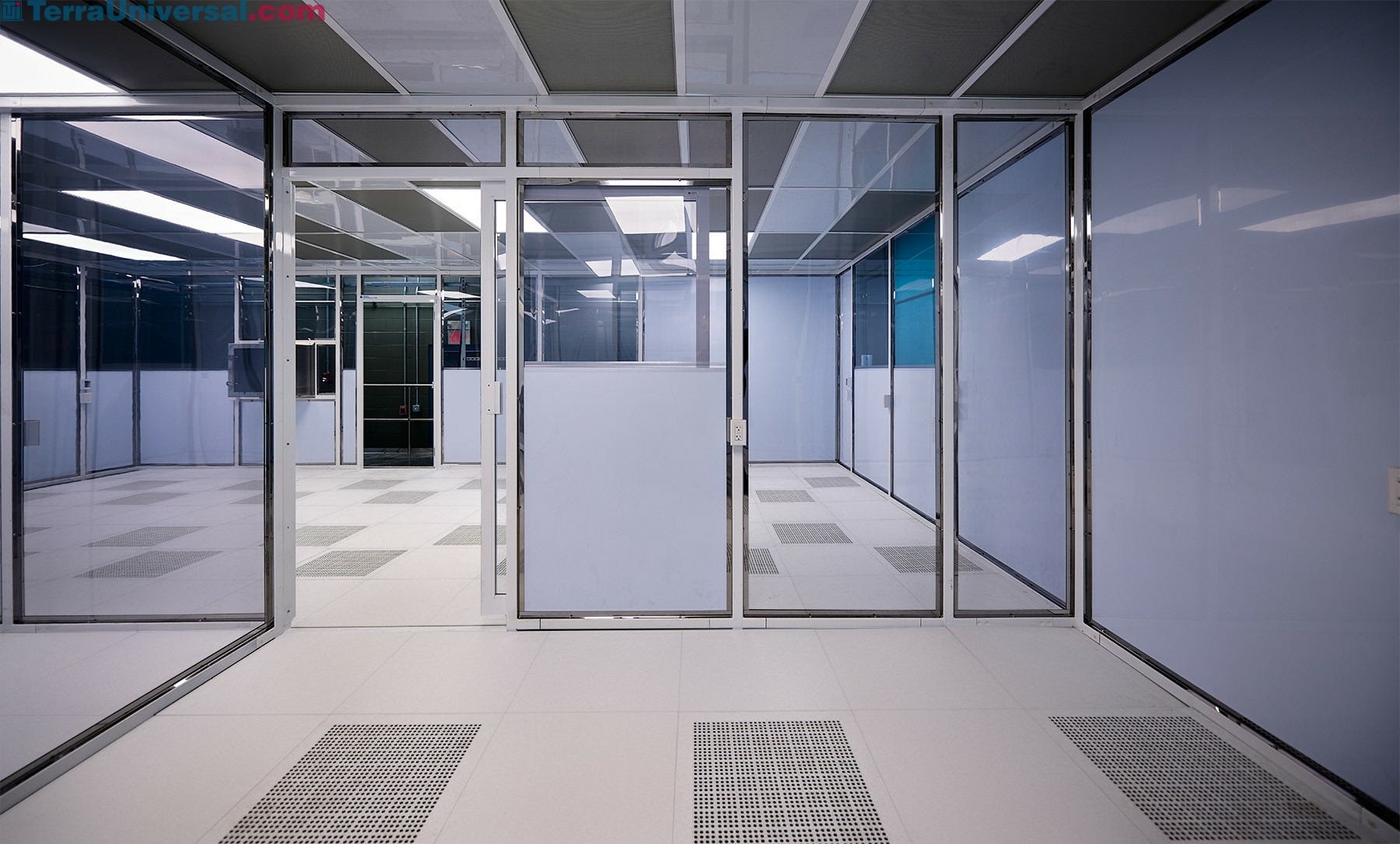

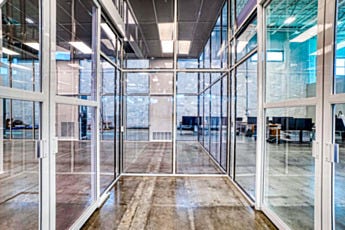

Separate Gowning and Cleanroom Zones, Hardwall Modular Cleanroom

Features a separate gowning zone with its own automatic double sliding door entry, providing a clearly defined contamination control boundary before personnel enter cleanroom area. Both zones are constructed with static-dissipative PVC panels and powder-coated steel uprights.

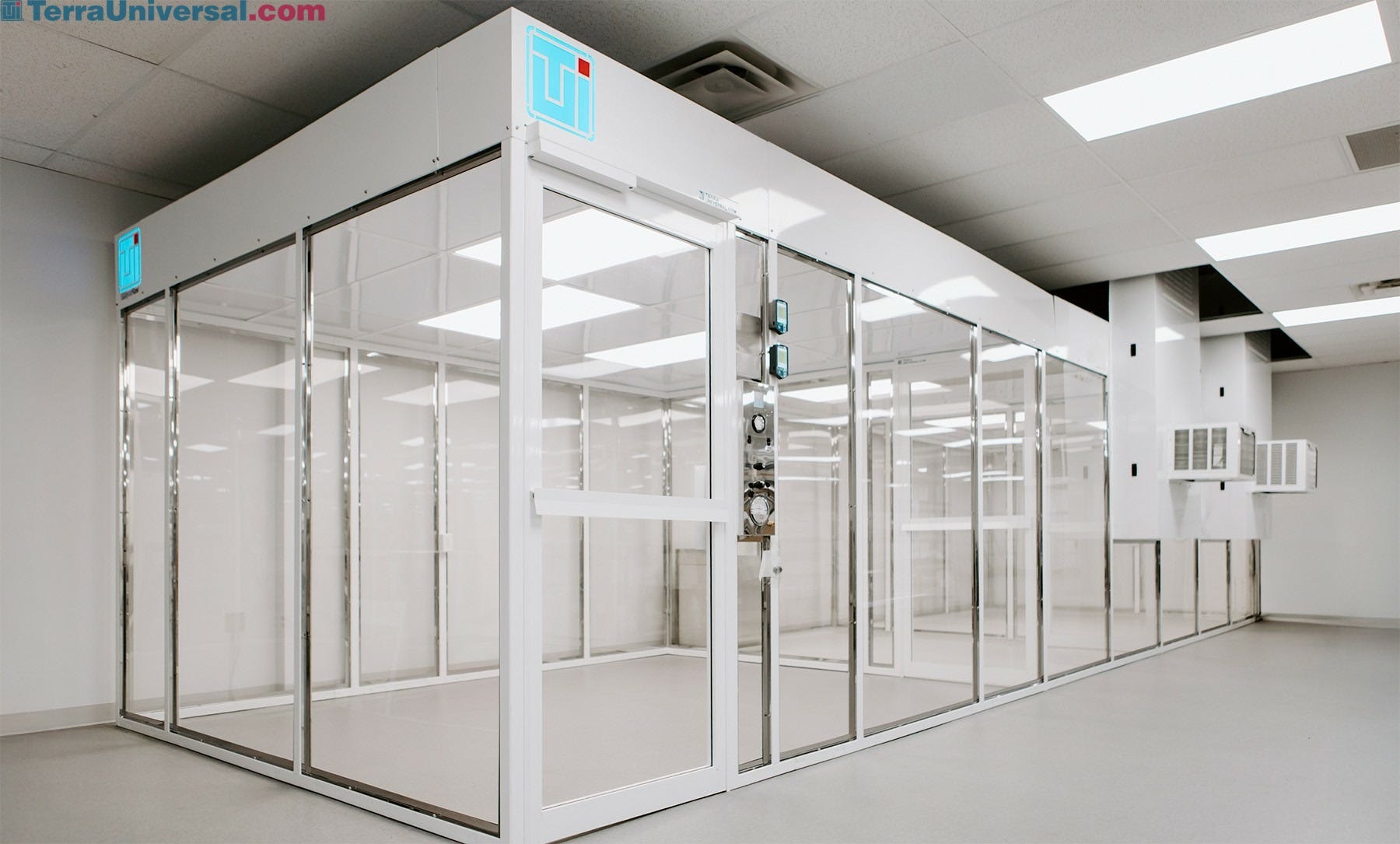

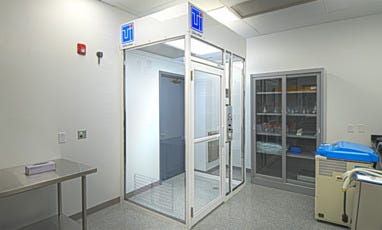

Custom Hardwall Modular Cleanroom for Healthcare Applications

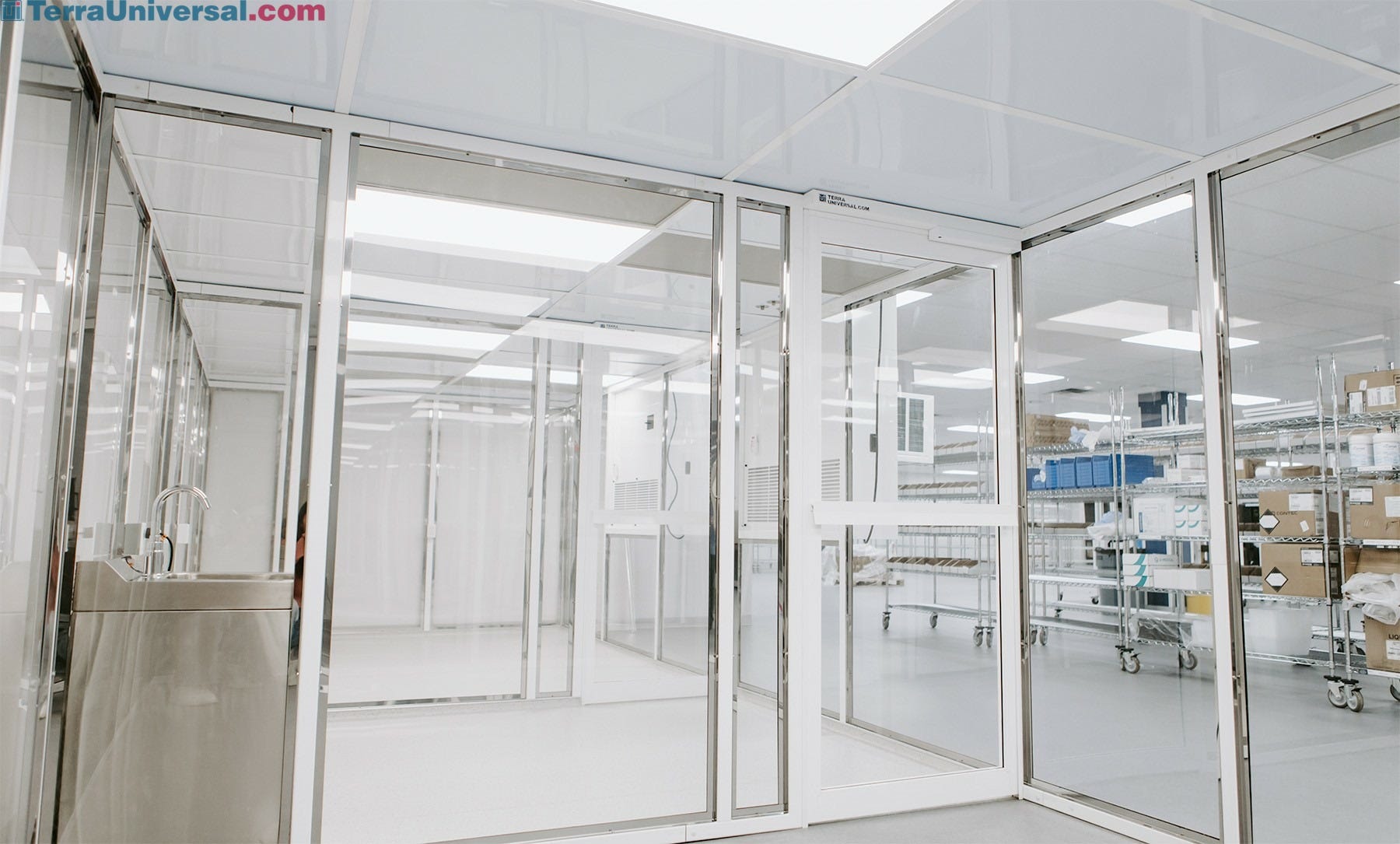

Modular hardwall cleanroom features clear acrylic panels and a powder-coated steel frame, providing full visibility and long-lasting durability. Ideal for ISO 5-8 environments, it offers easy customization to meet your specific cleanroom requirements.

Cleanroom, Hardwall, Polypropylene, External Mount Panels, Vertical Trim Strips

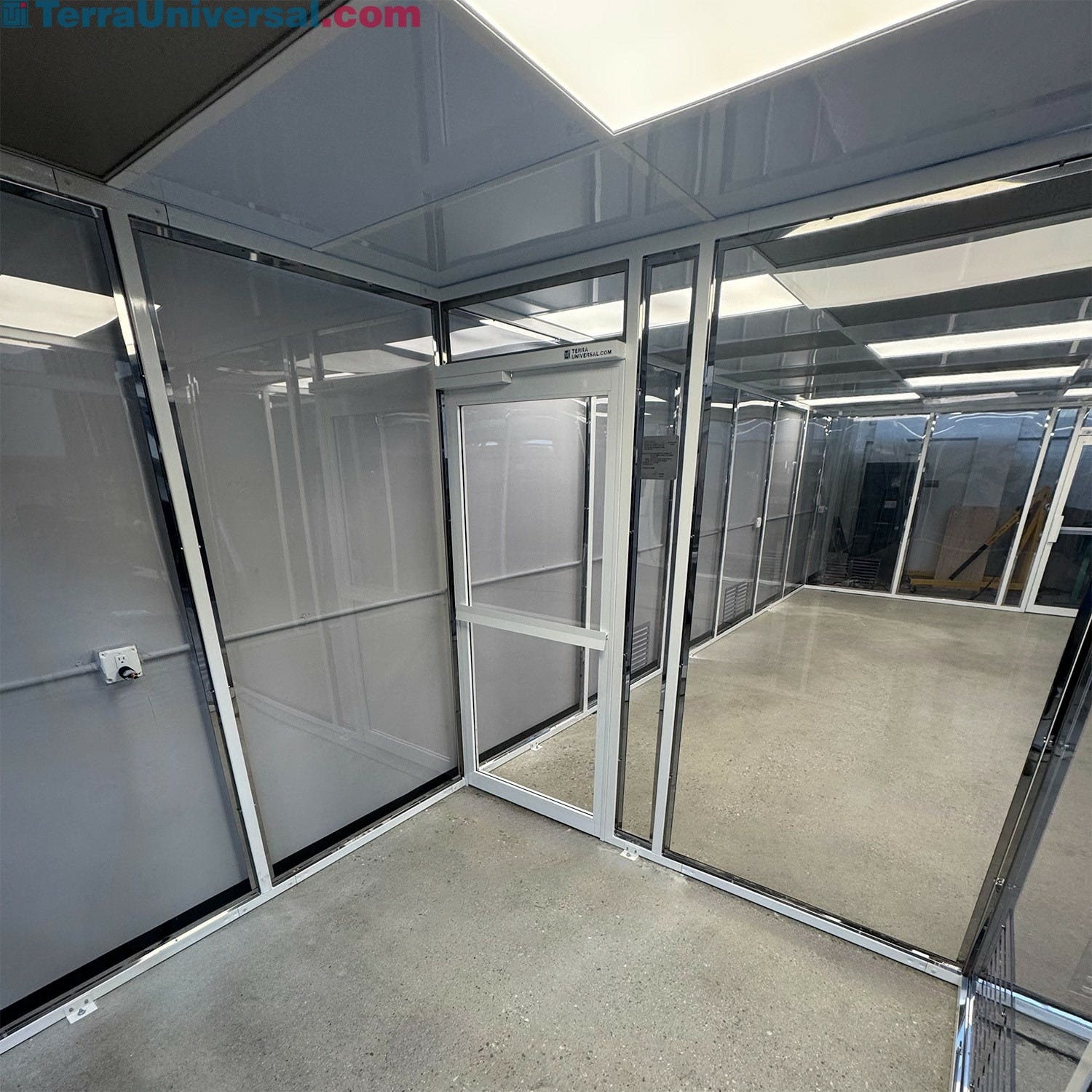

Static-Dissipative PVC Hardwall Cleanroom

Static-dissipative PVC panels remove surface charges and the particles they attract, simplifying cleaning of cleanrooms; shown: ISO 5 modular room with separate gowning room.

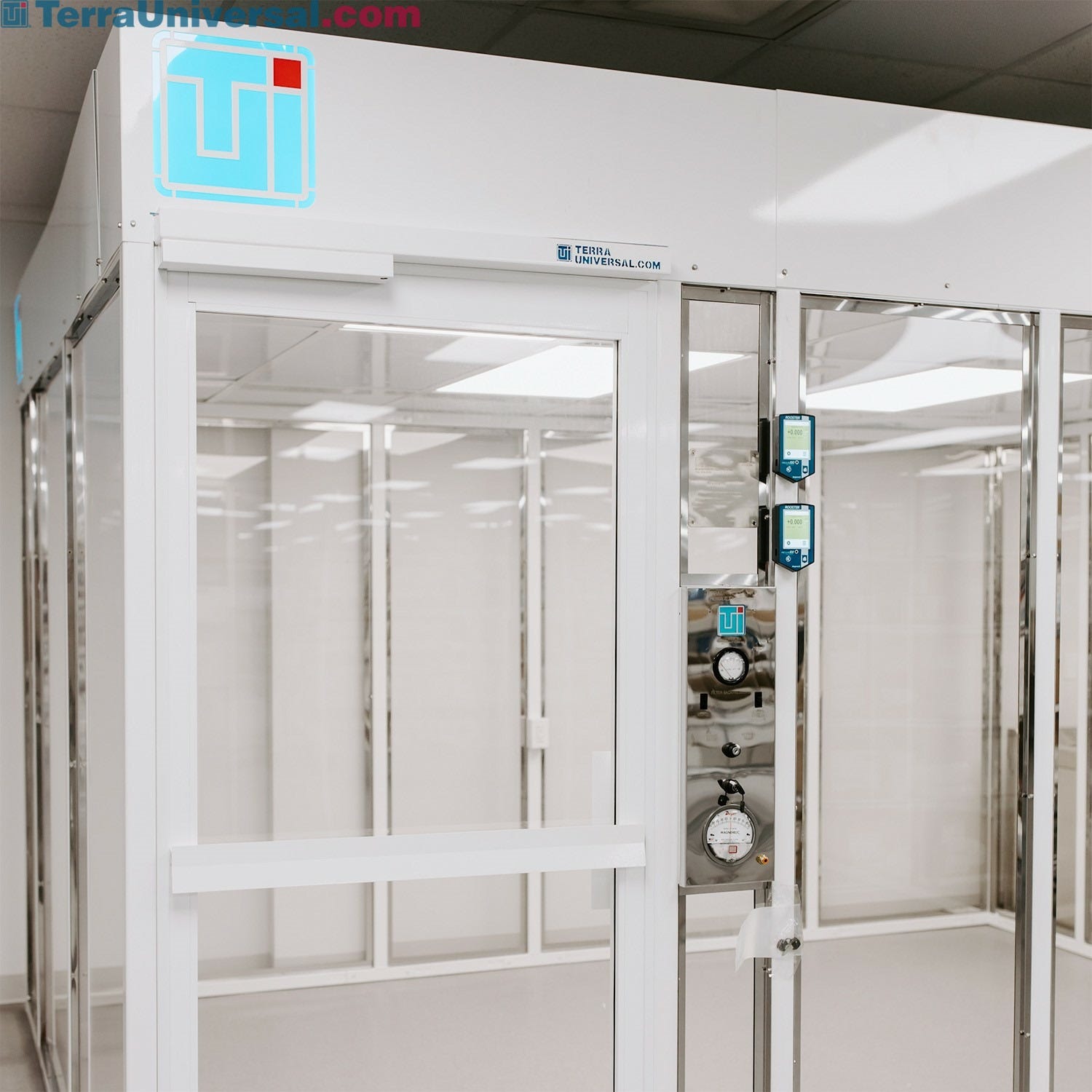

Custom Hardwall Cleanroom for Pharmaceutical Applications

Custom hardwall modular cleanroom includes a mirror-finish stainless steel control panel is durable and easy to clean.

Custom Hardwall Modular Cleanroom for Pharmaceutical Applications

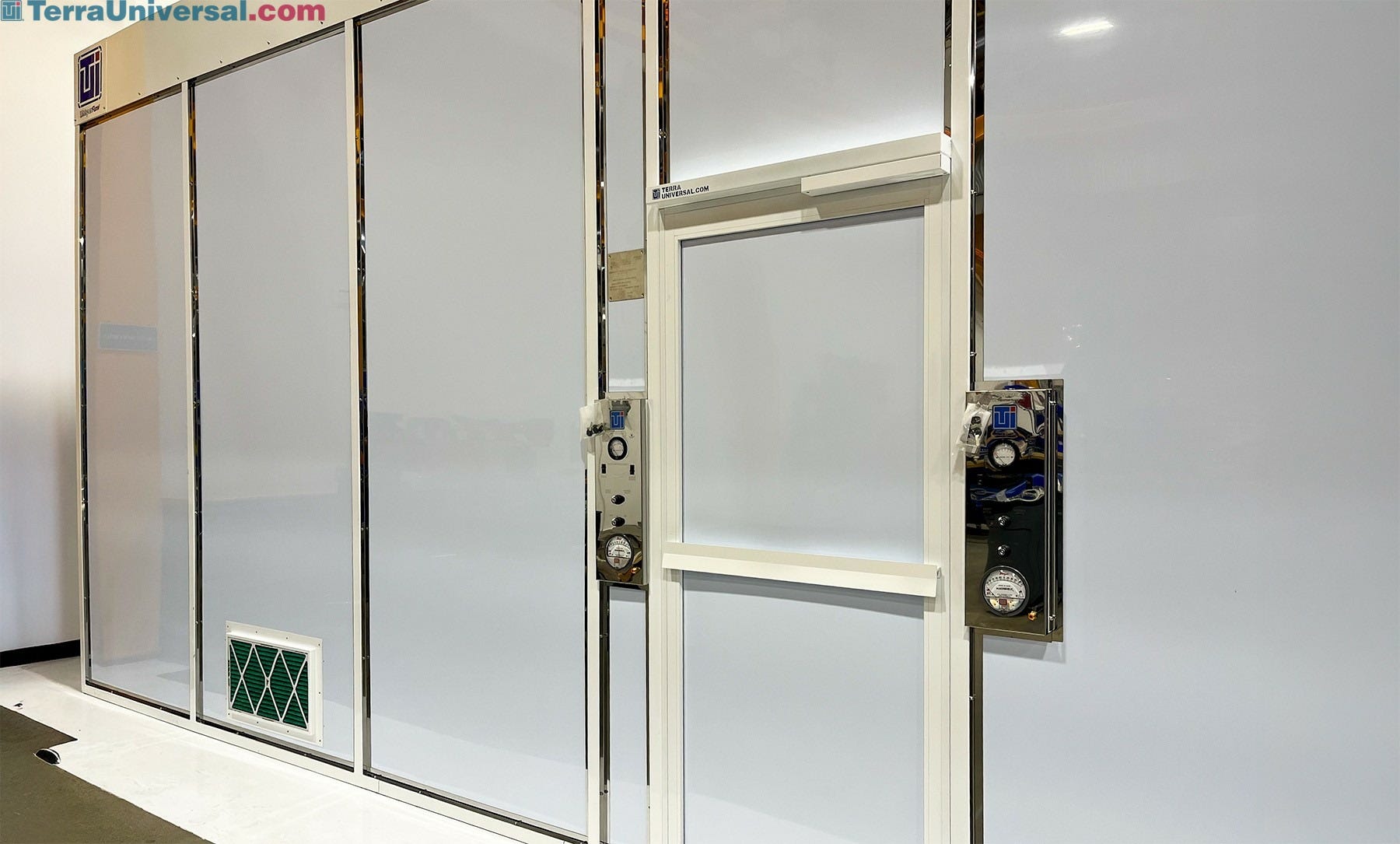

Custom hardwall modular cleanroom include mirror-finish stainless steel L-bracket trim strips that provide an attractive, easy-clean exterior.

Custom Hardwall Modular Cleanroom for Pharmaceutical Applications

Custom hardwall modular cleanroom with SDPVC panels that elimitanes static charges caused by laminar flow, preventing particle attraction and improving cleanliness.

Custom Hardwall Modular Cleanroom for Pharmaceutical Applications

Custom hardwall modular cleanroom are designed with rigid steel frames and ceiling grids supplying sufficient factors of safety to provide vertical and lateral strength recommended by professional engineers.

Custom Hardwall Modular Cleanroom for Pharmaceutical Applications

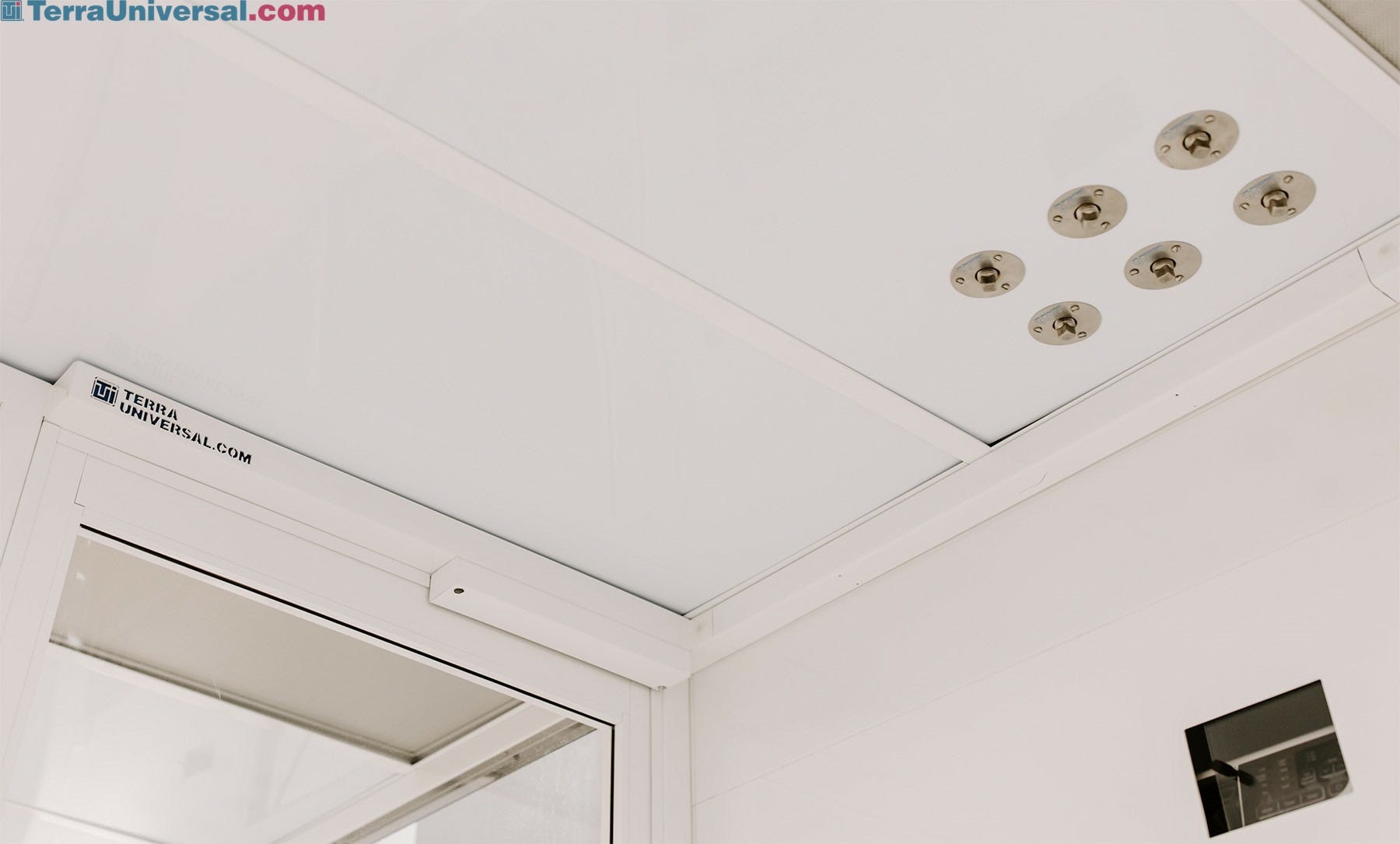

Custom hardwall modular cleanroom includes powder-coated steel ceiling grid that forams 2' X 4' bays for filter/fans, lights or blank panels (order ceiling modules separately).

Custom Hardwall Modular Cleanroom for Pharmaceutical Applications

Custom hardwall modular cleanroom with a mirror-finish stainless steel control panel that provides on/off switches for FFU's lifts, and other system options

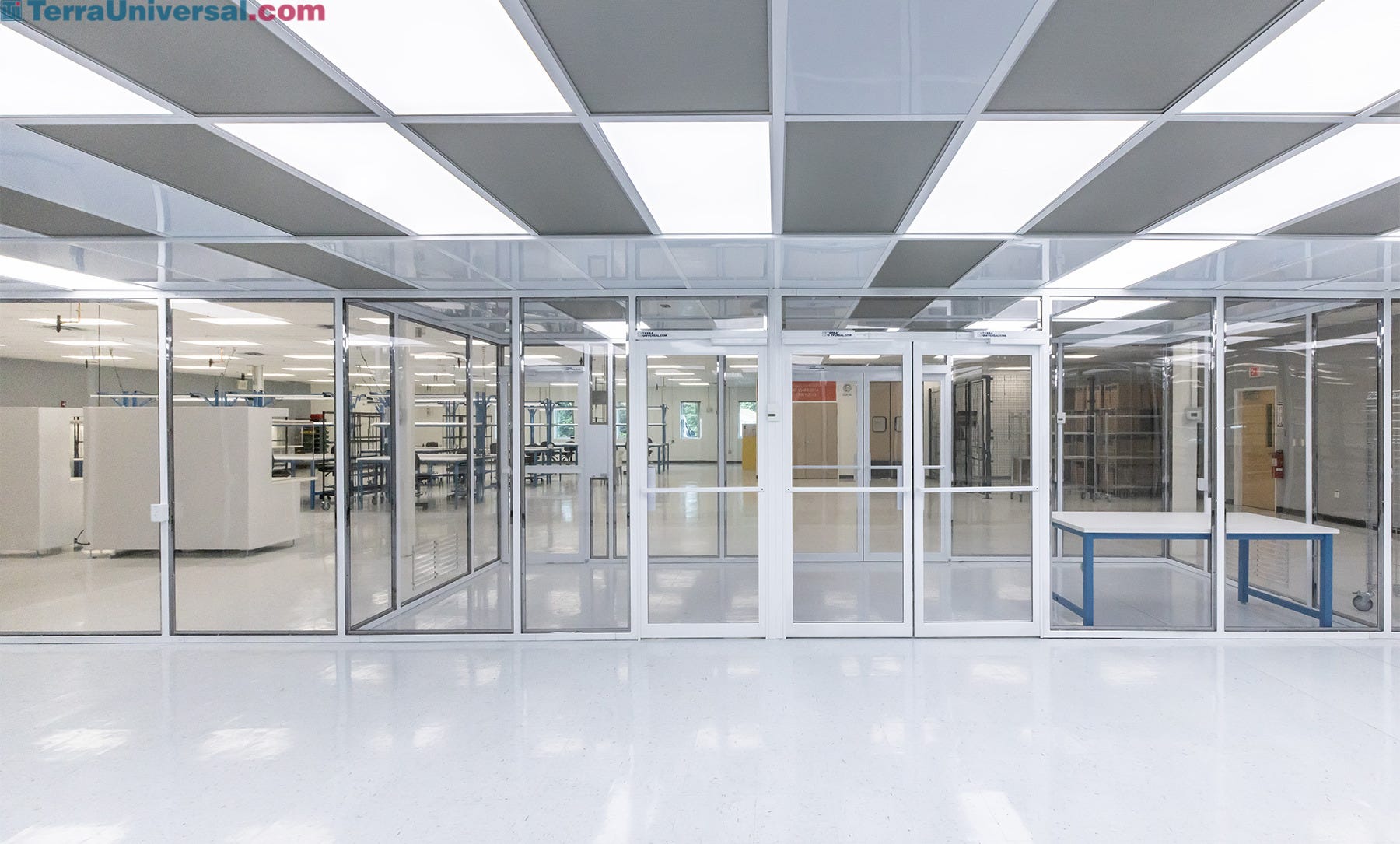

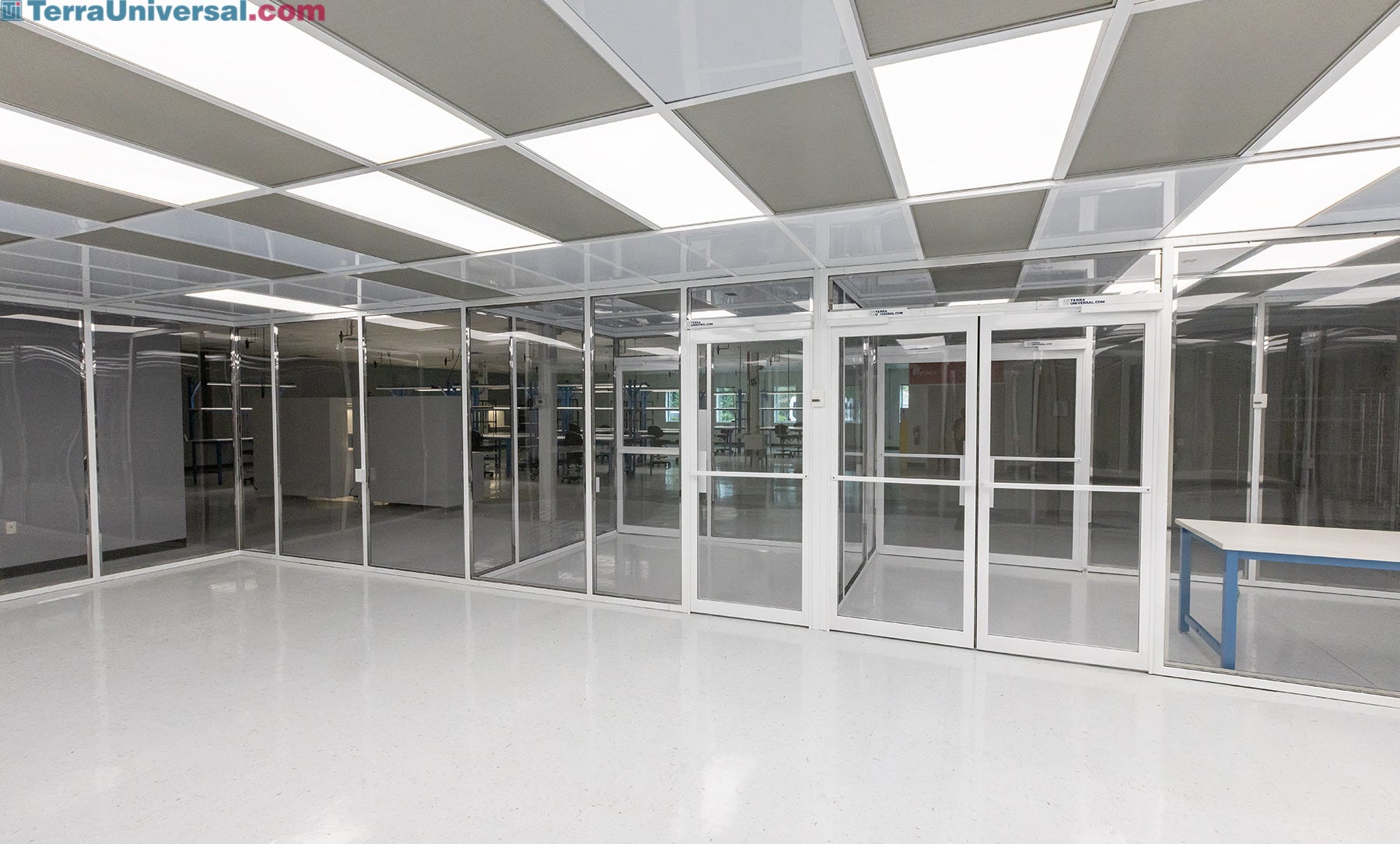

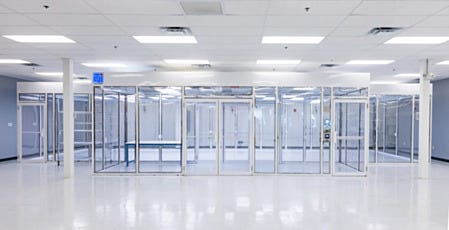

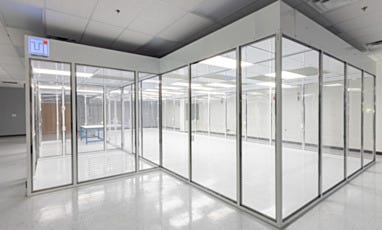

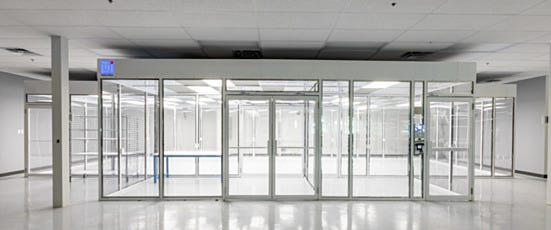

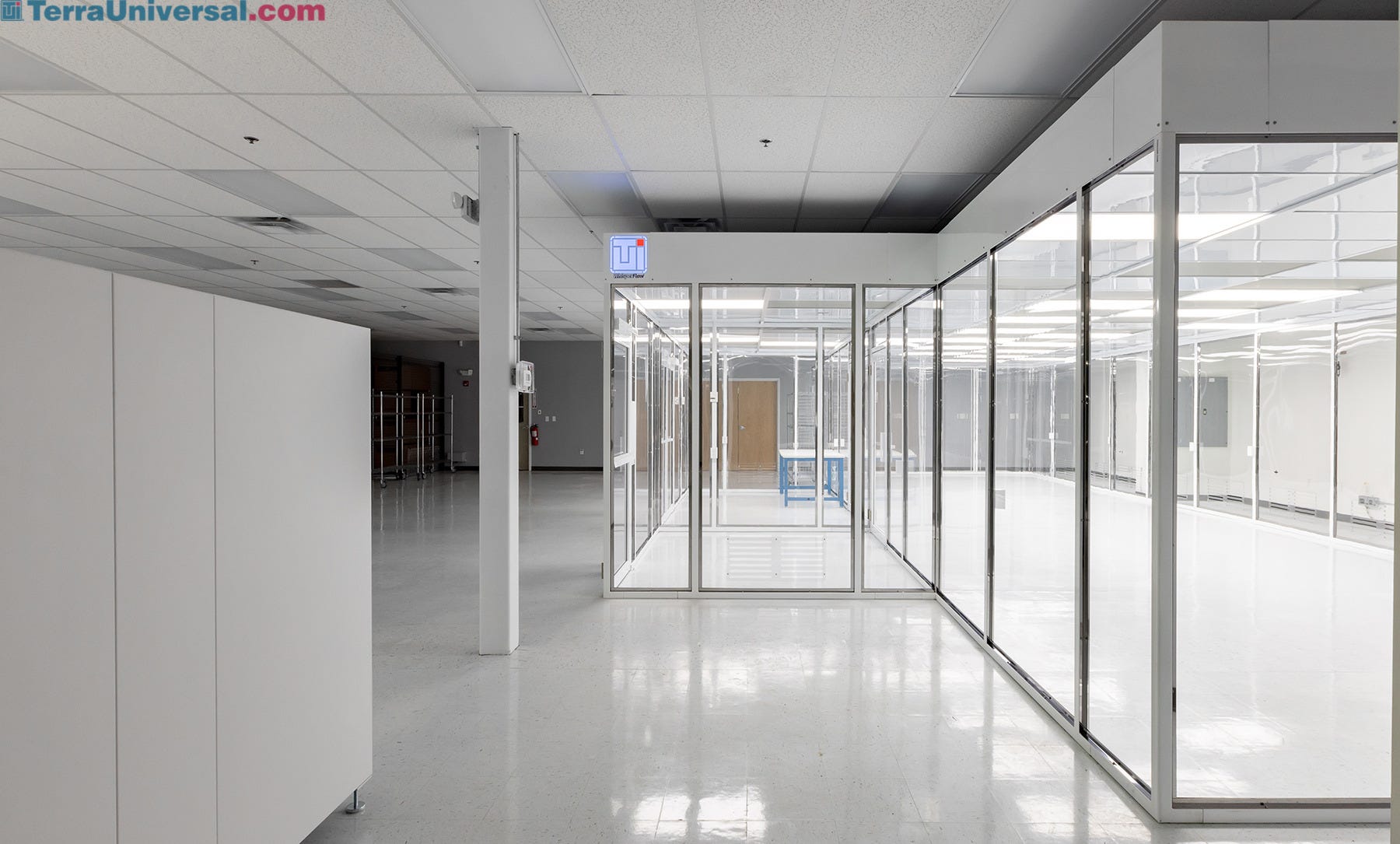

Custom 3-Room Suite for Optical Assembly

Custom 3-Room Suite for Optical Assembly

Custom 3-Room Suite for Optical Assembly

Custom 3-Room Suite for Optical Assembly

Custom 3-Room Suite for Optical Assembly

Custom 3-Room Suite for Optical Assembly

Custom 3-Room Suite for Optical Assembly

Custom 3-Room Suite for Optical Assembly

Custom 3-Room Suite for Optical Assembly

Custom 3-Room Suite for Optical Assembly
